Bayco ORHLT5006 Tripod Halogen Work Light User Manual

Įvadas

This manual provides essential instructions for the safe and effective operation, setup, and maintenance of your Bayco ORHLT5006 Tripod Halogen Work Light. Designed for demanding environments, this 500-watt halogen work light offers powerful illumination with a sturdy, adjustable design. Please read this manual thoroughly before use and retain it for future reference.

Svarbi saugos informacija

WARNING: RISK OF ELECTRIC SHOCK, FIRE, AND INJURY TO PERSONS.

• Always ensure the work light is unplugged before attempting any assembly, disassembly, or bulb replacement.
• The halogen bulb and surrounding metal parts become extremely hot during operation. NELIESKITE the bulb or metal housing when the light is on or immediately after turning it off. Allow sufficient time for cooling.
• Do not operate the work light near flammable materials or in explosive atmospheres.
• Ensure the work light is placed on a stable, level surface to prevent tipping.
• Do not use the work light if the cord, plug, or housing is damaged.
• Naudokite tik nurodytos galios lemputestage (500 Watts). Using a higher wattage bulb can cause overheating and fire.
• Keep children and pets away from the work light during operation.
• This product is intended for indoor and outdoor use, but protect it from direct rain or excessive moisture.

Pakuotės turinys

• Bayco ORHLT5006 Halogen Work Light Head
• Reguliuojamas trikojo stovas
• 6-foot, 16/3 SJW Power Cord

Sąrankos instrukcijos

1. Išpakuokite komponentus: Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar nėra pažeidimų.
2. Surinkite trikojį: Extend the tripod legs until they are fully spread and stable. Secure any locking mechanisms on the tripod base.
3. Attach Light Head: Mount the halogen work light head onto the top of the tripod stand. Ensure it is securely fastened using the provided knobs or screws. The light head is designed to swivel for directional adjustment.
4. Reguliuoti aukštį: Loosen the adjustment knob on the tripod pole to extend or retract the pole to your desired height. Tighten the knob firmly to secure the height.
5. Sureguliuokite šviesos kampą: Use the knobs on the sides of the light head to adjust its vertical angle. Loosen, position, and then tighten to secure.
6. Padėties nustatymas: Place the assembled work light on a stable, level surface in the desired location. Ensure the power cord is routed safely to avoid tripping hazards.

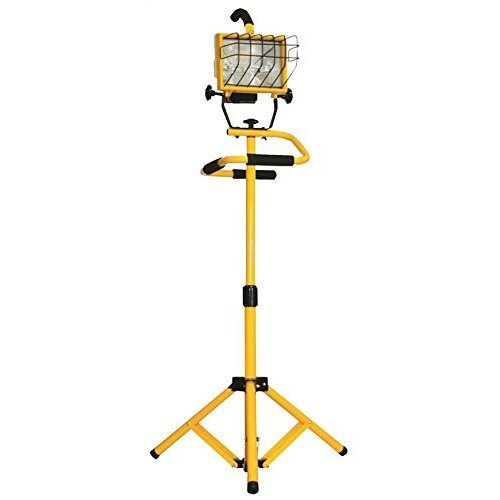

Image: The Bayco ORHLT5006 work light fully assembled on its adjustable tripod.

Naudojimo instrukcijos

1. Prijunkite maitinimą: Prijunkite 6 pėdų maitinimo laidą į standartinį 120 V elektros lizdą.
2. Įjungti/išjungti: Locate the red power button on the back of the light head. Press the button to turn the light ON. Press it again to turn the light OFF.
3. Sureguliuokite šviesos kryptį: The light head can be swiveled horizontally and tilted vertically. Loosen the side knobs to adjust the tilt, and rotate the entire light head on its mount for horizontal adjustment. Tighten all knobs securely once the desired position is achieved.
4. Ryškumas: The 500-watt halogen bulb provides powerful, bright illumination suitable for large areas.

Priežiūra

Lemputės keitimas:

• ĮSPĖJIMAS: Always unplug the work light and allow the bulb to cool completely before attempting replacement.
• To replace the bulb, carefully remove the protective wire cage by unlatching it from the top and bottom.
• Gently pull the old halogen bulb straight out from its ceramic sockets.
• When installing a new bulb, DO NOT TOUCH THE GLASS PORTION OF THE BULB WITH BARE HANDS. Oils from your skin can cause hot spots and premature bulb failure. Use a clean cloth or gloves to handle the new bulb.
• Insert the new 500-watt halogen bulb into the ceramic sockets, ensuring it is fully seated.
• Reattach the protective wire cage securely.

Valymas:

• Prieš valydami, įsitikinkite, kad prietaisas yra atjungtas nuo elektros tinklo ir atvėsęs.
• Išorinius paviršius nuvalykite minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Keep the reflector and bulb free of dust and debris for optimal light output.

Saugykla:

• Store the work light in a dry, protected area when not in use.
• The tripod can be collapsed for more compact storage.

Trikčių šalinimas

• Šviesa neįsijungia:
  • Patikrinkite, ar maitinimo laidas tvirtai įjungtas į veikiantį lizdą.
  • Verify the power button is pressed to the ON position.
  • Inspect the halogen bulb for breakage or a burnt filament. Replace if necessary (refer to Bulb Replacement section).
  • Patikrinkite lizdo grandinės pertraukiklį arba saugiklį.
• Šviesos mirgėjimas:
  • Ensure the bulb is properly seated in its sockets.
  • Check for loose connections in the power cord or outlet.
  • The bulb may be nearing the end of its lifespan. Consider replacing it.

Specifikacijos

Garantija ir palaikymas

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official BAYCO websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.
