NAXA NDC-405 Waterproof HD Action Camera User Manual

Įvadas

The NAXA NDC-405 is a rugged, waterproof HD action camera designed to capture your adventures in high definition. This manual provides essential information on how to set up, operate, maintain, and troubleshoot your device, ensuring optimal performance and longevity. Please read this manual thoroughly before using your camera.

Produktas baigtasview

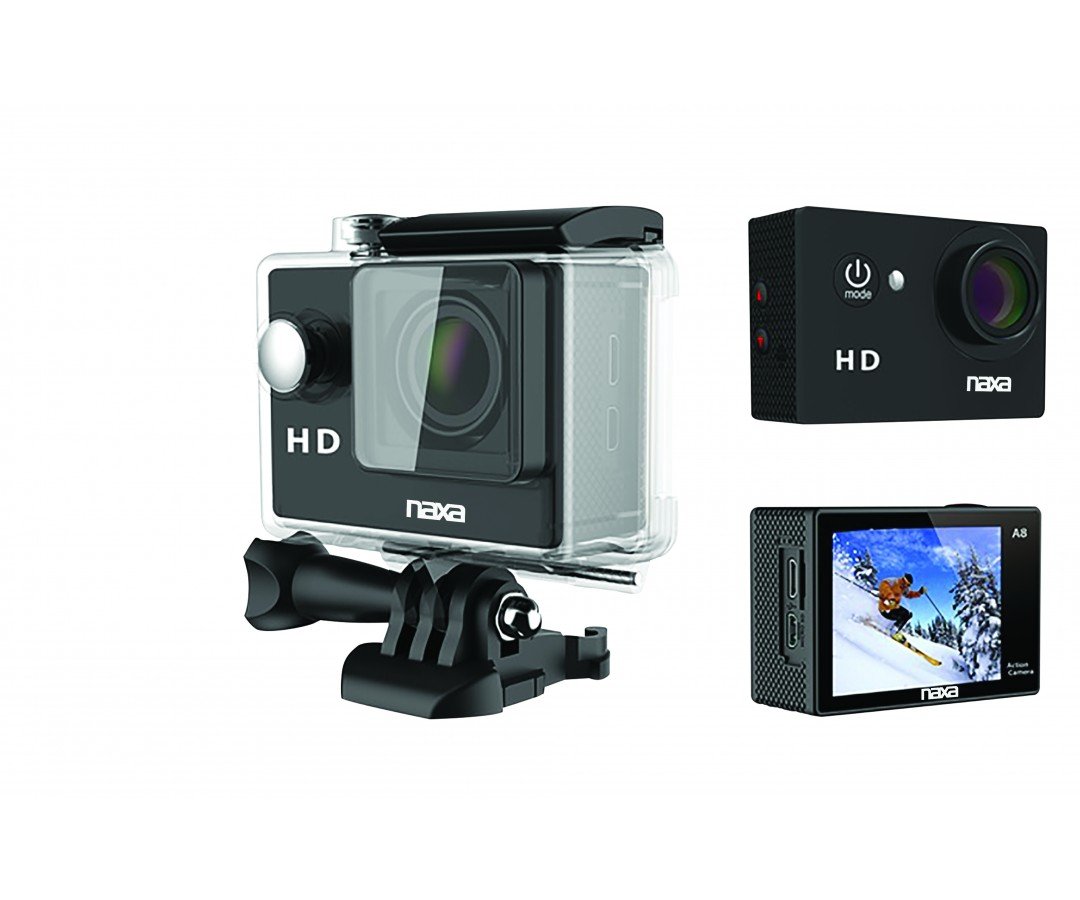

1 vaizdas: Priekyje view of the NAXA NDC-405 Waterproof HD Action Camera. This image displays the camera's compact design, lens, and front-facing controls, highlighting its readiness for action.

Fotoaparato dalys

A detailed diagram illustrating the various components of the NDC-405 camera, including the lens, power button, mode button, shutter/record button, 2-inch LCD screen, microphone, speaker, USB port, and microSD card slot, would typically be placed here. This visual aid helps users identify each part for easier operation.

Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• NAXA NDC-405 Action Camera
• USB įkrovimo laidas
• Assorted Mounting Accessories (e.g., helmet mount, bicycle mount, adhesive mounts)
• Vartotojo vadovas

Sąranka

Akumuliatoriaus įkrovimas

The camera is equipped with a built-in 900mAh rechargeable battery. Before first use, fully charge the battery.

1. Connect the small end of the USB charging cable to the camera's USB port.
2. Prijunkite didesnį USB kabelio galą prie USB maitinimo adapterio (nepridedamas) arba kompiuterio USB prievado.
3. The charging indicator light will illuminate during charging and turn off once fully charged. Charging typically takes 2-3 hours.

Inserting and Removing the MicroSD Card

A microSD or microSDHC card (up to 32GB, Class 10 recommended) is required to store photos and videos. The card is not included.

1. Norėdami įterpti: Locate the microSD card slot on the side of the camera. Gently push the microSD card into the slot with the gold contacts facing the back of the camera until it clicks into place.
2. Norėdami pašalinti: Gently push the microSD card inward until it clicks, then release. The card will spring out slightly, allowing you to pull it out.

Note: Ensure the camera is powered off before inserting or removing the microSD card to prevent data corruption.

Attaching Mounts and Accessories

The NDC-405 comes with various mounting accessories to suit different activities. Refer to the specific accessory instructions for proper attachment. Generally, mounts attach to the camera via a standard tripod screw thread or a clip-on mechanism. Ensure all connections are secure before use.

Fotoaparato valdymas

Įjungimas ir išjungimas

• Norėdami įjungti: Press and hold the Power/Mode button for approximately 3 seconds until the LCD screen illuminates.
• Norėdami išjungti: Press and hold the Power/Mode button for approximately 3 seconds until the LCD screen turns off.

Režimų keitimas

After powering on, repeatedly press the Power/Mode button to cycle through the available modes: Video Recording, Photo Capture, and Playback. The current mode icon will be displayed on the LCD screen.

Vaizdo įrašo įrašymas

1. Ensure the camera is in Video Recording mode (indicated by a video camera icon).
2. Press the Shutter/Record button once to start recording. A red dot or timer will appear on the screen, indicating recording is in progress.
3. Press the Shutter/Record button again to stop recording. The video file will be saved to the microSD card.

Fotografavimas

1. Ensure the camera is in Photo Capture mode (indicated by a camera icon).
2. Frame your shot using the 2-inch LCD viewieškiklis.
3. Press the Shutter/Record button once to take a photo. The photo will be saved to the microSD card.

Atkūrimas

1. Switch the camera to Playback mode (indicated by a play icon).
2. Use the navigation buttons (if available, or cycle through with Mode button) to browse through your recorded videos and photos.
3. Press the Shutter/Record button to play a selected video or view Nuotrauka.

Prisijungimas prie kompiuterio

Norėdami perkelti files, connect the camera to your computer using the provided USB cable. The camera will appear as a removable disk drive, allowing you to access and copy your photos and videos.

Waterproof Usage Guidelines

The NDC-405 is designed to be waterproof up to 30 meters (IP68 rated) without additional housing. Ensure all ports (USB, microSD slot) are securely closed before submerging the camera in water. After use in saltwater, rinse the camera with fresh water and dry thoroughly.

Priežiūra

Fotoaparato valymas

• Fotoaparato korpusą valykite minkštu, nepūkuotu audiniu.
• Objektyvui valyti naudokite specializuotą lęšių valymo šluostę ir tirpalą. Venkite abrazyvinių medžiagų.
• Do not use strong chemical cleaners, as they may damage the camera's finish or seals.

Sandėliavimas

When not in use, store the camera in a cool, dry place away from direct sunlight and extreme temperatures. Remove the microSD card if storing for extended periods.

Trikčių šalinimas

Specifikacijos

Garantija ir palaikymas

For warranty information and technical support, please refer to the warranty card included with your product or visit the official NAXA Electronics website. Keep your purchase receipt as proof of purchase for any warranty claims. Do not attempt to repair the device yourself, as this may void the warranty.
