Guest U-3606 Spotlight/Floodlight Control Panel Instruction Manual

1. Produktas baigtasview

The Guest U-3606 Control Panel is designed for marine applications, providing intuitive control over spotlight and floodlight functions, including direction. This panel is a robust solution for managing your vessel's lighting needs.

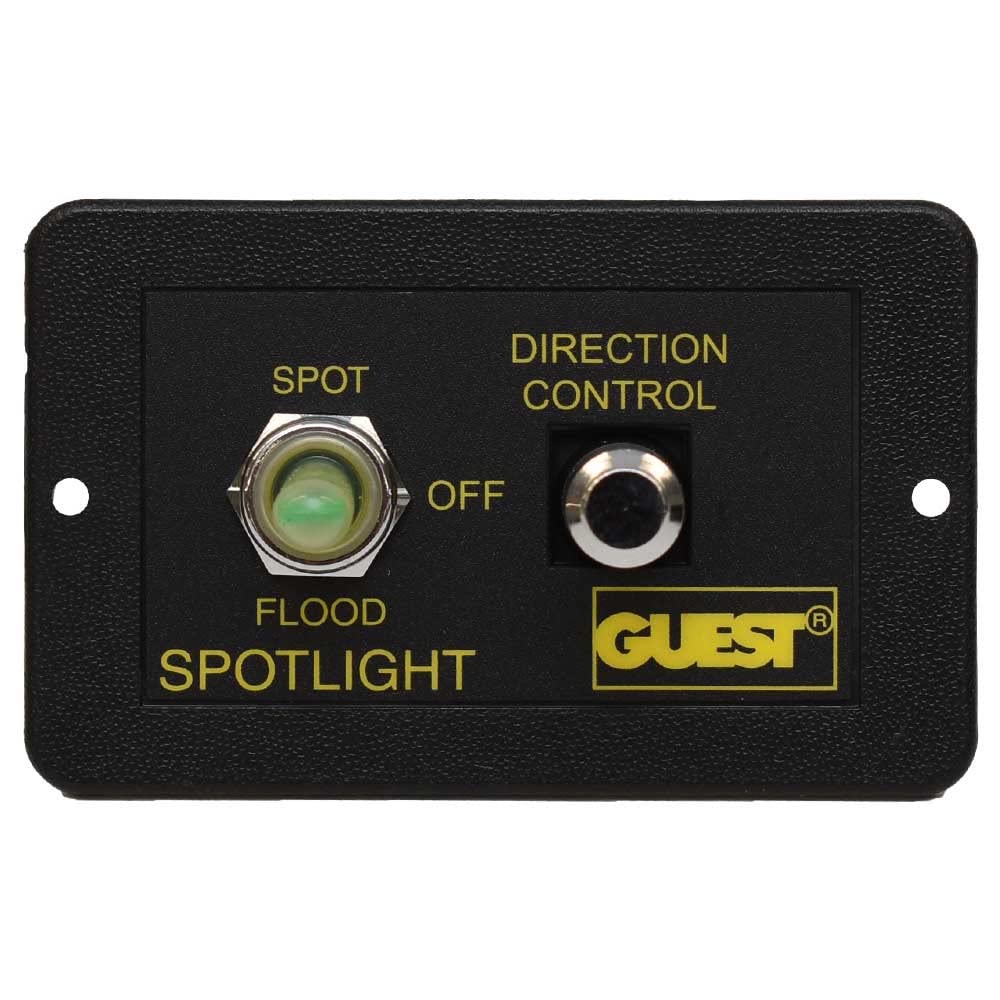

The panel features a three-position toggle switch for selecting between SPOT, OFF, and FLOOD lighting modes, and a separate button for directional control of compatible lights. It comes pre-wired for ease of installation.

2. Sąranka ir diegimas

2.1 Valdymo skydelio montavimas

1. Pasirinkite vietą: Choose a flat, secure surface on your vessel for mounting the control panel. Ensure the location allows for easy access and visibility during operation.
2. Paruoškite atidarymą: Based on the panel dimensions (refer to Figure 3), cut an appropriate opening for flush mounting.
3. Saugus skydelis: Use the provided mounting screws (refer to Figure 4) to secure the control panel firmly in place.

2.2 Laidų jungtys

The control panel comes with a pre-wired harness. Refer to the wiring diagram (if available in your product packaging) and the following general guidelines for connection:

• Maitinimo įvestis: Connect the main power wires (typically red for positive, black for negative) to a fused 12V DC power source. Ensure the fuse rating matches the requirements of your spotlight/floodlight system.
• Šviesos išvestis: Connect the output wires from the panel to your spotlight and floodlight units. Specific wire colors will correspond to SPOT, FLOOD, and common ground connections.
• Krypties valdymas: Connect the directional control wires to the corresponding inputs on your compatible directional spotlight.
• Saugūs ryšiai: Ensure all connections are tight, insulated, and protected from moisture to prevent corrosion and electrical shorts.

3. Naudojimo instrukcijos

The Guest U-3606 Control Panel offers straightforward operation for your marine lighting.

3.1 Spotlight/Floodlight Selection

• Taškinis režimas: Flip the left toggle switch to the 'SPOT' position to activate the spotlight function.
• OFF režimas: Flip the left toggle switch to the 'OFF' (center) position to turn off all lighting.
• FLOOD Mode: Flip the left toggle switch to the 'FLOOD' position to activate the floodlight function.

3.2 Krypties valdymas

• Activate Directional Control: While in SPOT or FLOOD mode, use the 'DIRECTION CONTROL' button (right side of the panel) to adjust the direction of your compatible spotlight.
• Judėjimas: Press and hold the button to move the light. Release to stop. The specific movement (e.g., up/down, left/right) depends on the connected spotlight's capabilities and wiring.

4. Priežiūra

Reguliarus valymas užtikrina jūsų valdymo pulto ilgaamžiškumą ir patikimą veikimą.

• Valymas: Periodically wipe the control panel surface with a soft, damp cloth to remove salt spray, dirt, and grime. Avoid abrasive cleaners or solvents.
• Ryšio patikrinimas: Annually inspect all wiring connections for corrosion, looseness, or damage. Tighten any loose connections and replace corroded terminals.
• Apsauga nuo drėgmės: Ensure the panel remains sealed and protected from excessive moisture ingress, especially in harsh marine environments.

5. Problemų sprendimas

If you encounter issues with your Guest U-3606 Control Panel, refer to the following common problems and solutions:

• Nėra maitinimo į skydą:
  • Check the main power supply to the panel.
  • Verify the fuse in the power circuit is intact and not blown.
  • Inspect all power connections for looseness or corrosion.
• Lights Not Activating:
  • Ensure the correct mode (SPOT or FLOOD) is selected on the toggle switch.
  • Check the wiring connections from the panel to the light fixtures.
  • Verify the light bulbs or LEDs themselves are functional.
• Direction Control Not Responding:
  • Confirm the light is in an active mode (SPOT or FLOOD).
  • Check the wiring connections for the directional control to the spotlight.
  • Ensure your spotlight is compatible with external directional control and is functioning correctly.

If problems persist, consult a qualified marine electrician or contact Guest customer support.

6. Specifikacijos

7. Garantija ir palaikymas

For warranty information and technical support, please refer to the documentation included with your original purchase or visit the official Guest Marine websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.

If you require further assistance, please contact Guest customer service directly. Contact details are typically available on the manufacturer's websvetainėje arba produkto pakuotėje.
