JAMARA 053355 Whelon 4WD Li-Ion 2.4 GHz Monstertruck Instruction Manual

1. Įvadas

Thank you for choosing the JAMARA Whelon 4WD Monstertruck. This 1:12 scale remote-controlled vehicle is designed for outdoor fun, featuring robust construction and advanced electronics. Its splash-proof design, steel wheel axles, and high-grip tires allow it to handle various terrains, including sand, dirt, and puddles. The powerful 500 motor and lithium-ion batteries ensure dynamic performance. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting.

Image 1.1: The JAMARA Whelon Monstertruck, 2.4 GHz remote control, battery charger, and two lithium-ion batteries.

2. Saugos informacija

ĮSPĖJIMAS: This product contains small parts and is not suitable for children under 14 years of age. Adult supervision is recommended during operation.

• Visada vairuokite transporto priemonę atvirose vietose, atokiau nuo žmonių, naminių gyvūnėlių ir kliūčių.
• Do not operate near public roads, water bodies, or high-voltage elektros linijos.
• Ensure all batteries are correctly installed and charged before use.
• Avoid exposing the vehicle or remote control to extreme temperatures or direct sunlight for extended periods.
• Nekeiskite transporto priemonės ar jos komponentų, nes tai gali panaikinti garantiją ir sukelti pavojų saugumui.
• Disconnect batteries when the vehicle is not in use or during storage.

3. Pakuotės turinys

Patikrinkite pakuotės turinį, kad įsitikintumėte, jog yra visi reikalingi daiktai:

• JAMARA Whelon 4WD Model Vehicle
• 2.4 GHz Pistol Grip Remote Control
• 2 x Lithium-Ion Batteries (1500 mAh)
• 230 V akumuliatorių įkroviklis
• Pre-installed Electric Motor
• Pre-installed Electronic Speed Controller (ESC)
• Pre-installed Servo
• Painted Body Shell
• Instrukcijų vadovas (šis dokumentas)

4. Transporto priemonė viršview

The Whelon Monstertruck features a robust chassis and advanced components for optimal performance.

• Splash-proof Electronics: Fully protected against water splashes.
• Encapsulated Gearbox: Protected from dirt and debris.
• Front Cardan Drive Shaft: Ensures efficient power transfer.
• Front and Rear Shock Absorbers: Provide excellent damping over rough terrain.
• Fully Suspended Chassis: With adjustable damper angle and track width.
• SuperSoft High Grip Performance Tires: For superior traction.
• 500 Brush Motor: Powerful electric motor.
• CNC Machined Aluminum Motor Cooler: For efficient heat dissipation.
• Robust Plastic Chassis: Patvarus ir lengvas.
• Balanced Chassis: Centralized motor, ESC, and servo for optimal weight distribution.
• External Battery Compartments: For quick battery changes.

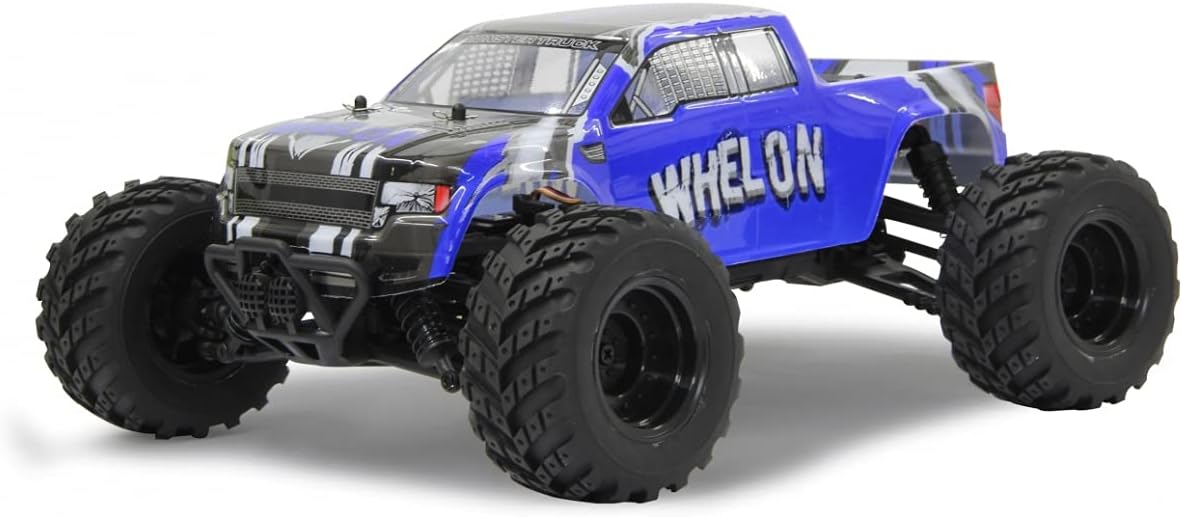

4.1 vaizdas: priekis view of the Whelon Monstertruck, highlighting its robust bumper and large tires.

4.2 pav.: Apatinė pusė view of the Whelon chassis, showing the drivetrain, motor, and suspension components.

5. Nuotolinio valdymo pultasview

The 2.4 GHz pistol grip remote control provides precise command over your Whelon Monstertruck.

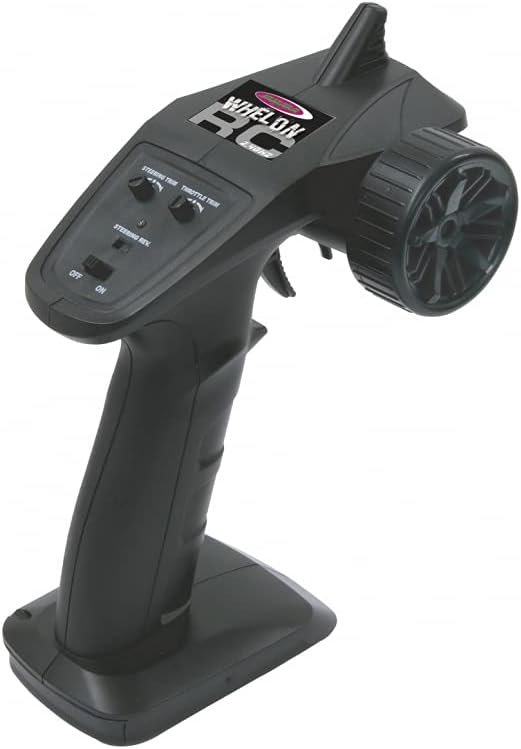

5.1 pav.: Viršus view of the remote control, showing the steering wheel, throttle trigger, and trim adjustments.

• Vairas: Valdo kairįjį ir dešinįjį vairą.
• Droselio gaidukas: Pull for forward, push for reverse/brake.
• Vairo apdaila: Adjusts the neutral steering position.
• Droselio apdaila: Adjusts the neutral throttle position.
• Steering Reverse (ST.REV): Reverses the steering direction.
• Throttle Reverse (TH.REV): Reverses the throttle direction.
• ĮJUNGIMO/IŠJUNGIMO jungiklis: Powers the remote control on or off.

6. Sąranka ir pirmasis naudojimas

6.1. Akumuliatoriaus įkrovimas

1. Connect the 230V charger to a power outlet.
2. Connect one of the provided Lithium-Ion batteries to the charger.
3. Allow the battery to charge fully. Refer to the charger's indicator light for charging status (typically red for charging, green for fully charged).
4. Once charged, disconnect the battery from the charger. Repeat for the second battery.

6.2. Akumuliatoriaus montavimas (automobilyje)

1. Locate the external battery compartments on the vehicle chassis.
2. Carefully insert a charged Lithium-Ion battery into each compartment, ensuring correct polarity.
3. Secure the battery compartment covers.
4. Connect the battery connectors to the vehicle's ESC.

6.3. Baterijų įdėjimas (nuotolinio valdymo pultas)

1. Atidarykite baterijų skyrių, esantį nuotolinio valdymo pulto apačioje.
2. Insert 4 x AA batteries (not included) according to the polarity markings.
3. Uždarykite akumuliatoriaus skyriaus dangtelį.

6.4. Binding the Remote Control and Vehicle

The remote control and vehicle are typically pre-bound. If re-binding is necessary:

1. Ensure both the vehicle and remote control are switched off.
2. Įjunkite nuotolinio valdymo pultą.
3. Turn on the vehicle. The vehicle's indicator light should flash and then become solid, indicating a successful connection.
4. If the connection is not established, repeat the steps or consult the specific binding instructions in the full manual (if provided separately).

7. Naudojimo instrukcijos

7.1. Pagrindiniai valdikliai

• Persiųsti: Gently pull the throttle trigger towards you.
• Stabdymas/atbulinė eiga: Push the throttle trigger away from you. A quick push will activate the brake, a second push will engage reverse.
• Vairavimas: Turn the steering wheel left or right to control the vehicle's direction.

7.2. Koregavimai

• Vairo apdaila: If the vehicle pulls to one side when the steering wheel is centered, use the Steering Trim dial to adjust until it drives straight.
• Droselio apdaila: If the vehicle moves slightly forward or backward when the throttle trigger is at neutral, use the Throttle Trim dial to adjust until it remains stationary.
• Steering Reverse (ST.REV): If the steering direction is opposite to your input, use this switch to reverse it.
• Throttle Reverse (TH.REV): If the throttle direction is opposite to your input, use this switch to reverse it.

8. Priežiūra

Regular maintenance ensures the longevity and performance of your Whelon Monstertruck.

• Valymas: After each use, especially in dirty or wet conditions, clean the vehicle with a soft brush or compressed air. Avoid using water directly on electronics.
• Patikra: Regularly check for loose screws, damaged parts, or worn tires. Replace any damaged components promptly.
• Varomoji pavara: Inspect the gears and drive shafts for debris or wear. Keep moving parts free of obstructions.
• Akumuliatoriaus priežiūra: Store Lithium-Ion batteries in a cool, dry place. Do not overcharge or over-discharge them. Disconnect batteries from the vehicle when not in use.
• Tepimas: Apply appropriate RC-grade lubricant to moving metal parts as needed, avoiding electrical components.

9. Problemų sprendimas

Jei kyla problemų, žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:

10. Specifikacijos

11. Garantija ir palaikymas

For warranty information, technical support, or spare parts, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims. Availability of spare parts may vary.
