1. Įvadas
1.1 Produktas baigtasview
The Luceco Slimline Guardian 22W LED Floodlight is a high-performance, ultra-flat LED projector designed for various applications. It delivers 1800 lumens of 3000K warm white light with a 95° beam angle. Constructed with a durable die-cast aluminum housing and rated IP65, it is suitable for outdoor use in all weather conditions. The floodlight includes a 1-meter connection cable and features an energy efficiency class of A+.
1 paveikslas: Priekyje view of the Luceco Slimline Guardian 22W LED Floodlight. This image shows the compact, black aluminum housing and the central LED light source.
1.2 Saugos informacija
Prieš montuodami ir naudodami atidžiai perskaitykite visas instrukcijas. Išsaugokite šį vadovą ateičiai.
- Elektros sauga: Installation should be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
- Naudojimas lauke: This product is rated IP65, indicating protection against dust and low-pressure water jets. Ensure all connections are properly sealed for outdoor environments.
- Šiluma: The floodlight may become hot during operation. Do not touch the surface directly when in use.
- Šviesos šaltinis: Do not stare directly into the LED light source when illuminated, as this may cause eye strain or damage.
- Žala: Nenaudokite prožektoriaus, jei pažeistas laidas ar korpusas.
2. Sąranka ir diegimas
The Luceco Slimline Guardian floodlight is designed for quick and easy installation using its unique "Fit and Tilt" bracket.
- Paruošimas: Ensure the power supply is switched off at the mains before commencing installation.
- Montavimo vieta: Choose a suitable mounting location that can support the weight of the floodlight and provides the desired illumination area. The floodlight is suitable for wall or surface mounting.
- Laikiklio montavimas: Use appropriate screws and wall plugs (not supplied) to securely attach the floodlight's bracket to the desired surface. The bracket allows for angle adjustment after mounting.
- Laidai: Connect the 1-meter H05RN-F rubber cable to your mains power supply. Ensure all electrical connections are secure and properly insulated, especially for outdoor installations. Refer to local wiring regulations.
- Reguliavimo kampas: Once mounted, adjust the floodlight's angle to direct the light as required. Secure the angle by tightening the screws on the bracket.
2 paveikslas: The Luceco Slimline Guardian floodlight installed on a brick wall, demonstrating its typical mounting and illumination. The adjustable bracket is visible.

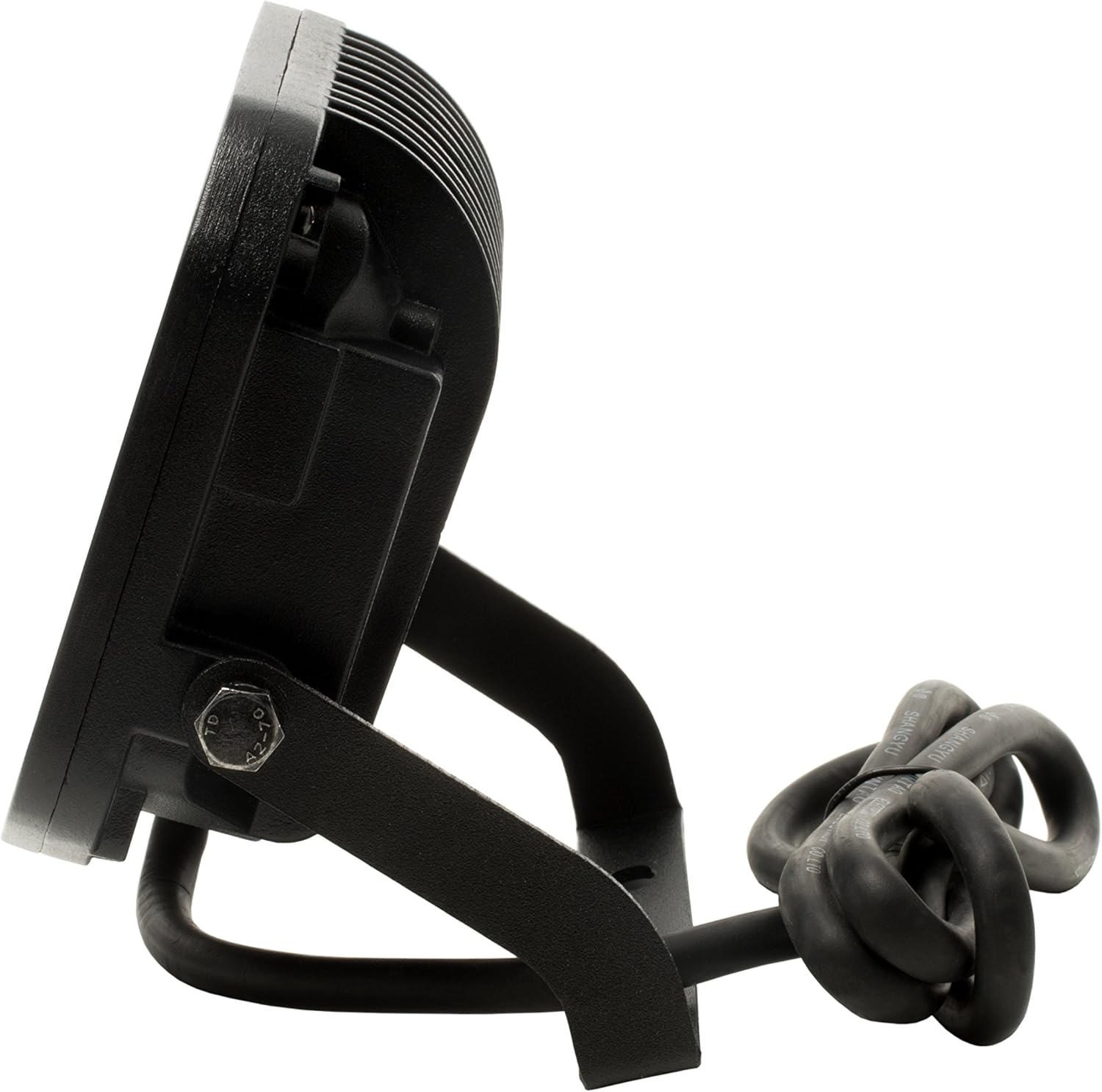

3 paveikslas: Šoninė view of the floodlight, highlighting the robust "Fit and Tilt" mounting bracket and the integrated 1-meter connection cable.
3. Naudojimo instrukcijos
The Luceco Slimline Guardian LED Floodlight is designed for straightforward operation.
- Maitinimas: Once correctly installed and wired, switch on the power supply to the floodlight. The LED will illuminate instantly.
- Šviesos išvestis: The floodlight provides 1800 lumens of 3000K warm white light with a wide 95° beam angle, suitable for illuminating work areas or outdoor spaces.
- Energijos efektyvumas: This LED floodlight offers over 90% energy savings compared to traditional halogen lights.
4. Priežiūra
The Luceco Slimline Guardian LED Floodlight requires minimal maintenance due to its robust design and LED technology.
- Valymas: Ensure the power is off before cleaning. Wipe the floodlight's exterior with a soft, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Patikra: Periodically inspect the cable and housing for any signs of damage. If damage is found, disconnect power immediately and consult a qualified electrician.
- Nėra naudotojo aptarnaujamų dalių: The LED light source is integrated and not user-replaceable. Do not attempt to open or repair the unit.
- Patvarumas: With an average lifespan of 30,000 hours, the floodlight is designed for long-term, maintenance-free operation once installed.
5. Problemų sprendimas
If you encounter issues with your Luceco Slimline Guardian LED Floodlight, refer to the following common problems and solutions:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Šviesa neįsijungia. | Nėra maitinimo. Neteisingas laidų prijungimas. | Patikrinkite, ar įjungtas maitinimo jungiklis. Verify all electrical connections are secure. Consult a qualified electrician if unsure. |
| Šviesa blanki arba mirga. | Nestabilus maitinimo šaltinis. Vidinė klaida. | Ensure the power supply is stable. If the problem persists, discontinue use and contact customer support. |
| Water ingress inside the unit. | Netinkamas sandarinimas montavimo metu. Žala būstui. | Immediately disconnect power. Inspect for damage. Ensure all external connections are properly sealed. If damaged, the unit may need replacement. |
If these steps do not resolve the issue, please contact Luceco technical support.
6. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelio numeris | LFS18B130-EU |
| Energijos suvartojimas | 22 vatų |
| Šviesos srautas | 1800 liumenų |
| Spalvos temperatūra | 3000K (šiltai balta) |
| Spindulio kampas | 95° |
| Spalvų perteikimo indeksas (CRI) | >80 |
| ttage | 240 voltų |
| IP reitingas | IP65 |
| Medžiaga | Aliuminis |
| Spalva | Juoda |
| Gaminio matmenys (I x P x A) | 35 x 31 x 17 cm |
| Prekės svoris | 650 g |
| Vidutinė gyvenimo trukmė | 30,000 valandų |
| Energijos vartojimo efektyvumo klasė | A+ |
| Kabelio ilgis | 1 meter (H05RN-F rubber cable) |
4 paveikslas: Technical drawing illustrating the dimensions (length, width, height) of the Luceco Slimline Guardian 22W LED Floodlight.
7. Garantija ir palaikymas
The Luceco Slimline Guardian 22W LED Floodlight comes with a 3 metų garantija nuo pirkimo datos.
For technical assistance, warranty claims, or any product-related inquiries, please contact Luceco's dedicated technical support team. Contact details can typically be found on the Luceco official websvetainėje arba produkto pakuotėje.
Please have your model number (LFS18B130-EU) and proof of purchase available when contacting support.
