1. Įvadas
This manual provides detailed instructions for the installation, configuration, operation, and maintenance of the Fortinet FortiAP-U321EV Universal Indoor Wireless Access Point. Please read this manual thoroughly before attempting to install or operate the device to ensure proper functionality and safety.

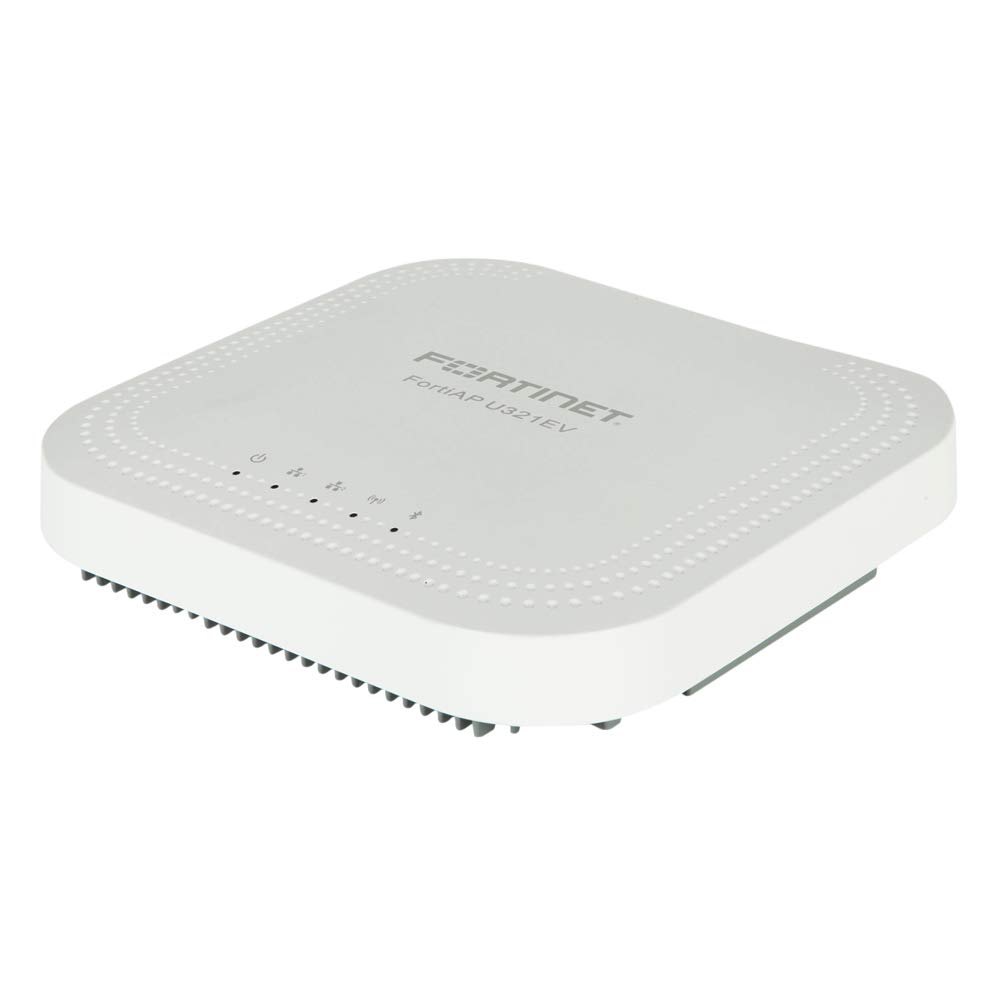

1 paveikslas: Priekyje view of the Fortinet FortiAP-U321EV Universal Indoor Wireless Access Point. This image shows the compact design suitable for indoor deployments.
2. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi daiktai. Jei trūksta kokių nors daiktų arba jie pažeisti, nedelsdami susisiekite su pardavėju.
- FortiAP-U321EV Universal Indoor Wireless Access Point
- Mounting Bracket
- Tvirtinimo detalės (varžtai, inkarai)
- Ethernet Cable (optional, check specific package)
- Greitos pradžios vadovas
3. Sąranka ir diegimas
3.1. Saugos priemonės
- Ensure the installation environment is dry and well-ventilated.
- Nelaikykite prietaiso nuo ekstremalių temperatūrų ar drėgmės.
- Use only the power adapter or Power over Ethernet (PoE) source specified for this device.
- Prieš valydami ar atlikdami prietaiso techninę priežiūrą, atjunkite maitinimą.
3.2. Prieigos taško montavimas
The FortiAP-U321EV can be mounted on a wall or ceiling. Choose a central location for optimal wireless coverage.
- Attach the mounting bracket to the desired surface using the provided screws and anchors.
- Align the FortiAP-U321EV with the mounting bracket.
- Slide the access point onto the bracket until it clicks securely into place.
3.3. Įrenginio įjungimas
The FortiAP-U321EV supports Power over Ethernet (PoE) or an external power adapter (sold separately).
- POE: Connect an Ethernet cable from a PoE-enabled switch or injector to the LAN port on the FortiAP-U321EV.
- Išorinis maitinimo adapteris: Prijunkite maitinimo adapterį prie įrenginio maitinimo įvesties, o tada – prie maitinimo lizdo.
The device will power on automatically. Observe the LED indicators for status.
3.4. Pradinė konfigūracija
The FortiAP-U321EV is typically managed by a FortiGate firewall or FortiCloud. Refer to the FortiGate or FortiCloud documentation for detailed configuration steps.
- Connect the FortiAP to your network.
- Ensure the FortiAP can reach the FortiGate or FortiCloud.
- Authorize and configure the FortiAP from your FortiGate or FortiCloud interface.
4. Operating the FortiAP-U321EV
4.1. LED indikatoriai
Įrenginyje yra LED indikatoriai, rodantys įrenginio būseną:
- Maitinimo šviesos diodas:
- Žalias apšvietimas: įrenginys įjungtas ir veikia normaliai.
- Flashing Green: Device is booting up or performing a firmware upgrade.
- Išjungta: Įrenginys išjungtas.
- Wi-Fi LED (2.4GHz/5GHz):
- Solid Green: Wireless radio is active and transmitting.
- Flashing Green: Data activity on the wireless radio.
- Off: Wireless radio is disabled.
4.2. Belaidis ryšys
Once configured via FortiGate or FortiCloud, the FortiAP-U321EV will broadcast the configured SSIDs (Wi-Fi networks). Users can connect to these networks using standard Wi-Fi client devices.
- Ensure your client device's Wi-Fi is enabled.
- Select the appropriate SSID from the list of available networks.
- Įveskite tinklo slaptažodį (jei reikia).
5. Priežiūra
5.1. Firmware atnaujinimai
Regularly update the device firmware to ensure optimal performance, security, and access to new features. Firmware updates are typically managed through the connected FortiGate or FortiCloud platform.
- Access your FortiGate or FortiCloud management interface.
- Navigate to the FortiAP management section.
- Check for available firmware updates and follow the on-screen instructions to apply them.
- It is recommended to perform updates during off-peak hours to minimize service disruption.
5.2. Valymas
To clean the device, power it off and disconnect it from the power source. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or aerosols.
6. Problemų sprendimas
This section addresses common issues you might encounter with your FortiAP-U321EV.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra maitinimo LED indikacijos | No power supply or faulty power source. |
|
| Nėra „Wi-Fi“ signalo | Wireless radios disabled or incorrect configuration. |
|
| Slow Wi-Fi connection | Interference, poor signal strength, or network congestion. |
|
| Cannot connect to FortiGate/FortiCloud | Network connectivity issues or incorrect management settings. |
|
7. Specifikacijos
Key technical specifications for the FortiAP-U321EV:
- Modelis: FAP-U321EV
- Belaidžio ryšio tipas: 802.11a/b/g/n (Dual Radio, 3x3 MIMO 2.4/5GHz)
- Dažnių juostos klasė: Dviejų juostų
- Operacinė sistema: FortiOS
- Ryšio technologija: Bevielis
- Prekės svoris: Maždaug 3.88 svarų (1.76 kg)
- Pakuotės matmenys: Apytiksliai 13.23 x 11.61 x 4.13 colio (33.6 x 29.5 x 10.5 cm)
- Gamintojas: Fortinet, Inc
- Ypatinga funkcija: WPS („Wi-Fi“ apsaugota sąranka)
- Rekomenduojami naudojimo būdai: Namai, mažas biuras
8. Informacija apie garantiją
Fortinet products are covered by a limited warranty. For specific warranty terms and conditions, including duration and coverage details, please refer to the official Fortinet warranty policy available on their website or contact your authorized Fortinet reseller. Keep your proof of purchase for warranty claims.
9. Techninė pagalba
For technical assistance, product documentation, and software downloads, please visit the official Fortinet support website. You may also contact your authorized Fortinet partner or reseller for local support.
- Fortinet palaikymas Websvetainė: support.fortinet.com
- Fortinet Main Websvetainė: www.fortinet.com
