FLUENTPOWER 3/4HP Sump Pump Instruction Manual

1. Įvadas

The FLUENTPOWER 3/4HP Sump Pump is a robust and efficient submersible pump designed for various water transfer applications. Its stainless steel construction ensures durability and effective cooling. This manual provides essential information for the safe and proper installation, operation, and maintenance of your pump.

2. Saugos informacija

Prieš naudodami siurblį, perskaitykite ir supraskite visus saugos įspėjimus ir instrukcijas. Nesilaikant šių instrukcijų, gali kilti elektros smūgis, gaisras, sunkūs sužalojimai arba turto sugadinimas.

• Always disconnect the pump from the power source before performing any maintenance or adjustments.
• Įsitikinkite, kad maitinimo lizdas yra tinkamai įžemintas ir apsaugotas įžeminimo grandinės pertraukikliu (GFCI).
• Nenaudokite siurblio su pažeistu laidu ar kištuku.
• Do not use the pump to transfer flammable or corrosive liquids.
• Veikiant siurbliui, laikykite vaikus ir naminius gyvūnus atokiau nuo jo.
• The pump is equipped with thermal protection to prevent motor burnout. If the pump triggers the thermal overload protector, it will automatically restart after cooling down.
• Ensure the pump is fully submerged in water during operation to prevent overheating, especially in manual mode.

3. Pakuotės turinys

• FLUENTPOWER 3/4HP Sump Pump
• GHT 3/4" adapter
• NPT 1" adapter
• 1.5" male thread connector (with three different diameter outlets: 1 inch, 1-1/4 inch, 1-1/2 inch)

Figure 1: Main product components including the pump and various adapters.

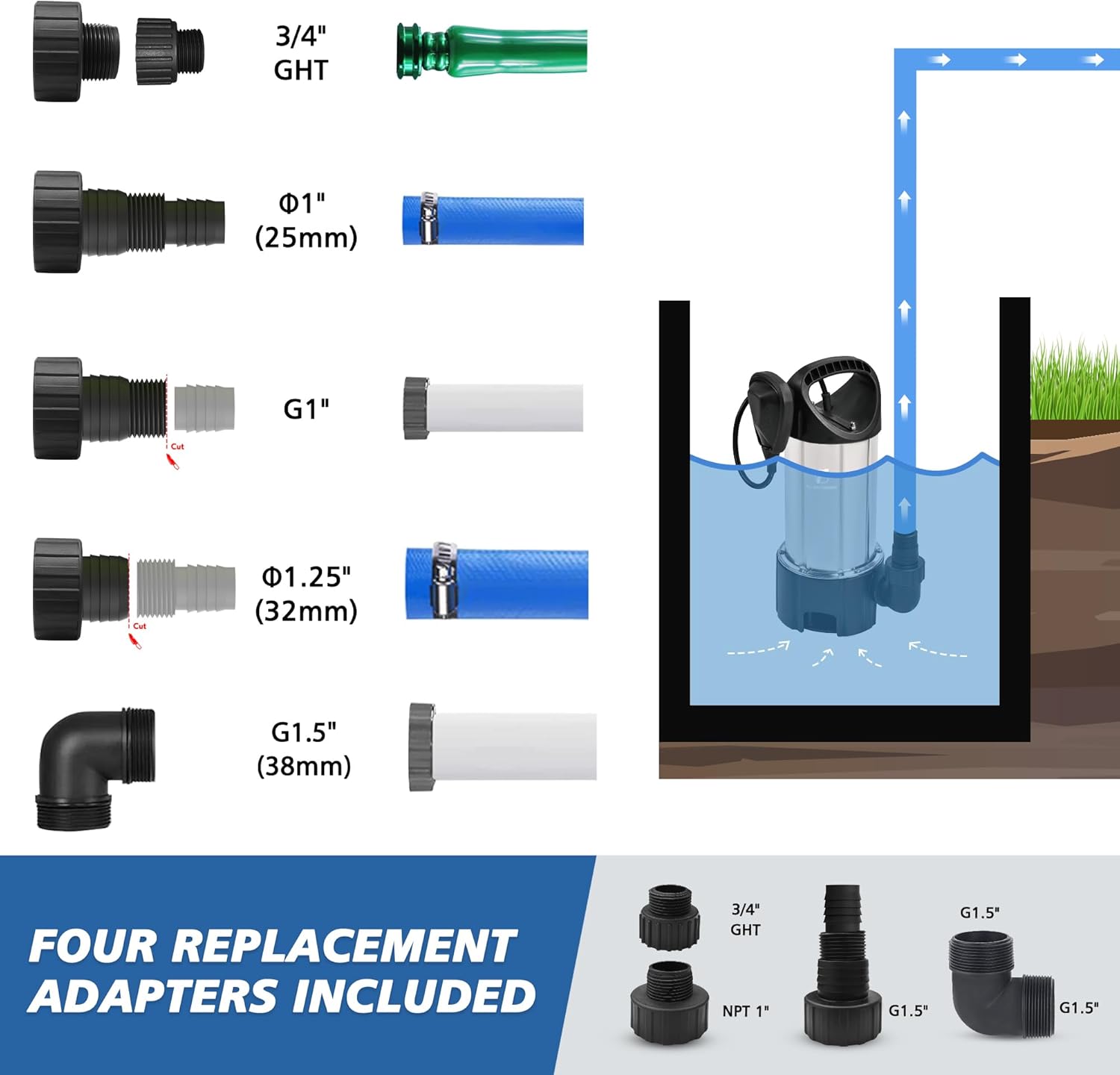

2 pav. Išsamus view of the four replacement adapters provided for hose connections.

4. Sąranka

1. Vieta: Place the pump in the desired location for water drainage. Ensure the pit or area is at least 16 inches by 16 inches for optimal operation.
2. Žarnos jungtis: Select the appropriate adapter (GHT 3/4", NPT 1", or 1.5" male thread) for your discharge hose. Screw the chosen adapter securely onto the pump's discharge port. For maximum flow rate, use the 1.5" male thread adapter with the largest possible outlet diameter (up to 1-1/2 inches) that fits your hose.
3. Submerging the Pump: Before plugging in, tilt and submerge the pump into the water for a few seconds to expel any trapped air inside the pump. This primes the pump for efficient operation.
4. Maitinimo jungtis: Once the pump is properly positioned and the hose is connected, plug the 26.2 ft power cord into a grounded electrical outlet.

Figure 3: The pump positioned in a typical pit, illustrating its dimensions and the recommended minimum pit size.

5. Veikimo režimai

The FLUENTPOWER Sump Pump offers both automatic and manual operation modes, controlled by the integrated float switch.

5.1 Automatinis veikimas

In automatic mode, the pump's ON/OFF function is controlled by the float switch. When the water level rises above 15-20 inches, the pump will automatically start. It will stop working when the water level reaches the stop-level of 6 inches.

5.2 Rankinis valdymas

For situations where the water level is too low for the float switch to operate freely, or if continuous pumping is desired, the pump can be manually controlled. To activate manual mode, simply attach the float switch to its side slot on the pump. In this mode, the pump will run continuously and will not turn off automatically. It can remove water down to 2 inches. Svarbu: Remember to cut off the power immediately once the desired water level is reached to prevent the motor from running dry and potentially burning out.

Figure 4: Illustration of the pump's automatic and manual operating modes based on water level and float switch position.

Figure 5: Key operational features such as float switch activation levels, maximum immersion depth, dirty water particle size capacity, IPX8 waterproof rating, and thermal protection.

6. Našumo duomenys

The following table outlines the pump's performance characteristics at various discharge heights (Head) with a 1.5" thread connection.

Figure 6: Performance chart detailing Gallons Per Minute (GPM) and Gallons Per Hour (GPH) at different discharge heights (Head).

7. Paraiškos

This FLUENTPOWER Sump Pump is versatile and suitable for a wide range of water removal tasks, including:

• Draining flooded basements or cellars
• Emptying garden ponds
• Draining hot tubs and swimming pools
• Transferring water for irrigation in gardens
• Removing water from muddy pits (solids less than 1.4 inches)

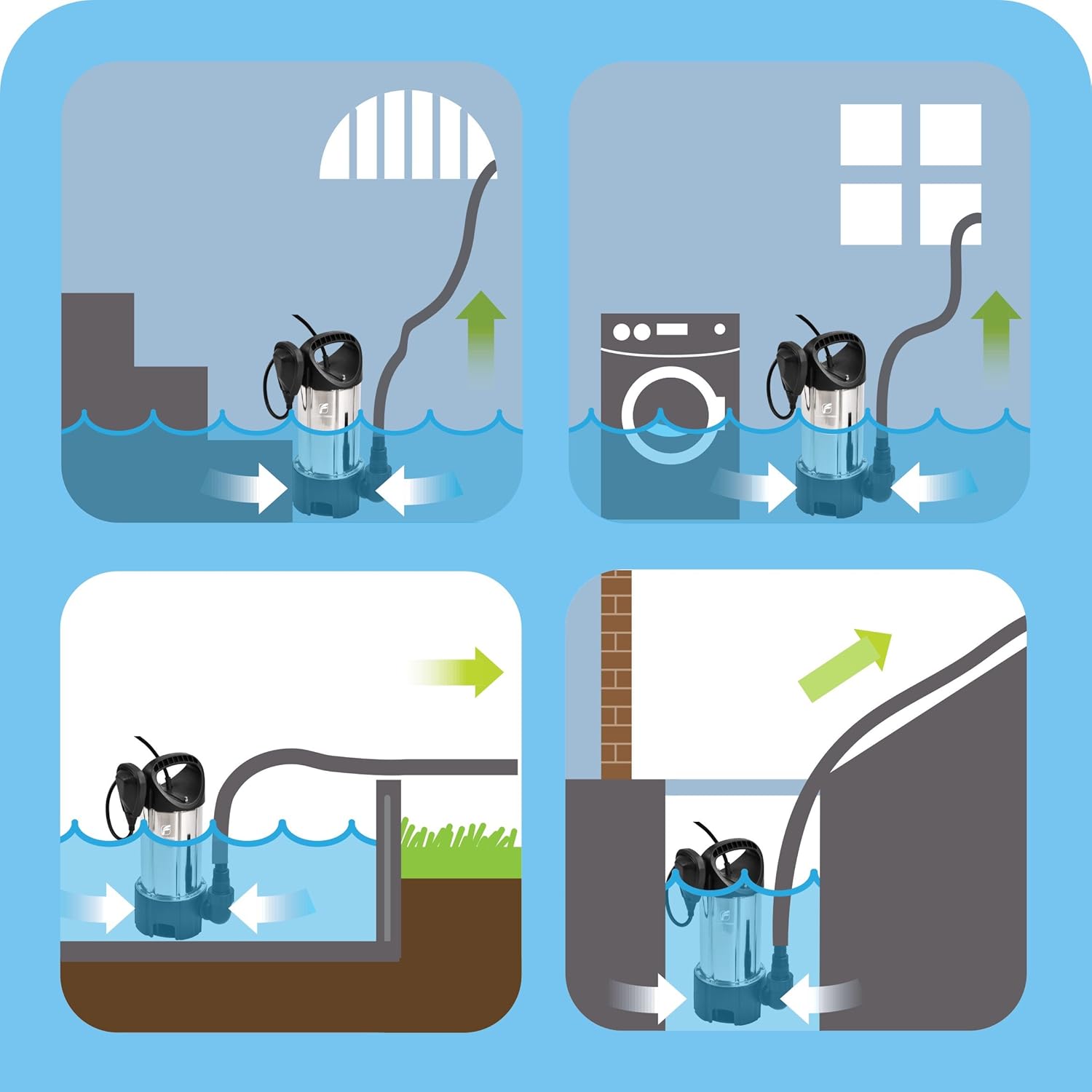

7 pav. Pvzamples of the pump's multi-purpose applications, demonstrating its utility in different water removal scenarios.

8. Priežiūra

Reguliarus siurblio aptarnavimas užtikrina jo ilgaamžiškumą ir optimalų veikimą.

• Valymas: Periodically inspect the pump's intake screen and impeller for debris. Clean any accumulated dirt or foreign objects to prevent clogging and maintain efficient water flow.
• Saugykla: When not in use for extended periods, clean the pump thoroughly, drain all water, and store it in a dry, frost-free location.
• Sealing Structure: The pump features an upgraded sealing structure designed for extended life. Avoid disassembling the pump unless specifically instructed by a qualified technician.

9. Problemų sprendimas

If you encounter issues with your pump, refer to the following common problems and their solutions:

10. Specifikacijos

11. Garantija ir palaikymas

The FLUENTPOWER 3/4HP Sump Pump comes with a one-year manufacturer's warranty. For any technical consultation or customer service inquiries, FLUENTPOWER provides lifelong technical support and 24-hour customer service.

Išsaugokite pirkimo įrodymą, kad galėtumėte kreiptis dėl garantijos.
