Miele Blizzard CX1 Turbo Team Bagless Canister Vacuum

1. Įvadas

The Miele Blizzard CX1 Turbo Team is a high-performance bagless canister vacuum cleaner designed for efficient cleaning of hard floors and low-to-medium pile carpeting. Featuring innovative Vortex Technology and advanced filtration, it ensures thorough dirt separation and hygienic dust disposal. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your appliance.

2. Saugos informacija

Please read this instruction manual carefully before using your vacuum cleaner. Keep it in a safe place for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.

• Nenaudokite prietaiso, jei pažeistas maitinimo laidas.
• Do not vacuum liquids, damp dirt, or hot ashes.
• Prieš naudodami įsitikinkite, kad visi filtrai yra tinkamai sumontuoti.
• Plaukus, laisvus drabužius, pirštus ir visas kūno dalis laikykite toliau nuo angų ir judančių dalių.
• Unplug from the outlet when not in use and before cleaning or maintenance.

3. Produktas baigtasview

The Miele Blizzard CX1 Turbo Team is engineered for powerful cleaning performance and user convenience. Key features include:

• Vortex Technology: Innovative monocyclic technology for efficient separation of coarse and fine dust.
• HEPA Lifetime Filter: Maintenance-free filter ensuring 99.999% filtration of even the smallest particles.
• Gore CleanStream Fine Dust Filter: Self-cleaning filter for hygienic fine dust capture.
• Click2Open Emptying: Hygienic dust bin emptying without contact with fine dust.
• DynamicDrive: Quiet and gentle mobility with four 360-degree swivel wheels.
• Integruoti priedai: Crevice tool and upholstery tool stored on board for easy access.
• Comfort Cable Rewind: Single-touch foot control for automatic cable retraction.

Komponentai

Familiarize yourself with the main components of your Miele Blizzard CX1 Turbo Team vacuum cleaner:

Figure 1: Miele Blizzard CX1 Turbo Team Bagless Canister Vacuum with hose and floorhead attached.

4. Sąranka

Pradiniam surinkimui ir paruošimui atlikite šiuos veiksmus:

1. Pritvirtinkite žarną: Insert the hose into the suction opening on the vacuum cleaner until it clicks into place.
2. Teleskopinio vamzdelio surinkimas: Connect the hose handle to the telescopic wand. Adjust the wand length by pressing the release button and extending or retracting the tube.
3. Grindų antgalio pritvirtinimas: Connect the desired floorhead (TurboTeQ or Parquet Twister) to the telescopic wand until it clicks.
4. Maitinimo jungtis: Extend the power cord by pulling it out. Plug the power cord into a suitable electrical outlet.

5. Naudojimo instrukcijos

Your Miele Blizzard CX1 Turbo Team offers various settings for optimal cleaning on different surfaces.

Maitinimo nustatymai

Use the rotary selector on the vacuum cleaner to choose from 4 suction power settings:

• Min.: For light-duty cleaning, curtains, or delicate fabrics.
• Vidutinė: For upholstery, rugs, or lightly soiled hard floors.
• Maks.: For heavily soiled hard floors and low-to-medium pile carpets.
• Turbo: For maximum suction on carpets, especially for pet hair removal.

Using Floorheads and Accessories

• STB 305-3 TurboTeQ Floorhead: Ideal for low-to-medium pile carpets and effective pet hair removal. The air-driven brush roll agitates carpet fibers for deep cleaning.


Figure 2: The TurboTeQ Floorhead with rotating brush for carpet cleaning.

• SBB 300-3 Parquet Twister Floorhead: Designed for gentle and effortless cleaning of hard floors such as wood, tile, and laminate. Its soft bristles protect delicate surfaces.


Figure 3: The Parquet Twister Floorhead for gentle hard floor cleaning.

• Integruoti priedai: The dusting brush, crevice tool, and upholstery tool are conveniently stored on the vacuum for quick access.

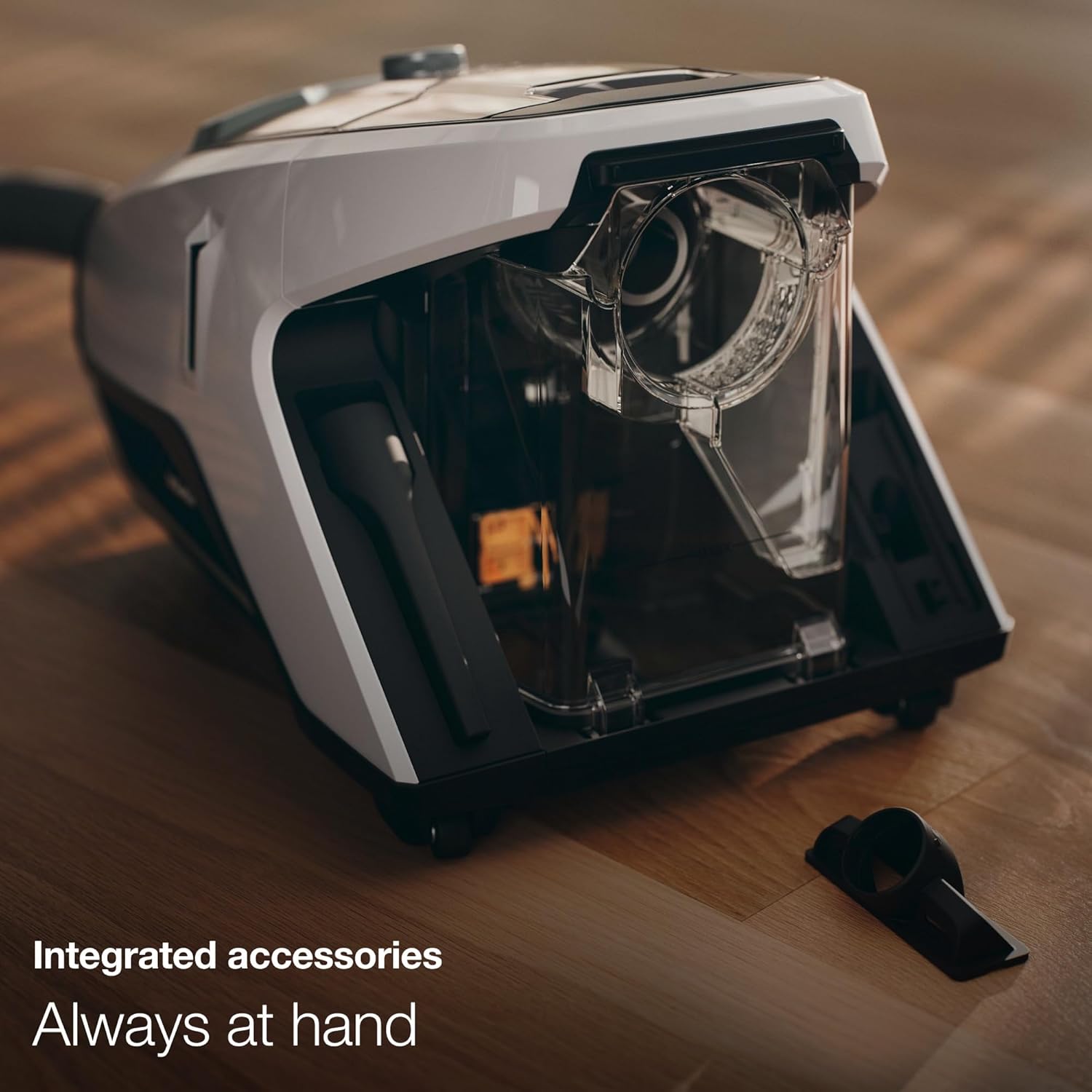

Figure 4: Integrated accessories for versatile cleaning.

Mobility and Convenience

• DynamicDrive Swivel Wheels: The vacuum features four 360-degree swivel wheels for smooth and quiet movement across various floor types.


Figure 5: Close-up of a DynamicDrive swivel wheel.

• Comfort Cable Rewind: Press the foot pedal to automatically retract the power cord.


Figure 6: Foot pressing the comfort cable rewind button.

6. Priežiūra

Regular maintenance ensures optimal performance and longevity of your Miele Blizzard CX1 Turbo Team.

Dulkių dėžės ištuštinimas

The Click2Open hygienic emptying system allows for easy and dust-free disposal:

1. Press the release button to remove the dust container from the vacuum cleaner.
2. Laikykite dulkių konteinerį virš šiukšliadėžės.
3. Press the Click2Open button on the bottom of the container to release the dirt.
4. Close the container lid and reinsert it into the vacuum cleaner.

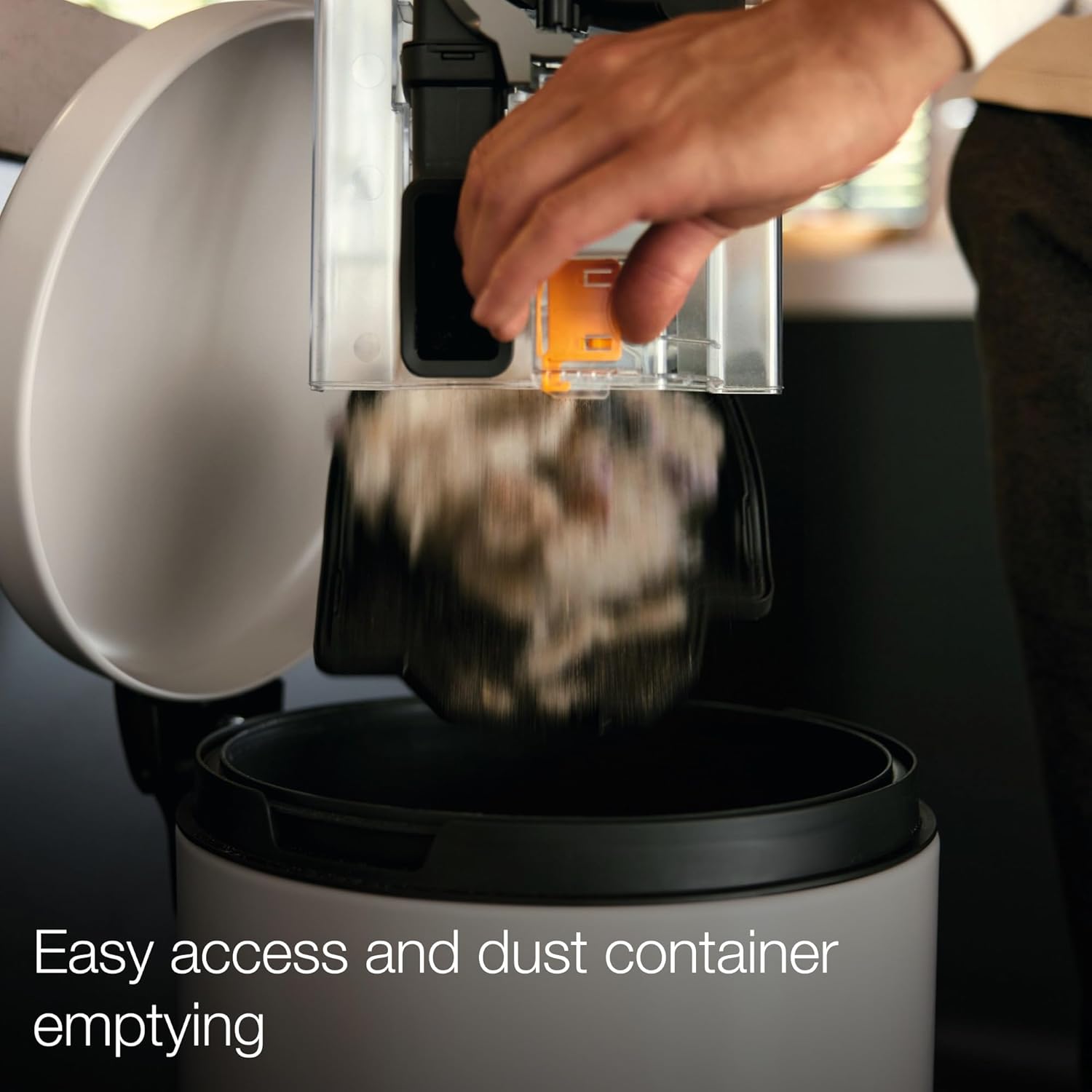

Figure 7: Easy access and dust container emptying.

Filtrų valymas

Your vacuum features a HEPA Lifetime Filter and a Gore CleanStream Fine Dust Filter.

• Gore CleanStream Fine Dust Filter: This filter self-cleans automatically when a certain level of soiling is reached. Manual cleaning is only necessary after approximately six months. To clean, remove the fine dust container and rinse it under running water. Allow it to dry completely before reinserting.


Figure 8: The Gore CleanStream filter for fine dust capture.

• HEPA Lifetime Filter: This filter is maintenance-free and designed to last the lifetime of the appliance, protecting allergy sufferers by retaining 99.999% of particles.


Figure 9: The HEPA Lifetime filter ensures maximum air hygiene.

Video: Miele CX1 Blizzard Filtration

This video demonstrates the filtration process of the Miele Blizzard CX1, highlighting how coarse and fine dust are separated and captured.

7. Problemų sprendimas

If you encounter any issues with your Miele Blizzard CX1 Turbo Team, refer to the following common troubleshooting tips:

• Nėra siurbimo: Check if the dust bin is full and needs emptying. Ensure all filters are clean and properly installed. Verify that the hose, wand, and floorhead are securely connected and free from blockages.
• Sumažintas siurbimas: This can be caused by a full dust bin, clogged filters, or a blockage in the hose or floorhead. Inspect and clean as necessary.
• Dulkių siurblys neįsijungia: Check if the power cord is securely plugged into the outlet and the vacuum. Ensure the on/off switch is pressed.
• Neįprastas triukšmas: This might indicate a blockage or a foreign object in the brush roll or hose. Turn off and unplug the vacuum before inspecting.

For persistent issues, please contact Miele customer support.

8. Specifikacijos

9. Pridedami priedai

The Miele Blizzard CX1 Turbo Team comes with the following accessories:

• STB 305-3 TurboTeQ Floorhead
• SBB 300-3 Parquet Twister Floorhead
• Dusting Brush (integrated on handle)
• Integruotas įtrūkimų įrankis
• Integrated Upholstery Tool

10. Garantija ir palaikymas

Your Miele Blizzard CX1 Turbo Team is covered by a 3 metų ribota garantija. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official Miele websvetainę.

Video: Miele Blizzard CX1 Overview

Šiame vaizdo įraše pateikiama išsami informacijaview of the Miele Blizzard CX1, showcasing jo dizainą ir pagrindines savybes.

Video: Miele Blizzard CX1 Castor Wheels

This short video highlights the smooth-gliding castor wheels of the Miele Blizzard CX1, demonstrating its maneuverability.
