1. Įvadas
The AOFAR HX-700N is a high-precision optoelectronic device designed for accurate distance and speed measurement. It is an ideal tool for various outdoor activities, including hunting, archery, and golf, providing reliable data in diverse conditions. This manual provides comprehensive instructions for the proper setup, operation, maintenance, and troubleshooting of your HX-700N Range Finder.
2. Saugos informacija
Please read and understand all safety warnings and operating instructions before using this device. Failure to do so may result in injury or damage to the product.
- This device uses a Class 1 laser product. Do not stare directly into the laser beam or aim it at others.
- Do not disassemble, modify, or attempt to repair the device. Unauthorized modifications can cause damage and void the warranty.
- Laikykite įrenginį atokiau nuo ekstremalių temperatūrų, tiesioginių saulės spindulių ir didelės drėgmės.
- Ensure the battery is inserted with correct polarity. Remove the battery if the device will not be used for an extended period.
- Laikyti vaikams nepasiekiamoje vietoje.
3. Pakuotės turinys
Upon opening your AOFAR HX-700N package, please verify that all the following items are included:
Image: All items included in the AOFAR HX-700N package.
- 1 x AOFAR HX-700N Rangefinder
- 1 x Vartotojo vadovas
- 1 x CR2-3V Battery
- 1 x Lanyard (Portable Rope)
- 1 x Carabiner Shape
- 1 x nešiojamasis krepšys
- 1 x Valymo šluostė
4. Produktas baigtasview
The AOFAR HX-700N is a compact and durable rangefinder designed for ease of use and high accuracy. It features a robust construction, making it suitable for various outdoor environments.
Image: Key features and components of the AOFAR HX-700N Rangefinder.
Pagrindinės funkcijos:
- Didelis tikslumas: Advanced pinsensor technology with an accuracy of ±1 yard.
- 6 kartų padidinimas: Suteikia aiškų ir padidintą vaizdą viewtolimų taikinių.
- Keli režimai: Features Range, Scan, Fog, and Speed modes for various applications.
- Long Measurement Range: Matuoja atstumus iki 700 jardų.
- Waterproof and Dust Resistant: Patvarus dizainas, skirtas naudoti lauke.
- Kompaktiškas ir nešiojamas: Lightweight design (180g) with dimensions of 110x75x45mm.
- Automatinis išjungimas: Conserves battery life by automatically shutting down after 8 seconds of inactivity.
5. Sąranka
5.1 Akumuliatoriaus įdėjimas
The AOFAR HX-700N uses one CR2-3V battery. To install or replace the battery:
- Suraskite įrenginio akumuliatoriaus skyrių.
- Open the battery cover by twisting or sliding it according to the indicator.
- Insert the CR2-3V battery, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Saugiai uždarykite akumuliatoriaus dangtelį.
5.2 Pradinis įjungimas
After battery installation, press the POWER button (usually the top button) to turn on the device. The display will illuminate, indicating it is ready for use.
6. Naudojimo instrukcijos
6.1 Maitinimo įjungimas/išjungimas
To turn on the device, press the POWER button. The device will automatically power off after 8 seconds of no operation to conserve battery life.
6.2 Režimo pasirinkimas
The HX-700N features four distinct modes for various measurement needs. Click the 'M' (MODE) button to cycle through the modes: Range, Scan, Fog, and Speed.

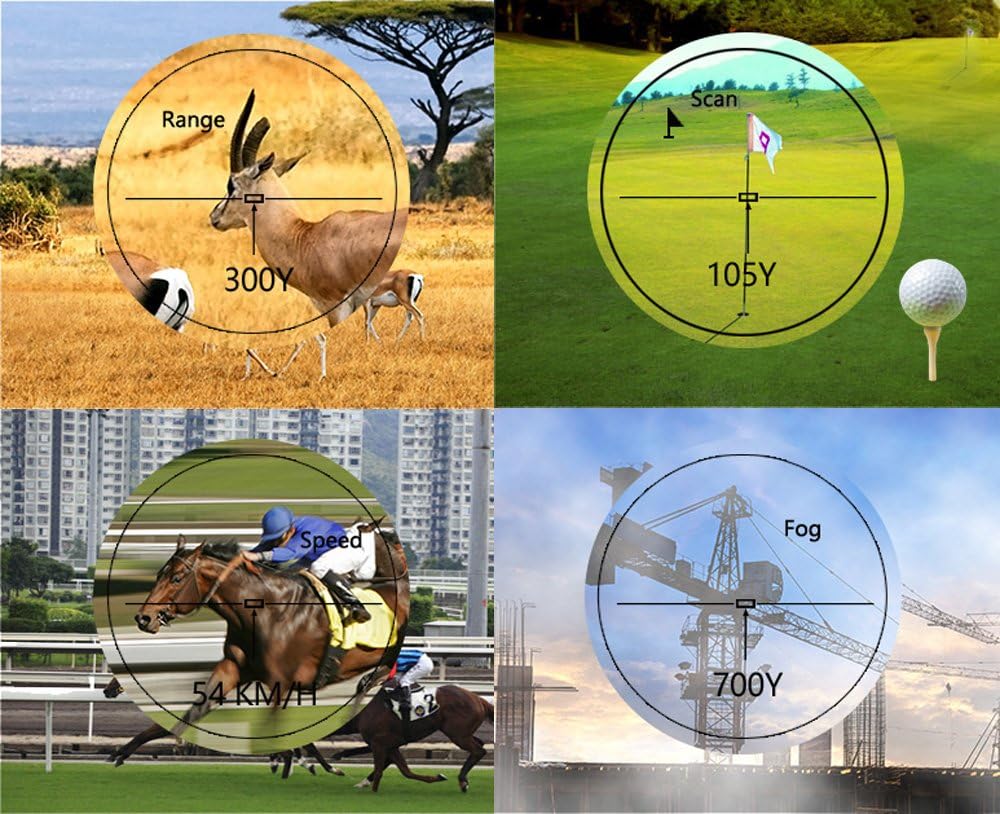

Image: Visual representation of the four operating modes.
6.2.1 Range Mode
This is the standard mode for single distance measurements. Aim at your target and press the POWER button to get an instant distance reading.
6.2.2 Nuskaitymo režimas
For continuous measurement, activate Scan Mode. Press and hold the POWER button while sweeping across multiple targets to get real-time distance updates. This is particularly useful for identifying targets quickly in a landscape.
6.2.3 Fog Mode
Designed for use in adverse weather conditions such as fog or light rain. This mode helps to filter out interference and provide more accurate readings in challenging visibility.
Image: Rangefinder display showing Fog mode in use.
6.2.4 Speed Mode
This mode allows you to measure the speed of a moving object. Aim at the moving target and press the POWER button. The device will calculate and display the speed.
Image: Rangefinder display showing Speed mode in use.
6.3 Unit Measurement (Meters/Yards)
To switch between Meters (M) and Yards (Y), long press the 'M' (MODE) button until the unit changes on the display.
6.4 Fokusavimas
Norint pasiekti aiškų view through the eyepiece, rotate the rotary focal length ring (eyepiece) until the image appears sharp and in focus.
7. Priežiūra
Proper maintenance will ensure the longevity and optimal performance of your AOFAR HX-700N Range Finder.
- Valymas: Use the provided cleaning cloth to gently wipe the lenses and the body of the device. Do not use abrasive materials or chemical cleaners.
- Saugykla: When not in use, store the rangefinder in its carrying pouch in a cool, dry place, away from direct sunlight and extreme temperatures.
- Baterija: Jei prietaisas nebus naudojamas ilgesnį laiką, išimkite bateriją, kad išvengtumėte nuotėkio ir pažeidimų.
- Atsparus vandeniui: While the device is waterproof, avoid submerging it in water for prolonged periods. Dry it thoroughly if it gets wet.
8. Problemų sprendimas
If you encounter issues with your HX-700N, refer to the table below for common problems and their solutions.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Įrenginys neįsijungia. | Baterija išsikrovusi arba neteisingai įdėta. | Check battery polarity. Replace with a new CR2-3V battery. |
| Display shows "_ _ _ _" or inconsistent readings. | Target is too close/far, poor visibility, or obstruction. | Ensure target is within 5-700 yards. Use Fog mode in adverse conditions. Ensure clear line of sight. |
| Display is dim or translucent. | Senka baterija. | Replace the CR2-3V battery. |
| Negalima perjungti režimų ar vienetų. | Neteisingas mygtuko paspaudimas. | Ensure you are clicking (for mode) or long-pressing (for units) the 'M' button correctly. |
9. Specifikacijos
| Specifikacija | Vertė |
|---|---|
| Lazerio tipas | 905nm (Class 1) |
| Matavimo diapazonas (atstumas) | 5-700 jardų |
| Matavimo diapazonas (greitis) | 0-300 km/val |
| Didinimas | 6x |
| Eyepiece Size | 16 mm |
| Išeikite iš mokinio skersmens | 3.8 mm |
| Atstumo matavimo tikslumas | ±1 jardo |
| Greičio matavimo tikslumas | ±5 km/val |
| Grynasis svoris | 180g (0.02 Pounds) |
| Matmenys (IxPxH) | 110 x 75 x 45 mm (4.33 x 2.95 x 1.77 colio) |
| Baterijos tipas | CR2-3V Lithium |
| Darbinė temperatūra | -10°C iki 50°C |
| Atsparumo vandeniui lygis | Neperšlampamas (IP54) |
10. Garantija ir palaikymas
AOFAR stands behind the quality of its products. The HX-700N Range Finder comes with a TWO-year VIP warranty ir pasišventęs visą gyvenimą trunkanti klientų aptarnavimo sistema.
For warranty claims, technical assistance, or any inquiries, please refer to the contact information provided on the product packaging or visit the official AOFAR website. Please have your model number (HX-700N) and purchase details ready when contacting support.
