1. Įvadas
This manual provides essential information for the assembly, operation, and maintenance of your Fms 1400MM Kingfisher RC Airplane Trainer. Please read it thoroughly before operating the aircraft to ensure safe and optimal performance.
The Fms 1400MM Kingfisher is a versatile RC airplane trainer designed for various environments, featuring quick assembly and multiple landing gear options.
2. Saugos priemonės
- Always operate in open areas away from people, buildings, and obstacles.
- Prieš kiekvieną skrydį įsitikinkite, kad visi komponentai yra tvirtai pritvirtinti.
- Check battery levels of both the aircraft and transmitter before flying.
- Neskraidykite esant stipriam vėjui ar nepalankioms oro sąlygoms.
- Keep hands clear of the propeller when the battery is connected.
- Rekomenduojama, kad jaunesni nei 14 metų vartotojai būtų prižiūrimi suaugusiųjų.
3. Sąranka ir surinkimas
The Kingfisher features a user-friendly snap-on structure for quick assembly. The landing gear installation requires screws for added stability.
3.1 Išpakavimas ir komponentų identifikavimas
Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar yra visos dalys pagal pakavimo sąrašą.
Video: FMS 1500MM Cessna 182 Unboxing. This video demonstrates the unboxing process for a similar FMS model, providing a general idea of component layout and initial inspection.
3.2 Važiuoklės montavimas
The Kingfisher includes three sets of landing gears: oversized wheels for grass and gravel, floats for water, and skis for snowy conditions. Install the desired landing gear set using the provided screws for stability.
Video: FMS 1500mm Maule Installation. This video illustrates the installation process for a similar FMS model, including landing gear attachment, which can guide the assembly of your Kingfisher.
3.3 Wing and Tail Assembly
The main wings and tail sections typically snap into place. Ensure all connections are secure. Connect any necessary servo leads from the wings to the fuselage.
3.4 Reflex V3 Flight Controller
The aircraft comes with a Reflex V3 flight controller pre-installed. This system assists in flight stability and control. Refer to the Reflex V3 manual for detailed configuration and flight mode settings.
4. Naudojimo instrukcijos
The Fms Kingfisher is designed as a multipurpose trainer, offering stable flight characteristics suitable for various skill levels.
4.1 Priešskrydiniai patikrinimai
- Įsitikinkite, kad akumuliatorius yra visiškai įkrautas ir saugiai įdėtas.
- Verify all control surfaces (ailerons, elevator, rudder) move freely and correctly in response to transmitter inputs.
- Check propeller for any damage and ensure it is securely attached.
- Confirm the Reflex V3 flight controller is initialized and functioning correctly.
4.2 Kilimas
With the appropriate landing gear installed, position the aircraft into the wind. Gradually increase throttle and apply slight elevator input as needed to achieve lift-off. The Kingfisher is capable of short takeoffs.

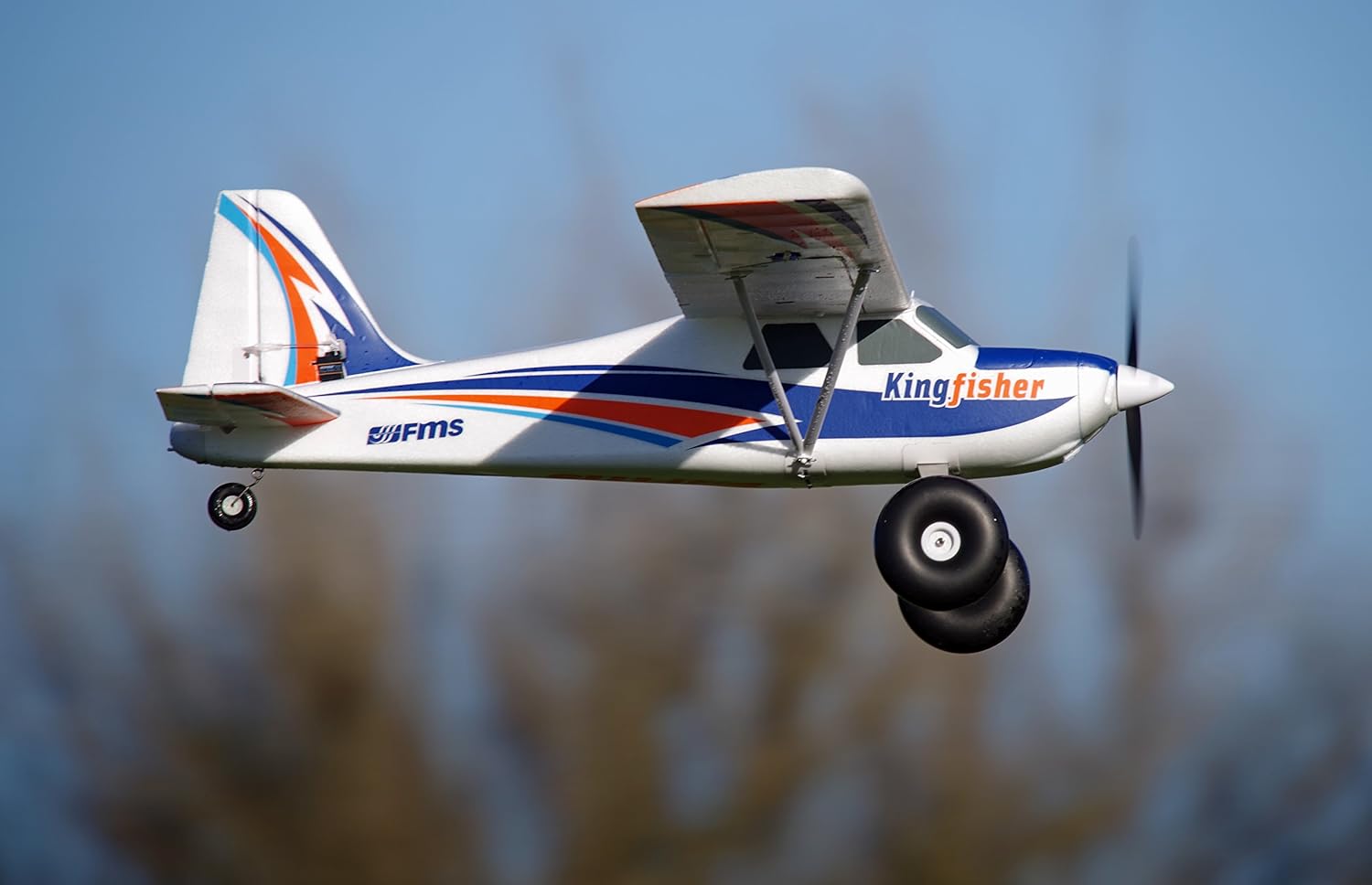

Image: Fms Kingfisher with wheels in flight, demonstrating its capability for land-based operations.
4.3 Skrydžio valdymas
The Reflex V3 flight controller provides stability, making it easier to control. The aircraft is equipped with a Predator 40A ESC and a 3536-KV850 motor for powerful performance.
Video: FMS 1220mm Ranger Flight. This video showcases the flight performance of a similar FMS trainer aircraft, illustrating stable flight and maneuverability.
Image: Fms Kingfisher performing an inverted flight maneuver, highlighting its aerobatic capabilities.
4.4 Nusileidimas
Approach the landing area into the wind. Reduce throttle and gradually decrease altitude. Maintain control with elevator and ailerons, aiming for a smooth touchdown. The oversized wheels are suitable for various terrains.
Image: Fms Kingfisher equipped with floats, demonstrating its water landing and takeoff capabilities.
Image: Fms Kingfisher fitted with skis, showcasing its adaptability for snow and ice operations.
5. Priežiūra
Regular maintenance ensures the longevity and safe operation of your Kingfisher.
- Valymas: After each flight, wipe down the aircraft with a soft, dry cloth to remove dirt, dust, or moisture.
- Komponentų patikrinimas: Regularly check all screws, linkages, and control surfaces for looseness or damage. Tighten or replace as necessary.
- Variklis ir sraigtas: Inspect the propeller for cracks or chips. Replace damaged propellers immediately. Ensure the motor mount is secure.
- Akumuliatoriaus priežiūra: Store batteries in a cool, dry place. Do not overcharge or over-discharge. Follow manufacturer guidelines for battery charging and storage.
- EPO Material: The aircraft is constructed from durable EPO material. Minor dents or creases can often be repaired with hot water or a heat gun (use caution).
6. Problemų sprendimas
This section addresses common issues you might encounter with your Fms Kingfisher.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Orlaivis nereaguoja į valdiklius | Transmitter not bound, low battery (aircraft/transmitter), loose connections. | Re-bind transmitter, charge batteries, check all wiring connections. |
| Prastas skrydžio stabilumas | Incorrect CG (Center of Gravity), damaged control surfaces, Reflex V3 settings. | Adjust CG, inspect and repair/replace damaged parts, verify Reflex V3 calibration. |
| Insufficient power during flight | Low battery, damaged propeller, motor/ESC issue. | Charge battery, replace propeller, inspect motor/ESC for damage. |
| Landing gear issues (e.g., ripping out) | Hard landings, insufficient reinforcement. | Practice smoother landings. Consider reinforcing the landing gear mount with stronger materials if issues persist. |
| Defective servo | Manufacturing defect, damage during use. | Contact customer support for replacement or replace the servo. |
7. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelis | 1400MM Kingfisher |
| Prekės ženklas | Fms |
| ESC | Predator 40A |
| Variklis | 3536-KV850 |
| Rekomenduojamas akumuliatorius | 11.1V 2200mAh 35C (Purchase separately) |
| Surinkimo laikas | Approximately 1 minute (snap-on structure, excluding landing gear screws) |
| Landing Gear Options | Oversized wheels, floats, skis |
| Medžiaga | Durable EPO |
| Ypatingos savybės | Towing capabilities, reserved FPV mounting base, Reflex V3 Flight Controller |
| Prekės svoris | 8.93 svaro |
| Pakuotės matmenys | 37.4 x 16 x 11 colio |
| Gamintojo rekomenduojamas amžius | 14 metai ir daugiau |
8. Garantija ir palaikymas
For warranty claims, returns, or technical support, please refer to the seller's return policy or contact Fms customer service directly. Keep your purchase receipt as proof of purchase.
If your package was damaged during shipping or you received the wrong product, please retain all packing material and original boxes. Provide photos of the damaged product and packaging when contacting support.
