Sygonix PYO-813 Wired Video Intercom System User Manual

1. Įvadas

Thank you for choosing the Sygonix PYO-813 Wired Video Intercom System. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new intercom system. Please read this manual thoroughly before use and retain it for future reference.

2. Saugos instrukcijos

• Ensure all electrical connections are made by a qualified electrician to prevent electric shock or fire hazards.
• Do not expose the outdoor unit to extreme temperatures, direct sunlight for prolonged periods, or heavy rain/snow beyond its water-resistant rating.
• Neatidarykite įrenginio c.asings. Refer all servicing to qualified personnel.
• Keep the indoor monitor away from water and high humidity.
• Use only the power adapter supplied with the system.
• Before cleaning, disconnect the power supply. Use a soft, dry cloth for cleaning.

3. Pakuotės turinys

Patikrinkite pakuotės turinį, kad įsitikintumėte, jog yra visos dalys ir jos nepažeistos:

• 1x Outdoor Camera Unit
• 1x Indoor Monitor Unit (7" TFT LCD)
• 1x maitinimo adapteris
• Tvirtinimo varžtai ir sieniniai kaiščiai
• Vartotojo vadovas (šis dokumentas)

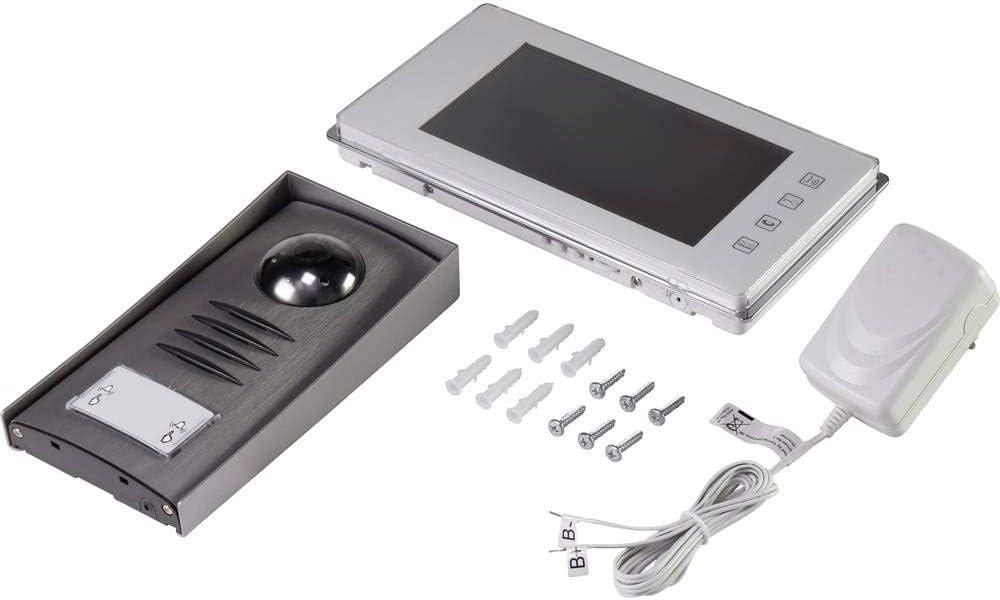

Image: Complete package contents of the Sygonix PYO-813 intercom system.

4. Produktas baigtasview

The Sygonix PYO-813 is a wired video intercom system designed for secure and convenient communication with visitors at your door. It features a hands-free system for clear two-way communication.

4.1 Outdoor Camera Unit

• Adjustable Angle Camera: Leidžia optimaliai viewing of visitors.
• Integruotas garsiakalbis ir mikrofonas: Įgalina dvipusį garso ryšį.
• Water-Resistant Casing: Protects components from splashes.
• Integruoti šviesos diodai: Automatically illuminate in low light conditions for night vision.
• Skambinimo mygtukas: For visitors to initiate a call to the indoor monitor.

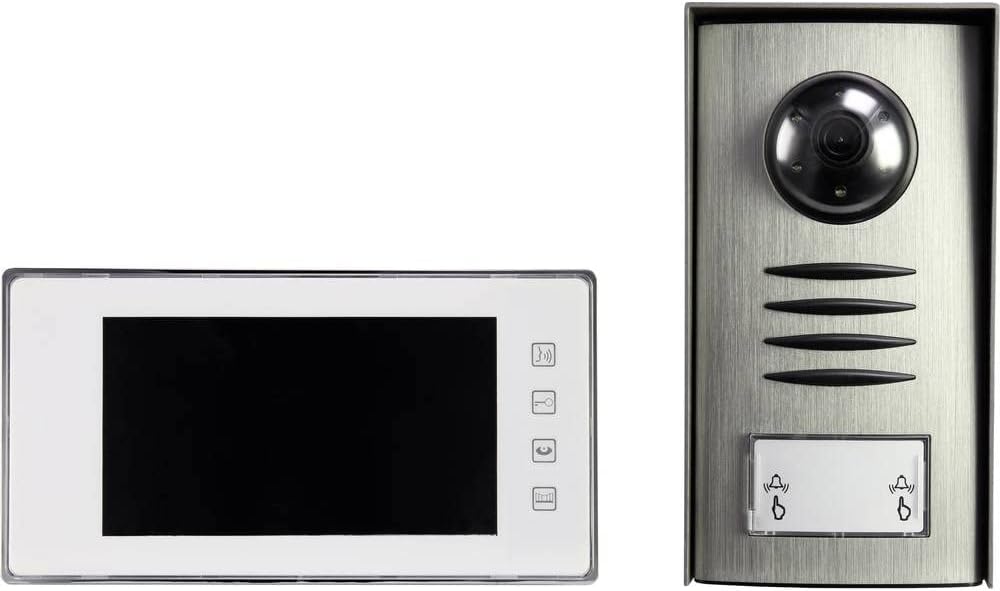

Image: The outdoor camera unit (right) and indoor monitor (left) of the Sygonix PYO-813.

4.2 Vidinis monitoriaus blokas

• 7" TFT LCD Screen: Provides a clear display of the visitor.
• Palieskite mygtukus: For intuitive control of the system functions.
• Integruotas garsiakalbis ir mikrofonas: For hands-free two-way communication.

Vaizdas: Stambus planas view of the Sygonix PYO-813 indoor monitor and outdoor camera unit.

5. Sąranka ir diegimas

Tinkamas montavimas yra labai svarbus optimaliam veikimui. Rekomenduojama, kad montavimą atliktų kvalifikuotas technikas.

5.1 Mounting the Outdoor Camera Unit

1. Choose a suitable location near your entrance, ensuring it is protected from direct heavy weather and at an appropriate height for visitors.
2. Mark the drilling points using the unit as a template.
3. Išgręžkite skyles ir įkiškite sieninius kaiščius.
4. Secure the outdoor unit to the wall using the provided screws.
5. Adjust the camera angle as needed for the best view of your entrance area.

5.2 Vidinio monitoriaus bloko montavimas

1. Select a convenient indoor location, typically near the main entrance or in a central living area.
2. Mark and drill holes, then insert wall plugs.
3. Secure the mounting bracket (if separate) or the monitor directly to the wall.

5.3 Laidų jungtys

Connect the outdoor camera unit to the indoor monitor unit using appropriate wiring (not explicitly listed as included, but implied by "wired intercom"). Ensure all connections are secure and correctly polarized according to the wiring diagram in the full product manual (if available, otherwise general advice).

Connect the power adapter to the indoor monitor unit and then plug it into a suitable power outlet.

6. Naudojimo instrukcijos

6.1 Skambučio priėmimas

• When a visitor presses the call button on the outdoor unit, the indoor monitor will ring and display the visitor's image.
• Paspauskite Atsakymas button (typically a phone icon) on the indoor monitor to establish two-way communication.

6.2 Dvipusis ryšys

Once the call is answered, you can speak with the visitor hands-free through the integrated speakers and microphones on both units.

• Norėdami baigti pokalbį, paspauskite Baigti skambutį button (typically a hang-up icon) or wait for the call to automatically disconnect after a set period.

6.3 Monitoring the Entrance

Galite rankiniu būdu view the outdoor camera feed at any time without a visitor pressing the call button.

• Paspauskite Monitorius button (typically an eye or camera icon) on the indoor monitor to activate the outdoor camera view.
• The integrated LEDs on the outdoor unit will automatically activate in dark conditions to provide clear night vision.

6.4 Nustatymų reguliavimas

The indoor monitor may have touch buttons for adjusting settings such as ringtone volume, display brightness, and contrast. Refer to the icons on your monitor for specific functions.

7. Priežiūra

• Valymas: Use a soft, dry, lint-free cloth to clean the indoor monitor screen and the outdoor unit lens. Do not use abrasive cleaners or solvents.
• Patikra: Periodically check all wiring connections for wear or damage.
• Aplinkos apsauga: Ensure the outdoor unit's water-resistant seals are intact.

8. Problemų sprendimas

9. Specifikacijos

10. Garantija ir palaikymas

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. For technical support or service inquiries, please contact Sygonix customer service or your local distributor.

Gamintojas: Sygonix
