Bagotte SH020 3MP 1296P FHD Wireless IP Camera Instruction Manual

1. Įvadas

Thank you for choosing the Bagotte SH020 3MP 1296P FHD Wireless IP Camera. This manual provides detailed instructions for setting up, operating, and maintaining your camera to ensure optimal performance and security. Please read this manual carefully before use and keep it for future reference.

2. Pakuotės turinys

Įsitikinkite, kad pakuotėje yra visi daiktai:

• 1 x Bagotte SH020 IP Camera
• 1x maitinimo adapteris
• 1x USB laidas
• 1 x montavimo kronšteinas
• 2 x Varžtai
• 1 x Vartotojo vadovas

3. Produktas baigtasview

The Bagotte SH020 is a 3MP 1296P Full HD wireless IP camera designed for indoor surveillance. It features pan and tilt functionality, infrared night vision, two-way audio, motion detection, and local storage via a MicroSD card.

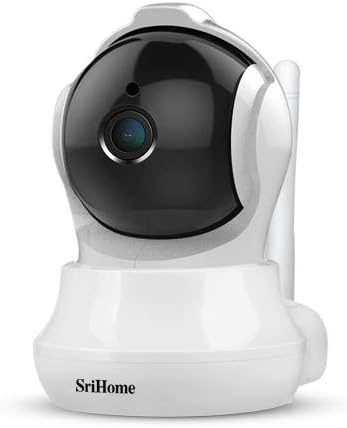

1 vaizdas: priekis view of the Bagotte SH020 3MP 1296P FHD Wireless IP Camera.

Image 2: Diagram illustrating the components of the Bagotte SH020 camera, including the IR sensor, lens, MicroSD card slot, antenna, network interface, power input, and reset button.

4. Sąranka

4.1. Įjungimas

1. Prijunkite USB laidą prie fotoaparato maitinimo įvesties prievado.
2. Įjunkite maitinimo adapterį į standartinį elektros lizdą.
3. The camera will power on and initiate its startup sequence. Wait for the indicator light to flash, indicating it's ready for setup.

4.2. Programos diegimas

Download the recommended mobile application (e.g., SriHome or MIPC, as mentioned in product reviews) from your device's app store (Google Play Store for Android or Apple App Store for iOS). Ieškokite 'SriHome' or 'MIPC' and install the application.

4.3. Prisijungimas prie Wi-Fi

1. Open the installed application and create an account or log in.
2. Follow the in-app instructions to add a new device. This usually involves scanning a QR code located on the camera or manually entering the device ID.
3. Įsitikinkite, kad jūsų mobilusis įrenginys prijungtas prie 2.4 GHz „Wi-Fi“ tinklo. Kamera nepalaiko 5 GHz „Wi-Fi“.
4. Enter your Wi-Fi network password when prompted by the app.
5. The camera will attempt to connect to your Wi-Fi network. Once connected, the indicator light will typically turn solid blue or green, and the app will confirm successful pairing.

4.4. Kameros montavimas

The camera can be placed on a flat surface or mounted to a wall or ceiling using the provided bracket and screws.

1. Pasirinkite tinkamą vietą optimaliam stebėjimo aprėpčiai.
2. Attach the mounting bracket to the desired surface using the screws.
3. Securely attach the camera to the mounting bracket. Ensure it is firmly in place.

5. Fotoaparato valdymas

5.1. Gyvai View ir Valdymas

Access the live video feed through the mobile application. You can remotely control the camera's pan (355°) and tilt (90°) movements to adjust the viewing angle. The app also supports 4x digital zoom.

5.2. Dvipusis garsas

The camera features a built-in microphone and speaker, enabling two-way audio communication. Use the microphone icon in the app to speak through the camera and listen to audio from the camera's location.

5.3. Naktinis matymas

Equipped with 10 IR LEDs, the camera provides clear infrared night vision up to 10 meters, ensuring surveillance even in complete darkness. The IR-Cut filter automatically switches between day and night modes.

5.4. Judesio aptikimas ir signalizacijos

The camera supports motion detection with adjustable sensitivity. When motion is detected, the camera can trigger an alarm, send push notifications to your phone, and initiate recording. Advanced AI features include auto motion tracking and humanoid detection.

5.5. Įrašymas ir saugojimas

The camera supports MicroSD cards up to 128GB for local storage of recordings. Recording modes include motion-activated, timed, and manual recording. You can playback recorded footage tiesiai iš programėlės.

Image 3: The Bagotte SH020 camera positioned in a room, demonstrating its discreet design and wide viewing kampas.

6. Priežiūra

• Valymas: Use a soft, dry cloth to clean the camera lens and body. Avoid harsh chemicals or abrasive materials.
• Firmware atnaujinimai: Regularly check the mobile application for available firmware updates to ensure your camera has the latest features and security enhancements.
• „MicroSD“ kortelė: If using a MicroSD card, periodically check its status and ensure sufficient storage space. Back up important recordings as needed.

7. Problemų sprendimas

• Kamera neprisijungia prie „Wi-Fi“: Ensure your Wi-Fi network is 2.4GHz. Verify the Wi-Fi password is correct. Move the camera closer to the router. Reset the camera using the reset button and try again.
• Prasta vaizdo kokybė: Check your internet connection speed. Ensure the camera lens is clean. Adjust video resolution settings in the app.
• Judesio aptikimas neveikia: Verify motion detection is enabled in the app settings. Adjust sensitivity levels and detection zones.
• Nėra garso: Check volume settings in the app. Ensure the microphone and speaker are not obstructed.

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information and technical support, please refer to the documentation included with your product or visit the official Bagotte websvetainėje. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą garantiniams reikalavimams.
