1. Įvadas
This manual provides comprehensive instructions for the installation, operation, and maintenance of the Seco-Larm Enforcer 12VDC Switching CCTV Power Supply, Model PC-U0910-PULQ. This power supply is designed to efficiently power multiple Closed-Circuit Television (CCTV) devices.
The PC-U0910-PULQ model features nine individually adjustable outputs, each protected by a Positive Temperature Coefficient (PTC) fuse, and provides a total supply current of 10A.
2. Saugos priemonės
- Profesionalus montavimas: This unit is intended for professional installation only.
- ttage Testavimas: Always test the output voltage using a multimeter before connecting any devices to prevent damage.
- Naudoti tik patalpose: The power supply is designed for indoor use. Do not expose it to weather, high humidity, or direct moisture.
- Vėdinimas: Užtikrinkite tinkamą vėdinimą aplink įrenginį, kad jis neperkaistų. Neužblokuokite ventiliacijos angų.
- Maitinimo atjungimas: Prieš atlikdami bet kokius montavimo, techninės priežiūros ar trikčių šalinimo darbus, atjunkite maitinimą.
- Įžeminimas: Įsitikinkite, kad įrenginys tinkamai įžemintas pagal vietinius elektros kodeksus.
3. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- Seco-Larm Enforcer 12VDC Switching CCTV Power Supply (Model PC-U0910-PULQ)
- Power Cord (3.3 feet / 1 meter)
- (2) Rubber Rings
- (2) Raktai
- Instrukcijų vadovas (šis dokumentas)
4. Pagrindinės savybės
- Individually adjustable 11.0-13.8 VDC outputs for precise power delivery.
- Universal 90-120 VAC input for broad compatibility.
- Built-in short circuit and overheat protection for enhanced safety.
- Heavy-duty steel case with a removable cover for durability and security.
- Each output features an individual status LED and PTC fuse protection.
5. Sąranka ir diegimas
Carefully follow these steps for proper installation of your power supply. Ensure all safety precautions are observed.

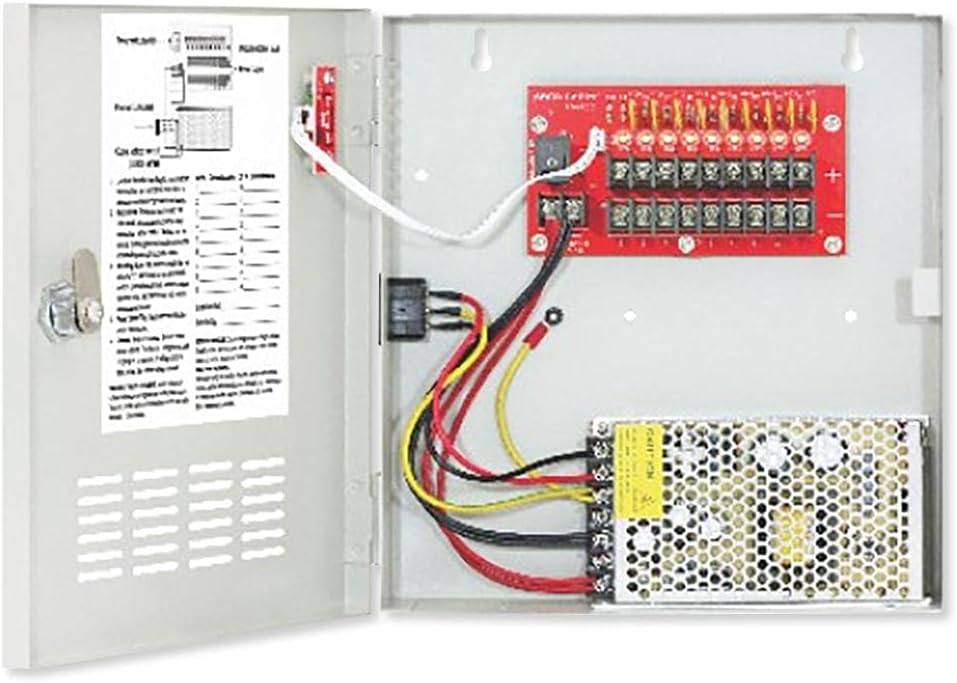

1 pav. Vidinis view of the Seco-Larm Enforcer 12VDC Switching CCTV Power Supply (Model PC-U0910-PULQ) with the cover open. The image displays the main power supply unit at the bottom right, connected to a red power distribution board with multiple output terminals and individual PTC fuses. Wiring connects the components, and a label with technical information is visible on the inside of the door.
5.1 Įrenginio montavimas
- Select a suitable indoor location that is dry, well-ventilated, and protected from direct sunlight, extreme temperatures, and humidity.
- Using appropriate fasteners (not included), securely mount the heavy-duty steel case to a wall or other stable surface. Ensure the mounting surface can support the weight of the unit and connected cables.
5.2 Wiring the Power Supply
- Įvesties galia: Connect the provided 3.3-foot (1m) power cord to the AC input terminals of the power supply unit. Ensure the input voltage is within the universal 90-120 VAC range.
- Išvesties jungtys:
- Identify the nine output terminals on the power distribution board. Each output is clearly marked.
- Connect the positive (+) and negative (-) wires from your CCTV devices to the corresponding terminals on the power distribution board.
- Ensure proper polarity to avoid damage to your devices.
- ttage reguliavimas: Before connecting devices, use a small screwdriver to adjust the voltage for each output individually. The adjustable range is 11.0-13.8 VDC. Use a multimeter to verify the desired output voltage for each connected device.
- Saugus laidas: Ensure all wire connections are tight and secure to prevent intermittent power or short circuits.
5.3 Pradinis įjungimas
- Once all connections are made and verified, connect the power cord to a suitable electrical outlet.
- Observe the LED indicators on the cover. A green LED indicates AC input power, and red LEDs indicate DC output power for each channel.
- Confirm that all connected CCTV devices are receiving power and operating correctly.
6. Operacija
The Seco-Larm Enforcer Power Supply operates automatically once connected to power and devices. Key operational aspects include:
- Maitinimo indikatoriai:
- A Žalias šviesos diodas on the cover indicates that the unit is receiving AC input power.
- Individualus Raudoni šviesos diodai on the Power Distribution Module (PDM) indicate that DC output power is being supplied to each respective channel. If a red LED is off for a particular channel, it may indicate a fault or a tripped PTC fuse for that output.
- Išėjimas ttage reguliavimas: Išėjimo tūristage for each channel can be fine-tuned between 11.0-13.8 VDC using the adjustment potentiometers located near each output terminal. This allows for compensation of voltage drop over long cable runs or to meet specific device requirements.
- PTC Fuses: Each output is protected by a self-resetting PTC fuse. In case of an overload or short circuit on an output, the fuse will trip, cutting power to that specific channel. Once the fault is cleared, the PTC fuse will automatically reset, restoring power.
7. Priežiūra
The Seco-Larm Enforcer Power Supply is designed for reliable operation with minimal maintenance. However, periodic checks are recommended:
- Valymas: Periodically clean the exterior of the unit with a soft, dry cloth. Do not use liquid cleaners or aerosols. Ensure ventilation openings are free from dust and debris.
- Ryšio patikrinimai: Annually, or as needed, inspect all wiring connections to ensure they remain secure and free from corrosion.
- Aplinkosaugos patikrinimas: Confirm that the operating environment remains within the specified temperature and humidity ranges.
- PTC Fuse Reset: If an output LED is off, indicating a tripped PTC fuse, disconnect the device from that output, identify and resolve the cause of the overload or short circuit, and then reconnect the device. The PTC fuse should reset automatically.
8. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| No power to any device, Green AC LED is OFF. | Nėra kintamosios srovės įvesties maitinimo. | Check the power cord connection to the outlet and the unit. Verify the electrical outlet is functional. |
| No power to a specific device, its Red DC LED is OFF. | Overload or short circuit on that output channel; PTC fuse tripped. | Disconnect the device from the affected output. Inspect the device and wiring for faults. Once the fault is cleared, reconnect the device. The PTC fuse should reset automatically. |
| Išėjimo tūristage yra neteisingas. | ttage adjustment setting is incorrect. | Using a multimeter, carefully adjust the individual output voltage potentiometer to the desired 11.0-13.8 VDC range. |
| Įrenginys perkaista. | Prasta ventiliacija; per didelė apkrova. | Ensure ventilation openings are clear. Reduce the total load if it exceeds the 10A capacity. Relocate the unit to a cooler, better-ventilated area. |
9. Specifikacijos
| Modelis | PC-U0910-PULQ |
| Tipas | 9 Outputs, 10A Total |
| Įvesties tomastage | Universal 90-120 VAC (47~63 Hz) |
| Išėjimas ttage | Individually adjustable 11.0-13.8 VDC |
| Bendra tiekimo srovė | 10A |
| Max. Current Per Output | 1.6A |
| Išėjimo saugiklio tipas | PTC (teigiamas temperatūros koeficientas) |
| LED indikatoriai | Green (AC Input), Red (DC Output per channel) |
| Darbinė drėgmė | 90 % (nekondensuojantis) |
| Darbinė temperatūra | 32 ° ~ 104 ° F (0 ° ~ 40 ° C) |
| Matmenys | 9-7/16 x 10-1/4 x 2-3/8 colių (240 x 260 x 60 mm) |
| Svoris | 4 pounds, 7 ounces (approx. 2 kg) |
| Įgaliojimai | RoHS, UL, CE |
| UPC | 676544019619 |
10. Garantija ir palaikymas
Garantija: This Seco-Larm product is covered by a 2-year limited warranty from the date of purchase against defects in material and workmanship under normal use.
Techninė pagalba: For technical assistance, troubleshooting, or warranty claims, please contact Seco-Larm customer support. Refer to the official Seco-Larm websvetainė, kurioje pateikiama naujausia kontaktinė informacija.
Disclaimer: Seco-Larm U.S.A., Inc. reserves the right to change specifications and pricing without notice. Seco-Larm is not responsible for typographical errors.
