1. Įvadas
This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Thermaltake Toughpower iRGB Plus 750W 80+ Gold Power Supply. This fully modular digital power supply features a patented 16.8 million-color Ring Duo 14 RGB fan and supports Smart Power Management (SPM) for advanced control and monitoring.
1.1 vaizdas: priekis view of the Thermaltake Toughpower iRGB Plus 750W Power Supply, showcasing its design and RGB fan.
2. Saugos informacija
Please read and follow these safety guidelines carefully to prevent injury and damage to your equipment:
- Atjunkite maitinimą: Always disconnect the AC power cord from the wall outlet before installing, removing, or performing any maintenance on the power supply or other computer components.
- Neatidaryk: The power supply unit contains high voltage komponentai. Neatidarykite maitinimo bloko casing. There are no user-serviceable parts inside. Opening the casing voids the warranty.
- Tinkamas įžeminimas: Ensure your computer system is properly grounded to prevent electrical shock.
- Vėdinimas: Ensure adequate ventilation around the power supply. Do not block the fan or ventilation openings.
- Drėgmė ir temperatūra: Avoid exposing the power supply to moisture, high humidity, or extreme temperatures. Operate within the specified operating temperature range (0°C to +50°C).
- Correct Cables: Use only the modular cables provided with this power supply. Using incompatible cables may cause damage to the PSU or connected components.
3. Produkto ypatybės
The Thermaltake Toughpower iRGB Plus 750W Power Supply offers several advanced features:
- Smart Power Management (SPM): Monitor real-time PSU, CPU, VGA, RAM, and HDD status, control lighting, and receive warning alerts via PC and mobile applications.
- Razer Chroma Compatibility: Synchronize gaming and RGB lighting effects with the Razer Chroma ecosystem for a unified lighting experience.
- „Alexa“ valdymas balsu: Control lighting or fan speed by speaking to an Alexa-enabled device.
- Smart Zero Fan: The fan activates only when the power supply reaches 30% of its rated load, minimizing noise during low-load operation.
- Built-in Ring Duo RGB Fan: Features a 16.8 million-color Ring Duo 140mm RGB fan with 18 addressable LEDs to customize your build's aesthetics.
3.1 paveikslėlis: Du views of the power supply highlighting the built-in 140mm Riing Duo RGB fan with 18 addressable LEDs.
3.2 paveikslėlis: Iš viršaus į apačią view of the power supply fan, showing the RGB lighting capabilities.
4. Pakuotės turinys
Patikrinkite, ar jūsų pakuotėje yra šie elementai:
- Thermaltake Toughpower iRGB Plus 750W Power Supply Unit
- Kintamosios srovės maitinimo laidas
- Modulinis kabelių rinkinys (kaip aprašyta toliau)
- Tvirtinimo varžtai
- Vartotojo vadovas (šis dokumentas)
Modulinis kabelių rinkinys:
Image 4.1: A table detailing the connector types, cable lengths, and quantities included with the 750W power supply.
Image 4.2: The power supply unit with its fully modular cable design, showing the various ports for connecting cables.
| Jungties tipas | Kabelio ilgis | Kiekis |
|---|---|---|
| Pagrindinė maitinimo jungtis (24 kontaktų) | 600 mm | 1 |
| ATX 12V (4 + 4 Pin) | 650 mm | 1 |
| SATA (5 kontaktų) | 500mm+150mm+150mm+150mm+150mm | 9 |
| PCI-E (6 + 2 Pin) | 500mm + 150mm + 150mm | 4 |
| Peripheral (4 Pin) | 500mm+150mm+150mm+150mm | 4 |
| Diskelio adapteris (4 kontaktų) | 100 mm | 1 |
Image 4.3: The power supply unit shown with a selection of its modular cables connected, demonstrating the flexibility of the design.
5. Sąranka ir diegimas
Norėdami įdiegti maitinimo šaltinį, atlikite šiuos veiksmus:
- Paruoškite savo sistemą: Įsitikinkite, kad jūsų kompiuteris yra visiškai išjungtas ir atjungtas nuo sieninio lizdo. Atidarykite kompiuterio korpusą.
- Išimkite seną maitinimo šaltinį (jei taikoma): Atjunkite visus laidus nuo seno maitinimo šaltinio ir išimkite jį iš korpuso.
- Prijunkite naują maitinimo šaltinį: Place the Thermaltake Toughpower iRGB Plus 750W into the power supply bay of your computer case. Secure it with the provided mounting screws. Ensure the fan is facing the correct direction for optimal airflow (typically facing down if your case has a bottom vent, or up if it's a top-mounted PSU).
- Prijunkite būtiniausius kabelius:
- Prijunkite 24 kontaktų pagrindinė maitinimo jungtis prie pagrindinės plokštės.
- Prijunkite 4+4-pin ATX 12V Connector to your motherboard's CPU power socket.
- Prijunkite reikalingą 6+2-pin PCI-E Connectors to your graphics card(s).
- Prisijunkite SATA Power Connectors to your storage drives (HDDs, SSDs) and optical drives.
- Prisijunkite Peripheral (4-pin Molex) Connectors to any other components requiring them (e.g., case fans, fan controllers).
- Jei reikia, naudokite Disketinis adapteris for older devices.
- Connect USB Cable for Digital Control: Locate the USB port on the power supply and connect one end of the provided USB cable. Connect the other end to an available USB 2.0 header on your motherboard. This connection is essential for Smart Power Management (SPM) and RGB control software.
- Kabelių valdymas: Tvarkingai išvedžiokite laidus, kad pagerintumėte oro cirkuliaciją ir pagerintumėte estetiką.
- Uždarykite dėklą ir įjunkite: Close your computer case, connect the AC power cord to the power supply, and then plug it into a wall outlet. Flip the power switch on the back of the PSU to the 'ON' position.
Image 5.1: Rear panel of the power supply, indicating the AC power inlet and the main power switch.
6. Naudojimo instrukcijos
Once installed, you can utilize the advanced features of your power supply:
6.1. Smart Power Management (SPM)
The SPM platform allows you to monitor and manage your power supply digitally. Download and install the Thermaltake SPM software from the official Thermaltake website. This software provides:
- Real-time monitoring of power consumption, efficiency, voltage, ir temperatūra.
- Fan speed control and Smart Zero Fan mode management.
- Customizable warning alerts for abnormal conditions.
- Access via PC application and mobile app.
6.2. RGB apšvietimo valdymas
The iRGB Plus series offers extensive RGB lighting customization:
- TT RGB Plus Software: Use the Thermaltake TT RGB Plus software to customize the 16.8 million-color RGB fan. This software allows for various lighting modes, effects, and color synchronization with other compatible Thermaltake RGB products.
- Razer Chroma: Integrate your PSU's RGB lighting with the Razer Chroma ecosystem for synchronized effects across your Razer peripherals and other Chroma-compatible devices.
- „Alexa“ valdymas balsu: If configured, you can use voice commands through an Alexa-enabled device to change lighting colors, effects, or adjust fan speed.

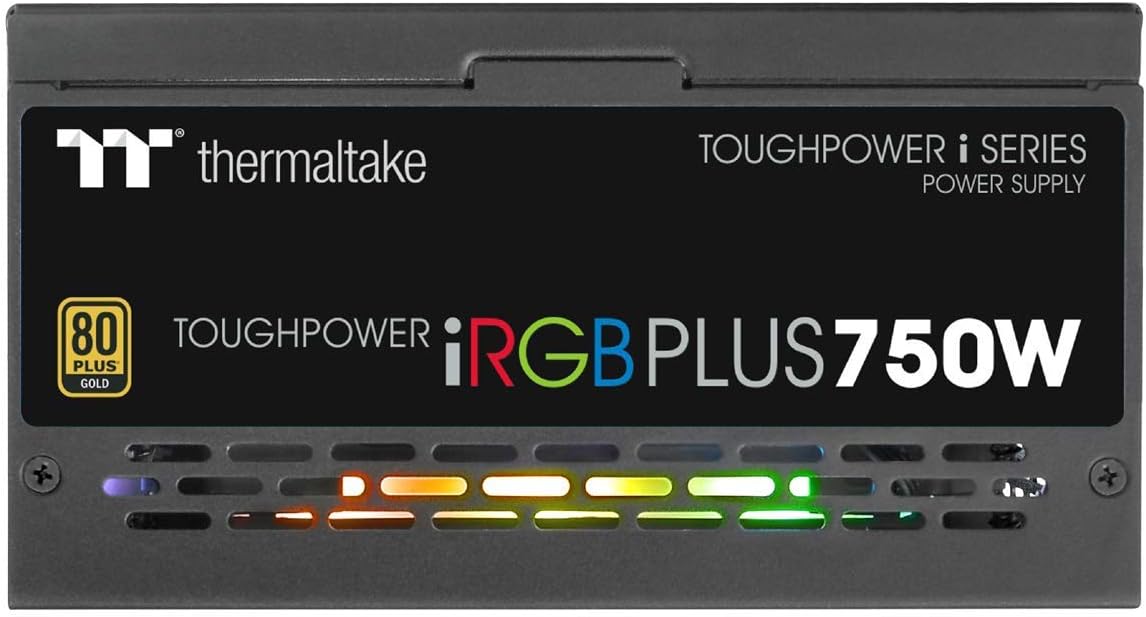

6.1 paveikslėlis: Šonas view of the power supply, illustrating the vibrant RGB lighting effects.
7. Priežiūra
Reguliarus aptarnavimas padeda užtikrinti jūsų maitinimo šaltinio ilgaamžiškumą ir optimalų veikimą:
- Dulkių šalinimas: Periodically clean the power supply's fan and ventilation grilles using compressed air. Ensure the system is powered off and unplugged before cleaning.
- Kabelio patikrinimas: Occasionally check all modular cable connections to ensure they are securely seated.
- Programinės įrangos atnaujinimai: Keep the Thermaltake SPM and TT RGB Plus software updated to the latest versions for improved features and stability.
8. Problemų sprendimas
Jei kyla problemų dėl maitinimo šaltinio, vadovaukitės toliau pateiktais įprastais trikčių šalinimo veiksmais.
- Nėra galios:
- Įsitikinkite, kad kintamosios srovės maitinimo laidas yra tvirtai prijungtas tiek prie maitinimo bloko, tiek prie sieninio lizdo.
- Patikrinkite, ar maitinimo jungiklis maitinimo bloko gale yra padėtyje „Įjungta“.
- Check all modular cable connections, especially the 24-pin and 4+4-pin motherboard connectors.
- Patikrinkite sieninį lizdą su kitu įrenginiu, kad įsitikintumėte, jog jame yra maitinimas.
- RGB apšvietimas neveikia:
- Ensure the internal USB cable from the PSU is correctly connected to a USB 2.0 header on your motherboard.
- Install or update the Thermaltake TT RGB Plus software.
- Check software settings to ensure RGB lighting is enabled and configured.
- Iš naujo paleiskite kompiuterį.
- Smart Zero Fan Not Functioning / Fan Always On:
- The Smart Zero Fan feature only activates the fan when the PSU load exceeds 30%. If your system load is consistently above this threshold, the fan will remain on.
- Check the SPM software settings to ensure Smart Zero Fan mode is enabled.
- Ensure the internal USB cable is connected for software control.
- Software Glitches (SPM/TT RGB Plus):
- Ensure you have the latest version of the software installed from the official Thermaltake websvetainę.
- Temporarily disable any conflicting RGB software from other manufacturers.
- Check your firewall settings to ensure the software is not being blocked.
- Reinstall the software if issues persist.
9. Specifikacijos
Detailed technical specifications for the Thermaltake Toughpower iRGB Plus 750W Power Supply:
| Funkcija | Specifikacija |
|---|---|
| Modelio numeris | PS-TPI-0750F3FDGU-1 |
| Tipas | ATX 12V V2.4 and EPS V2.92 |
| Maks. Išvesties talpa | 750W |
| Didžiausia išvesties talpa | 900W |
| Matmenys (P/A/D) | 150 mm (plotis) x 86 mm (aukštis) x 160 mm (aukštis) |
| PFC (galios koeficiento korekcija) | Aktyvus PFC |
| Efektyvumas | 80 PLUS Gold at 115Vac Input |
| Aušinimo sistema | 14cm Hydraulic bearing fan |
| MTBF (vidutinis laikas tarp gedimų) | Mažiausiai 120,000 XNUMX val |
| Saugos patvirtinimas | CE/cTUVus/TUV/FCC/EAC/s-mark |
| Įvesties srovė | Maks. 10A |
| Įvesties dažnių diapazonas | 50Hz - 60Hz |
| Įvesties tomastage | 100V – 240V~ |
| Darbinė temperatūra | 0°C iki +50°C |
| Darbinė drėgmė | 20% iki 90%, nekondensuojantis |
| Laikymo temperatūra | -20°C iki +70°C |
| Sandėliavimas Drėgmė | 5% iki 95%, nekondensuojantis |
| Kondensatoriai | 100% Japanese 105°C/221°F |
Image 9.1: Product label showing model number, input/output specifications, and safety warnings.
Image 9.2: Close-up internal view of the power supply, highlighting the 100% Japanese 105°C/221°F capacitors for enhanced durability and stability.
9.3 pav.: Vidinis view of the power supply's circuit board and components, demonstrating quality construction.
10. Informacija apie garantiją
The Thermaltake Toughpower iRGB Plus 750W Power Supply comes with a 10 metų garantija. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Thermaltake websvetainėje arba susisiekite su jų klientų aptarnavimo tarnyba.
