Origami R5 Foldable 4-Tier Garage Shelving User Manual

Įvadas

The Origami R5 Foldable 4-Tier Garage Shelving is a heavy-duty, multi-functional storage rack designed for exceptional ease of setup and robust storage capabilities. This manual provides essential information for the safe and effective use, assembly, and maintenance of your new shelving unit.

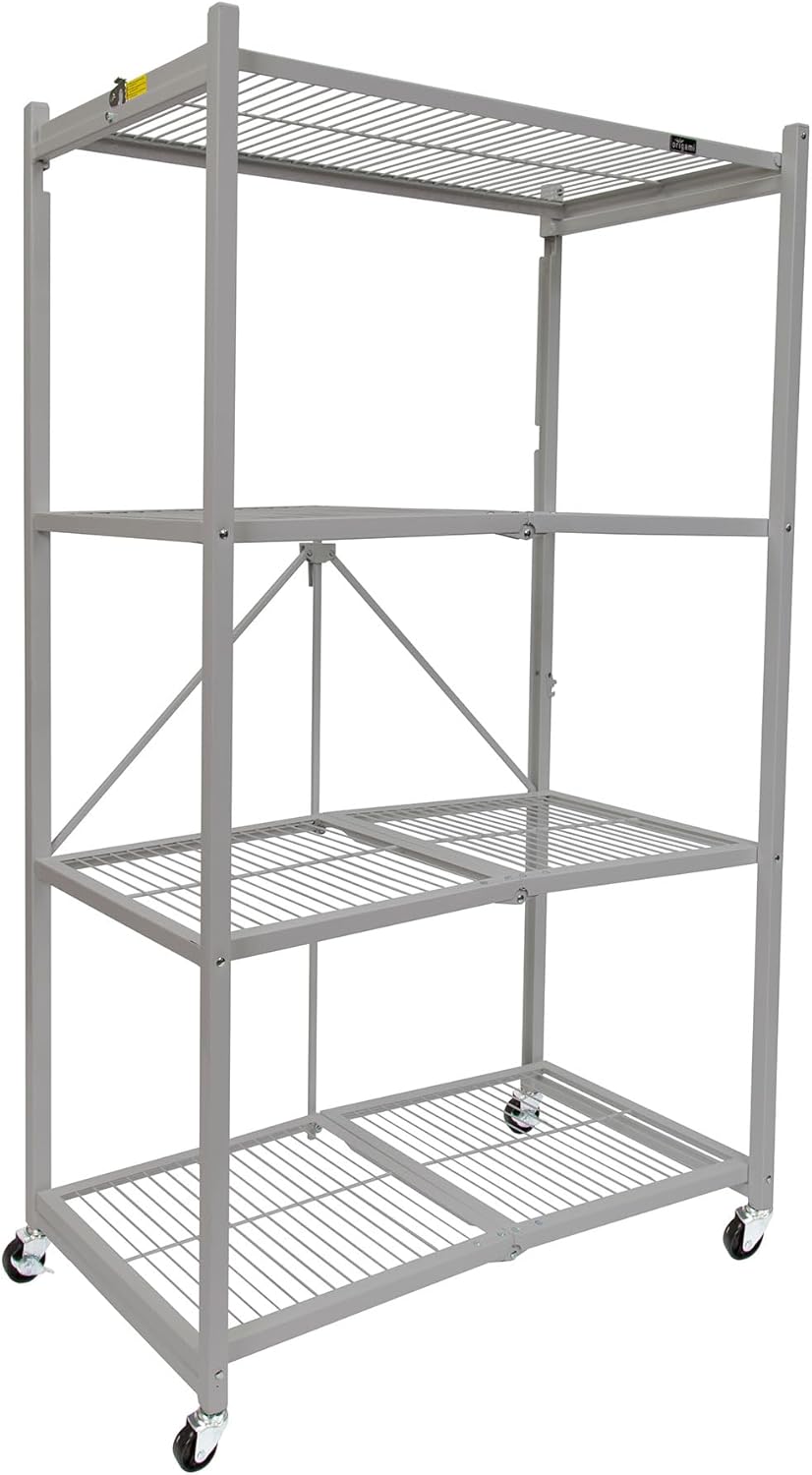

Figure 1: Fully assembled Origami R5 4-Tier Shelving Unit.

Saugos informacija

Please read and understand all safety instructions before assembling or using the shelving unit. Failure to do so may result in injury or damage to the product.

• Ensure stability when loaded to capacity. Distribute weight evenly across shelves.
• Use caution when moving the rack with wheels, especially on uneven surfaces or when fully loaded.
• Keep hands and fingers away from moving parts during unfolding and folding processes to prevent pinching.
• Do not exceed the maximum weight capacity per shelf or total unit capacity.
• Always ensure all locking mechanisms are securely engaged before loading the unit.
• Keep children and pets away from the unit during assembly and when moving.

Produkto savybės

The Origami R5 shelving unit offers several key features designed for convenience and durability:

• Momentinė sąranka: Unfolds and is ready for use in seconds, requiring no tools or complex assembly.
• Didelė talpa: Designed for heavy-duty use, holding up to 1000 pounds total without wheels, or 300 pounds with wheels attached. Each shelf can hold approximately 250 lbs without wheels, or 75 lbs with wheels.
• Perkeliamumas: Equipped with professional-grade caster wheels for easy relocation.
• Patvari konstrukcija: Made from commercial-grade powder-coated steel for long-lasting performance in various environments.
• Erdvę taupantis dizainas: Nenaudojant, sulankstomas kompaktiškam laikymui.

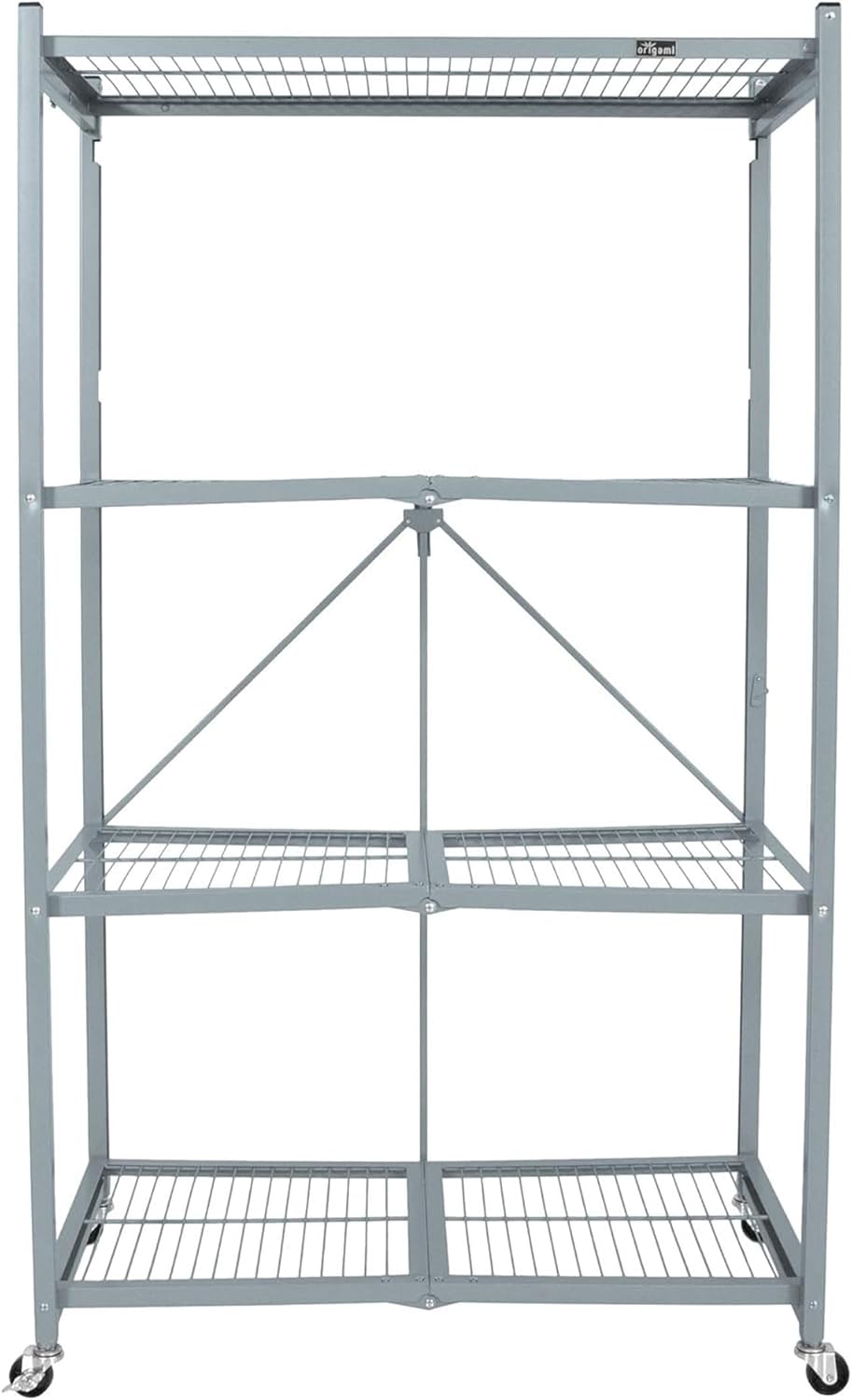

Figure 2: Key features of the Origami R5 shelving unit.

Figure 3: Weight capacity details for the shelving unit.

Sąrankos instrukcijos

The Origami R5 shelving unit is designed for quick and tool-free assembly. Follow these steps to set up your unit:

1. Išpakuoti: Carefully remove the folded shelving unit from its packaging.
2. Unfold Sides: Stand the unit upright. Gently pull the two side frames apart until they are fully extended.
3. Apatinės lentynos: Lower the shelves into their flat, horizontal positions.
4. Saugūs skląsčiai: Locate the locking latches on the side frames. Securely engage these latches to lock the shelves in place. Ensure all latches are fully engaged for stability.
5. Pritvirtinkite ratukus (nebūtina): If you wish to use the unit with wheels, screw the four professional-grade caster wheels into the designated holes at the bottom of the unit. Ensure they are tightened securely.

Figure 4: Visual guide for unfolding the shelving unit.

Naudojimo instrukcijos

Using your Origami R5 shelving unit is straightforward:

• Įkeliama: Place items evenly on each shelf, starting from the bottom shelf for maximum stability. Do not overload any single shelf or the entire unit beyond its stated weight capacity.
• Moving (with wheels): To move the unit, ensure the path is clear and smooth. Push the unit gently from the side or back. Avoid sudden jerks or pushing over obstacles. If the unit is heavily loaded, consider unloading some items before moving.
• Sulankstomas saugojimui: To fold the unit, first remove all items. Disengage the locking latches on the side frames. Lift the shelves slightly and push the side frames inward until the unit folds flat.

Figure 5: The shelving unit in use for home organization.

Priežiūra

To ensure the longevity and appearance of your Origami R5 shelving unit:

• Valymas: Wipe the unit with a dry cloth to remove dust and debris. For stubborn marks, a slightly damp Galima naudoti šluostę, po kurios nedelsiant nusausinkite. Venkite abrazyvinių valiklių ar stiprių cheminių medžiagų.
• Patikra: Periodically check all latches, screws (especially on wheels), and structural components for tightness and signs of wear. Tighten any loose fasteners.
• Saugykla: When not in use, store the folded unit in a dry environment to prevent rust or damage.

Trikčių šalinimas

If you encounter any issues with your shelving unit, refer to the following common solutions:

• Unit feels wobbly after setup: Ensure all locking latches on the side frames are fully engaged. Check that the unit is placed on a flat, level surface.
• Difficulty unfolding/folding: Ensure no parts are obstructed. Apply gentle, even pressure. If the unit has been stored for a long time, some joints might be stiff; gentle manipulation should resolve this.
• Ratai rieda nelygiai: Check if any debris is caught in the wheels. Ensure the wheels are securely tightened to the frame.
• Exceeding weight capacity: If shelves are sagging or the unit feels unstable, immediately remove items. Redistribute weight or reduce the load to stay within specified limits.

Specifikacijos

Figure 6: Detailed dimensions of the shelving unit.

Garantija ir palaikymas

Your Origami R5 Foldable 4-Tier Garage Shelving unit comes with a 1-year Limited Origami Warranty.

For warranty claims, technical support, or any questions regarding your product, please contact Origami customer service. Refer to the product packaging or the official Origami websvetainę, kurioje rasite naujausią kontaktinę informaciją.

Gamintojas: Origami Group Inc
