Baseus 10W Automatic Clamping Wireless Car Charger Mount User Manual

Įvadas

Thank you for choosing the Baseus 10W Automatic Clamping Wireless Car Charger Mount. This device is designed to provide convenient and fast wireless charging for your Qi-enabled smartphone while securely holding it in your vehicle. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

Saugos informacija

Neardykite ir nemodifikuokite gaminio.
Laikyti atokiai nuo vandens, ugnies ir aukštos temperatūros.
Venkite stiprių smūgių ar įrenginio numetimo.
Naudodami pasirūpinkite tinkama ventiliacija aplink įkroviklį.
Use only with compatible power sources (QC 3.0 car charger recommended for fast charging).

Pakuotės turinys

Baseus Wireless Car Charger Mount
Air Vent Clip (1x)
Micro USB Cable (4.9ft)
Vartotojo vadovas

Produktas baigtasview

The Baseus Wireless Car Charger Mount features an automatic clamping mechanism, Qi wireless charging, and an air vent mounting system. It is designed for easy one-hand operation.

Pagrindiniai komponentai:

Įkrovimo padėklas: The surface where the phone rests for wireless charging.
Automatinis Clamping Arms: Securely hold the phone in place.
Infrared Induction Sensor: Detects the phone for automatic clamping.
One-Tap Release Button: Located on the side, releases the clampginti ginklus.
Oro išleidimo angos spaustukas: Attaches the mount to your car's air vent.
„Micro USB“ prievadas: Dėl maitinimo įvesties.

Sąrankos instrukcijos

1. Attaching the Air Vent Clip

Unscrew the nut on the back of the charger mount.
Insert the ball joint of the air vent clip into the nut, then into the socket on the back of the charger.
Tighten the nut to secure the clip to the charger.

2. Mounting to the Car Air Vent

Choose a suitable air vent in your vehicle. The clip is designed for various vent types, as shown in the image below.
Gently push the air vent clip onto one of the vent blades until it is securely attached.
Adjust the angle of the charger mount for optimal viewing.

Image showing various car air vent types compatible with the Baseus charger mount.

This image illustrates the different types of car air vents that are compatible with the charger mount's clip. Ensure your car's vent matches one of the compatible designs for secure installation.

3. Maitinimo prijungimas

Connect the Micro USB cable to the charging port on the bottom of the charger mount.
Plug the other end of the USB cable into a car charger (not included). For 10W fast charging, a QC 3.0 car charger is required. Standard 5V/2A car chargers will provide 5W charging.
Užsidegs įkroviklio indikatoriaus lemputė, rodanti, kad jis įjungtas ir paruoštas naudoti.

Naudojimo instrukcijos

1. Placing Your Phone

Hold your Qi-enabled smartphone near the charging pad. The infrared induction sensor will detect your phone.
The automatic clamping arms will open. Place your phone onto the charging pad.
Klamping arms will automatically close, securing your phone and initiating wireless charging.

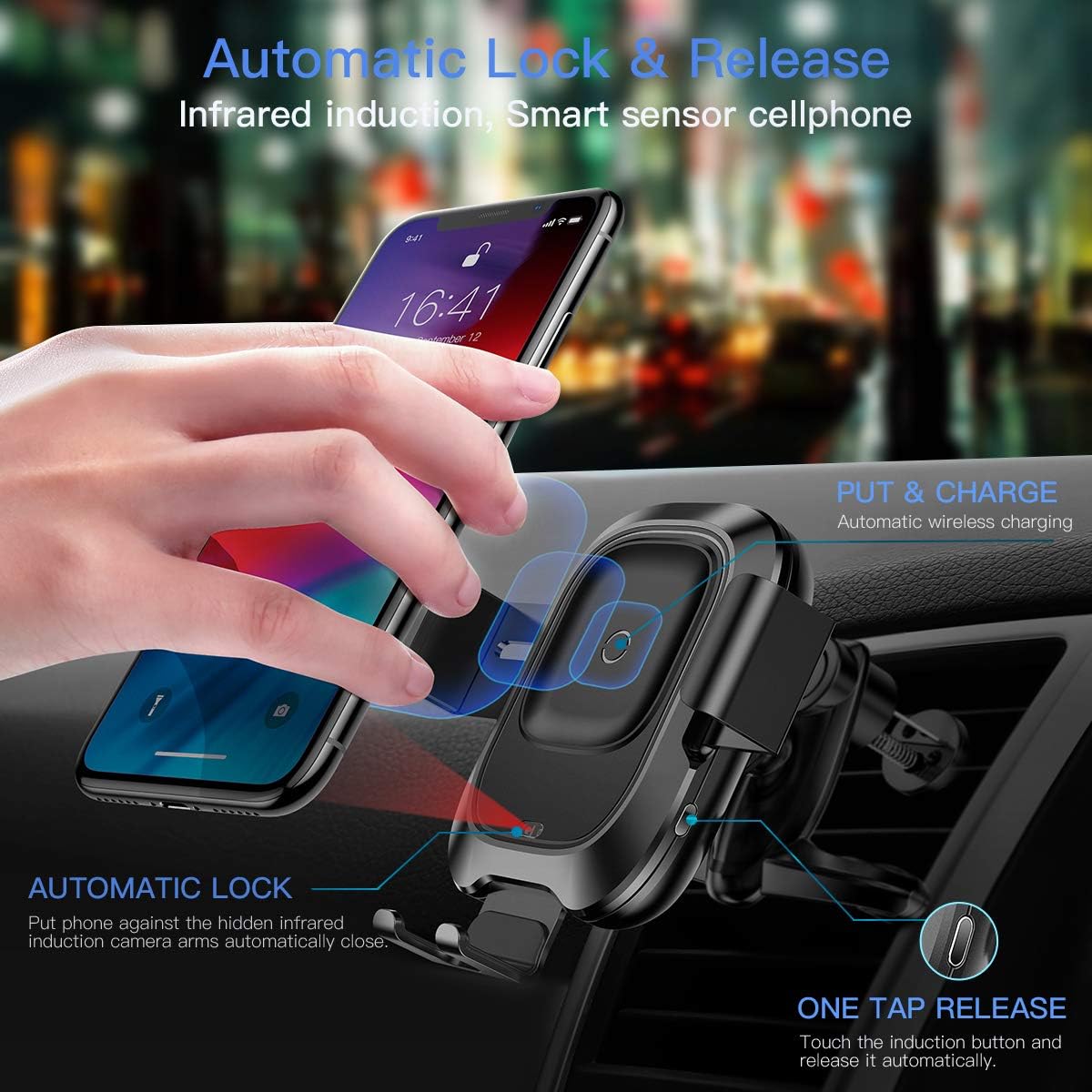

Image demonstrating the automatic lock and release function of the Baseus car charger mount.

This image illustrates how the infrared sensor detects a phone, causing the arms to automatically open and then clamp shut once the phone is placed, initiating charging.

2. Removing Your Phone

To release your phone, gently touch the sensor button located on the right side of the charger mount.
Klamping arms will automatically open, allowing you to remove your phone.

3. Wireless Charging Functionality

The charger supports Qi-enabled phones between 4.0 and 6.5 inches. Charging speeds vary:

10 W greitas įkrovimas: For compatible Samsung phones (e.g., Galaxy S10/S9/Note 9). Requires a QC 3.0 car charger.
7.5 W greitas įkrovimas: For compatible iPhones (e.g., iPhone Xs/XR/X/8). Requires a QC 3.0 car charger.
5 W standartinis įkrovimas: For other Qi-enabled devices. Requires a 5V/2A car charger.

Svarbi pastaba:

The thickness of your phone case should not exceed 4mm for optimal charging.
Metal cases or foreign objects between the phone and charger will interfere with wireless charging.

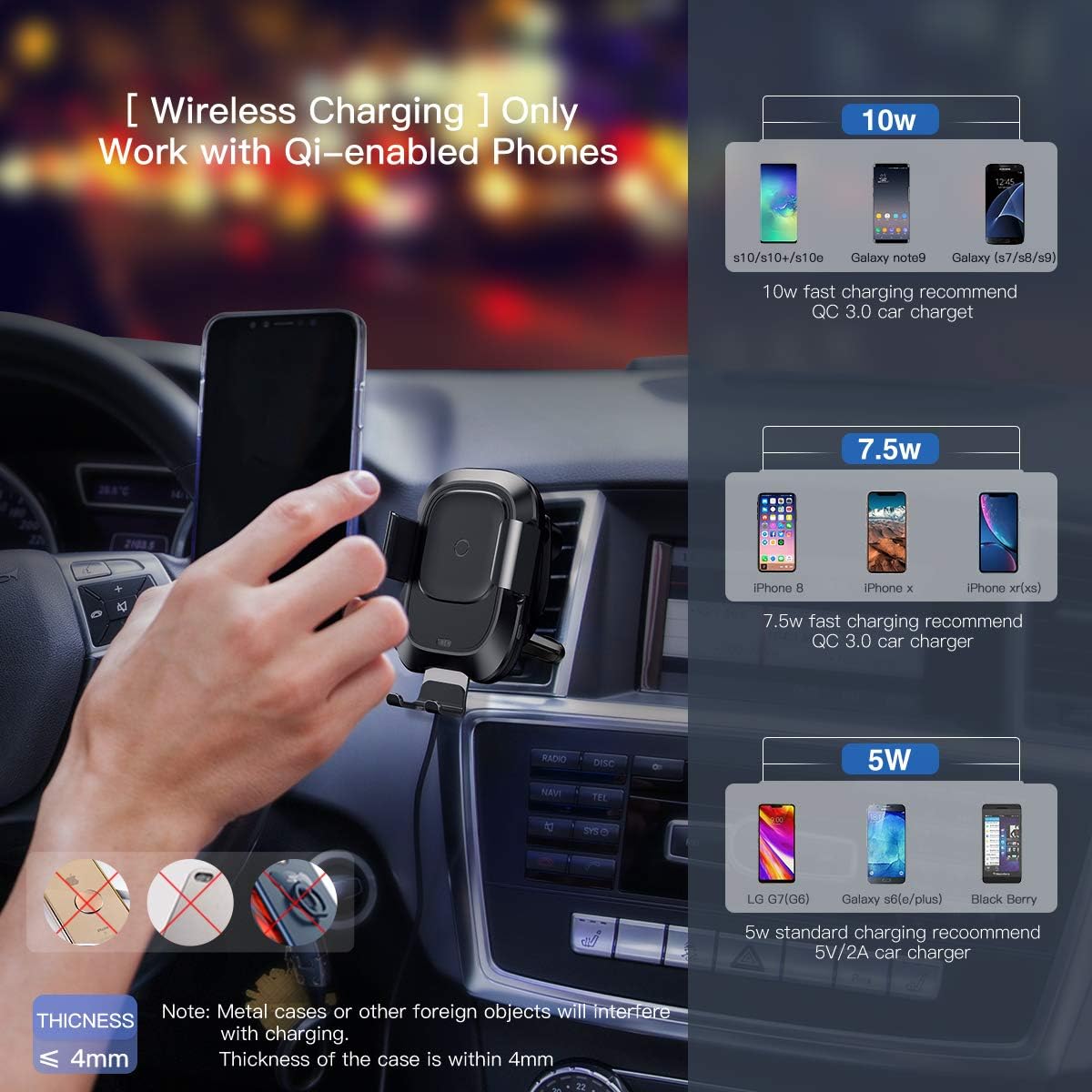

Image detailing wireless charging compatibility and power output for different phone models.

This image provides a visual guide to the wireless charging capabilities, showing 10W, 7.5W, and 5W charging for various phone models and the requirement for a QC 3.0 car charger for fast charging.

4. Produkto demonstracinis vaizdo įrašas

Watch this video for a visual demonstration of the Baseus Wireless Car Charger Mount's features and operation.

Šiame vaizdo įraše pateikiama išsami informacijaview and demonstration of the Baseus Wireless Car Charger Mount, showcasing its automatic clamping, wireless charging, and ease of use.

Priežiūra

Clean the surface of the charger with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Ensure the air vent clip is free from dust and debris to maintain a secure grip.
Regularly check the Micro USB cable for any signs of wear or damage.

Trikčių šalinimas

Problema	Galima priežastis	Sprendimas
Telefonas neįkraunamas belaidžiu būdu.	1. Phone not Qi-enabled. 2. Phone not properly aligned. 3. Phone case too thick or contains metal. 4. Insufficient power input.	1. Verify phone supports Qi wireless charging. 2. Re-position phone on the charging pad. 3. Remove phone case or use a thinner, non-metallic case. 4. Ensure a QC 3.0 car charger is used for fast charging, or a 5V/2A for standard charging.
Clamping arms not opening/closing automatically.	1. Nėra maitinimo įkrovikliui. 2. Sensor obstructed. 3. Sutrikimas.	1. Check power connection and car charger. 2. Ensure the infrared sensor is clean and unobstructed. 3. Jei problema išlieka, susisiekite su klientų aptarnavimo tarnyba.
Charger mount is loose on the air vent.	Improper installation or incompatible vent type.	Ensure the air vent clip is fully engaged with a vent blade and the nut is tightened. Verify vent compatibility.

Specifikacijos

Prekinis ženklas: Baseus
Jungties tipas: USB, belaidis
Suderinami įrenginiai: Qi-enabled Smartphones (4.0"-6.5")
Suderinami telefonų modeliai: iPhone Xs, Xs Max, XR, X, 8, 8 Plus; Samsung Galaxy S10, S10 Plus, S10e, S9, S9 Plus, S8, S8 Plus, S7, S7 edge, S6 edge plus, Note 9, Note 5 series devices.
Ypatinga funkcija: Greitas įkrovimas
Spalva: Juoda
Įvesties tomastage: 9 voltų
Amppakilimas: 1.67 Amps
Iš viso USB prievadų: 1
Prekės svoris: 10.2 uncijos
Pakuotės matmenys: 8.15 x 4.45 x 2.91 colio

Garantija ir palaikymas

This Baseus Wireless Car Charger Mount comes with an 18 mėnesių garantija from the date of purchase. Baseus also provides klientų aptarnavimas visą gyvenimą šiam produktui.

For warranty claims, technical support, or any inquiries, please refer to the contact information provided with your purchase or visit the official Baseus websvetainę.
