„Baratza Virtuoso+“ kavos malūnėlio naudojimo instrukcija

Įvadas

The Baratza Virtuoso+ is a high-performance conical burr coffee grinder designed for consistent and precise grinding. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your grinder.

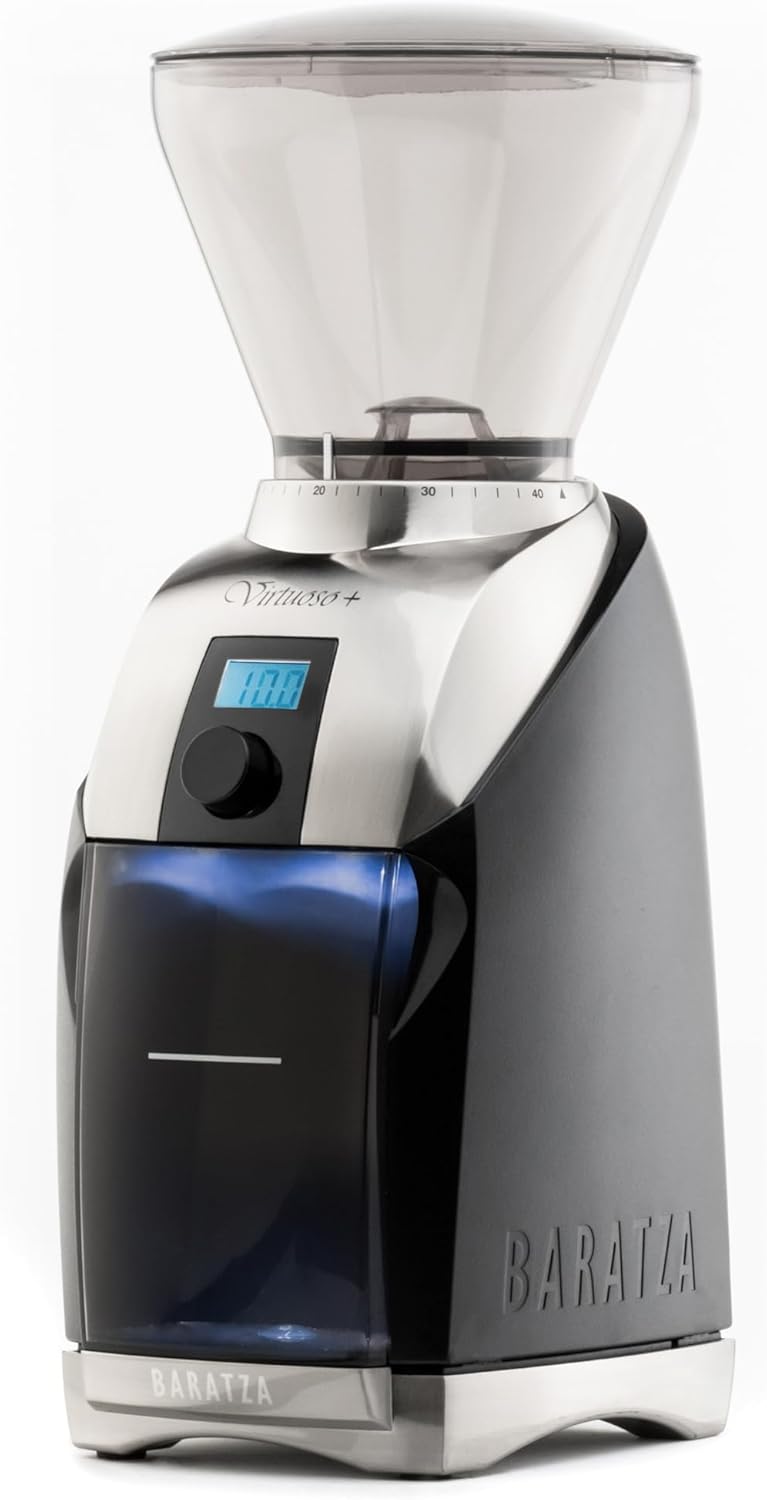

1 pav.: priekis view of the Baratza Virtuoso+ Coffee Grinder.

Pagrindinės funkcijos:

• Commercial-Grade Conical Burrs: Equipped with 40mm M2 hardened steel conical burrs for consistent grind quality.
• 40 malimo nustatymai: Offers a wide range of grind sizes suitable for various brewing methods, from espresso to French Press.
• Skaitmeninis laikmatis: A 40-second digital timer, adjustable to a tenth of a second, for precise dosing.
• LED Backlit Grounds Bin: Illuminates the grounds bin for clear visibility during grinding.
• Patvari konstrukcija: Features a sculptured metal top and base for enhanced stability and longevity.

2 pav. Baigtaview of key features including No Load Burr Speed (550 RPM), Dosing Timer (0.1 sec resolution), Burrs (40mm Conical Steel M2), and Bean Hopper Capacity (300g/10.6oz).

Sąranka

1. Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Išsaugokite pakuotę būsimam transportavimui ar saugojimui.
2. Vieta: Place the grinder on a stable, level surface. Ensure adequate clearance around the unit for ventilation and operation.
3. Bunkerio montavimas: Align the bean hopper with the top of the grinder and twist clockwise until it locks into place. Ensure the hopper is securely seated.
4. Grounds Bin: Insert the grounds bin into its designated slot at the front of the grinder.
5. Maitinimo jungtis: Įjunkite maitinimo laidą į įžemintą elektros lizdą.

Naudojimo instrukcijos

1. Filling the Hopper

Open the hopper lid and pour whole coffee beans into the hopper. Replace the lid securely.

2. Malimo rupumo nustatymas

The Virtuoso+ offers 40 distinct grind settings. To adjust, rotate the bean hopper to align the desired number with the indicator mark on the grinder body. Lower numbers correspond to finer grinds (e.g., espresso), while higher numbers correspond to coarser grinds (e.g., French Press).

Figure 3: The grind adjustment collar with 40 settings, allowing selection from fine to coarse.

3. Setting the Digital Timer

The digital timer allows for precise dosing. Use the control knob on the front panel to set the desired grinding time, adjustable in 0.1-second increments, up to 40 seconds. The display will show the selected time.

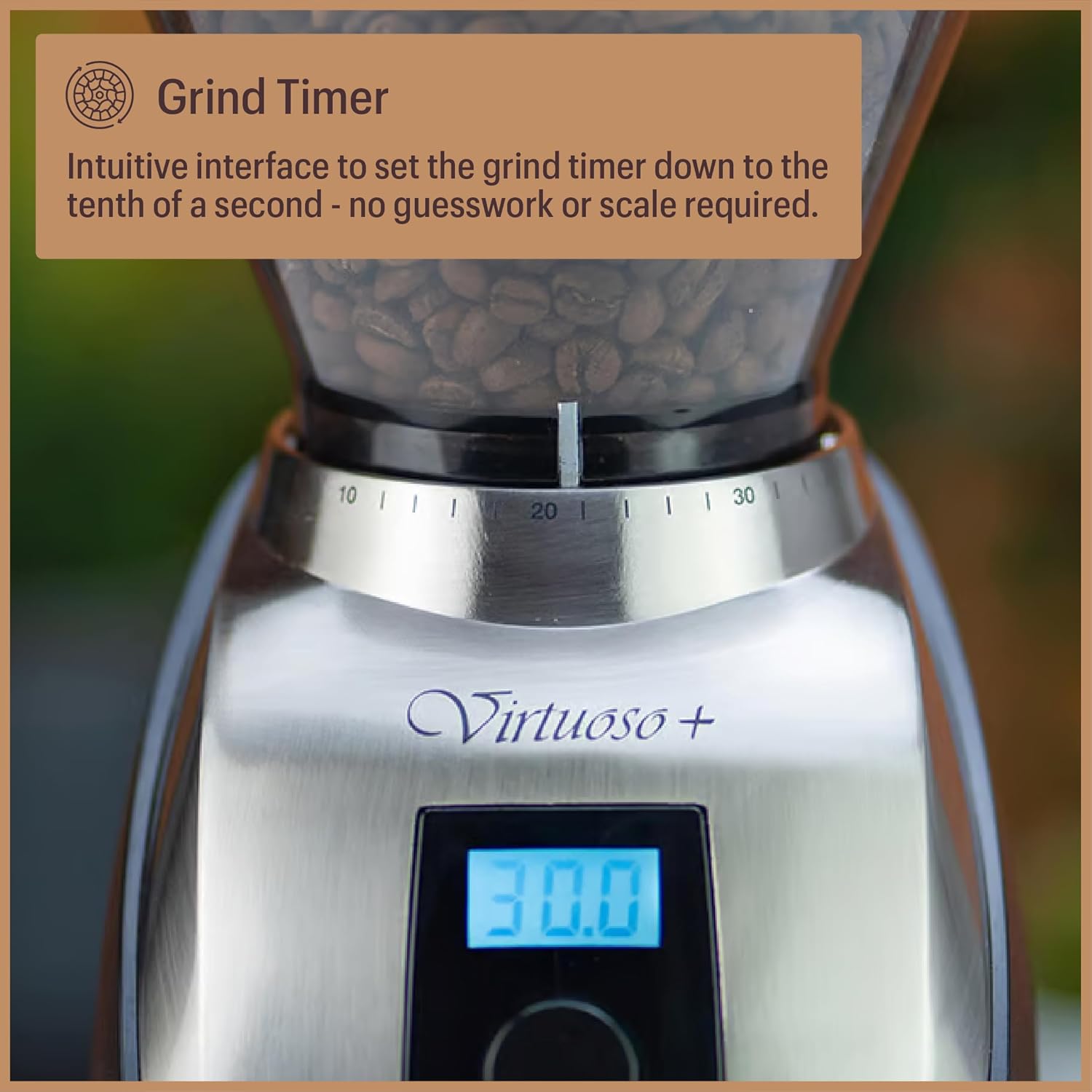

Figure 4: The digital timer display and control knob for setting precise grinding duration.

4. Kavos malimas

With the grind setting and timer configured, press the start button. The grinder will operate for the set duration, and the LED-backlit grounds bin will illuminate, allowing you to observe the grinding process. Once complete, remove the grounds bin.

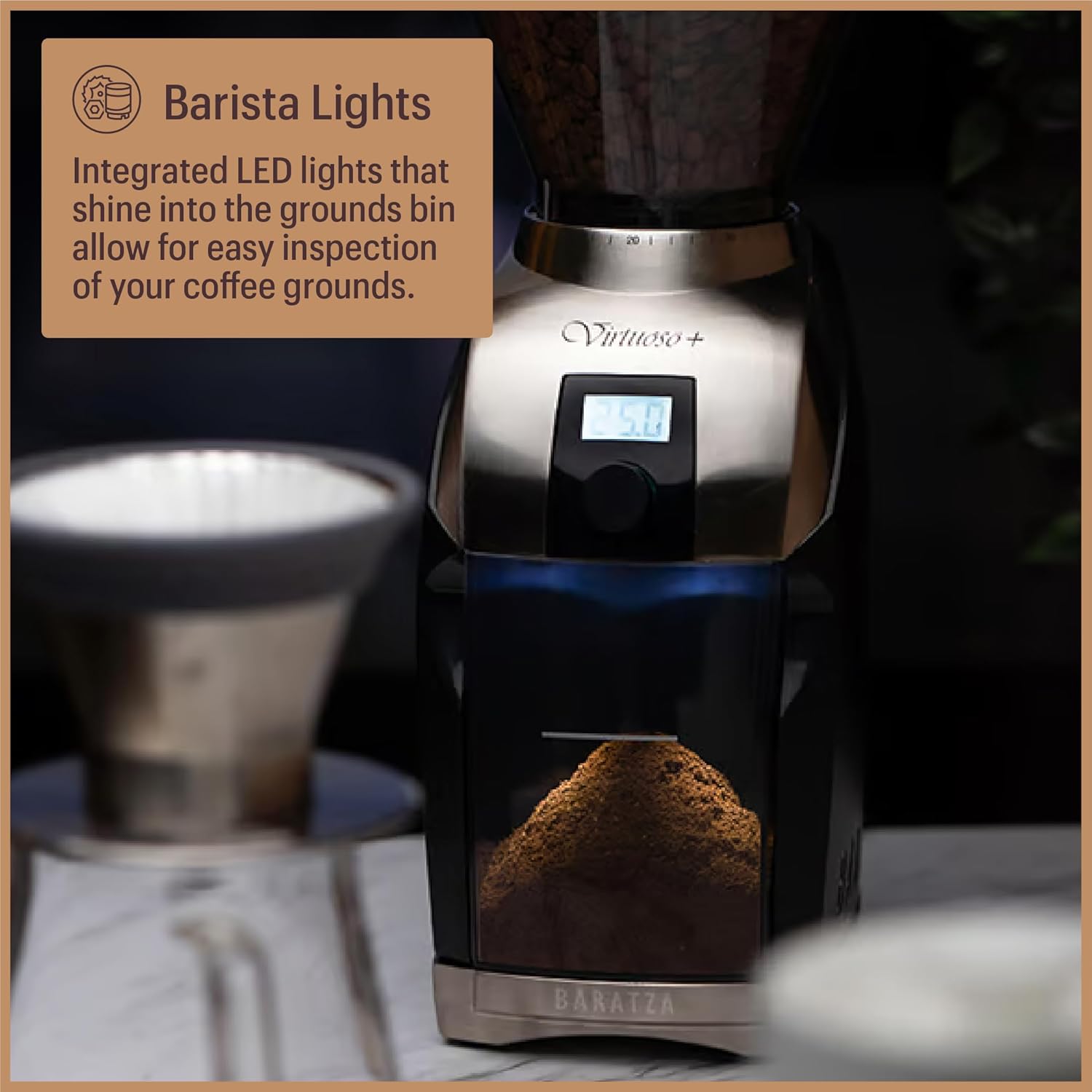

Figure 5: The Baratza Virtuoso+ in operation, showing coffee grounds collecting in the illuminated bin.

Malimo nustatymų vadovas

The Virtuoso+ offers a versatile grind range. Here are general recommendations for various brewing methods:

Note: These are starting points. Adjust the grind setting based on your specific coffee beans, brewing equipment, and personal taste preferences.

Figure 6: The 40mm M2 conical burrs, engineered for consistent and precise grinding.

Priežiūra ir valymas

Reguliarus valymas užtikrina optimalų našumą ir prailgina malūnėlio tarnavimo laiką.

Kasdienis valymas:

• Empty and wipe the grounds bin with a dry cloth.
• Brush any loose coffee grounds from the grinding chute and around the burrs.

Savaitinis valymas:

1. Ištraukite malūnėlį iš elektros lizdo.
2. Remove the bean hopper by twisting it counter-clockwise.
3. Carefully lift out the top burr. Use the provided brush to clean both the top and lower burrs.
4. Clean the grinding chamber thoroughly with the brush.
5. Reassemble the burrs and hopper, ensuring they are securely in place.

Trikčių šalinimas

• Smulkintuvas neįsijungia: Ensure the power cord is securely plugged into a working outlet. Check if the hopper is correctly seated and locked.
• Nenuoseklus šlifavimas: Verify that the burrs are clean and free of obstructions. Ensure the grind setting is appropriate for your desired brew method.
• Grinder jams: This can occur with very oily beans or if the grind setting is too fine. Try a coarser setting or clean the burrs.
• Per didelis triukšmas: A certain level of noise is normal during operation. If the noise is unusual or excessive, check for foreign objects in the burr chamber.

For further assistance, please refer to the official Baratza support resources or contact customer service.

Specifikacijos

Figure 7: Product dimensions of the Baratza Virtuoso+ Coffee Grinder.

Garantija ir palaikymas

The Baratza Virtuoso+ is backed by a 1-year warranty. For warranty claims, technical support, or additional information, please visit the official Baratza websvetainėje arba susisiekite su klientų aptarnavimo komanda.

Daugiau informacijos ir pagalbos galite rasti adresu Baratza Store on Amazon.
