Svarbios saugos instrukcijos
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions before using this fan.
- Ventiliatorius visada junkite tiesiai į sieninį lizdą. Niekada nenaudokite su ilgintuvu ar perkeliamu maitinimo skyriumi (lizdu / ilgintuvu).
- Nenaudokite ventiliatoriaus, kurio laidas ar kištukas pažeistas. Išmeskite ventiliatorių arba grąžinkite jį į įgaliotą techninės priežiūros įstaigą patikrinti ir (arba) taisyti.
- Netieskite laido po kilimu. Neuždenkite laido kilimėliais, bėgiais ar panašiomis dangomis. Laidą laikykite toliau nuo eismo zonos ir ten, kur jis neužkliūtų.
- Prieš perkeldami, atlikdami techninę priežiūrą ar valydami ventiliatorių, visada atjunkite jį nuo elektros tinklo.
- Nekiškite pirštų ar pašalinių daiktų į jokias ventiliacijos ar išmetimo angas ir neleiskite jiems patekti, nes tai gali sukelti elektros smūgį, gaisrą arba sugadinti ventiliatorių.
- Jokiu būdu neužblokuokite oro įleidimo angų ar išmetamųjų dujų. Nenaudokite ant minkšto paviršiaus, pavyzdžiui, ant lovos, kur angos gali užsikimšti.
- Šis ventiliatorius nėra skirtas naudoti drėgnose arba damp vietos.
- This fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined.
- This fan is not suitable for use in hazardous locations.
Kas yra dėžutėje
Prieš pradėdami surinkimą, patikrinkite, ar yra visi komponentai.
- Lasko T48322 Tower Fan Unit
- Fan Base (two halves)
- Nuotolinio valdymo pultas
- Mounting Screws for Base
Sąranka ir surinkimas
Follow these steps to assemble your Lasko T48322 Tower Fan.
- Surinkite pagrindą: Carefully align the two halves of the fan base. Ensure the cable channel on one half matches the opening on the other. Snap them together.
- Attach Base to Fan: Place the assembled base onto the bottom of the tower fan unit. Align the screw holes.
- Apsaugokite bazę: Insert the provided mounting screws through the base and into the fan unit. Tighten securely with a screwdriver. Do not overtighten.
- Padėkite ventiliatorių: Place the fan on a firm, level surface. Ensure it is away from curtains or other objects that could obstruct airflow.
- Prijunkite: Insert the power cord into a 120V AC wall outlet.
Vaizdas: priekis view of the Lasko T48322 Tower Fan. This image shows the fan's slim, upright design with its black and silver finish, and the digital display panel at the top.
Paveikslėlis: Nugara view of the Lasko T48322 Tower Fan, highlighting the integrated handle and the remote control storage slot.
Operacija
Your Lasko T48322 Tower Fan can be operated using the control panel on the top of the fan or with the included remote control.
Valdymo skydelio funkcijos
Image: Close-up of the Lasko T48322 Tower Fan's control panel, showing the power, speed, timer, oscillation, and nighttime mode buttons, along with the digital speed display.
- Įjungimo mygtukas (⏻): Paspauskite, kad ĮJUNGTUMĖTE arba IŠJUNGTUMĖTE ventiliatorių.
- Greičio mygtukas (☸): Press repeatedly to cycle through the three fan speeds: Low (1), Medium (2), High (3). The current speed will be displayed on the digital screen.
- Osciliacijos mygtukas (⌛): Press to activate or deactivate the oscillation function, which allows the fan to rotate from side to side, distributing air over a wider area.
- Laikmačio mygtukas (⏱): Press to set the fan to automatically turn off after a set period. Each press increases the timer setting by 1 hour, up to a maximum of 8 hours. The selected time will be indicated by illuminated LEDs.
- Nighttime Mode Button (🌙): Press to activate Nighttime Mode. In this mode, the fan's speed will automatically decrease every hour until it reaches the lowest speed. The display lights will also dim for minimal disturbance.
Nuotolinio valdymo pulto veikimas

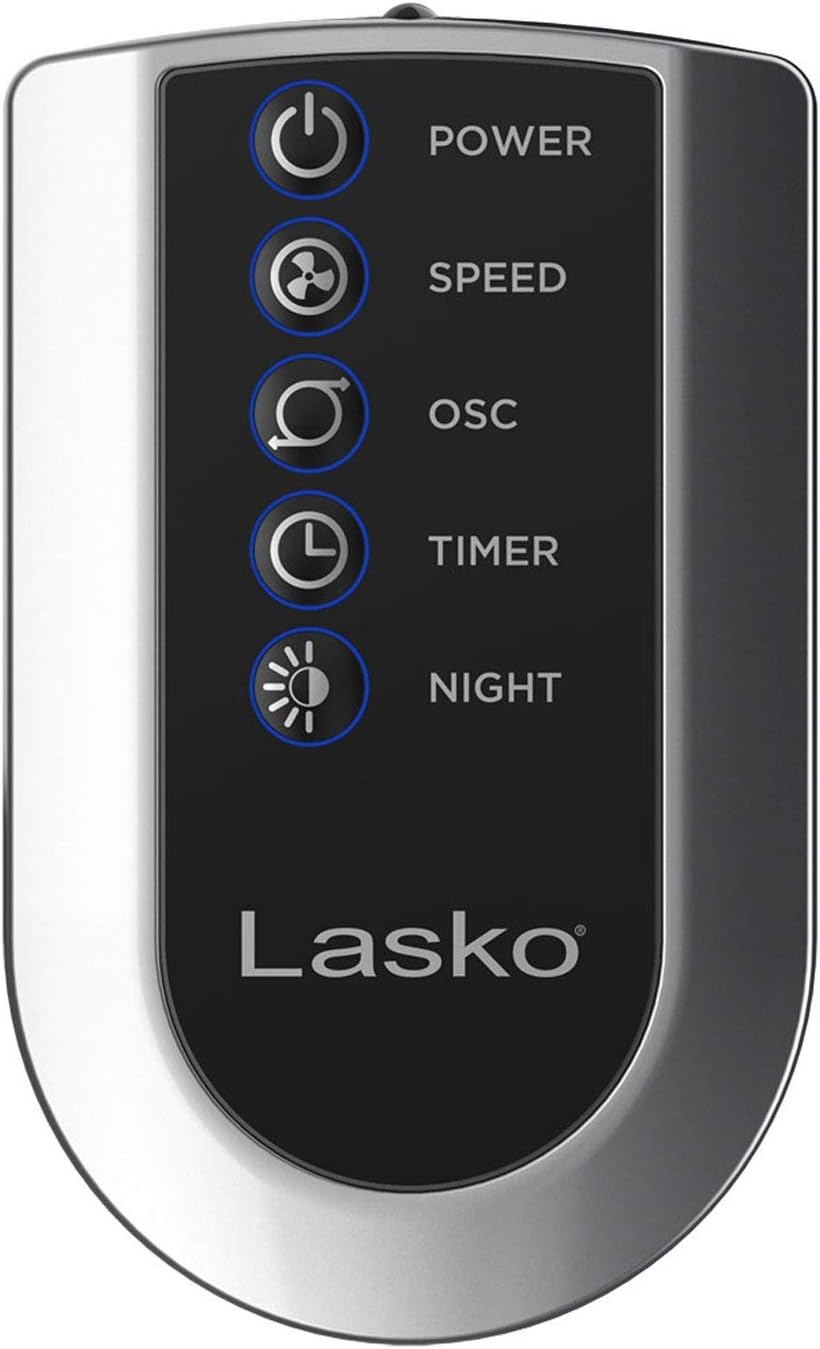

Image: The remote control for the Lasko T48322 Tower Fan, showing buttons for power, speed, oscillation, timer, and nighttime mode.
The remote control duplicates all functions of the control panel. Ensure the remote has working batteries (typically 2 AAA batteries, not always included). Point the remote directly at the fan's control panel for optimal response.
Priežiūra ir priežiūra
Proper care and maintenance will ensure the longevity and efficient operation of your fan.
- Valymas: Always unplug the fan before cleaning. Use a soft cloth moistened with a mild soap solution to clean the exterior surfaces. Do not use gasoline, benzene, thinner, harsh cleaners, etc., as they will damage the fan. Never immerse the fan in water.
- Dulkių šalinimas: Norėdami pašalinti dulkes nuo oro įsiurbimo ir išmetimo grotelių, naudokite dulkių siurblį su šepetėliu.
- Saugykla: When not in use, store the fan in its original carton in a cool, dry place. The remote control can be stored in the designated slot on the back of the fan.
- Aptarnavimas: This fan has permanently lubricated bearings and requires no further lubrication.
Trikčių šalinimas
If your fan is not operating as expected, refer to the following common issues and solutions.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Ventiliatorius neįsijungia. | Įrenginyje nėra maitinimo. | Ensure the power cord is securely plugged into a working 120V AC outlet. Check household circuit breaker/fuse. |
| Fan operates but air flow is weak. | Air intake/exhaust grilles are blocked or dusty. | Unplug the fan and clean the grilles using a vacuum cleaner with a brush attachment. Ensure no objects are obstructing airflow. |
| Ventiliatorius triukšmingas. | Loose parts or fan not on a level surface. | Ensure the fan is placed on a firm, level surface. Check if the base is securely attached. If noise persists, discontinue use and contact customer support. |
| Nuotolinio valdymo pultas neveikia. | Išsikrovusios baterijos arba kliūtis. | Replace batteries in the remote control. Ensure there is no obstruction between the remote and the fan's control panel. |
Specifikacijos
- Modelis: T48322
- Prekinis ženklas: Lasko
- Spalva: Juoda
- Formos faktorius: Bokštas
- Maitinimo šaltinis: Su laidu elektra
- ttage: 120 voltai (kintamoji srovė)
- Galios lygių skaičius: 3
- Ypatingos savybės: Oscillating, 8-Hour Timer, Nighttime Mode, Remote Control
- Įtraukti komponentai: Nuotolinio valdymo pultas
- Naudojimas viduje / lauke: Vidinis
- Medžiaga: Metalas
Garantija ir palaikymas
Lasko Products, LLC warrants this product against defects in workmanship and/or materials for a period specified in the product's original packaging or on the official Lasko website. This warranty extends only to the original purchaser of the product.
For technical assistance, product information, or warranty claims, please contact Lasko Customer Service:
- Websvetainė: www.lasko.com
- Telefonas: Refer to the Lasko websvetainė, kurioje pateikiami dabartiniai kontaktiniai numeriai.
- El. paštas: Refer to the Lasko webDabartinio kontaktinio el. pašto adreso svetainė.
Please have your model number (T48322) and purchase date available when contacting support.
