1. Įvadas
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Scheppach HS510 505mm 230V Tilting Saw. The HS510 is a robust wood-cutting machine designed for efficiency and durability, featuring a welded steel construction, a 505 mm carbide blade, and a patented protective cover. Please read this manual thoroughly before initial use and keep it for future reference.
2. Saugos instrukcijos
Naudodami elektrinius įrankius, visada teikite pirmenybę saugai. Nesilaikant šių nurodymų, galite sunkiai susižaloti arba sugadinti įrangą.
- Asmeninės apsaugos priemonės (AAP): Always wear safety glasses, hearing protection, and heavy-duty gloves. Avoid loose clothing or jewelry that could get caught in moving parts.
- Darbo sritis: Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders at a safe distance.
- Elektros sauga: Connect the saw to a properly grounded 230V power outlet. Do not operate in wet conditions. Inspect the power cord for damage before each use.
- Ašmenų sauga: Ensure the blade is sharp and correctly installed. Never attempt to remove jammed material while the saw is running. Always disconnect power before changing blades or performing maintenance.
- Medžiagų tvarkymas: Securely position the log in the cradle before cutting. Do not overreach or force the saw. Maintain a firm grip on the material.
- Mašinos stabilumas: Ensure the saw is placed on a stable, level surface before operation.
3. Sąranka
Before operating your Scheppach HS510 tilting saw, ensure it is properly assembled and positioned.
- Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar visos pakavimo sąraše išvardytos dalys yra pakuotėje ir ar jos nepažeistos.
- Surinkimas: Follow the detailed assembly instructions provided in the separate assembly guide. This typically involves attaching the stand, log cradle, and wheels.
- Padėties nustatymas: Place the saw on a firm, level surface. The integrated wheels allow for easy movement to your desired cutting location.
The integrated wheels on the Scheppach HS510 tilting saw allow for easy maneuverability and transport of the machine around the workspace.
4. Naudojimo instrukcijos
Follow these steps for safe and effective operation of your tilting saw.
- Medžiagos paruošimas: Ensure logs are free of foreign objects (nails, stones) and are within the specified cutting diameter (30-170 mm) and length (250-1000 mm).
- Adjusting the Stop: Use the adjustable stop to set the desired cutting length for consistent log pieces.
- Loading the Log: Carefully place the log into the log cradle. Ensure it is seated firmly and cannot shift during the cut.
- Pjūklo paleidimas: Engage the power switch. Allow the blade to reach full operating speed (2800 rpm) before beginning the cut.
- Pjūvio atlikimas: Gently tilt the log cradle downwards, allowing the log to contact the spinning blade. Apply steady, even pressure. Do not force the cut. The patented protective cover will engage during the cutting process for safety.
- Pjovimo užbaigimas: Once the cut is complete, allow the cradle to return to its upright position. Remove the cut piece and repeat the process for subsequent cuts.
- Išsijungia: Turn off the power switch when finished or when leaving the saw unattended. Wait for the blade to come to a complete stop before performing any adjustments or maintenance.
This image shows a user operating the Scheppach HS510 tilting saw. A log is placed in the cradle, and the adjustable stop is utilized to ensure precise and consistent cutting lengths.
Išsamią view of the Scheppach HS510 tilting saw, focusing on the patented protective flap mechanism designed to enhance operational safety.
5. Priežiūra
Regular maintenance ensures the longevity and safe operation of your Scheppach HS510.
- Valymas: After each use, disconnect the power and clean the saw. Remove sawdust and debris from the blade guard, motor housing, and log cradle using a brush or compressed air.
- Ašmenų patikrinimas: Regularly inspect the carbide blade for sharpness, damage, or missing teeth. A dull or damaged blade can cause kickback and reduce cutting efficiency. Replace blades as needed.
- Tepimas: Kad užtikrintumėte sklandų veikimą, periodiškai sutepkite judančias dalis, kaip nurodyta išsamiame techninės priežiūros vadove (jei taikoma).
- Tvirtinimo detalės: Check all nuts, bolts, and screws for tightness. Tighten any loose fasteners to maintain structural integrity.
- Saugykla: Store the saw in a dry, secure location, away from moisture and out of reach of children.
6. Problemų sprendimas
This section addresses common issues you might encounter with your Scheppach HS510.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Pjūklas neįsijungia | Nėra maitinimo šaltinio; Pažeistas maitinimo laidas; Sugedęs jungiklis | Check power connection and circuit breaker; Inspect power cord for damage; Contact qualified service personnel. |
| Sumažėjęs pjovimo našumas | Dull or damaged blade; Incorrect blade installation; Overloading the motor | Replace or sharpen blade; Ensure blade is installed correctly; Reduce feed pressure, allow motor to recover. |
| Pernelyg didelė vibracija ar triukšmas | Loose fasteners; Damaged blade; Unbalanced log | Check and tighten all fasteners; Inspect and replace blade if damaged; Ensure log is balanced in the cradle. |
| Saw jams during cut | Log not properly supported; Forcing the cut; Dull blade | Ensure log is secure; Reduce feed pressure; Replace or sharpen blade. |
7. Specifikacijos
Technical data for the Scheppach HS510 505mm Tilting Saw.
| Funkcija | Specifikacija |
|---|---|
| Gamintojas | SCHEPPACH |
| Modelio numeris | HS510 (SC-HS510) |
| Maitinimo šaltinis | Su laidu elektra |
| ttage | 230 voltų |
| Galia | 3000 vatų (3.0 kW) |
| Ašmenų skersmuo | 505 mm |
| Greitis (be apkrovos) | 2800 aps./min |
| Maks. Pjovimo skersmuo | 170 mm |
| Pjovimo ilgio diapazonas | 250–1000 mm |
| Prekės svoris | 75 kilogramo |
| Gaminio matmenys (I x P x A) | 102.5 x 80.9 x 101.5 cm (surinktas) |
| Ašmenų medžiaga | High-speed steel (Carbide) |
| Ypatingos savybės | Tilting Function, Patented Protective Cover, Retractable Log Cradle Extension |
| Sertifikavimas | CE |
| Atsarginių dalių prieinamumas | 10 metai |

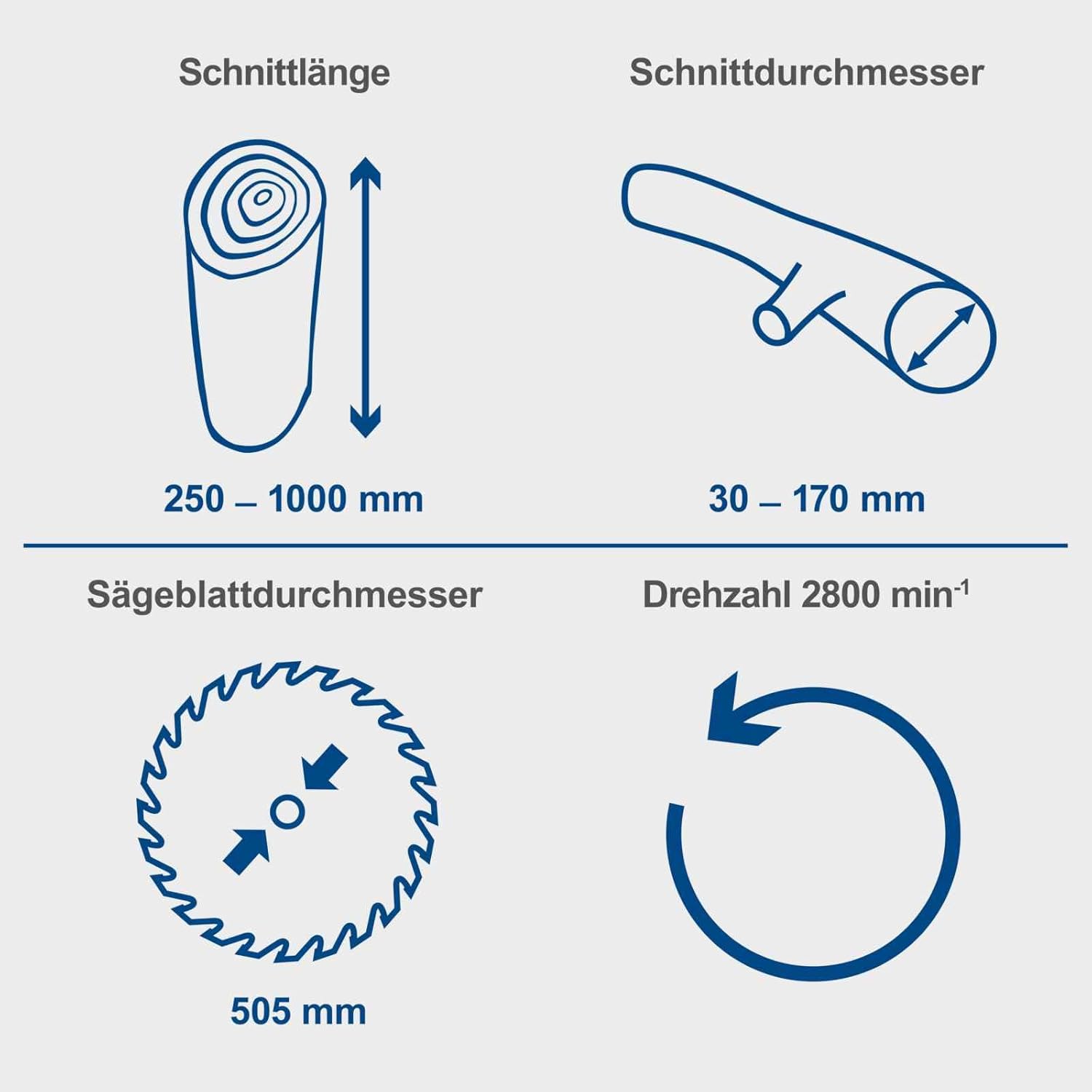

This diagram visually represents the key operational specifications: a cutting length range of 250 to 1000 mm, a cutting diameter range of 30 to 170 mm, a saw blade diameter of 505 mm, and a rotation speed of 2800 revolutions per minute.
This image highlights the saw's 3000 Watt power output and its patented protective flap, designed for enhanced user safety during operation.
8. Garantija ir palaikymas
„Scheppach“ gaminiai gaminami iš aukštos kokybės medžiagų ir yra griežtai kontroliuojami. Mažai tikėtinu defekto atveju, garantijos sąlygas rasite pirkimo dokumentuose. Dėl techninės pagalbos, atsarginių dalių ar paslaugų kreipkitės į įgaliotąjį „Scheppach“ atstovą arba apsilankykite oficialioje „Scheppach“ svetainėje. websvetainė kontaktinei informacijai.
