Smart Sensor AR3126 High Voltage Izoliacijos varžos testeris

1. Produktas baigtasview

The Smart Sensor AR3126 is a high voltage insulation resistance tester, commonly referred to as a megohmmeter. This instrument is designed for measuring the insulation resistance of various electrical equipment, including generators, motors, power transformers, wiring, and other electrical appliances. It is an essential tool for routine maintenance procedures, helping to identify potential faults by monitoring changes in insulation resistance over time. Regular calibration is recommended to ensure the accuracy and reliability of the meter.

1 pav.: priekis view of the AR3126 tester, displaying a high voltage insulation resistance measurement.

2. Saugos informacija

Before operating the AR3126, please read and understand all safety warnings and operating instructions. Failure to do so may result in serious injury or damage to the instrument. This device generates high voltage; always exercise extreme caution.

• Ensure the device is turned off and disconnected from any power source before performing any maintenance or battery replacement.
• Always use appropriate personal protective equipment (PPE) when working with high voltage.
• Do not operate the tester in wet conditions or in the presence of explosive gases or vapors.
• Verify that test leads are in good condition, without any damage or exposed wiring.
• Never touch the test leads or the circuit under test during a measurement.
• Discharge the circuit completely after testing high voltage insulation resistance.

3. Sąranka ir paruošimas

3.1 Akumuliatoriaus įdėjimas

The AR3126 requires 8 C-type batteries for operation. To install or replace batteries:

1. Įsitikinkite, kad testeris yra išjungtas.
2. Raskite baterijų skyrių įrenginio gale.
3. Atidarykite akumuliatoriaus skyriaus dangtelį.
4. Insert 8 C-type batteries, observing the correct polarity (+/-) as indicated inside the compartment.
5. Saugiai uždarykite akumuliatoriaus skyriaus dangtelį.

Figure 2: Open battery compartment for C-type battery installation.

3.2 Bandymo laidų prijungimas

Connect the provided test leads to the appropriate terminals on the top of the AR3126:

• Connect the green lead to the 'EARTH' terminal.
• Connect the black lead to the 'GUARD' terminal (if required for specific measurements).
• Connect the red lead to the 'LINE' terminal.

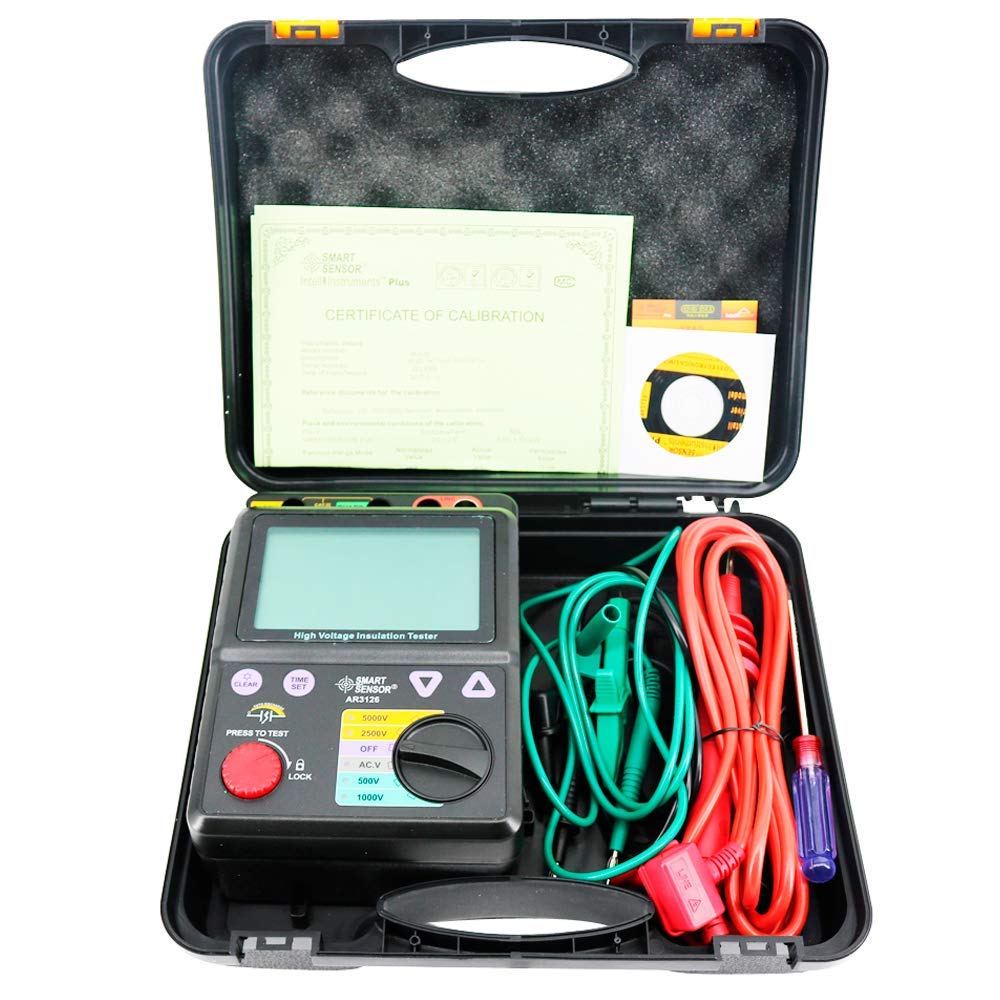

Figure 3: AR3126 tester with included test leads and accessories.

4. Naudojimo instrukcijos

4.1 Įjungimas / išjungimas

To power on the device, rotate the rotary switch from the 'OFF' position to any desired test voltage (e.g., 500V, 1000V, 2500V, 5000V) or 'AC.V' for voltage measurement. To power off, rotate the switch back to 'OFF'.

4.2 Bandomojo tūrio pasirinkimastage

The AR3126 offers multiple rated test voltages: 500V, 1000V, 2500V, and 5000V. Select the appropriate voltage for your application using the rotary switch on the front panel.

4.3 Performing an Insulation Resistance Test

1. Ensure the circuit under test is de-energized and safely isolated.
2. Connect the test leads to the circuit: 'LINE' to the conductor, 'EARTH' to the ground or protective earth. Use 'GUARD' if a guard ring measurement is required to eliminate surface leakage currents.
3. Pasirinkite norimą bandymo tūrįtage naudojant sukamąjį jungiklį.
4. Press and hold the red 'PRESS TO TEST' button. The display will show the insulation resistance value. For continuous testing, press the 'LOCK' button while holding 'PRESS TO TEST'.
5. Observe the reading on the digital display.
6. Release the 'PRESS TO TEST' button to stop the test. The device will automatically discharge the circuit.

4.4 DC/AC ttage Testas

DC arba AC voltage (range 30-600V), rotate the switch to the 'AC.V' position. Connect the test leads to the voltage source. The display will show the measured voltage.

5. Priežiūra

5.1 Valymas

Prietaiso išorę valykite minkšta, damp cloth. Do not use abrasive cleaners or solvents. Ensure the device is powered off and disconnected from any test leads before cleaning.

5.2 Akumuliatoriaus keitimas

Pakeiskite baterijas, kai ekrane pasirodo išsikrovusio baterijų indikatorius arba kai įrenginys neįsijungia. Baterijų įdėjimo instrukcijas rasite 3.1 skyriuje.

5.3 Saugykla

When not in use, store the AR3126 in a dry, cool environment, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries to prevent leakage.

5.4 Kalibravimas

Regular calibration is necessary to maintain the accuracy of the AR3126. It is recommended to have the instrument calibrated by a qualified service center at least once a year, or as required by your quality assurance program.

6. Problemų sprendimas

• Įrenginys neįsijungia: Patikrinkite baterijų įdėjimą ir įsitikinkite, kad jos nėra išsikrovusios. Jei reikia, pakeiskite.
• 'OL' (Overload) displayed during insulation test: This indicates that the measured resistance is higher than the maximum range of the selected voltage. This is often a normal reading for good insulation.
• Netikslūs rodmenys: Ensure test leads are properly connected and in good condition. Verify the circuit under test is clean and dry. Consider professional calibration if issues persist.
• No reading during test: Ensure the 'PRESS TO TEST' button is held down or 'LOCK' is engaged. Check for loose connections.

7. Specifikacijos

8. Informacija apie garantiją

Specific warranty details for the Smart Sensor AR3126 are not provided in this manual. Please refer to the warranty card included with your product or contact the seller/manufacturer directly for comprehensive warranty terms and conditions.

9. Parama

For technical assistance, service, or further inquiries regarding the Smart Sensor AR3126, please contact your point of purchase or the Smart Sensor customer support. Contact information can typically be found on the product packaging or the manufacturer's official websvetainę.
