1. Įvadas
Thank you for choosing the Maclean Energy MCE244 LED Lamp. This manual provides essential information for the safe installation, operation, and maintenance of your new LED lampPrieš naudodami atidžiai perskaitykite šias instrukcijas ir išsaugokite jas ateičiai.
2. Saugos instrukcijos
- Elektros sauga: Montavimą turi atlikti kvalifikuotas elektrikas pagal vietinius laidų montavimo reikalavimus. Prieš montuodami ar atlikdami techninę priežiūrą, įsitikinkite, kad maitinimo šaltinis yra atjungtas.
- ttage: This product operates on 240 Volts. Verify your power supply matches this requirement.
- Aplinka: Lamp is rated IP54, making it suitable for outdoor and indoor use. However, avoid submerging it in water or exposing it to extreme conditions beyond its rating.
- Šiluma: Neuždenkite lamp or install it near flammable materials.
- Valymas: Valymui naudokite minkštą, sausą šluostę. Nenaudokite abrazyvinių valiklių ar tirpiklių.
3. Gaminio komponentai
The Maclean Energy MCE244 LED Lamp includes the following main components:
- LED L.amp Vienetas
- Integrated Infrared Motion Sensor
- Tvirtinimo detalės (varžtai, sieniniai kaiščiai)

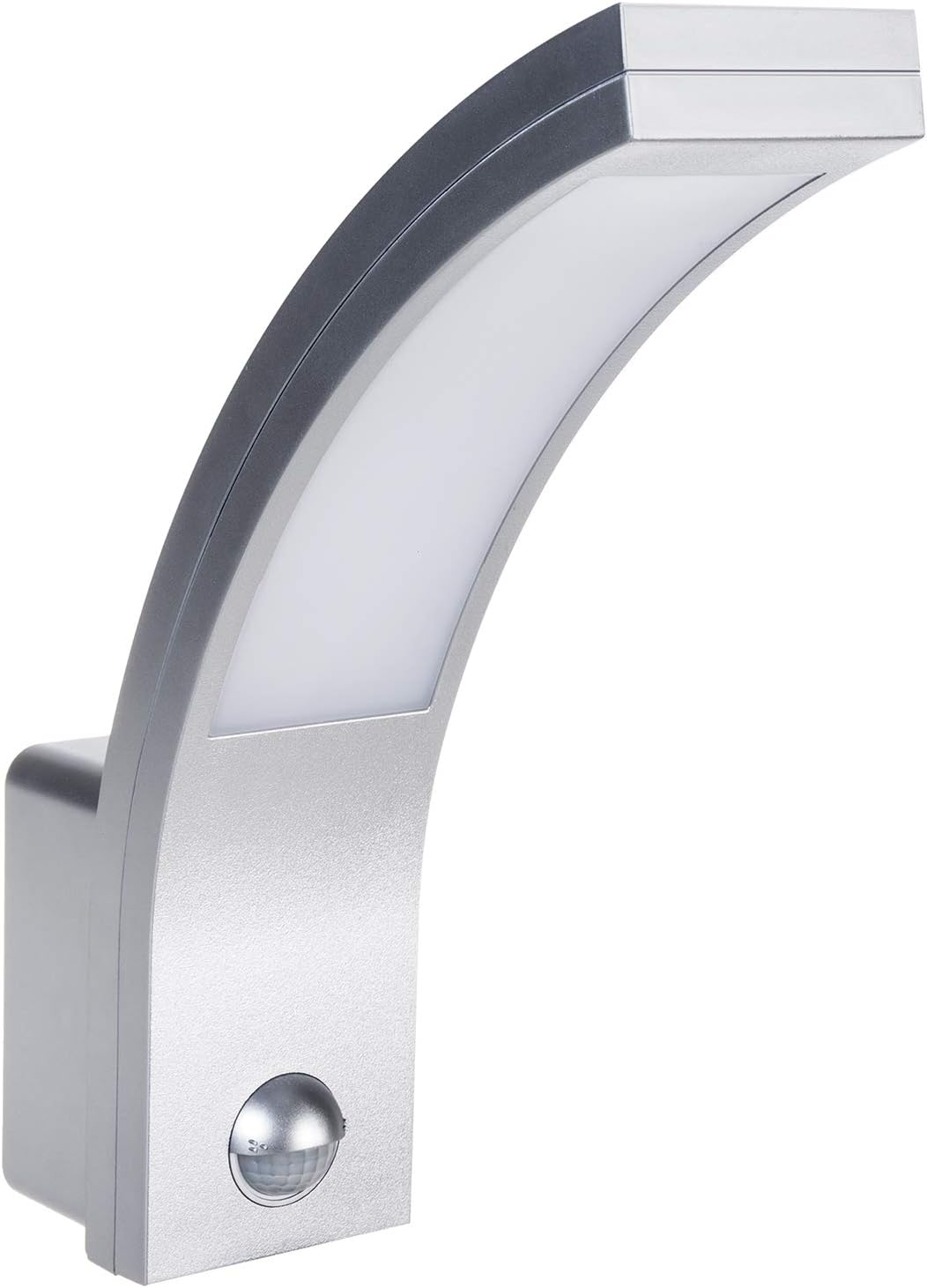

1 pav.: priekis view of the Maclean Energy MCE244 LED Lamp.
2 pav.: šonas view of the Maclean Energy MCE244 LED Lamp, highlighting its curved design.
3 pav.: Nugara view of the Maclean Energy MCE244 LED Lamp, showing product information and IP54 rating.

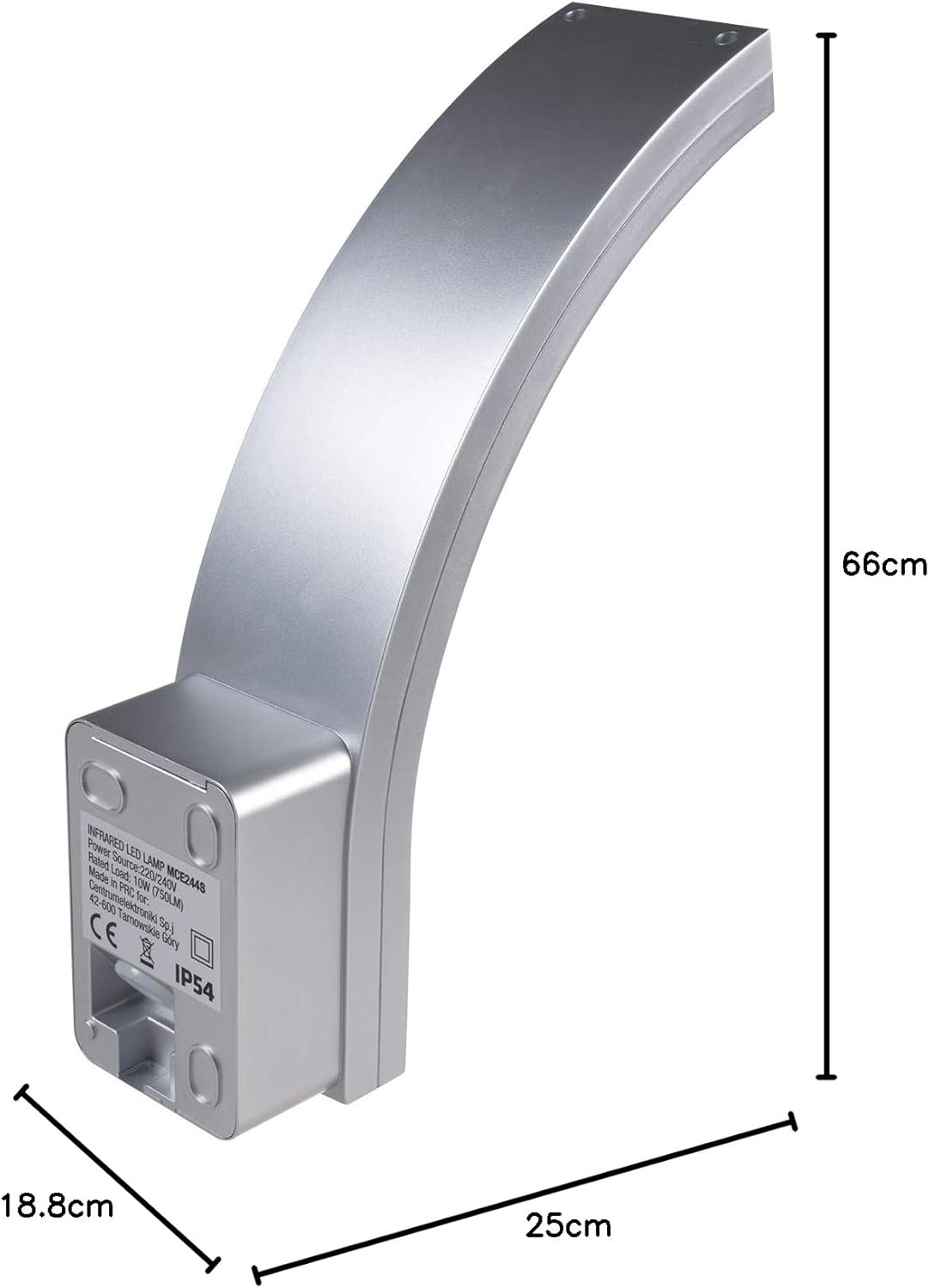

Figure 4: Dimensions of the Maclean Energy MCE244 LED Lamp: 66cm length, 18.8cm width, 25cm height.
4. Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Prekės ženklas | Maclean |
| Modelio numeris | MCE244 |
| Matmenys | 66 x 18.8 x 25 cm |
| Svoris | 452 gramų |
| IP reitingas | IP54 (atsparus vandeniui, dulkėms) |
| ttage | 240 voltų |
| Galia | 10 vatų |
| Šviesos srautas | 750 lm |
| Lemputės tipas | LED |
| Energy Class (EU) | A++ |
| Judesio jutiklio kampas | 140° |
| Judesio jutiklio diapazonas | Iki 9 metrų |
| Stilius | Modernus |
| Medžiaga | Aliuminis |
| Spalva | Sidabras |
| Maitinimo šaltinis | Laidinė elektra |
| Ypatingos savybės | Infrared Motion Sensor, Auto On/Off |
5. Montavimas
Svarbu: Ensure the main power supply is switched off at the circuit breaker before beginning installation to prevent electric shock.
- Paruoškite montavimo paviršių: Choose a suitable wall location, ensuring it is stable and can support the lampsvoris.
- Gręžimo taškų žymėjimas: Naudokite lamp's mounting plate as a template to mark the drilling points on the wall.
- Gręžimo skylės: Pažymėtose vietose išgręžkite skyles ir (jei reikia) įkiškite atitinkamus sieninius kaiščius.
- Prijunkite laidus: Carefully connect the live (L) and neutral (N) wires from your electrical supply to the corresponding terminals on the lamp's connection block. Ensure all connections are secure.
- Sumontuokite Lamp: Apsaugokite lamp to the wall using the provided screws. Ensure it is firmly attached.
- Atkurti maitinimą: Kai įrengimas baigtas ir visos jungtys pritvirtintos, atkurkite elektros tiekimą automatiniu jungikliu.
6. Operacija
The Maclean Energy MCE244 LED Lamp features an integrated infrared motion sensor and twilight sensor for automatic operation.
- Automatinis režimas: Lamp will automatically turn on when motion is detected within its range and the ambient light level falls below the set threshold. It will turn off after a set delay if no further motion is detected.
- Rankinis nepaisymas: This model is designed for automatic operation. There is no manual override switch for continuous illumination.
7. Nustatymai Reguliavimas
The motion and twilight sensor settings can be adjusted using the controls located on the lamp's sensor unit. These controls are typically small dials or screws that require a small screwdriver for adjustment.
Figure 5: Close-up of the sensor controls on the Maclean Energy MCE244 LED Lamp. The 'TIME' dial adjusts the illumination duration, and the 'LUX' dial adjusts the ambient light sensitivity.
- TIME (Illumination Duration): This dial controls how long the lamp remains illuminated after motion is detected and then ceases. Turn the dial to increase or decrease the duration.
- LUX (Ambient Light Sensitivity): This dial determines the ambient light level at which the sensor becomes active. Turn the dial towards the 'sun' icon for the lamp to activate in brighter conditions, or towards the 'moon' icon for it to activate only in darker conditions.
Adjust these settings incrementally and test the lamp's behavior to achieve your desired operation.
8. Priežiūra
- Valymas: Reguliariai valykite lampišorė su minkšta, damp cloth. Do not use harsh chemicals or abrasive materials that could damage the finish or sensor.
- Jutiklio patikrinimas: Periodically check the motion sensor lens for any obstructions (e.g., dirt, spiderwebs) that might affect its performance.
- Lemputės keitimas: Šis LED lamp features integrated LEDs and does not require bulb replacement. If the light source fails, the entire unit may need to be replaced.
9. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Lamp neįsijungia. | No power supply, incorrect wiring, LUX setting too high (too bright for activation), faulty sensor. | Check power supply and circuit breaker. Verify wiring connections. Adjust LUX setting. Contact a qualified electrician if issues persist. |
| Lamp dega nuolat. | Constant motion detected, TIME setting too long, LUX setting too low (always dark enough for activation), faulty sensor. | Ensure no constant motion in detection area. Adjust TIME setting. Adjust LUX setting. Check for sensor obstructions. |
| Lamp turns on/off randomly. | Interference from heat sources (e.g., vents, animals), sensor too sensitive, faulty sensor. | Perkelti lamp away from heat sources. Adjust sensor sensitivity (if applicable). Clean sensor lens. |
| Motion detection range is poor. | Sensor obstructed, incorrect mounting height, environmental factors (e.g., extreme cold). | Clear sensor lens. Ensure proper mounting height (typically 1.8-2.5m). |
10. Išmetimas
Šio gaminio negalima išmesti kartu su buitinėmis atliekomis. Prašome perdirbti ten, kur yra įrenginiai. Patarimų dėl perdirbimo kreipkitės į vietos valdžios institucijas.
11. Garantija ir palaikymas
Maclean products are designed and manufactured to the highest quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or contact your retailer. Keep your proof of purchase for warranty claims.
