1. Įvadas
This instruction manual provides detailed information on the installation, operation, and maintenance of your Pioneer DEH-5600 car audio system. Please read this manual thoroughly before using the product to ensure correct usage and to prevent accidents. Keep this manual in a safe place for future reference.
2. Saugos informacija
Kad išvengtumėte sužalojimų ar gaminio sugadinimo, laikykitės šių saugos priemonių:
- Do not operate the system in a way that distracts you from driving safely.
- Ensure proper installation by a qualified technician to prevent electrical shorts or other hazards.
- Do not disassemble or modify the unit. This may result in electric shock, fire, or other malfunctions.
- Garsumą palaikykite tokiu lygiu, kad vis tiek girdėtumėte išorinius garsus, pavyzdžiui, greitosios pagalbos automobilių sirenas.
- Naudokite tik nurodytus priedus ir dalis.
3. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- Main Unit (DEH-5600)
- Laidų laidai
- Laisvų rankų mikrofonas
- Installation Screws Set
- Remote Control (with CR2025 Lithium Battery)
- Instrukcijų vadovas (šis dokumentas)
- Garantijos kortelė
4. Sąranka ir diegimas
Proper installation is crucial for optimal performance and safety. It is recommended to have this unit installed by a professional.
4.1 Laidų jungtys
Connect the wiring harness according to your vehicle's specifications. Ensure the ground wire is securely connected to a metal part of the vehicle chassis or the battery's negative terminal.
Svarbu: Connect the vehicle-specific harness to the main unit harness before installation. Ensure all connections are secure to prevent short circuits.
4.2 Įrenginio montavimas
Install the DEH-5600 into a 1DIN opening in your vehicle's dashboard. Use the provided installation screws to secure the unit.
4.3 Hands-free Microphone Installation
Mount the hands-free microphone in a location that allows clear voice pickup, typically near the driver's sun visor or on the steering column. Route the cable carefully to avoid interference with driving controls.

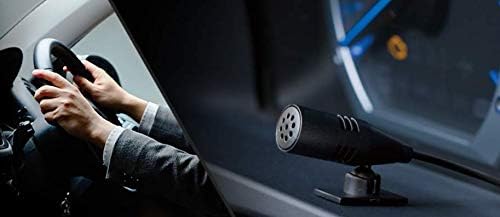

Image: Hands-free microphone for clear communication during calls.
5. Naudojimo instrukcijos
5.1 Pagrindinės operacijos
- Maitinimo įjungimas/išjungimas: Press the SRC/OFF button to turn the unit on or off.
- Garsumo valdymas: Rotate the rotary knob to adjust the volume.
- Šaltinio pasirinkimas: Press the SRC/OFF button repeatedly to cycle through available sources (CD, Bluetooth, USB, iPhone, AUX, Tuner).
5.2 CD atkūrimas
Insert a CD into the disc slot. Playback will start automatically. Use the track skip buttons to navigate between tracks.
5.3 Derintuvo veikimas
Select the Tuner source. Use the seek buttons to find radio stations. Press and hold a preset button to store a station.
6. Garso nustatymai
The DEH-5600 features a high-performance DSP for precise sound customization.
6.1 Laiko derinimas
Adjust the time alignment settings to ensure that sound from all speakers reaches the listener at the same time, creating a more focused sound stage. Refer to the on-screen menu for detailed adjustments.
6.2 13 juostų grafinis ekvalaizeris
Utilize the 13-band graphic equalizer to fine-tune the audio frequency response. This allows for detailed sound shaping to match your preferences and vehicle acoustics.
Image: The 13-band graphic equalizer interface for detailed sound adjustments.
7. Bluetooth ryšys
The DEH-5600 supports Bluetooth for hands-free calling and audio streaming.
7.1 „Bluetooth“ įrenginio susiejimas
- Turn on the Bluetooth function on your smartphone or other device.
- On the DEH-5600, navigate to the Bluetooth settings menu.
- Pasirinkite „Susiejimas“ arba „Pridėti įrenginį“.
- Ieškokite "DEH-5600" on your device and select it.
- Jei būsite paraginti, patvirtinkite susiejimo kodą.
7.2 Skambinimas be rankų
Once paired, you can make and receive calls through the DEH-5600. Use the dedicated call buttons on the unit or remote control. Your voice will be picked up by the external microphone.

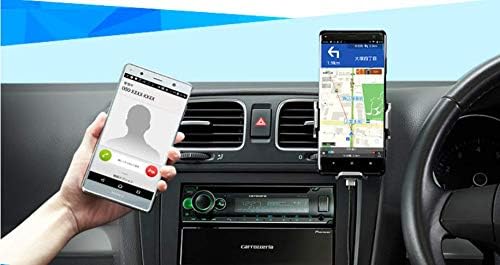

Image: Hands-free calling functionality with a connected smartphone.
7.3 „Bluetooth“ garso transliacija
Select the Bluetooth Audio source to stream music from your paired device. Use the unit's controls to play, pause, and skip tracks.
8. USB/iPod/iPhone Playback
Connect your USB device, iPod, or iPhone to the USB Type-A port for direct audio playback and charging.
- Supported formats for USB: WMA, MP3, WAV, AAC, FLAC.
- For iPhone/iPod, use a compatible USB cable. The unit supports iOS control.
Image: Various media playback options including iPhone, Android smartphone, and USB device.
9. Priežiūra
To ensure long-lasting performance of your DEH-5600:
- Valymas: Wipe the unit's front panel with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Disko priežiūra: Kompaktinius diskus imkite už kraštų. Laikykite juos švarius ir nesubraižytus.
- Firmware atnaujinimai: Check the Pioneer websvetainėje, ar nėra jūsų modeliui skirtų programinės įrangos atnaujinimų.
10. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra galios | Neteisingas laidų sujungimas; perdegęs saugiklis | Check power connections; Replace fuse if necessary. |
| Nėra garso | Per mažas garsumas; Įjungtas nutildymas; Garsiakalbio laidų problema | Padidinkite garsumą; Išjunkite nutildymą; Patikrinkite garsiakalbių jungtis. |
| „Bluetooth“ susiejimas nepavyksta | Įrenginys neporavimo režime; trikdžiai | Ensure device Bluetooth is on and in pairing mode; Try pairing again. |
| Kompaktinis diskas praleidžia arba negroja | Dirty or scratched disc; Unit vibration | Clean or replace disc; Ensure unit is securely mounted. |
If the problem persists after trying these solutions, contact Pioneer customer support or a qualified service center.
11. Specifikacijos
- Modelio pavadinimas: DEH-5600
- Prekinis ženklas: Pionierius
- Gaminio matmenys: 16.5 x 17.8 x 5 cm (gylis x plotis x aukštis)
- Produkto svoris: 1.32 kg
- Montavimo dydis: 1 DIN
- Ryšio technologija: Bluetooth, USB
- Valdiklio tipas: iOS (for compatible devices)
- Ypatingos savybės: DSP, WAZE (via smartphone app)
- Palaikoma laikmena: CD, USB (WMA, MP3, WAV, AAC, FLAC), iPhone, iPod, AUX
- Ampgyvybingesnis: Power MOS FET 50W x 4 channels
- Garso apdorojimas: Time Alignment, 13-Band Graphic Equalizer
- Spalva: Juoda / žalia
12. Garantija ir palaikymas
Your Pioneer DEH-5600 comes with a manufacturer's warranty. Please refer to the included warranty card for details regarding coverage period and terms. For technical support, service, or inquiries, please visit the official Pioneer website or contact your local Pioneer customer service center.
Internetiniai ištekliai: Pioneer Carrozzeria Official Websvetainę
