„Atlantic IONO SELECT i DE 11L“ gamtinių dujų vandens šildytuvo naudotojo vadovas

1. Įvadas

Thank you for choosing the Atlantic IONO SELECT i D E 11L Natural Draft Gas Water Heater. This appliance is designed to provide instantaneous and continuous hot water for your household needs. To ensure safe and efficient operation, please read this manual thoroughly before installation, operation, or maintenance. Keep this manual for future reference.

2. Saugos informacija

Your safety and the safety of others are paramount. This section contains important safety instructions. Failure to follow these instructions could result in fire, explosion, electric shock, property damage, personal injury, or death.

• Profesionalus montavimas: Montavimą, reguliavimą, keitimą, techninę priežiūrą ar remontą turi atlikti kvalifikuotas montuotojas arba techninės priežiūros įmonė.
• Vėdinimas: Ensure adequate ventilation in the installation area. This is a natural draft appliance and requires sufficient air supply for combustion and exhaust.
• Dujų nuotėkis: If you smell gas, immediately turn off the gas supply, open windows and doors, and evacuate the premises. Do not operate electrical switches or phones. Contact your gas supplier or a qualified technician.
• Smalkės: This appliance produces carbon monoxide, which is an odorless and colorless gas that can cause serious injury or death. Ensure proper ventilation and exhaust. Consider installing a carbon monoxide detector.
• Degios medžiagos: Nelaikykite ir nenaudokite benzino ar kitų degių garų ir skysčių šalia šio ar kito prietaiso.
• Vaikai: Keep children away from the water heater and its controls.

The Atlantic IONO SELECT i D E is equipped with several safety devices:

• Fumes Thermostat: Monitors exhaust gas temperature.
• Limit Thermostat: Prevents overheating of the appliance.
• Ionization Flame Control: Ensures proper flame detection and cuts off gas supply if the flame is absent.
• Thermocouple Flame Control: An additional safety measure for flame detection.

3. Produktas baigtasview

The Atlantic IONO SELECT i D E is an advanced gas water heater designed for efficiency and user convenience. Its compact design allows for versatile installation.

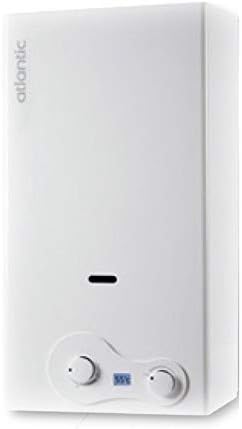

1 vaizdas: priekis view of the Atlantic IONO SELECT i D E 11L gas water heater. This image displays the appliance's sleek white casing, the Atlantic brand logo prominently at the top left, two control knobs at the bottom, and a small LCD screen in the center for temperature display.

Pagrindinės funkcijos:

• Instantaneous and Continuous Hot Water: Provides hot water on demand without storage.
• Didelis efektyvumas: Optimized for energy-saving performance.
• Minimum Water Pressure Requirement: Designed to operate even with low water pressure.
• Gas Economizer: Helps reduce gas consumption.
• Water Flow Selector: Allows adjustment of water flow rate.
• Flame Modulation: Automatically adjusts flame intensity based on water flow and desired temperature.
• Iono Battery Ignition: Electronic ignition system powered by batteries (included).
• Kompaktiški matmenys: Space-saving design for easy installation.
• LCD ekranas: Digital screen for clear temperature visualization.

4. Sąranka ir diegimas

Installation of this gas water heater must be carried out by a qualified and certified professional in accordance with all local and national regulations and standards.

Bendrosios montavimo taisyklės:

• Vieta: Choose a location with adequate ventilation, protected from freezing temperatures, and away from flammable materials. Ensure easy access for maintenance.
• Vėdinimas: The appliance requires a natural draft flue system. Ensure the flue pipe is correctly installed and sealed, and that the room has sufficient air intake.
• Dujų jungtis: Connect the appliance to the gas supply using approved fittings and flexible connectors. Ensure all connections are leak-free.
• Vandens jungtys: Connect the cold water inlet and hot water outlet pipes. Install shut-off valves on both lines for easy servicing.
• Akumuliatoriaus montavimas: Install the required batteries (typically D-cell, included) into the designated compartment for the electronic ignition system.
• Pirmasis paleidimas: After installation, the professional installer will perform a test run to check for gas leaks, proper water flow, ignition, and exhaust.

5. Naudojimo instrukcijos

Once installed and checked by a professional, operating your Atlantic IONO SELECT i D E is straightforward.

Starting the Water Heater:

1. Ensure the gas supply valve to the appliance is open.
2. Įsitikinkite, kad šalto vandens įleidimo vožtuvas yra atidarytas.
3. Open a hot water tap. The water heater will automatically ignite, and hot water will begin to flow. The LCD display will show the current water temperature.

Vandens temperatūros reguliavimas:

Use the temperature control knob (typically on the right) to adjust the desired hot water temperature. Turning the knob clockwise usually increases the temperature, while counter-clockwise decreases it. The LCD display will reflect the changes.

Vandens srauto reguliavimas:

Use the water flow selector knob (typically on the left) to adjust the water flow rate. This can influence the temperature rise and overall hot water output. A lower flow rate generally results in hotter water, while a higher flow rate provides more volume at a slightly lower temperature.

Išsijungia:

To turn off the water heater, simply close all hot water taps. The appliance will automatically cease operation. For extended periods of inactivity, it is recommended to close the main gas supply valve to the appliance.

Baterijos keitimas:

When the batteries for the ignition system are low, the appliance may fail to ignite or show an indicator on the LCD. Replace the batteries with new ones of the correct type (e.g., D-cell) as indicated in the battery compartment.

6. Priežiūra

Regular maintenance ensures the longevity and safe operation of your water heater. All internal maintenance and checks should be performed by a qualified technician.

Vartotojo priežiūra:

• Išorinis valymas: Išvalykite išorę casing su minkštu, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Vėdinimo patikrinimas: Periodically ensure that the ventilation openings and flue pipe are clear and unobstructed.

Professional Maintenance (Annual Check Recommended):

• Dujų jungtys: Check for any gas leaks and ensure all connections are secure.
• Burner and Heat Exchanger: Inspect and clean the burner and heat exchanger for any soot or debris that could impair efficiency.
• Dūmų sistema: Verify the integrity and proper functioning of the flue system.
• Saugos įtaisai: Test all safety devices, including thermostats and flame controls.
• Vandens filtras: Clean or replace any inline water filters if present.

Apsauga nuo užšalimo:

If the appliance is installed in an area where temperatures may drop below freezing, ensure proper frost protection measures are in place. This may involve draining the unit or using an anti-freeze system, as specified by a professional.

7. Problemų sprendimas

Before contacting a service technician, please review toliau išvardytos dažnos problemos ir sprendimai.

• No Hot Water / Appliance Not Igniting:
  • Patikrinkite, ar atidarytas dujų tiekimo vožtuvas.
  • Verify that the water supply is on and sufficient pressure is available.
  • Check the batteries for the ignition system; replace if low or dead.
  • Ensure the hot water tap is fully open.
  • Check for any error codes on the LCD display and consult the full technical manual if available.
• Vanduo nepakankamai karštas:
  • Adjust the temperature control knob to a higher setting.
  • Reduce the water flow rate using the flow selector knob.
  • Ensure the incoming cold water temperature is not excessively low.
  • Check for mineral buildup in the heat exchanger (requires professional service).
• Mažas vandens srautas:
  • Patikrinkite, ar visiškai atidarytas vandens įleidimo vožtuvas.
  • Inspect the water flow selector knob setting.
  • Check for blockages in the water lines or showerheads/faucets.
• Dujų kvapas:
  • IŠ karto turn off the main gas supply.
  • Open all windows and doors to ventilate the area.
  • Do not operate any electrical switches or use phones.
  • Evacuate the building and contact your gas supplier or a qualified technician from a safe location.

For issues not listed here or if troubleshooting steps do not resolve the problem, contact a qualified service technician.

8. Specifikacijos

The following specifications are for the Atlantic IONO SELECT i D E 11L Natural Draft Gas Water Heater.

Image 2: Packaging box of the Atlantic Iono Select 11L gas water heater. This image provides detailed technical specifications including model name, capacity, gas type, pressure ratings, and physical dimensions.

9. Garantija ir palaikymas

For warranty information, claims, or technical support, please refer to the documentation provided with your purchase or contact your retailer or the Atlantic customer service directly. Ensure you have your proof of purchase and the product model number (IONO SELECT i D E 11lt) available when contacting support.
