1. Įvadas
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your Boulder LEDZOOM 1915F LED Wash Lights. Please read this manual thoroughly before using the product to ensure proper function and to prevent damage or injury.
Figure 1: Boulder LEDZOOM 1915F LED Wash Light showcasing different color outputs.
2. Saugos informacija
WARNING: To prevent fire, electric shock, or injury, always follow these safety precautions.
- Įsitikinkite, kad įvesties ttage (AC 90–260 V, 50/60 Hz) atitinka jūsų vietinį maitinimo šaltinį.
- Always connect the unit to a grounded circuit.
- Neatidarykite korpuso. Viduje nėra dalių, kurias galėtų aptarnauti vartotojas. Visus techninės priežiūros darbus patikėkite kvalifikuotiems darbuotojams.
- Venkite tiesioginio akių poveikio šviesos šaltiniui.
- Keep the unit away from rain, moisture, and liquids.
- Užtikrinkite tinkamą vėdinimą aplink šviestuvą. Neužblokuokite ventiliacijos angų.
- Maximum ambient temperature for operation is 45°C.
- Prieš valydami ar atlikdami techninę priežiūrą, atjunkite nuo elektros tinklo.
3. Produkto ypatybės
- 19 x 15W 4-in-1 RGBW LEDs for vibrant color mixing.
- Motorized linear zoom from 8° to 50°.
- High light output: 6900 LUX (8°) and 1120 LUX (50°) at 5 meters (full RGBW).
- 50,000-hour LED lifespan and low power consumption.
- Variable speed LED shutter and smooth LED dimming.
- LED rainbow effect, strobe effect (up to 18 flashes/second), and pulse effect.
- 8 built-in programs with macro effects.
- Control modes: DMX512, master-slave, sound activated, or auto operation.
- 16 DMX kanalų.
- Blue LCD display for easy navigation.
- Efficient fan cooling system with low noise (55dB at 3 feet).
- PowerCON IN/OUT and 3-pin DMX IN/OUT connectors.
- Flicker-free operation.
4. Sąranka
4.1 Išpakavimas
Carefully unpack the fixture and check for any damage during transportation. Ensure all components listed in the packing list are present. If any damage or missing parts are found, contact your dealer immediately.
4.2 Montavimas
The fixture can be mounted in various orientations (e.g., truss, floor). Always use appropriate mounting hardware and safety cables. Ensure the mounting surface or structure can support the weight of the fixture.
2 pav.: priekis view of the LEDZOOM 1915F fixture.
3 pav.: šonas view of the LEDZOOM 1915F fixture, showing mounting points.
4.3 Maitinimo jungtis
Connect the PowerCON IN cable to a suitable AC power outlet (AC 90-260V, 50/60Hz). Use the PowerCON OUT for daisy-chaining power to other fixtures, ensuring not to exceed the maximum current rating of the circuit.
4.4 DMX jungtis
Use standard 3-pin DMX cables to connect the fixture to a DMX controller or other DMX devices. Connect the DMX OUT of the controller to the DMX IN of the first fixture, then daisy-chain from DMX OUT to DMX IN for subsequent fixtures.

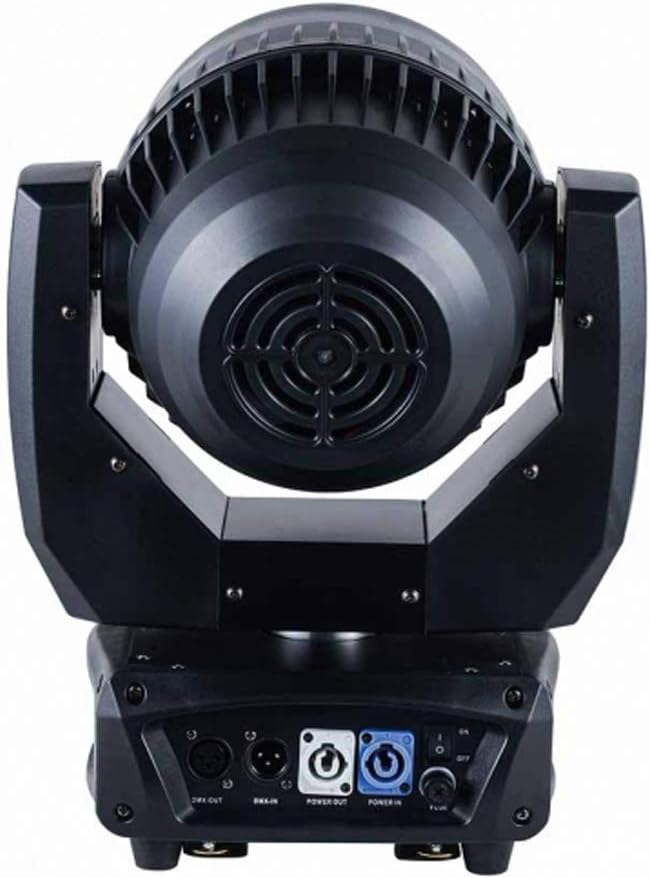

4 pav.: galinis view showing PowerCON IN/OUT and 3-pin DMX IN/OUT connectors.
5. Naudojimo instrukcijos
5.1 Valdymo skydas
The fixture features a blue LCD display and control buttons (MENU, UP, DOWN, ENTER) for navigating settings and selecting operating modes.
Figure 5: Control panel with LCD display and navigation buttons.
5.2 DMX režimas
Set the DMX address using the control panel. The fixture uses 16 DMX channels. Refer to the DMX channel chart (not provided in this manual, typically found in a separate DMX protocol document) for specific channel functions such as pan, tilt, zoom, RGBW dimming, strobe, and built-in programs.
5.3 Pagrindinio-pavaldinio režimas
Connect multiple fixtures via DMX cables. Set one fixture as the "Master" and the others as "Slave" through the control panel. The slave units will mirror the master unit's operation.
5.4 Garso aktyvavimo režimas
Enable sound activated mode via the control panel. The fixture will react to ambient sound, changing patterns and colors according to the detected audio input.
5.5 Auto Operation
Select one of the 8 built-in programs for automatic operation. The fixture will cycle through pre-programmed sequences without external control.
6. Priežiūra
Reguliarus valymas užtikrina optimalų veikimą ir prailgina jūsų įrenginio tarnavimo laiką.
- Valymas: Periodically clean the lenses and exterior housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the fixture is powered off and cooled down before cleaning.
- Ventiliatorius ir vėdinimas: Keep the cooling fan and ventilation openings free from dust and debris to prevent overheating.
- Kabelio apžiūra: Regularly inspect power and DMX cables for any signs of wear, cuts, or damage. Replace damaged cables immediately.
- Firmware atnaujinimai: Patikrinkite gamintojo websvetainėje, kurioje pateikiami visi galimi programinės įrangos atnaujinimai.
7. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Įrenginys neįsijungia. | Nėra maitinimo; sugedęs laidas; perdegęs vidinis saugiklis. | Patikrinkite maitinimo jungtį; išbandykite maitinimo laidą; dėl saugiklio pakeitimo kreipkitės į kvalifikuotą specialistą. |
| Nėra DMX valdymo. | Incorrect DMX address; faulty DMX cable; DMX controller issue; incorrect DMX mode. | Verify DMX address; check DMX cable continuity; ensure DMX controller is functioning; confirm fixture is in DMX mode. |
| Įrenginio perkaitimas. | Užblokuota ventiliacija; aukšta aplinkos temperatūra. | Clear ventilation openings; ensure adequate airflow; operate within specified ambient temperature. |
| Motorized functions (Pan/Tilt/Zoom) not working. | DMX signal issue; motor calibration required; internal fault. | Check DMX signal; perform factory reset or motor calibration (if available via menu); contact support. |
8. Specifikacijos
| Modelio numeris | LEDZOOM 1915F |
| Šviesos šaltinis | 19 x 15W 4-in-1 RGBW LEDs |
| Gyvenimo trukmė | 50,000 valandos |
| Priartinimo kampas | 8° - 50° Motorized |
| Šviesos išvestis | 6900 LUX (8°), 1120 LUX (50°) @ 5M (full RGBW) |
| Valdymo kanalai | 16 DMX kanalai |
| Valdymo režimai | DMX512, Master-Slave, Sound Activated, Auto Operation |
| Įvesties tomastage | AC 90-260V, 50/60Hz |
| Energijos suvartojimas | 295W |
| Maksimali aplinkos temperatūra | 45 °C (113 °F) |
| IP reitingas | IP20 |
| Triukšmo lygis | 55 dB 3 pėdų atstumu |
| Matmenys (G x P x A) | 185 mm x 310 mm x 400 mm |
| Grynasis svoris | 7.8 kg |
| Gamintojas | Guangzhou Baide Lighting LTD |
9. Garantija ir palaikymas
Specific warranty information is not provided in the product details. Please refer to your purchase documentation or contact your retailer for warranty terms and conditions.
For technical support or service inquiries, please contact Boulder Lighting directly or the authorized dealer from whom you purchased the product. Contact information may be available on the manufacturer's official websvetainėje arba pirkimo sąskaitoje faktūroje.
Gamintojas: Guangzhou Baide Lighting LTD
Prekinis ženklas: Riedulys
ASIN: B07YZ2NK7Q
