Vocal-Star VS-800 Bluetooth CDG Karaoke Machine

1. Įvadas

Welcome to the Vocal-Star VS-800 Bluetooth CDG Karaoke Machine user manual. This guide provides detailed instructions for setting up, operating, and maintaining your karaoke system. Please read this manual thoroughly before use to ensure proper functionality and to maximize your enjoyment of the VS-800.

Svarbi saugos informacija

• Saugokite įrenginį nuo lietaus ar drėgmės.
• Neuždenkite vėdinimo angų.
• Naudokite tik gamintojo nurodytus priedus/priedus.
• Atjunkite įrenginį žaibuojant arba kai nenaudojate ilgą laiką.
• Visus techninės priežiūros darbus patikėkite kvalifikuotam techninės priežiūros personalui.

2. Pakuotės turinys

Patikrinkite, ar jūsų pakuotėje yra visi šie daiktai:

• Vocal-Star VS-800 Karaoke Machine
• Nuotolinio valdymo pultas
• RCA kabelis
• 2x laidiniai mikrofonai
• Party Songs Disc (if included with your specific package)
• Maitinimo kabelis

3. Produktas baigtasview

The Vocal-Star VS-800 is a versatile multi-format karaoke recording player designed for home entertainment. It features a wide range of connectivity options and playback capabilities.

3.1 paveikslas: Vocal-Star VS-800 Karaoke Machine, showing the main unit, packaging, tablet, microphones, and remote control.

Pagrindinės savybės

3.2 paveikslas: Visual representation of the VS-800's key features, including recording performance, copying discs to USB/SD, scoring mode, Bluetooth connectivity, multi-format support, TV connection, Jukebox function, digital key-change, 5.1 audio outputs, songbook creator, AUX input, and 4 microphone inputs.

• Kelių formatų atkūrimas: Supports CDG, MP3G, and other digital audio/video formats.
• Bluetooth ryšys: Stream music wirelessly from your smartphone, tablet, or laptop.
• 4 Microphone Inputs: Connect up to four microphones for group performances.
• Įrašymo funkcija: Record your singing performances to USB or SD card.
• Taškų skaičiavimo režimas: Get a score for your singing performance.
• Jukebox Feature: Organize and play your digital music library.
• Songbook Creator: Generate a text file song list for easy reference.
• Digital Key Change: Adjust the song's key to match your vocal range.
• Various Outputs: HDMI, RCA, S-Video, Coaxial, Optical, 5.1 Channel Audio, VGA.

Microphones Included

3.3 paveikslas: Two wired Vocal-Star MP-508 dynamic vocal microphones, designed for quality sound in lead and backup vocal applications.

4. Sąrankos instrukcijos

Follow these steps for the initial setup of your Vocal-Star VS-800 system.

4.1 Connecting to a Display (TV/Monitor)

The VS-800 offers multiple video output options:

• HDMI išvestis: For the best video and audio quality, connect an HDMI cable from the VS-800's "HD OUT" port to your TV's HDMI input.
• RCA (Composite Video) Output: Connect the yellow RCA cable from the VS-800's "CVBS" port to your TV's yellow video input.
• S-Video išvestis: Connect an S-Video cable from the VS-800's "S-VIDEO" port to your TV's S-Video input.
• VGA išvestis: Connect a VGA cable from the VS-800's "VGA OUTPUT" port to a compatible monitor or projector.

4.1 paveikslas: Rear panel connections of the VS-800, highlighting HDMI, RCA, S-Video, Coaxial, Optical, 5.1 Channel Audio, and VGA outputs.

4.2 Connecting Audio (Optional)

If you are not using HDMI, or wish to connect to an external audio system:

• RCA (Stereo Audio) Output: Connect red and white RCA cables from the VS-800's "ML AUDIO OUTPUT" (or "MR") ports to your amplifier's or TV's audio inputs.
• 5.1 kanalo išvestis: For surround sound, connect the appropriate RCA cables from the "5.1CH OUTPUT" ports to a compatible 5.1 channel ampgyvesnis.
• Skaitmeninė garso išvestis: Use the "COAXIAL DIGITAL" or "OPTICAL DIGITAL" ports for digital audio connection to a compatible receiver.

4.3 Mikrofonų prijungimas

The VS-800 features four microphone inputs:

• Insert the microphone cables into the "MIC1", "MIC2", "MIC A", or "MIC B" inputs on the front or rear panel of the unit.
• Adjust microphone volume using the "MIC1/A VOL" and "MIC2/B VOL" knobs on the front panel.
• Adjust the echo effect using the "ECHO" knob.

4.2 paveikslas: Priekyje ir gale views of the VS-800 highlighting the four microphone input jacks and associated volume/echo controls.

4.4 Įjungimas

• Connect the power cable to the VS-800 and then to a power outlet.
• Press the "POWER" button on the front panel or the remote control to turn on the unit.

5. Naudojimo instrukcijos

5.1 Disc Playback (CDG/DVD/CD)

• Open the disc tray by pressing the "OPEN/CLOSE" button on the front panel or remote.
• Place a CDG, DVD, or CD disc gently into the tray with the label side facing up.
• Press "OPEN/CLOSE" again to close the tray. The unit will automatically begin reading the disc.
• Use the remote control for playback functions (Play, Pause, Stop, Skip, etc.).

5.2 „Bluetooth“ ryšys

Belaidžiu būdu transliuokite garsą iš savo „Bluetooth“ įrenginių.

• Ensure the VS-800 is powered on.
• Press the "MODE" button on the remote or front panel until "Bluetooth" mode is selected. The Bluetooth indicator light will flash.
• On your smartphone, tablet, or laptop, go to Bluetooth settings and search for available devices.
• Select "VS-800" from the list to pair. Once paired, the Bluetooth indicator light will become solid.
• You can now play audio from your device through the VS-800.

5.1 paveikslas: A smartphone screen showing the Bluetooth settings, with "VS-800" listed as a discoverable device, demonstrating the Bluetooth pairing process.

5.3 USB/SD Playback and Jukebox Feature

Play digital media files from a USB drive or SD card.

• Insert a USB drive into the "USB" port or an SD card into the "SD" slot on the front panel.
• The unit will automatically switch to USB/SD mode or you may need to select it using the "MODE" button.
• Naršykite po savo files and folders using the remote control's arrow keys and "OK" button.
• The Jukebox feature allows you to browse and select songs from your digital library displayed on the screen.

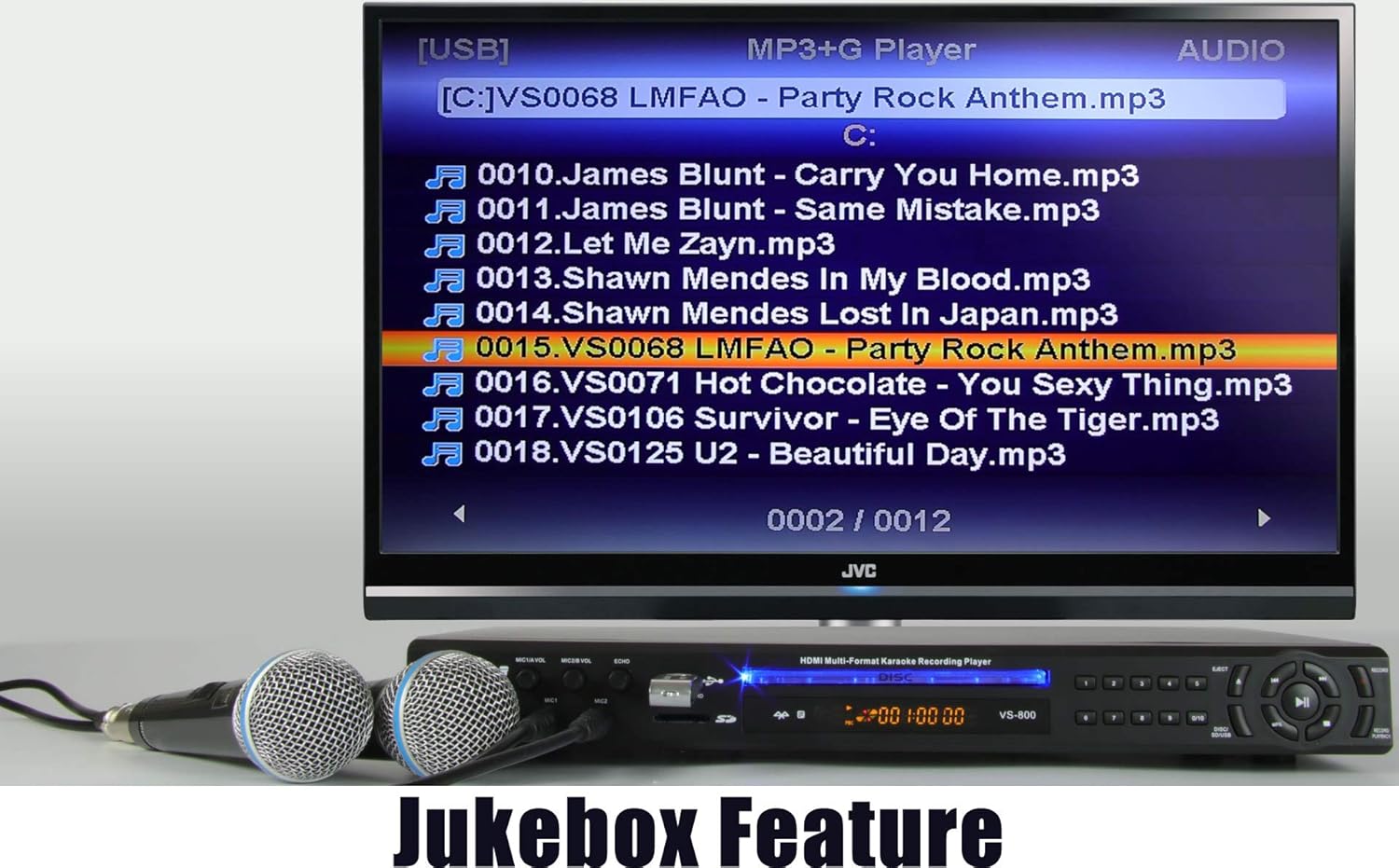

5.2 paveikslas: A television screen connected to the VS-800, showing a list of MP3+G songs, illustrating the Jukebox feature for selecting and playing digital tracks.

5.4 Savo pasirodymo įrašymas

• Įsitikinkite, kad įdėtas USB diskas arba SD kortelė.
• During playback, press the "RECORD" button on the remote control. The unit will begin recording your microphone input along with the music.
• Press "RECORD" again to stop recording. Your recorded performance will be saved as an audio file on the USB/SD device.

5.5 Scoring Mode

• Activate the scoring mode via the remote control (refer to remote layout for specific button, often labeled "SCORE").
• Sing along to a track, and the system will provide a score based on your pitch accuracy.

5.6 Creating a Songbook

Generate a text file list of songs on your USB/SD device.

• With a USB drive or SD card inserted, navigate to the file naršyklė.
• Look for an option to "Create Songlist" or "Songbook Creator" in the menu.
• Confirm the action, and a "SONGLIST.TXT" file will be created on your device, which you can view and edit on a PC.

5.3 paveikslas: A television screen displaying a confirmation message that a "SONGLIST.TXT" file has been created on the memory device, indicating the successful use of the Songbook Creator feature.

5.7 Digital Key Change

• During song playback, use the "KEY+" and "KEY-" buttons on the remote control to adjust the musical key of the track.
• This allows you to raise or lower the pitch of the song to better suit your vocal range.

6. Priežiūra

Proper care and maintenance will ensure the longevity of your VS-800 Karaoke Machine.

• Valymas: Įrenginio išorę valykite minkštu, sausu skudurėliu. Nenaudokite skystų valiklių ar aerozolinių purškalų.
• Disko dėklas: Keep the disc tray free of dust and debris. Avoid touching the lens inside the disc tray.
• Vėdinimas: Įsitikinkite, kad ventiliacijos angos nėra užblokuotos, kad išvengtumėte perkaitimo.
• Saugykla: Kai prietaisas ilgesnį laiką nenaudojamas, laikykite jį vėsioje, sausoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių.

7. Problemų sprendimas

If you encounter any issues with your VS-800, please refer to the following common problems and solutions before contacting support.

8. Specifikacijos

9. Garantija ir palaikymas

Vocal-Star products are designed for reliability and performance. For specific warranty details and support, please refer to the warranty card included with your product or visit the official Vocal-Star websvetainę.

Some purchases may qualify for an extended warranty. For example, a 2-year warranty may be available upon product registration or review submission, as noted by some users.

For technical assistance or service inquiries, please contact Vocal-Star customer support through their official channels.
