1. Įvadas
Ačiū, kad pirkoteasing the Media Tech MT-3333 3-in-1 Home Theater System. This manual provides essential information for the safe and efficient operation of your new audio system. Please read it thoroughly before use and retain it for future reference.
Pakuotės turinys:
- 1 x Media Tech MT-3333 Subwoofer Unit
- 3 x palydoviniai garsiakalbiai
- 1x nuotolinio valdymo pultas
- 1 x Audio/Video Cable
- 1 x Vartotojo vadovas
- 1x optinis laidas
1.1 pav.: priekis view of the Media Tech MT-3333 Home Theater System, showing the central subwoofer unit and two tall satellite speakers, along with a smaller center speaker.
2. Saugos instrukcijos
Norėdami užtikrinti saugų darbą ir išvengti žalos, laikykitės šių saugos priemonių:
- Maitinimo šaltinis: Connect the system only to a power outlet with the specified voltage (AC220-240V 50Hz).
- Vėdinimas: Ensure adequate ventilation around the subwoofer and speakers. Do not block any ventilation openings.
- Vanduo ir drėgmė: Do not expose the system to rain, moisture, or dripping/splashing liquids. Do not place objects filled with liquids, such as vases, on the apparatus.
- Šilumos šaltiniai: Keep the system away from heat sources such as radiators, heat registers, stoves, or other apparatus (including ampkeltuvai), kurie gamina šilumą.
- Vieta: Place the system on a stable, flat surface. Avoid placing it in direct sunlight or in areas with excessive dust or vibrations.
- Valymas: Unplug the system from the power outlet before cleaning. Use a dry cloth only.
- Aptarnavimas: Nemėginkite patys aptarnauti šio gaminio. Visą techninę priežiūrą patikėkite kvalifikuotam aptarnavimo personalui.
- Vaikai: Laikykite pakavimo medžiagas ir smulkias dalis vaikams nepasiekiamoje vietoje.
3. Sąranka
Follow these steps to set up your home theater system:
3.1 Išpakavimas
- Atsargiai išimkite visus komponentus iš pakuotės.
- Check that all items listed in the "Package Contents" section are present.
- Išsaugokite pakuotę būsimam transportavimui ar saugojimui.
3.2 Garsiakalbių jungtys
Connect the satellite speakers to the corresponding output ports on the rear of the subwoofer unit. Ensure correct polarity (positive to positive, negative to negative) for optimal sound quality.

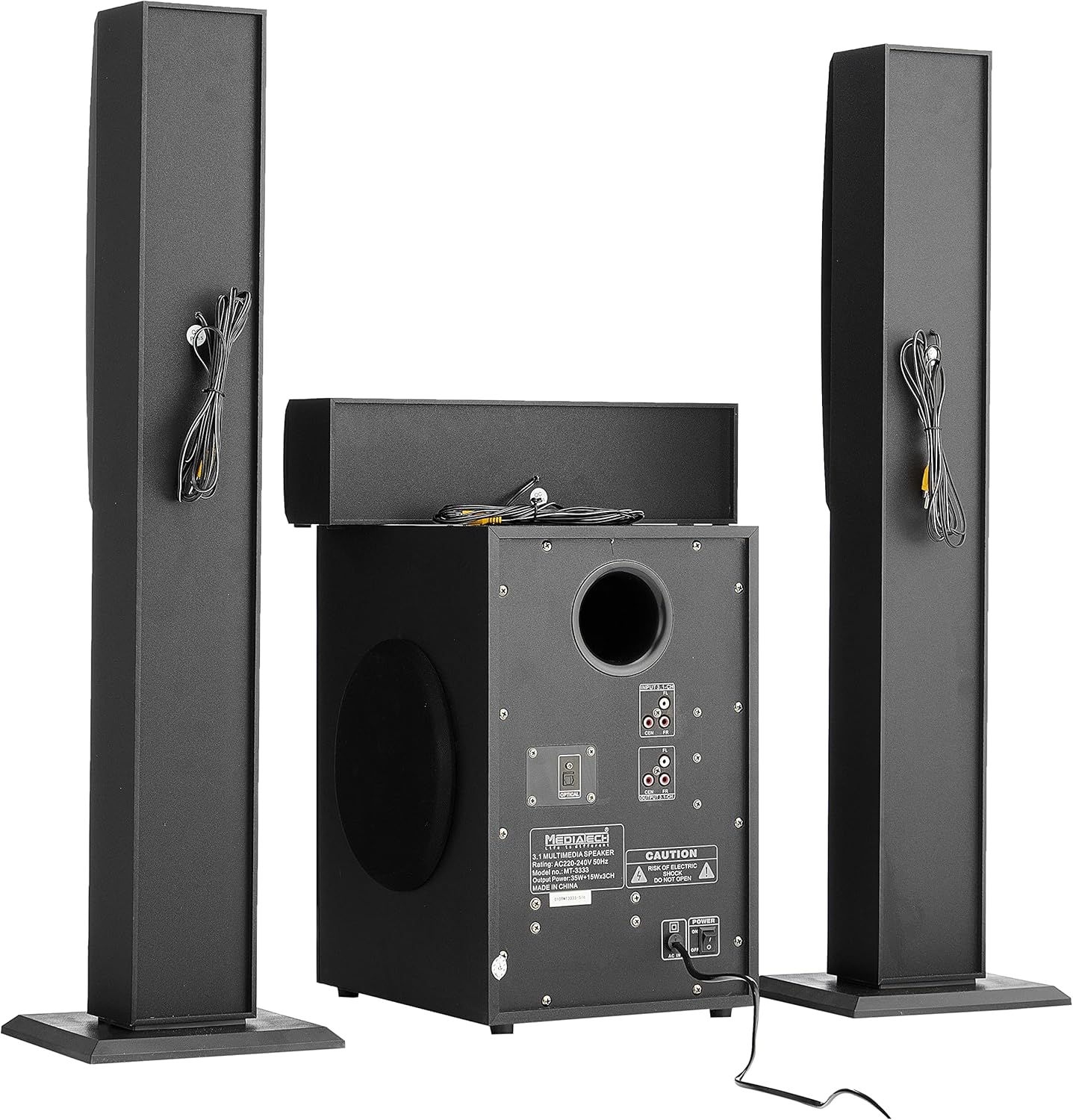

3.1 pav.: galinis view of the system, illustrating the subwoofer and satellite speakers connected via cables.
3.3 Garso šaltinių jungtys
The MT-3333 offers multiple input options. Choose the appropriate connection for your audio source:
- Optinė įvestis: For high-quality digital audio from TVs, game consoles, or Blu-ray players. Connect an optical cable from your source to the OPTICAL port on the subwoofer.
- AUX (MP3) Input: For connecting devices with a 3.5mm audio output (e.g., smartphones, tablets, laptops). Use the provided audio cable to connect to the MP3/AUX port.
- USB įvestis: Įdėkite USB atmintinę su garso įrašu files į USB prievadą.
- SD kortelės įvestis: Įdėkite SD atminties kortelę su garso įrašais files į SD kortelės lizdą.
- Bluetooth: For wireless audio streaming from Bluetooth-enabled devices. (Refer to Section 4.3 for pairing instructions).
3.2 pav. Išsamus view of the subwoofer's rear panel, highlighting the various input and output connections, including the Optical port and 3.1-channel audio inputs/outputs.
3.4 Maitinimo jungtis
- Įsitikinkite, kad visos garso jungtys yra saugios.
- Connect the power cord to the AC IN port on the rear of the subwoofer.
- Plug the two-pin power plug into a suitable wall outlet.
4. Naudojimo instrukcijos
4.1 Įjungimas / išjungimas
Locate the power switch on the rear panel of the subwoofer. Flip it to the "ON" position to power on the system. Flip it to "OFF" to power off. You can also use the power button on the remote control or the front panel of the subwoofer.
4.2 Įvesties pasirinkimas
Press the "MODE" button on the remote control or the front panel to cycle through available input sources: Bluetooth, USB, SD, AUX, and Optical.
4.3 Bluetooth poravimas
- Switch the system to Bluetooth mode using the "MODE" button. The display will indicate "BT".
- Įjunkite „Bluetooth“ savo mobiliajame įrenginyje arba kompiuteryje.
- Ieškokite available devices and select "MT-3333" from the list.
- Once paired, you can stream audio wirelessly to the system.
4.4 Garsumo, žemųjų ir aukštųjų dažnių valdymas
- Apimtis: Use the "VOL+" and "VOL-" buttons on the remote or the main volume knob on the subwoofer to adjust the overall volume.
- Bosas: Use the "BASS+" and "BASS-" buttons on the remote to adjust the bass level.
- Aukštas dažnis: Use the "TRE+" and "TRE-" buttons on the remote to adjust the treble level.
4.5 Nuotolinio valdymo pulto funkcijos
The remote control provides full functionality for your MT-3333 system:
Figure 4.1: The remote control for the Media Tech MT-3333, showing buttons for power, input selection (USB, SD, BT, AUX, OPTICAL), volume, bass, treble, equalizer presets (EQ1-EQ4), and media playback controls.
- Maitinimo mygtukas (raudonas): Įjungia arba išjungia sistemą.
- Input Selection (USB, SD, BT, AUX, DIS, LED): Selects the desired audio source. 'DIS' might refer to display or another input. 'LED' controls lighting.
- Volume Control (VOL+, VOL-): Reguliuoja pagrindinį garsumą.
- Bass Control (BASS+, BASS-): Adjusts the bass output.
- Treble Control (TRE+, TRE-): Adjusts the treble output.
- EQ (EQ1-EQ4): Pasirenkami iš anksto nustatyti ekvalaizerio režimai.
- Media Playback Controls (Play/Pause, Next, Previous, Repeat): For USB/SD card playback.
- Nutildyti: Nutildo garso išvestį.
- Skaičių klaviatūra (0–9): For direct track selection on USB/SD.
- Lighting Control (LED): Activates or adjusts any integrated lighting features.
5. Priežiūra
Tinkama priežiūra užtikrina jūsų namų kino sistemos ilgaamžiškumą ir optimalų veikimą.
5.1 Valymas
- Prieš valydami, visada atjunkite sistemą nuo maitinimo lizdo.
- Use a soft, dry cloth to wipe the surfaces of the subwoofer and speakers.
- Nenaudokite skystų valiklių, aerozolių ar abrazyvinių valymo priemonių, nes jos gali pažeisti apdailą ar vidinius komponentus.
- Use a soft brush or compressed air to gently clean dust from speaker grilles and ventilation openings.
5.2 Saugykla
If you plan to store the system for an extended period:
- Atjunkite visus kabelius ir maitinimo laidus.
- Sistemą laikykite vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
- If possible, use the original packaging to protect the components from dust and physical damage.
6. Problemų sprendimas
If you encounter any issues with your Media Tech MT-3333, refer to the following table for common problems and solutions.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra galios | Power cord not connected; Power switch off; Wall outlet faulty | Ensure power cord is securely plugged in; Turn power switch ON; Test wall outlet with another device. |
| Nėra garso | Incorrect input selected; Volume too low; Speaker cables loose; Mute function active | Press MODE to select correct input; Increase volume; Check speaker connections; Press MUTE on remote. |
| Prasta garso kokybė | Loose connections; Source audio quality low; Incorrect EQ setting | Check all cable connections; Try a different audio source; Adjust BASS/TREBLE or EQ settings. |
| Nuotolinio valdymo pultas neveikia | Batteries depleted; Obstruction between remote and system; Remote not pointed correctly | Replace remote control batteries; Remove any obstructions; Point remote directly at the subwoofer's sensor. |
| „Bluetooth“ susiejimo sutrikimas | System not in BT mode; Device too far; Interference | Ensure system is in BT mode; Move device closer; Turn off other Bluetooth devices nearby. |
Jei problema išlieka ir išbandžius šiuos sprendimus, susisiekite su klientų aptarnavimo tarnyba.
7. Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Modelio numeris | MT-3333 |
| Išėjimo galia | Subwoofer: 35W, Satellite Speakers: 3 x 15W (Total 80W) |
| Garsiakalbio dydis | Subwoofer: 6.5 inches, Satellite Speakers: 3 x 3 inches |
| Medžiaga | Wood and ABS Plastic |
| Įėjimai | USB, AUX (MP3), SD Card, Bluetooth, Optical |
| Maitinimo šaltinis | AC220-240V 50Hz |
| Approx. Shipping Dimensions | 76 x 26 x 21 cm |
| apytiksliai Siuntimo svoris | 3.1 kg |
8. Garantija ir palaikymas
Media Tech products are designed for reliability and performance. This product comes with a standard manufacturer's warranty against defects in materials and workmanship under normal use.
For warranty claims, technical support, or service inquiries, please refer to the contact information provided on your purchase receipt or visit the official Media Tech websvetainę.
Atkreipkite dėmesį: The warranty may not cover damage caused by improper installation, accident, misuse, abuse, negligence, or unauthorized modification.
