Utilitech LLEDR6XT/5CCT/6 Canless Recessed Downlight Instruction Manual

1. Įvadas

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Utilitech 6-Pack Canless Color Choice Dimmable Recessed Downlight. Please read all instructions carefully before beginning installation and retain this manual for future reference.

1.1 Saugos informacija

• Prieš montuodami, išmontuodami ar atlikdami techninę priežiūrą, visada išjunkite maitinimą grandinės pertraukikliu.
• Jei abejojate dėl kurios nors montavimo proceso dalies, pasitarkite su kvalifikuotu elektriku.
• Įsitikinkite, kad visos elektros jungtys atitinka vietinius kodeksus ir potvarkius.
• Do not install in areas with direct exposure to water spray unless specifically rated for such conditions. This product is rated for indoor and outdoor use.
• Do not attempt to modify the product. Any modifications may void the warranty and create a safety hazard.
• Wear appropriate safety gear, including safety glasses and gloves, during installation.

2. Pakuotės turinys

Prieš pradėdami montavimą, patikrinkite, ar yra visi komponentai.

• 6 x Canless Tethered Downlights
• 6 x Trim Kits
• Instrukcijų vadovas (šis dokumentas)

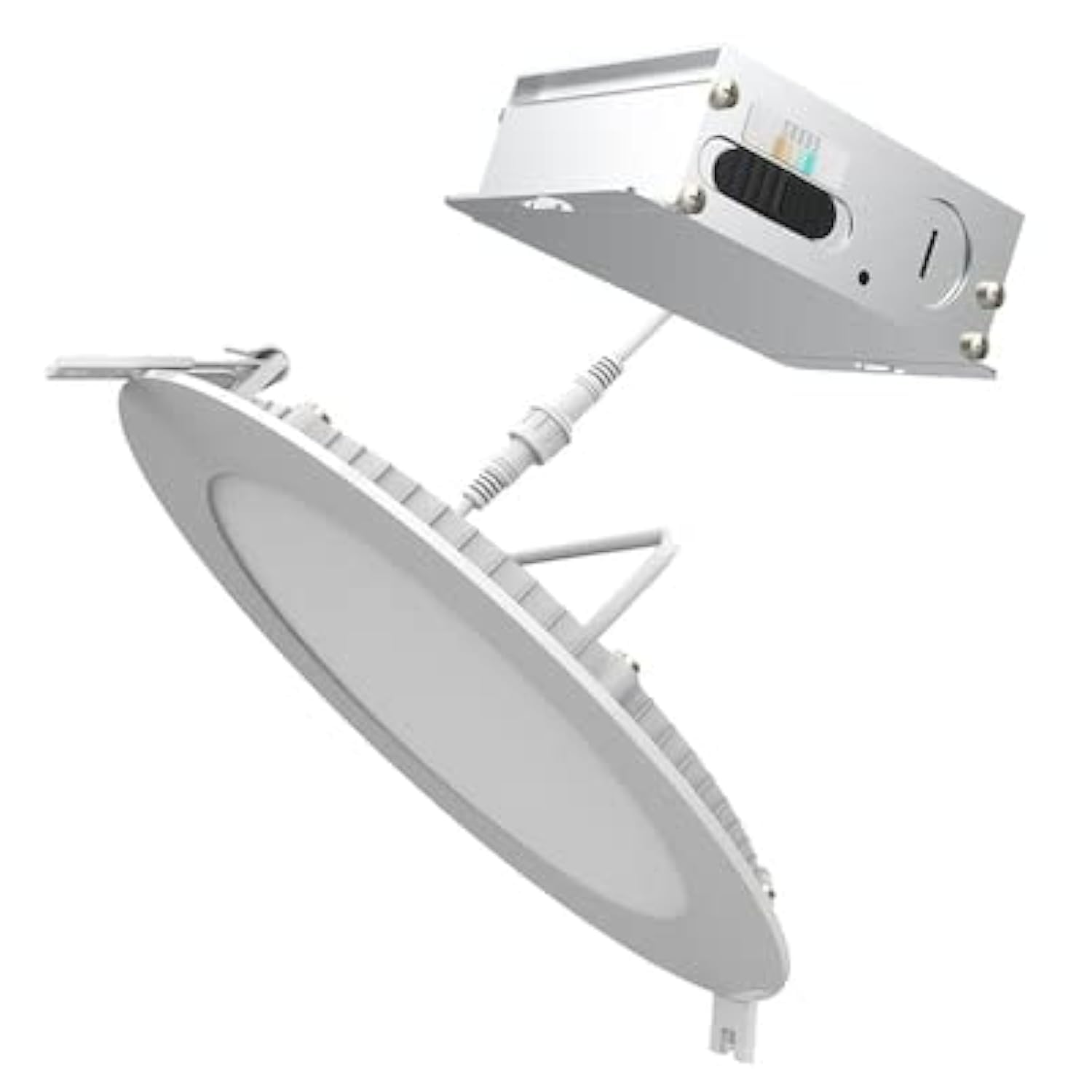

Image 2.1: Contents of the Utilitech 6-Pack Canless Recessed Downlight Kit. Includes the downlights and trim kits.

3. Sąranka ir diegimas

These canless recessed downlights are designed for easy installation without the need for an existing recessed can or junction box. They are suitable for low plenum clearance applications.

3.1 Reikalingi įrankiai (neįtraukti)

• Hole Saw (appropriate size for 5-inch or 6-inch fixture, refer to instruction sheet for exact dimension)
• Vielos nuėmikliai
• Atsuktuvas
• Apsauginiai akiniai
• Pirštinės

3.2 diegimo žingsniai

1. Išjungti maitinimą: Prieš pradėdami, įsitikinkite, kad montavimo zonoje maitinimas yra išjungtas grandinės pertraukikliu.
2. Iškirpta skylė: Using a hole saw, cut a hole in the drywall at the desired location. Refer to the separate instruction sheet for the precise hole dimension required for your 5-inch or 6-inch fixture.
3. Run Wiring: Run the electrical wire cable from the direct line voltage to the location of the canless retrofit kit.
4. Prijunkite laidus: Open the knockout on the canless retrofit kit's quick connect terminal. Connect the line voltage wires to the quick connect terminal. Ensure proper polarity (Live, Neutral, Ground).
5. Daisy Chain (Optional): If installing multiple downlights, you can daisy chain additional wire from the quick connect terminal through another knockout to your next canless retrofit kit.
6. Įdėkite tvirtinimą: Gently push the spring-loaded clips on the downlight fixture through the cut hole in the ceiling.
7. Saugus tvirtinimas: The springs will pull up on the retrofit kit, securing it firmly against the ceiling for an airtight seal.
8. Atkurti maitinimą: Once all fixtures are installed and secured, restore power at the circuit breaker.

4. Naudojimo instrukcijos

This downlight features Color Choice (5CCT) and dimmable functionality.

4.1 Spalvos temperatūros pasirinkimas (5CCT)

The fixture allows you to select from five color temperatures (2700K to 6500K). The color temperature switch is located on the fixture itself, typically on the driver box or the back of the light. Before final installation into the ceiling, select your desired color temperature. Once installed, you may need to remove the fixture to change the setting.

• 2700K: Warm White, similar to incandescent light.
• 3000K: Soft White, slightly cooler than 2700K.
• 4000K: Cool White, neutral white light.
• 5000K: Bright White, daylight-like appearance.
• 6500K: Daylight, very cool white with a bluish tint.

4.2 Pritemdymo funkcija

This downlight is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed on the circuit. Refer to your dimmer switch's instructions for proper operation.

5. Priežiūra

The Utilitech Canless Recessed Downlight requires minimal maintenance.

• Valymas: Prieš valydami, įsitikinkite, kad įrenginys išjungtas. Nuvalykite įrenginį minkšta, sausa arba šiek tiek drėgna šluoste.amp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Šviesos diodai: Integruotas LED šviesos šaltinis yra sukurtas ilgam tarnavimo laikui ir nėra keičiamas vartotojo.

6. Problemų sprendimas

Jei kyla problemų dėl įleidžiamojo šviestuvo, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:

7. Specifikacijos

8. Garantija ir palaikymas

For warranty information or technical support, please refer to the documentation included with your purchase or contact Utilitech customer service. Keep your proof of purchase for warranty claims.
