INFAC CLTT23 Steel Gun Safe Instruction Manual

1. Įvadas

This manual provides essential information for the safe and proper installation, operation, and maintenance of your INFAC CLTT23 Steel Gun Safe. Please read these instructions carefully before using the product and retain them for future reference. This gun safe is designed to securely store up to 23 firearms with scopes, featuring an interior lockable compartment and adjustable shelves, compliant with European standards.

2. Saugos informacija

• Visada laikykite šaunamuosius ginklus neužtaisytus ir užrakintus.
• Keep keys to the safe in a secure location, inaccessible to unauthorized individuals, especially children.
• Ensure the safe is securely anchored to the floor or wall to prevent unauthorized removal.
• Do not store flammable materials or explosives inside the safe.
• Regularly check the locking mechanism for proper function.

3. Pakuotės turinys

Prieš pradėdami diegti, patikrinkite, ar yra visi komponentai:

• INFAC CLTT23 Gun Safe Unit
• Keys for main lock (multiple copies)
• Keys for interior safe (multiple copies)
• Removable shelves (quantity may vary based on configuration)
• Mounting hardware (screws and anchors for floor fixation)
• Instrukcijų vadovas (šis dokumentas)

4. Sąranka ir diegimas

The INFAC CLTT23 gun safe is designed for floor mounting to ensure maximum security. Proper installation is crucial.

4.1 Vietos pasirinkimas

Select a discreet, dry, and secure location. Ensure the floor can support the weight of the safe and its contents.

4.2 Anchoring the Safe

1. Pastatykite seifą norimoje vietoje.
2. Mark the drilling points through the pre-drilled holes in the base of the safe onto the floor.
3. Move the safe aside and drill holes into the floor using an appropriate drill bit for the provided anchors.
4. Įkiškite inkarus į išgręžtas skyles.
5. Reposition the safe over the anchors.
6. Secure the safe to the floor using the provided screws and tighten them firmly.

Image: The INFAC CLTT23 gun safe showing its external dimensions: 150cm height, 75cm width, and 45cm depth. This image helps in planning the installation space.

5. Naudojimo instrukcijos

5.1 Opening the Main Safe

1. Insert the main key into the keyhole on the safe door.
2. Turn the key to unlock the mechanism.
3. Rotate the handle (if present) to disengage the locking bolts.
4. Ištraukite duris.

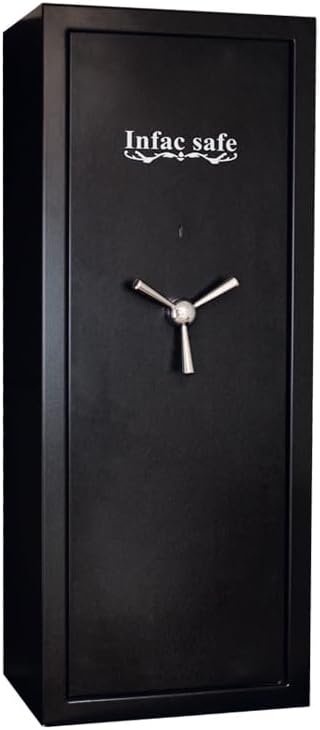

Vaizdas: priekis view of the INFAC CLTT23 gun safe, displaying the main door, the "Infac Safe" logo, and the three-spoke handle used to operate the locking bolts.

Image: A close-up of one of the keys for the safe, showing its unique cut and an identification number (DE79617). Keep these keys secure.

5.2 Closing and Locking the Main Safe

1. Tvirtai uždarykite seifo dureles.
2. Rotate the handle to extend the locking bolts into the frame.
3. Turn the key to lock the mechanism.
4. Remove the key and store it in a secure location.

Paveikslėlis: detalus view of the safe's internal locking bolts, showing them extended into the door frame, indicating a secure lock.

5.3 Using the Interior Safe

The safe includes a separate, lockable interior compartment for additional security of smaller items or ammunition.

1. Use the smaller, separate key to unlock the interior safe door.
2. Open the interior safe door to access its contents.
3. To lock, close the door, insert the key, turn, and remove.

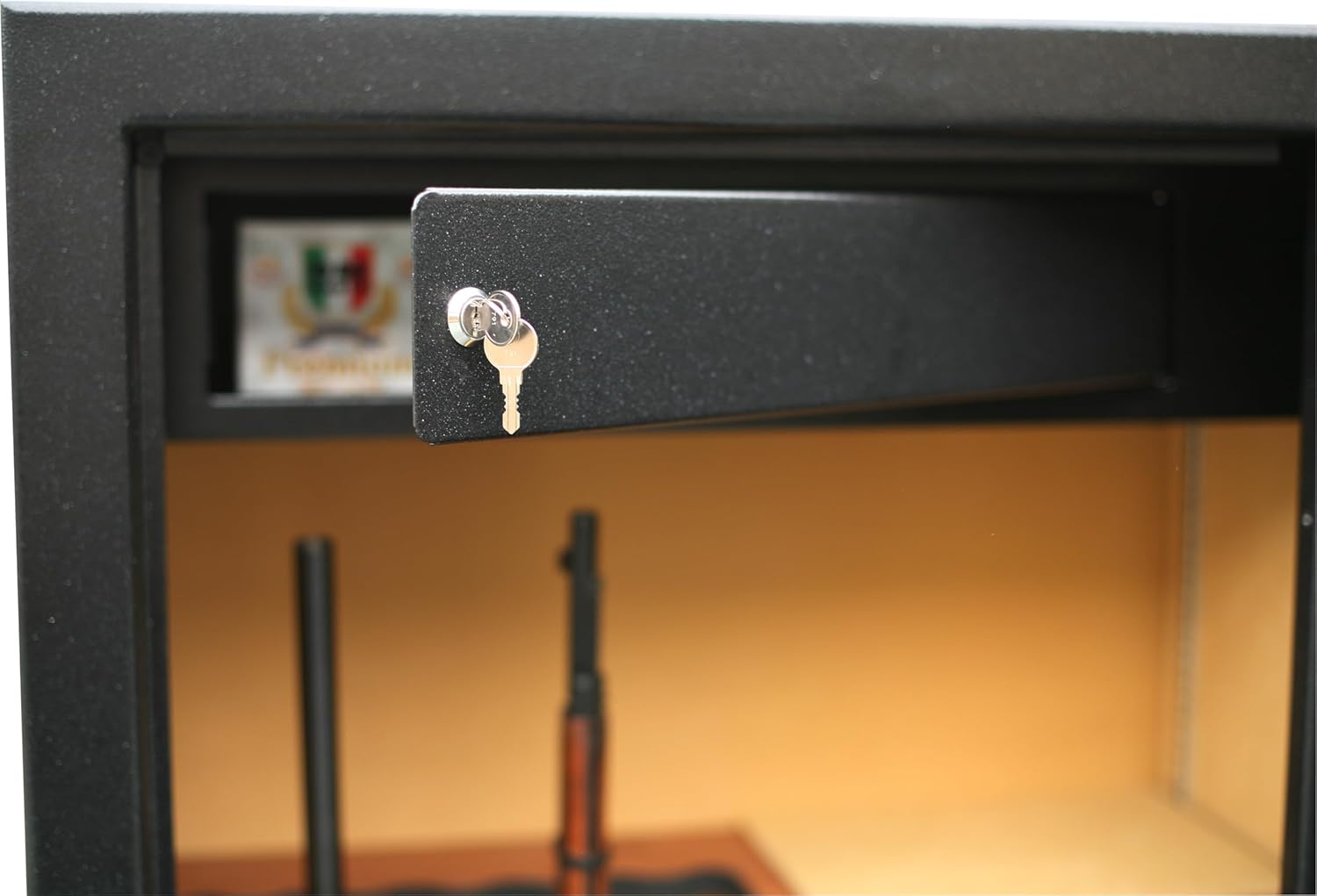

Paveikslėlis: Interjeras view of the gun safe, highlighting the separate, lockable compartment located at the top. A key is shown inserted into its lock.

5.4 Adjusting Shelves and Firearm Placement

The safe features removable shelves and a dedicated rack for firearms. You can customize the interior layout.

• To remove or adjust shelves, simply lift them from their supports and reposition as needed.
• Place firearms in the designated slots, ensuring they are stable and do not obstruct the door mechanism.
• The safe is designed to accommodate up to 23 firearms, including those with scopes.

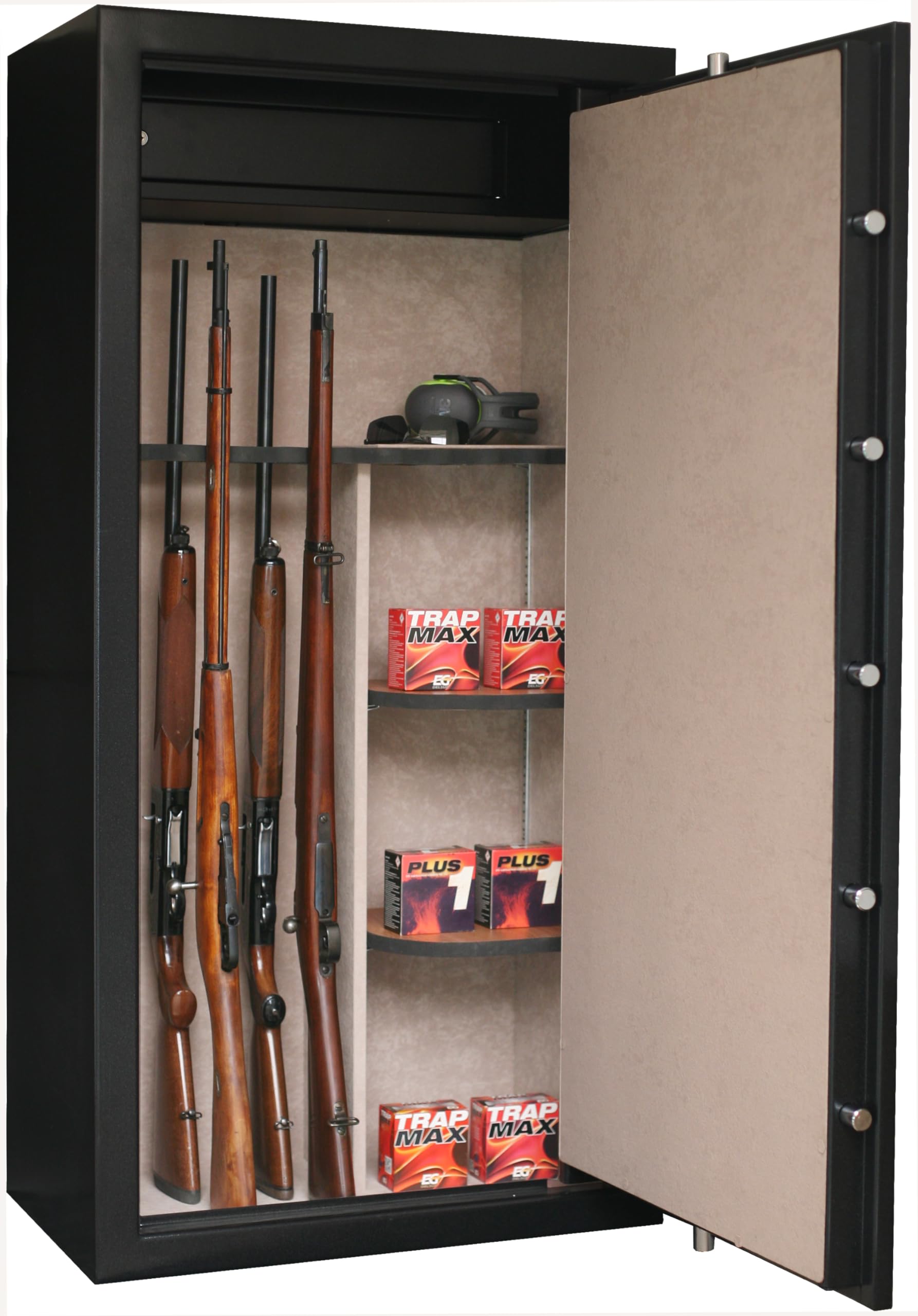

Image: The interior of the gun safe, illustrating firearms placed in their designated racks and various items stored on the adjustable shelves. This demonstrates the customizable storage options.

Image: A diagram illustrating the optimal arrangement for storing up to 23 firearms inside the safe, including a section indicating space for rifles with scopes.

6. Priežiūra

• Valymas: Išorinius ir vidinius paviršius nuvalykite minkšta, d šluosteamp skudurėliu. Venkite abrazyvinių valiklių ar tirpiklių.
• Užrakto mechanizmas: Periodically check the lock and bolt mechanism for smooth operation. If stiff, a small amount of graphite lubricant can be applied to the keyhole, but avoid oil-based lubricants.
• Durų vyriai: Ensure hinges are free of debris and operate smoothly.

7. Problemų sprendimas

8. Specifikacijos

9. Garantija ir palaikymas

Dėl garantijos informacijos ir klientų aptarnavimo žr. pirkimo metu pateiktus dokumentus arba susisiekite su pardavėju. Išsaugokite pirkimo įrodymą, jei prireiktų pateikti garantijos pretenziją.

For technical assistance or spare parts inquiries, please contact INFAC customer service through their official website or the contact details provided by your seller.
