Olympus Tough TG-6 Waterproof Camera User Manual

Įvadas

The Olympus Tough TG-6 is a durable digital camera designed for use in challenging environments. It features a 12MP BSI CMOS sensor and TruePic VIII image processor, offering high-quality stills and 4K video recording. This camera is waterproof, crushproof, shockproof, freezeproof, and dustproof, making it suitable for various outdoor activities. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your TG-6 camera.

Saugos informacija

• Atsparus vandeniui vientisumas: Ensure all covers (battery/card compartment, USB/HDMI ports) are securely closed before exposing the camera to water. Clean and dry the camera thoroughly after underwater use.
• Baterijos sauga: Use only the specified Olympus LI-92B battery. Do not expose batteries to excessive heat, fire, or attempt to disassemble them.
• Temperatūros kraštutinumai: While the camera is designed for extreme temperatures, avoid prolonged exposure to direct sunlight or extremely cold conditions when not in use to preserve battery life and internal components.
• Valymas: Use a soft, lint-free cloth for cleaning. For the lens, use a specialized lens cleaning solution and cloth. Avoid harsh chemicals.

Pakuotės turinys

Verify that the following items are included with your Olympus Tough TG-6 camera:

• Olympus Tough TG-6 Digital Camera
• LI-92B Rechargeable Lithium-Ion Battery
• F-5AC Adapter (for charging)
• „Micro-USB“ laidas
• Rankinis dirželis

Fotoaparatas baigtasview

Susipažinkite su fotoaparato fizinėmis savybėmis ir valdikliais.

1 pav.: priekis View. This image displays the front of the Olympus Tough TG-6 camera, highlighting the central lens, the built-in flash, and the prominent 'Tough' branding indicating its durable design.

2 pav.: Nugara View. This image shows the rear of the Olympus Tough TG-6 camera, featuring the large LCD monitor and various control buttons for navigation and settings adjustments.

3 paveikslas: viršuje View. This image illustrates the top panel of the Olympus Tough TG-6 camera, including the power button, shutter release button, and the mode dial for selecting shooting modes.

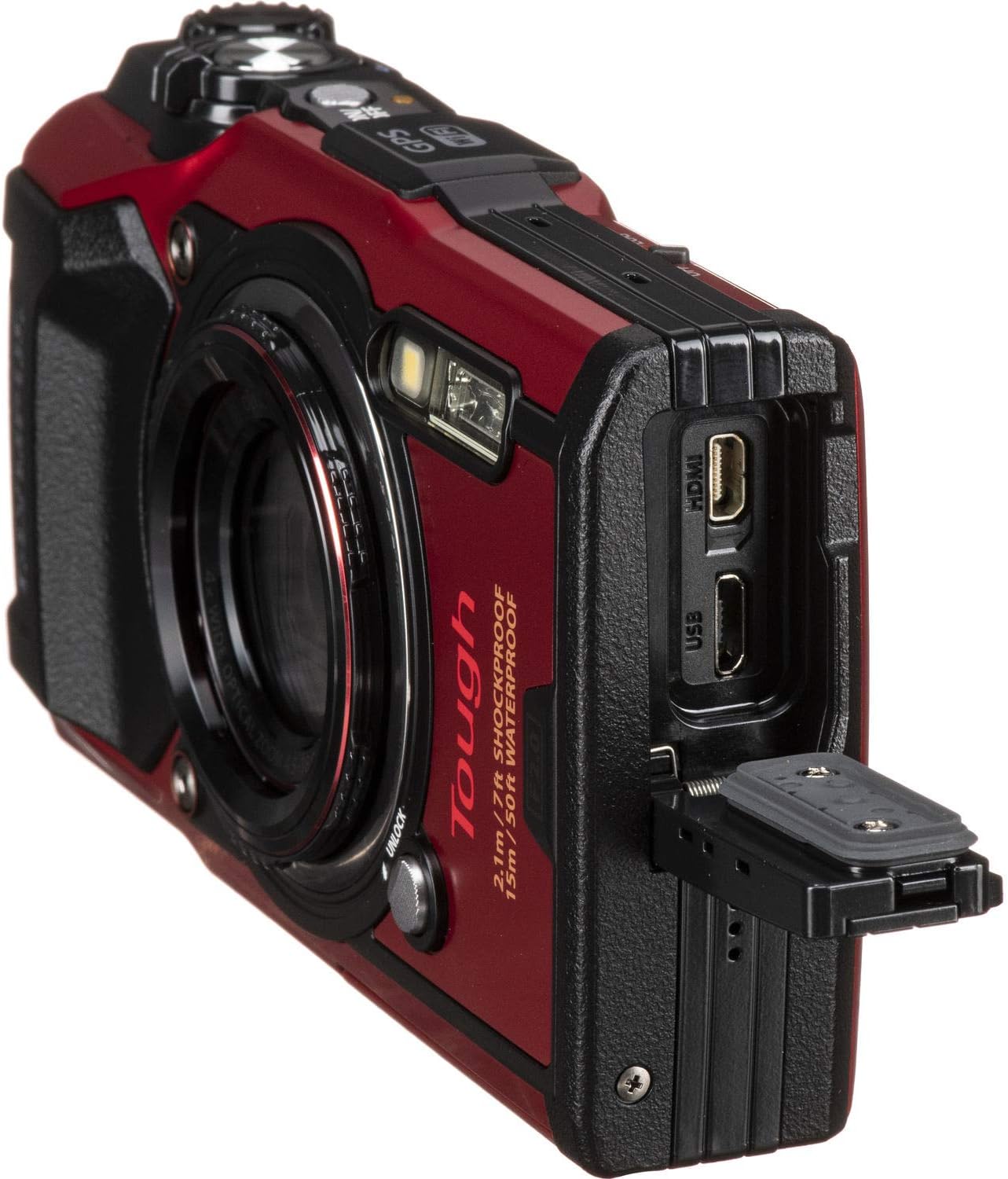

4 pav.: šonas View su uostais. This image displays the side of the Olympus Tough TG-6 camera with the protective cover open, exposing the Micro USB and HDMI ports for connectivity.

Sąranka

1. Baterijos ir atminties kortelės įdėjimas

1. Atidarykite akumuliatoriaus / kortelės skyriaus dangtelį fotoaparato apačioje.
2. Insert the LI-92B battery with the correct orientation until it clicks into place.
3. Insert an SD, SDHC, or SDXC memory card (up to 64GB supported) into the card slot until it clicks.
4. Close the compartment cover securely until it locks.

2. Akumuliatoriaus įkrovimas

• Connect the camera to the F-5AC adapter using the Micro-USB cable.
• Plug the adapter into a power outlet. The charging indicator will illuminate.
• Įkrovimas baigtas, kai užgęsta indikatoriaus lemputė.

3. Pradiniai nustatymai

• Paspauskite ĮJUNGTA/IŠJUNGTA mygtuką, kad įjungtumėte fotoaparatą.
• Vykdykite ekrane pateikiamus nurodymus, kad nustatytumėte kalbą, datą ir laiką.

Fotoaparato valdymas

1. Pagrindinė fotografija

1. Turn the mode dial to the desired shooting mode (e.g., i-Auto for automatic settings).
2. Kadruokite kadrą naudodami LCD ekraną.
3. Norėdami sufokusuoti, paspauskite užrakto mygtuką iki pusės. Kai sufokusuosite, fokusavimo rėmelis taps žalias.
4. Norėdami nufotografuoti, iki galo paspauskite užrakto mygtuką.

2. Vaizdo įrašymas

• To start recording video, press the dedicated Filmo įrašymo mygtukas.
• Press the button again to stop recording. The camera supports 4K video recording.

3. Priartinimo funkcija

• Naudokite Zoom Lever (T/W) to adjust the optical zoom (4x) and digital zoom.

4. Atsparumas vandeniui

• The TG-6 is waterproof to 15m (50ft). Ensure all covers are clean and free of debris before closing.
• After use in saltwater, rinse the camera with fresh water and dry thoroughly with a soft cloth.

Išplėstinės funkcijos

1. Wi-Fi ryšys

• The built-in Wi-Fi allows you to connect the camera to a smartphone or tablet using the Olympus Image Share (OI.Share) app.
• This enables remote control of the camera and wireless transfer of images and videos.

2. GPS and Field Sensor System

• The camera features a Field Sensor System that records location (GPS), temperature, depth, and direction data.
• Šie duomenys gali būti viewed on the camera or with the OI.Track app.

3. Microscope Mode

• Pasukite režimo pasirinkimo ratuką į Mikroskopas mode for extreme close-up photography.
• This mode allows focusing as close as 1cm from the subject.

Priežiūra

1. Kameros valymas

• Nuvalykite fotoaparato korpusą minkšta, sausa šluoste. Įsisenėjusiam purvui naudokite šiek tiek drėgną šluostę.amp skudurėliu ir tada gerai išdžiovinkite.
• For the lens, use a lens brush to remove dust, then gently wipe with a lens cleaning cloth and solution.
• Never use organic solvents like alcohol or paint thinner.

2. Akumuliatoriaus priežiūra

• Išimkite bateriją, jei fotoaparato nenaudosite ilgesnį laiką.
• Baterijas laikykite vėsioje, sausoje vietoje.

3. Sandėliavimas

• Store the camera in a dry, well-ventilated area, away from direct sunlight and high temperatures.
• Avoid storing the camera in areas with high humidity or corrosive chemicals.

Trikčių šalinimas

Specifikacijos

Garantija ir palaikymas

Your Olympus Tough TG-6 camera is covered by a manufacturer's warranty. Please refer to the warranty card included in your original packaging for specific terms and conditions. For technical support, service, or to download the full instruction manual, visit the official Olympus website or contact Olympus customer service in your region.

Palaikymas internetu: www.olympus-imaging.com
