Įvadas
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your DAREU EK815s Mechanical Gaming Keyboard. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
The DAREU EK815s is a full-size mechanical gaming keyboard featuring durable blue switches, customizable rainbow backlighting, and anti-ghosting technology for a responsive and reliable user experience.
Image: DAREU EK815s Mechanical Gaming Keyboard, showcasing visą jo išdėstymą ir dizainą.
Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- DAREU EK815s Mechanical Gaming Keyboard
- USB kabelis
- Vartotojo vadovas (šis dokumentas)
Sąranka
- Išpakuokite klaviatūrą: Carefully remove the DAREU EK815s keyboard and its accessories from the packaging.
- Prijunkite USB kabelį: Insert the USB-C end of the provided cable into the port on the keyboard. Connect the standard USB-A end to an available USB port on your computer.
- Tvarkyklės diegimas: The keyboard is plug-and-play and typically does not require additional drivers for basic functionality. For advanced features like programmable keys and custom lighting effects, download the dedicated software from the official DAREU websvetainę.
- Vieta: Position the keyboard on a stable, flat surface. Adjust the integrated foot pads at the rear of the keyboard for your preferred typing angle.
Image: The keyboard features three cable routing outlets for organized cable management.
Naudojimo instrukcijos
Pagrindinės savybės
- Mėlyni mechaniniai jungikliai: The EK815s uses blue mechanical switches, known for their tactile bump and audible click, providing distinct feedback for each keystroke. These switches have a 4mm key stroke travel, 50 ± 4G key elastic force, and a lifespan of 65 million keystrokes.
- Anti-ghosting: Advanced anti-ghosting technology ensures that multiple simultaneous key presses are registered accurately without conflict, crucial for gaming.
- Double-Shot Keycaps: The keycaps are made using a double-shot injection molding process, ensuring legends do not fade over time and are easy to clean.
- Aluminum Alloy Panel: The keyboard features an aluminum alloy metal panel, providing durability and resistance against rust, impacts, sweat, and corrosion.
Image: Detailed diagram of the blue mechanical switches, highlighting their specifications.
Apšvietimo valdymas
The DAREU EK815s features adjustable rainbow backlighting with multiple effects. Use the following shortcut keys to control the lighting:
- FN + F1 to F5: Some characters are illuminated and can be customized.
- FN + F6: Cycle through Wave effect / Shuttle effect.
- FN + F7: Cycle through Point light effect / Ripples effect.
- FN + F11: Change Light up mode.
- FN + Home: Activate Sidelight mode.
- FN + '=' / '-': Adjust Brightness.
- FN + PgUp / PgDn: Adjust Lighting speed.
- FN + Ins / Del: Adjust Sidelight speed.
Image: The keyboard displaying its RGB flank rainbow backlighting.
Image: The keyboard's durable aluminum alloy metal panel construction.
Multimedijos funkcijos
The keyboard includes dedicated multimedia function keys for quick access to common controls. Refer to the keyboard layout for specific key assignments, typically accessed via the Function (FN) key in combination with F-keys.
Programuojami klavišai
For advanced customization, the DAREU EK815s supports programmable keys. Download the official DAREU software from their website to customize key functions and create personalized macros and lighting profiles.

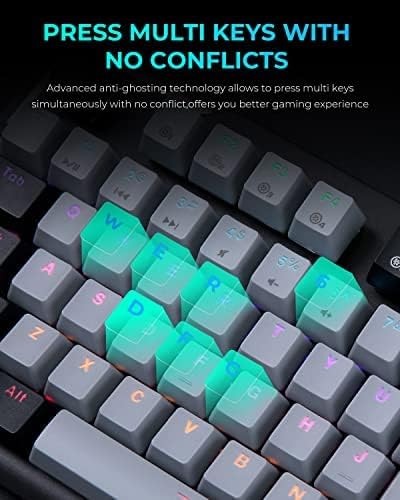

Image: A close-up of the keyboard demonstrating its anti-ghosting feature, allowing multiple keys to be pressed simultaneously.
Priežiūra
- Bendras valymas: Regularly clean the keyboard to prevent dust and debris buildup. Use a soft, dry cloth to wipe the surface. For deeper cleaning, use compressed air to clear debris from between the keycaps.
- Klaviatūros dangtelių valymas: The double-shot keycaps are designed for easy cleaning. If necessary, gently remove keycaps using a keycap puller (not included) and clean them with a mild soap solution and a soft brush. Ensure keycaps are completely dry before reattaching.
- Išsiliejimo prevencija: While the aluminum alloy panel offers some resistance to liquids, avoid spilling liquids directly onto the keyboard. In case of a spill, immediately disconnect the keyboard from your computer and allow it to dry completely before reconnecting.
- Saugykla: Kai klaviatūra ilgesnį laiką nenaudojama, laikykite ją sausoje, be dulkių aplinkoje.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Klaviatūra nereaguoja | Atsilaisvinęs USB ryšys, sugedęs USB prievadas, tvarkyklės problema. | Įsitikinkite, kad USB laidas yra tvirtai prijungtas. Išbandykite kitą USB prievadą. Paleiskite kompiuterį iš naujo. Patikrinkite įrenginių tvarkytuvę, ar nėra tvarkyklių problemų. |
| Raktai neregistruojami arba įvedami du kartus | Šiukšlės po klaviatūros dangteliu, sugedęs jungiklis. | Clean under the affected keycap using compressed air. If the issue persists, the switch may be faulty and require professional service. |
| Foninis apšvietimas neveikia arba yra netinkamas | Lighting settings, software glitch. | Use FN key combinations to adjust brightness and mode. Restart the keyboard by unplugging and replugging. Reinstall the DAREU software if applicable. |
| Programuojami klavišai neveikia | Software not installed or configured correctly. | Ensure DAREU software is installed and running. Verify key assignments within the software. Update software to the latest version. |
Specifikacijos
- Modelis: EK815s
- Matmenys: 17.72 x 5.51 x 1.57 colio (450 x 140 x 40 mm)
- Svoris: 2.9 svaro (1.3 kg)
- Jungiklio tipas: Mėlyni mechaniniai jungikliai
- Key Stroke Travel: 4 mm
- Key Elastic Force: 50 ± 4G
- Keystroke Life: 65 milijonus kartų
- Ryšys: USB-C
- Foninis apšvietimas: RGB vaivorykštė
- Medžiaga: Aliuminis, Plastikas
- Suderinami įrenginiai: Žaidimų konsolė, kompiuteris
- Ypatingos savybės: Backlit, Customizable Display Keys, Ergonomic, Water Resistant (panel), Wrist Rest (optional/model dependent)
- Pirmą kartą pasiekiama data: 26 m. kovo 2021 d
Garantija ir palaikymas
The DAREU EK815s Mechanical Gaming Keyboard comes with a 1 metų garantija nuo įsigijimo datos. Ši garantija taikoma gamybos defektams ir problemoms, kylančioms dėl įprasto naudojimo.
If you encounter any quality problems with your product within the 1-year warranty period, please contact DAREU customer support. Provide your purchase details and a description of the issue for assistance. Our support team is committed to helping you resolve any concerns.
For further assistance, product registration, or to download the latest software and drivers, please visit the official DAREU websvetainėje arba susisiekite tiesiogiai su jų klientų aptarnavimo tarnyba.
