1. Įvadas ir pabaigaview
The Tormek T-8 Ultimate Plus Kit is a comprehensive water-cooled sharpening system designed for precision sharpening of various hand tools, woodturning tools, planer blades, and drill bits. This kit includes the Tormek T-8 Original sharpener, HTK-806 Hand Tool Kit, TNT-808 Woodturner's Kit, SVH-320 Planer Blade Attachment, DBS-22 Drill Bit Attachment, and RB-180 Rotating Base. It ensures razor-sharp tools and extended tool life for professional craftsmen and DIY enthusiasts.
Since 1973, Tormek has been dedicated to developing optimal sharpening solutions for various edge tools. The T-8 Original is the flagship model, compatible with a complete assortment of Tormek jigs and accessories. The included 250mm (10") Tormek Original Grindstone offers an effective combination of grinding, smooth surface finish, and long stone life. This low RPM, water-cooled system is built for precision and long tool life, keeping your tools razor sharp and ready for work.
2. Gaminio komponentai
The Tormek T-8 Ultimate Plus Kit includes the following:
- Tormek T-8 Original Water-Cooled Sharpening System (includes grinding and honing wheel)
- HTK-806 Hand Tool Kit (6 jigs for knives, scissors, axes, carving tools, with storage case)
- TNT-808 Woodturner's Kit (jigs for gouges, chisels, V-tools, roughing gouges, parting tools, with storage case)
- SVH-320 Planer Blade Attachment (for HSS planer blades of any length)
- DBS-22 Drill Bit Sharpener Attachment (for sharpening drill bits)
- RB-180 Rotating Base (allows machine rotation for easy sharpening/honing switch)
- PA-70 Honing Compound
- WM-200 AngleMaster
- SE-77 Square Edge Jig
- TT-50 Truing Tool
- SP-650 Stone Grader
- HB-10 Tormek Handbook
- EM-15 Edge Marker
- KJ-45 centravimo peilis Jig
- KJ-140 platus centravimo peilis
- SVM-00 mažo peilio laikiklis
- SVX-150 Scissor Jig
- SVA-170 Axe Jig
- SVS-38 Short Tool Jig
- TC-800 Tormek Case
- HTK-00 Storage Tray for Hand Tool Kit
- TTS-100 Turning Tool Setter
- MH-380 Machine Cover
- LA-120 Profiled Leather Honing Wheel
- TNT-00 Storage Tray for Woodturner's Kit
- SVD-186 R kaltavimo įtaisas
- SVS-50 Multi Jig
- SVD-110 Tool Rest
3. Sąranka
Before operating the Tormek T-8, ensure it is placed on a stable, level surface. Fill the water trough with water until the grinding wheel is partially submerged. Attach the appropriate jig for the tool you intend to sharpen to the universal support. Ensure all locking mechanisms are secure before starting the machine.
Svarbi pastaba: This low RPM machine operates at 115 volts and is designed to work exclusively in North America. Using this product in a country that operates at 220-240V will cause damage to the motor and machine.
4. Naudojimo instrukcijos
4.1 General Sharpening with Tormek T-8
The Tormek T-8 is a water-cooled system, which means the grinding wheel runs in a water bath. This prevents the tool from overheating and losing its hardness. Always use the appropriate jig for your tool to maintain a consistent angle and achieve optimal sharpness.
Use the WM-200 AngleMaster to set the correct sharpening angle. The SP-650 Stone Grader can be used to change the grit of the grinding wheel from coarse to fine, allowing for both efficient grinding and fine honing.

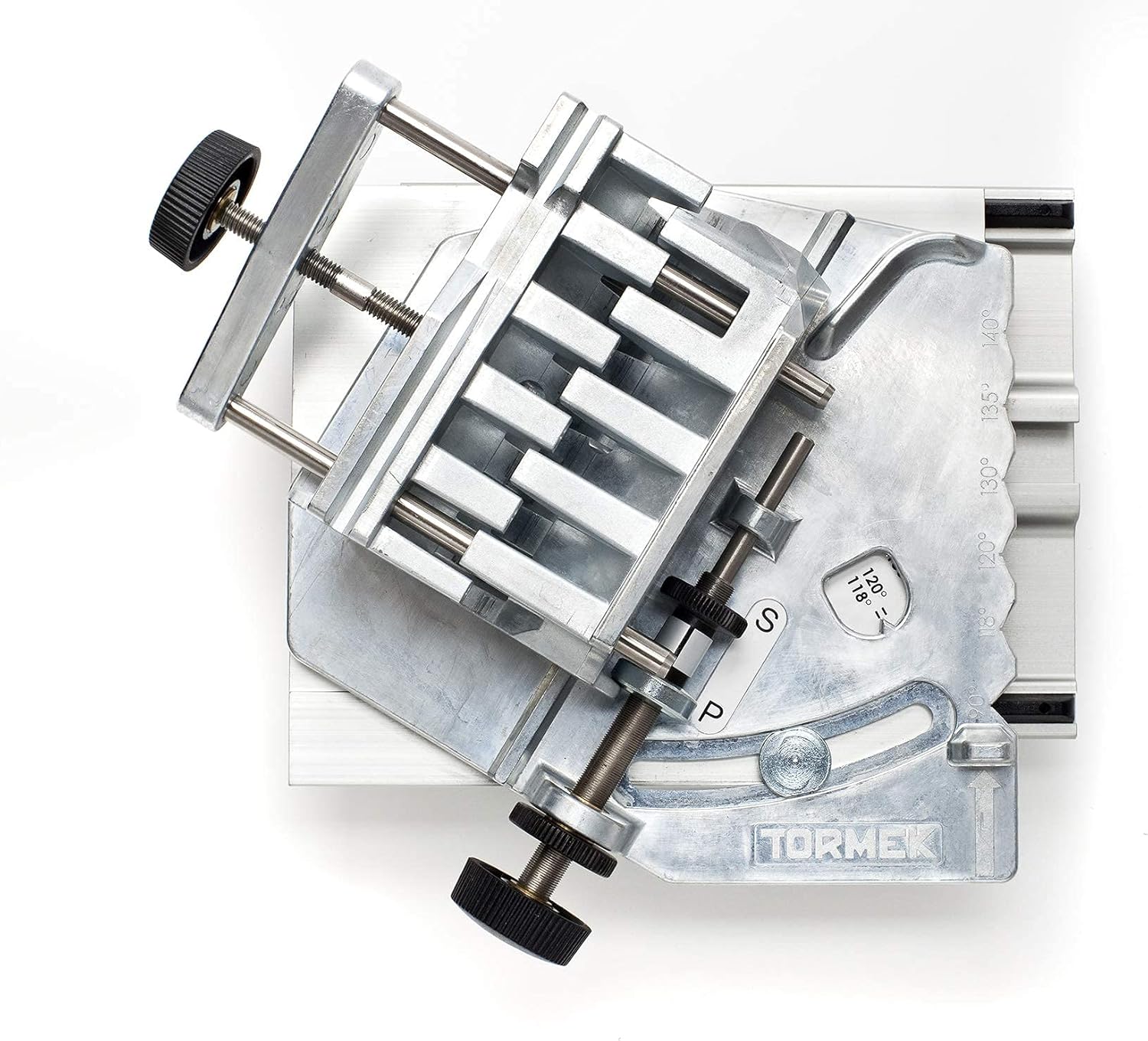

4.2 DBS-22 Drill Bit Sharpener Attachment
The DBS-22 attachment allows you to sharpen drill bits with high precision, creating a 4-facet point that prevents walking and reduces thrust force. It also minimizes heat development, extending the life of your drill bits.
- Set the distance of the universal support from the stone using the hole in the setting template.
- Mount the base plate.
- Mount the drill bit in the holder.
- Set the protrusion with the measuring stop on the guide.
- Carefully align the cutting edges so they are parallel with the horizontal lines. A magnifier is supplied for smaller drill bits.
- Start by sharpening the primary facets (P). Position the drill holder so the lug rests on the primary stop.
- Feed until the drill bit touches the stone.
- Set the cutting depth: one turn with the setting screw is equal to half a millimeter in cutting depth. Lock with the locking nut.
- Grind the primary facets. Soon you will hear when the grinding sound subsides and the edge is ground.
- Turn the jig around and sharpen the other side in the same way.
- Now, grind the secondary facets (S). Move the drill holder to the next stop marked S.
- Tilt the base until the drill bit touches the grindstone and lock.
- Start by setting the cutting depth by one and a half turns.
- Grind the secondary facets.
- Hone away any burr on the profiled leather honing wheels.
4.3 RB-180 Rotating Base
The RB-180 Rotating Base allows you to easily rotate the entire T-8 machine. This is particularly useful when switching between sharpening on the grinding wheel and honing on the leather honing wheel, or when needing to access different sides of the machine for various sharpening tasks.
5. Priežiūra
- Regularly clean the water trough and replace the water to prevent buildup of grinding particles.
- Inspect the grinding wheel for wear or unevenness. Use the TT-50 Truing Tool to keep the grinding wheel perfectly round and flat.
- Keep all jigs and attachments clean and free of debris. Lubricate moving parts as recommended in the Tormek Handbook.
- Store the Tormek T-8 and its accessories in a dry, dust-free environment, preferably in the provided TC-800 Tormek Case and storage trays.
6. Problemų sprendimas
- Uneven sharpening: Ensure the universal support is securely locked and the tool is correctly mounted in the jig. Verify the grinding wheel is trued and running smoothly.
- Tool not getting sharp: Check that the correct sharpening angle is set using the WM-200 AngleMaster. Ensure the grinding wheel's grit is appropriate for the sharpening stage (coarse for initial grinding, fine for honing). Apply PA-70 Honing Compound to the leather honing wheel for a razor-sharp edge.
- Excessive heat on tool: Confirm the water trough is filled to the correct level and the grinding wheel is adequately submerged. The water-cooled system is designed to prevent overheating.
- Mašina neužsiveda: Check the power connection and ensure the machine is plugged into a 115V outlet (North American version).
7. Specifikacijos
- Prekinis ženklas: Tormek
- Modelis: T-8 Ultimate Plus Kit
- Medžiaga: Cinko lydinys
- Spalva: Pilka
- Smėlio tipas: Fine (adjustable with Stone Grader)
- Prekių skaičius: 6 (main components in kit, many more accessories)
- Pakuotės matmenys: 16 x 16 x 16 colio
- ttage: 115 volts (US Version)
8. Garantija ir palaikymas
The Tormek T-8 Ultimate Plus Kit comes with an 8 metų garantija. For technical support, service, or warranty claims, please refer to the contact information provided in your Tormek Handbook (HB-10) or visit the official Tormek websvetainę.
