ANDELI 120AMP DC Inverter ARC Welder ARC-250E Instruction Manual

1. Saugos informacija

Always prioritize safety when operating welding equipment. Read and understand all safety warnings and instructions before use. Failure to follow these guidelines can result in serious injury or property damage.

Bendrosios saugos priemonės:

• Ensure proper ventilation in the work area to avoid inhaling welding fumes.
• Dėvėkite tinkamas asmenines apsaugos priemones (AAP), įskaitant suvirinimo šalmą, pirštines, apsauginius drabužius ir apsauginius batus.
• Never touch live electrical parts or electrodes with bare hands or wet gloves.
• Laikykite vaikus ir neįgaliotus asmenis atokiau nuo suvirinimo zonos.
• Įsitikinkite, kad suvirinimo aparatas yra tinkamai įžemintas.
• Nenaudokite suvirinimo aparato damp arba drėgnomis sąlygomis.

Integruotos saugos funkcijos:

The ANDELI ARC-250E welder is equipped with several safety features to protect the user and the machine:

• Apsauga nuo perkaitimo: The machine features an abnormal temperature protection function (overheat sensor) that automatically shuts down the unit if it exceeds safe operating temperatures.
• Apsauga nuo perkrovos: An automatic shutdown system is in place to protect against electrical overload conditions.
• Vandens įvertinimas: The unit meets the IP21 protection standard, offering protection against vertically falling water drops and solid objects larger than 12.5mm.
• Elektrostatinė apsauga: A unique coating is applied to prevent shock transfer, enhancing user safety.

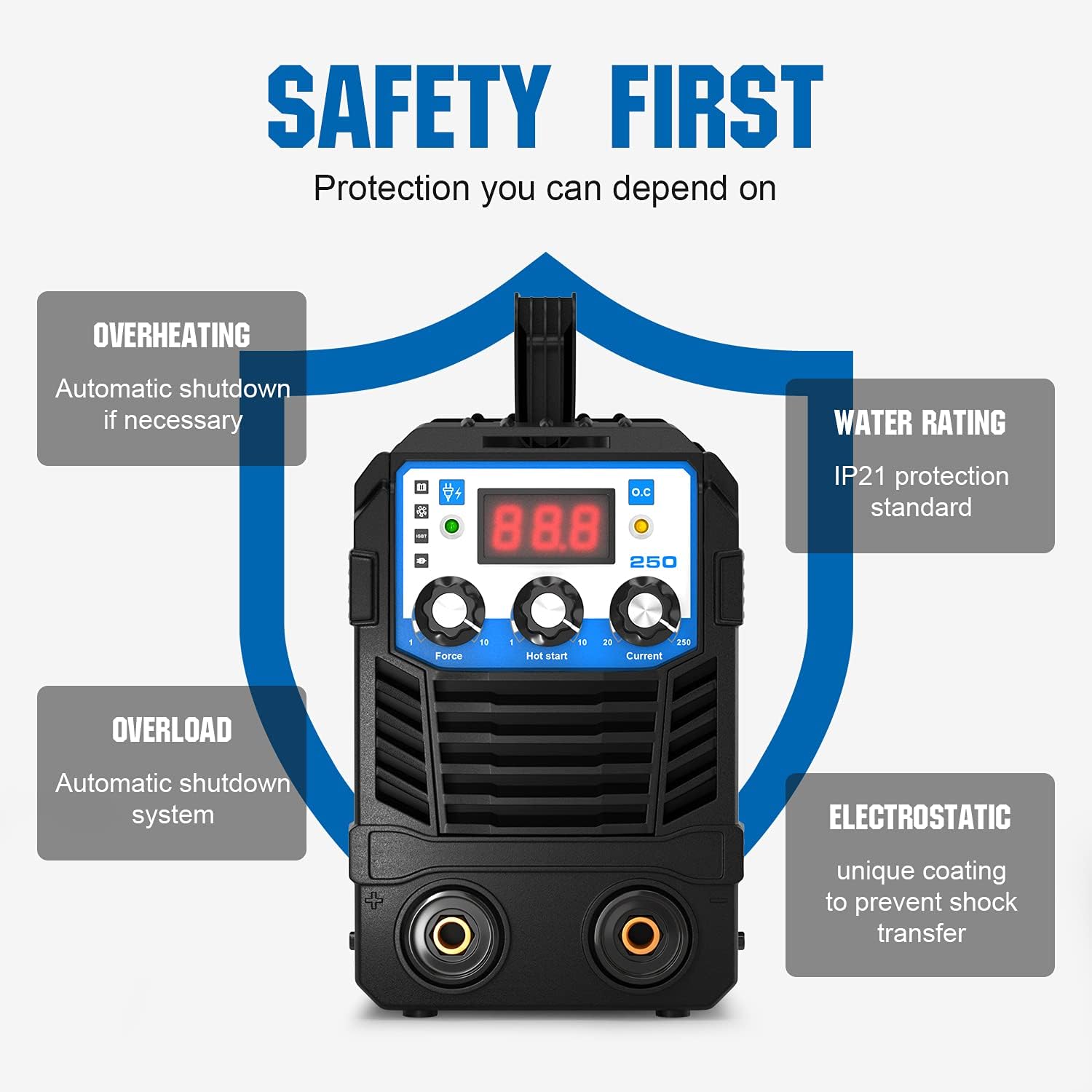

Image 1.1: Diagram illustrating the safety features of the ANDELI ARC-250E welder, including overheating, overload, water rating (IP21), and electrostatic protection.

2. Produktas baigtasview

The ANDELI 120AMP DC Inverter ARC Welder ARC-250E is a compact and lightweight welding machine designed for various welding tasks. It utilizes inverter control technology to provide a stable and smooth arc, resulting in high-quality welds.

Pagrindinės funkcijos:

• Inverter Control: Ensures a smooth and stable arc for superior welding finishes.
• Kompaktiškas ir lengvas: Sukurta patogiam perkeliamumui ir transportavimui.
• 200V įvestis: Compatible with 200V input voltage, suitable for various power sources from household to industrial settings.
• 50/60Hz Compatible: Can be used nationwide with different power frequencies.
• Adjustable Welding Current: Allows for precise current adjustment to match welding conditions and electrode types.
• Hot Start, Force Adjustment, Anti-sticking: Features for improved arc initiation and welding performance.

Electrode Compatibility and Materials:

This welder supports electrode rods with diameters of 1.4mm and 1.6mm, capable of welding plate thicknesses up to 3mm. It is suitable for a wide range of metals, including various qualities of steel and cast iron.

Image 2.1: Illustration showing the wide range of electrode rod sizes (1.6-4.0mm) and compatible metals such as square tube, galvanized pipe, rebar, iron sheet, angle steel, and steel structures.

Pažangi technologija:

The ARC-250E incorporates advanced technologies for enhanced performance and durability:

• IGBT technologija: Utilizes Insulated Gate Bipolar Transistor technology for efficient power conversion and stable output.
• Apsauga nuo viršsrovių: Safeguards the machine from excessive current flow.
• Greitas šilumos išsiskyrimas: Designed for efficient cooling to maintain optimal operating temperatures and extend machine life.

Image 2.2: The ANDELI ARC-250E welder highlighting its IGBT Technology, Overcurrent Protection, and Quick Heat Dissipation features.

Matmenys ir nešiojamumas:

The welder's compact design makes it highly portable. Its dimensions are approximately 350mm (13.78") in length, 180mm (7.08") in width, and 260mm (10.23") in height, with a weight of 2.9KG.

Image 2.3: The ANDELI ARC-250E welder with its dimensions clearly marked, illustrating its compact and portable size.

Pridedami priedai:

The ARC-250E typically comes with the following accessories to get you started:

• Gruntas Clamp (1.5M cable)
• MMA Holder (1.5M cable)
• Suvirinimo strypai (5 vnt.)
• Šepetys
• Suvirinimo pirštinės

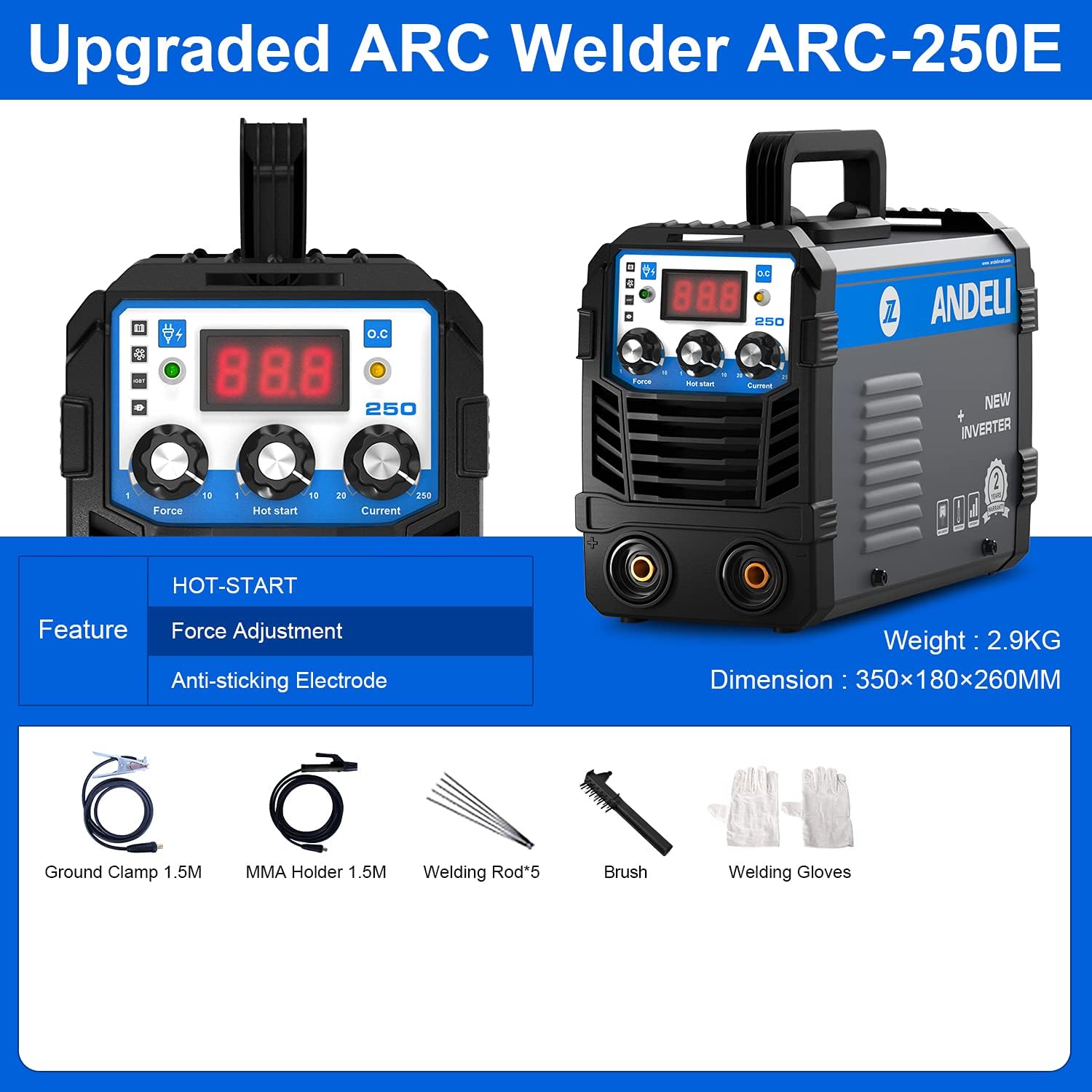

Image 2.4: The ANDELI ARC-250E welder displayed alongside its standard accessories, including ground clamp, MMA holder, welding rods, brush, and welding gloves.

3. Sąranka

Proper setup is crucial for safe and effective welding. Follow these steps to prepare your ANDELI ARC-250E welder for operation.

Maitinimo jungtis:

1. Įsitikinkite, kad suvirinimo aparato maitinimo jungiklis yra IŠJUNGTOJE padėtyje.
2. The ARC-250E is designed for 200V AC input. Connect the power cord to a suitable 200V power outlet. Pastaba: Attempting to operate the 200V unit on a 110V supply will result in significantly reduced performance and potential damage. Verify your power source matches the welder's requirements.
3. The welder is compatible with both 50Hz and 60Hz frequencies.

3.1 vaizdas: galinis view of the ANDELI ARC-250E welder, showing the AC220V input and the ON/OFF power switch.

Welding Cable Connection:

1. Prijunkite įžeminimą klamp cable to the negative (-) terminal on the front panel of the welder. Secure the ground clamp prie ruošinio, užtikrinant gerą elektros kontaktą.
2. Connect the MMA holder cable to the positive (+) terminal on the front panel of the welder.
3. Insert a suitable welding rod into the MMA holder.

4. Operacija

Once the welder is set up, you can begin welding. Always wear appropriate PPE and ensure a safe working environment.

Įjungimas:

1. After connecting the power and welding cables, switch the power button on the rear panel to the 'ON' position.
2. The digital display on the front panel will illuminate, indicating the machine is ready.

Adjusting Welding Current:

The welding current can be adjusted using the 'Current' knob on the front panel. The recommended welding current varies depending on the electrode diameter and material thickness.

• For 1.4mm electrodes, adjust the current accordingly.
• For 1.6mm electrodes, adjust the current accordingly.
• The machine can weld plate thicknesses up to 3mm.
• The welder can automatically suggest a welding current based on electrode diameter, or you can manually adjust it to suit your welding habits and specific application.

Advanced Welding Features:

• Karšta pradžia: This feature provides an initial boost of current to help ignite the arc easily, especially with difficult-to-start electrodes.
• Force Adjustment: Allows for fine-tuning of the arc force, which helps prevent the electrode from sticking and improves penetration.
• Anti-sticking Electrode: Automatically reduces the current if the electrode sticks to the workpiece, making it easier to detach and preventing damage to the electrode or machine.

Suvirinimo procesas:

1. Padėkite žemę klamp tvirtai pritvirtintas prie ruošinio.
2. Hold the MMA holder with the electrode close to the workpiece.
3. Strike the arc by lightly touching and quickly lifting the electrode from the workpiece.
4. Maintain a consistent arc length and travel speed to create a uniform weld bead.
5. Po suvirinimo išjunkite įrenginį ir leiskite jam atvėsti prieš liesdami.

5. Priežiūra

Regular maintenance ensures the longevity and optimal performance of your ANDELI ARC-250E welder.

Valymas:

• Periodically clean the exterior of the welder with a dry, soft cloth.
• Use compressed air to blow out any dust or debris from the ventilation openings. Ensure the machine is unplugged before cleaning.
• Keep the welding cables and connections clean and free from dirt or corrosion.

Saugykla:

• Store the welder in a dry, clean environment, away from direct sunlight, moisture, and extreme temperatures.
• Ensure cables are neatly coiled and not kinked.

Patikra:

• Before each use, inspect the power cord, welding cables, and connections for any signs of damage, fraying, or loose connections.
• Check the MMA holder and ground clamp for wear and tear. Replace damaged components immediately.

6. Problemų sprendimas

This section provides solutions to common issues you might encounter with your ANDELI ARC-250E welder.

Dažnos problemos ir sprendimai:

If you encounter issues not listed here or if the problem persists after attempting these solutions, please contact customer support.

7. Specifikacijos

The following table outlines the technical specifications for the ANDELI ARC-250E DC Inverter ARC Welder.

8. Garantija ir palaikymas

ANDELI is committed to providing reliable products and customer satisfaction.

Informacija apie garantiją:

Šis produktas paprastai būna su a 2 metų garantija from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, unauthorized modifications, or improper maintenance.

Klientų aptarnavimas:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact ANDELI customer support through the retailer where you purchased the product or visit the official ANDELI websvetainė kontaktinei informacijai.
