BLUU Propane Heater (Model B09BFBV7SY) Instruction Manual

Įvadas

This manual provides essential information for the safe and efficient operation of your BLUU Propane Heater. Please read all instructions carefully before use and retain this manual for future reference.

Saugos informacija

Bendrosios saugos priemonės

• Always operate the heater in a well-ventilated area.
• Laikykite degias medžiagas saugiu atstumu nuo šildytuvo.
• Ensure the heater is placed on a stable, level surface to prevent tipping.
• Neužblokuokite oro įleidimo ar išleidimo angų.
• Veikiant šildytuvui, laikykite vaikus ir naminius gyvūnus atokiau nuo jo.
• Niekada nepalikite šildytuvo be priežiūros, kai jį naudojate.

Integruotos saugos funkcijos

• Apsauga nuo apsivertimo: The heater is equipped with a safety mechanism that automatically shuts off the unit if it is accidentally tipped over.
• Apsauga nuo perkaitimo: An internal sensor monitors the heater's temperature and will automatically shut off the unit if it reaches an unsafe temperature, preventing overheating.
• Oxygen Depletion Safety Shut-Off System (ODS): This system includes a sensor built into the pilot burner assembly, electrode, and thermocouple. It is designed to shut off the main burner and pilot gas if the oxygen content in the room falls below a predetermined safe level.
• CSA sertifikuota: This product is CSA certified for both outdoor and indoor use. Warning: When used indoors, ensure adequate ventilation.

Image: The BLUU Propane Heater highlighting its tilt protection and Oxygen Depletion Safety Shut-Off System (ODS).

Image: CSA Certificate of Compliance for the BLUU Propane Heater, confirming its suitability for indoor and outdoor use.

Produktas baigtasview

The BLUU Propane Heater is a portable gas heater designed for both outdoor and indoor use, providing up to 10,000 BTU of heat. It features a thermostat for temperature control and is compact for easy transport.

Pagrindinės funkcijos:

• Šilumos galia: 10,000 britų terminių vienetų (BTU)
• Šildymo aprėptis: Iki 300 kvadratinių pėdų
• Kuro tipas: Propanas
• Termostatas: Integrated thermostat for maintaining desired temperature.
• Perkeliamumas: Compact design with a handle for easy carrying.
• Sauga: Equipped with Tip-Over and Overheat Protection, and an Oxygen Depletion Safety Shut-Off System (ODS).

Image: Close-up of the BLUU Propane Heater's control panel, showing the 10,000 BTU output and adjustable thermostat with 10 levels.

Image: Illustration demonstrating the BLUU Propane Heater's thermal radiation range, capable of heating up to 300 square feet.

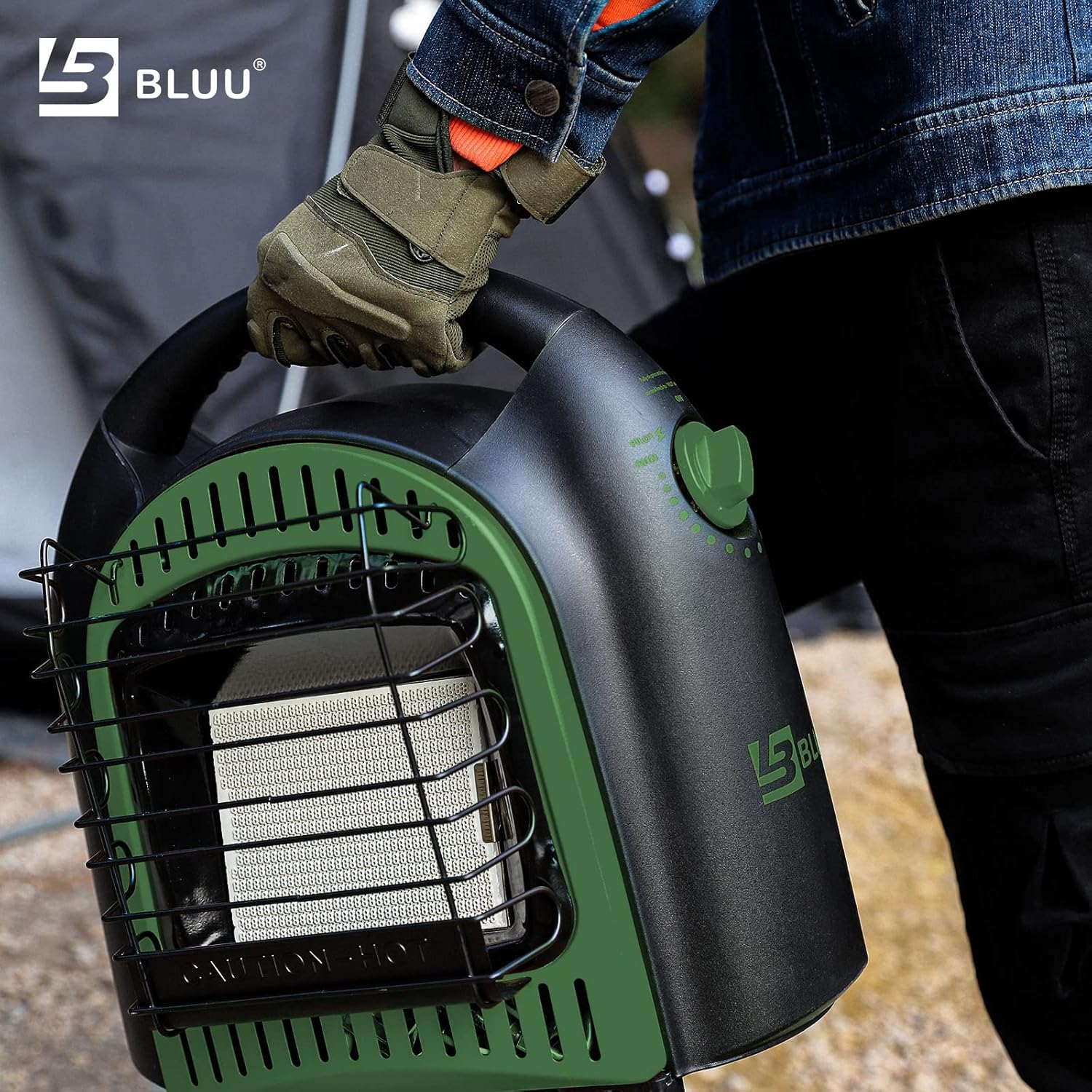

Image: A person carrying the BLUU Propane Heater by its integrated handle, showcasing jo perkeliamumą.

Sąrankos instrukcijos

Connecting the Propane Cylinder

1. Ensure the heater's control knob is in the "OFF" position.
2. Connect the propane cylinder (1lb or 20lb) to the heater's gas inlet. For 20lb cylinders, a refill adapter and hose (not included) are required.
3. Tighten all connections securely to prevent gas leaks.
4. Check for gas leaks using a soapy water solution on all connections. Bubbles indicate a leak. Do not operate if a leak is detected.

Image: The BLUU Propane Heater demonstrating compatibility with both 1lb and 20lb propane cylinders (20lb requires an adapter and hose, not included).

Naudojimo instrukcijos

Šildytuvo paleidimas

1. Ensure the propane cylinder is connected and the gas supply is open.
2. Turn the control knob to the "PILOT" position and press it down.
3. While holding the knob down, press the igniter button repeatedly until the pilot flame ignites.
4. Continue to hold the control knob down for 30-60 seconds after ignition to allow the thermocouple to heat up.
5. Release the control knob. If the pilot flame extinguishes, repeat steps 2-4.
6. Once the pilot flame is stable, turn the control knob to the desired heat setting (MIN to MAX).

Temperatūros reguliavimas

The integrated thermostat allows you to set your desired heat level. Rotate the thermostat knob to increase or decrease the heat output. The heater will cycle on and off to maintain the set temperature.

Šildytuvo išjungimas

1. Pasukite valdymo rankenėlę į padėtį „IŠJUNGTA“.
2. Close the valve on the propane cylinder.
3. Prieš perkeldami ar laikydami šildytuvą, leiskite jam visiškai atvėsti.

Priežiūra

Valymas

• Ensure the heater is completely cool and disconnected from the propane supply before cleaning.
• Išorinius paviršius nuvalykite minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Periodically check the air intake and exhaust vents for dust or debris and clean as necessary to ensure proper airflow.

Sandėliavimas

• Store the heater in a cool, dry place away from direct sunlight and moisture.
• Disconnect the propane cylinder before storing.

Trikčių šalinimas

Heater Does Not Ignite:

• Ensure the propane cylinder is connected correctly and has fuel.
• Check that the gas valve on the cylinder is fully open.
• Verify that the control knob is pressed down firmly in the "PILOT" position during ignition.
• Ensure the igniter button is being pressed repeatedly until the pilot flame appears.

Pilot Flame Does Not Stay Lit:

• Ensure the control knob is held down for 30-60 seconds after ignition to allow the thermocouple to heat up.
• Check for proper ventilation. The Oxygen Depletion Safety Shut-Off System (ODS) may be activating if oxygen levels are too low.

Šildytuvas išsijungia veikimo metu:

• This may indicate activation of the Tip-Over Protection or Overheat Protection. Check if the heater was tipped or if vents are blocked.
• The ODS system may have activated due to low oxygen levels. Ensure adequate ventilation.
• Check the propane supply; the cylinder may be empty or nearly empty.

Specifikacijos

Garantija ir palaikymas

For warranty information and customer support, please refer to the documentation included with your purchase or contact BLUU customer service directly. Keep your proof of purchase for warranty claims.
