Retevis RB19P GMRS Walkie Talkie Instruction Manual

Įvadas

This manual provides detailed instructions for the safe and efficient operation of your Retevis RB19P GMRS Walkie Talkies. Please read this manual thoroughly before using the product and retain it for future reference.

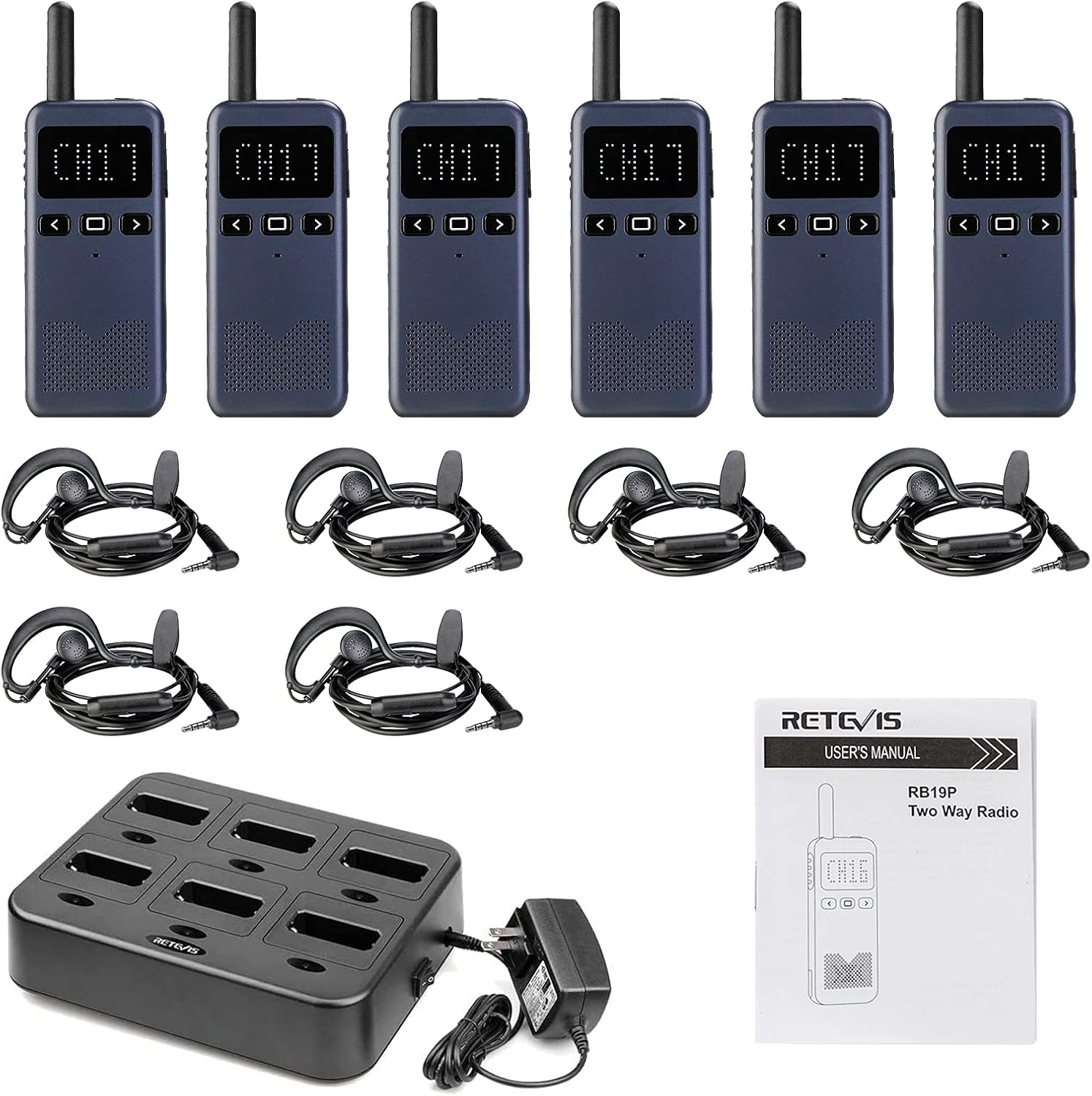

Kas yra dėžutėje

• 6X RB19P GMRS Radios
• 6X G-type Earpiece
• 1X 6 Way Multi Unit Charger
• 1X adapteris
• 1X English Manual

Produkto savybės

• Ultra-slim body design with a 1.7-inch screen for easy communication.
• 30 preset GMRS channels with enhanced penetration for longer range.
• 2000mAh Li-Ion battery providing 16 to 20 hours of heavy use.
• USB-C įkrovimo prievadas patogiam įkrovimui.
• Includes earpiece and mic set with finger PTT for clear communication in noisy environments.
• Volume memory function to prevent excessively loud reboots.

Sąranka ir įkrovimas

Before first use, ensure the walkie talkie is fully charged. The device features a 2000mAh Li-Ion battery and can be charged via its USB-C port or the multi-unit charger.

To charge using the multi-unit charger, place the walkie talkie securely into an available slot. Ensure the charging indicator illuminates. A full charge typically takes approximately 4 hours.

Naudojimo instrukcijos

Maitinimo įjungimas/išjungimas

To power on or off, long press the power button located on the top of the radio. A voice prompt will confirm the action.

Garsumo reguliavimas

Use the up and down arrow buttons on the front panel to adjust the volume. The display will show the current volume level.

Kanalo pasirinkimas

The RB19P has 30 preset GMRS channels. Use the left and right arrow buttons to cycle through the available channels. A voice prompt will announce the selected channel number.

VOX laisvų rankų įranga

To activate VOX (Voice Operated Exchange) for hands-free communication, short press the square button twice. Ensure VOX is enabled before using an earpiece for hands-free operation.

Avarinis aliarmas

To activate the local and remote emergency alarm, long press the left arrow button. The radio will emit a loud alarm sound.

Klaviatūros užrakinimas/atrakinimas

To lock the keypad, long press the square button. To unlock, long press the square button again.

NOAA Weather Channel

The RB19P can access NOAA weather channels. Refer to the video for instructions on how to enter NOAA Regulation Mode and adjust channels.

Suderinamumo pastabos

The Retevis RB19P (30 channels) supports direct calls on channels 1-5 for 16-channel radios, and channels 1-22 for 22-channel radios. Channels 23-30 of RB19P are repeater channels. Communication with other brands of walkie-talkies may require specific firmware; contact Retevis support for assistance.

Informacija apie diapazoną

The effective range of your walkie talkie can vary significantly based on terrain, obstacles, atmospheric conditions, radio power, signal type, and antenna. While the RB19P offers strong penetration, dense environments like heavily wooded areas or urban settings with many buildings will reduce range.

How to extend further distance?

• Padidinkite perdavimo galią (teoriškai, padvigubinus perdavimo galią, ryšio atstumą galima padidinti maždaug 1.4 karto, palyginti su pradiniu atstumu).
• Pagerinkite priėmimo jautrumą (sureguliuokite racijos triukšmo slopinimo slenkstį ir naudokite didelio stiprinimo anteną, kad atitinkamai pagerintumėte racijos priėmimo jautrumą).
• Toliau paleiskite iš aukštesnės vietos.
• Laikykite akumuliatorių įkrautą.

Specifikacijos

Garantija ir palaikymas

Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. For any issues or support, please contact Retevis via Amazon. They aim to reply within 12 hours.
