1. Įvadas
Thank you for choosing the NICREW LED Aquarium Light. This light is designed to provide optimal illumination for your aquarium, featuring adjustable white and blue light modes, a built-in timer, and a fully submersible, waterproof design. Please read this manual carefully before installation and operation to ensure proper use and longevity of your product.
2. Produkto ypatybės
- Integrated LED Bar: Smartly designed to enhance aquarium aesthetics and lighting.
- Keli apšvietimo režimai: Freely switch between 3 lighting modes (white, blue, white & blue) and 5 brightness levels to meet diverse aquarium needs.
- Pre-set Timer Function: Ensures a natural day-night cycle in your aquarium with 3, 9, or 12-hour timer options. Note: The timer needs to be reset after a power outage, but brightness settings are retained.
- Saugus naudojimas: Operates at a safe 12V, posing no risk to humans or aquatic animals.
- IP68 vandeniui atsparus dizainas: Can be fully submerged underwater or attached to the side of the aquarium using strong suction cups.

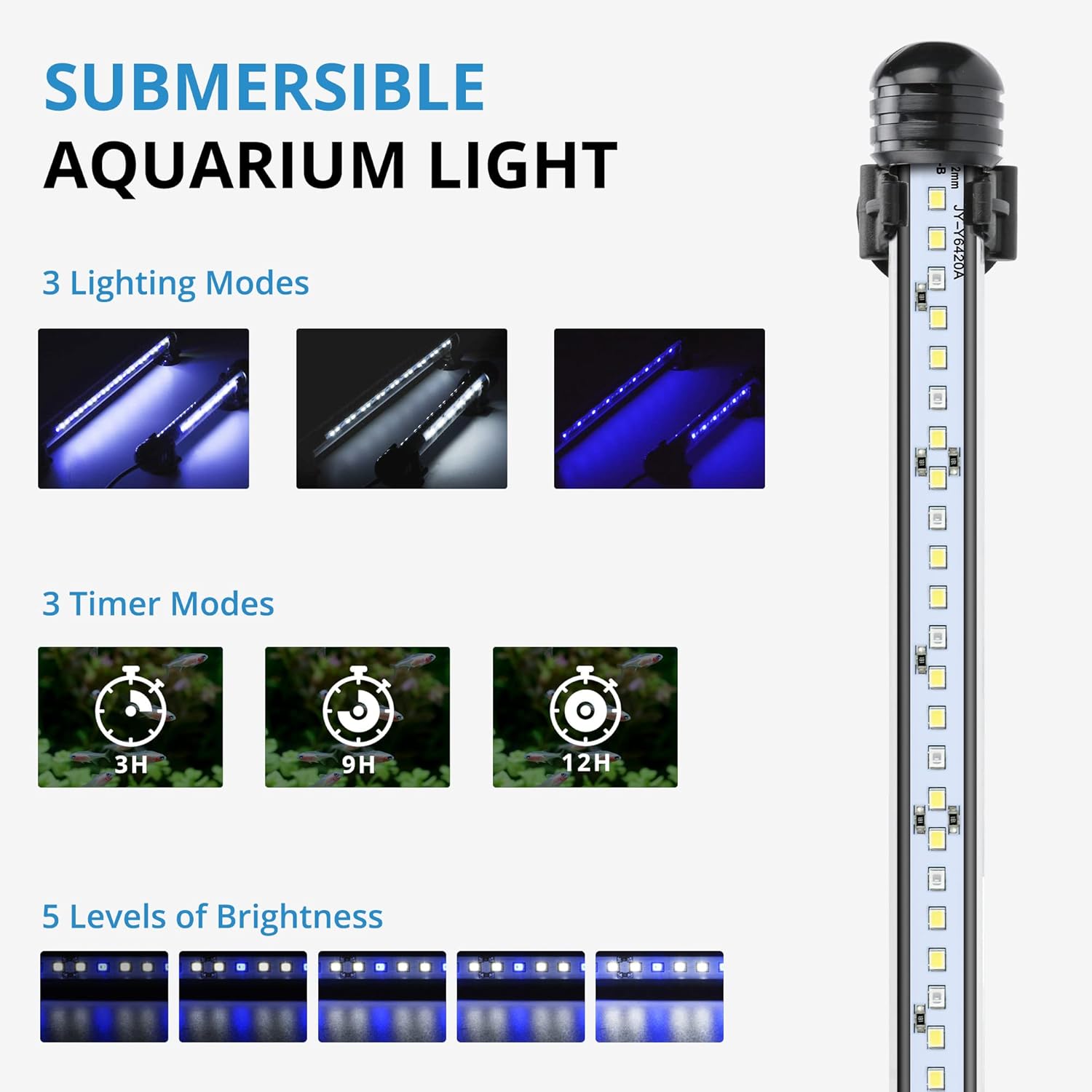

Vaizdas: Viršview of the light's features including lighting modes, timer options, and brightness levels.
Vaizdas: Išsamus view of the inline controller for adjusting white and blue LED brightness, selecting timer modes, and power control.
3. Montavimas
The NICREW LED Aquarium Light offers flexible installation options. It can be placed above water or fully submerged.
- Pritvirtinkite siurbtukus: Securely attach the provided suction cups to the ends of the light bar.
- Padėties nustatymas:
- Above Water: Use the suction cups to attach the light to the inner rim or lid of your aquarium.
- Submerged: Use the suction cups to attach the light to the inside glass of your aquarium, ensuring it is fully submerged.
- Prijunkite maitinimą: Įkiškite maitinimo adapterį į tinkamą elektros lizdą.
Image: Illustration of the two primary installation methods: above the water line and fully submerged within the aquarium.
Video: Demonstrates the installation of suction cups onto the light bar and how to turn on the light, adjust lighting modes, and set brightness levels. The video shows the light being attached to an aquarium and its various functions in action.
4. Naudojimo instrukcijos
The NICREW LED Aquarium Light is controlled via an inline switch with multiple buttons.
- Maitinimo įjungimas/išjungimas: Press and hold the power button for three seconds to turn the light on or off.
- Keisti apšvietimo režimus:
- Press the 'W' button to activate white light mode.
- Press the 'B' button to activate blue light mode.
- Press the 'W' and 'B' buttons simultaneously or cycle through modes to activate white and blue light mode.
- Sureguliuokite ryškumą: The light offers 5 levels of brightness (20%, 40%, 60%, 80%, 100%). Use the brightness adjustment buttons (often integrated with mode buttons or separate up/down arrows) to cycle through these levels.
- Nustatyti laikmatį: Press the timer button to select a pre-set duration: 3 hours, 9 hours, or 12 hours. The light will automatically turn off after the selected duration and turn on again at the same time the next day.
Image: Visual representation of the 5 adjustable brightness levels and examples of the white, blue, and combined white and blue lighting modes in an aquarium setting.
5. Priežiūra
- Valymas: Reguliariai valykite šviesos juostą minkšta,amp šluoste, kad pašalintumėte dumblius ar mineralines nuosėdas. Prieš valydami įsitikinkite, kad šviestuvas yra atjungtas nuo elektros tinklo. Nenaudokite abrazyvinių valiklių.
- Patikra: Periodically check the power cord and connections for any signs of damage. If any damage is observed, discontinue use immediately and contact customer support.
- Vandens kokybė: Maintain good aquarium water quality to minimize mineral buildup on the light.
Image: Close-up demonstrating the waterproof design of the light, highlighting its durability for submerged use.
6. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Šviesa neįsijungia. |
|
|
| Laikmačio funkcija neveikia tinkamai. |
|
|
| Light appears dim or flickers. |
|
|
| Siurbimo taurelės nelaiko. |
|
|
7. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | NICREW |
| Modelio numeris | N26062 |
| Galia | 2.5 vatų |
| Šviesos išvestis | 150 LM |
| Veiklos ttage | 12 V |
| Medžiaga | Metalas |
| Spalva | Two Colors (White, Blue) |
| Atsparumo vandeniui įvertinimas | IP68 |
| Matmenys (paketas) | 31.3 x 8.3 x 4.6 cm |
| Prekės svoris | 240 gramų |
| Maitinimo šaltinis | Elektros kabelis |
| Perjungti stilių | Perjungti |
Image: Information on lumens and a guide for recommended lumen levels based on aquarium volume for low, medium, and high light intensity.
8. Garantija ir palaikymas
For warranty information or technical support, please refer to the documentation included with your purchase or visit the official NICREW website. If you encounter any issues not covered in this manual, please contact NICREW customer service for assistance.
Kontaktinė informacija: Please refer to your product packaging or the NICREW official websvetainę, kurioje rasite naujausią kontaktinę informaciją.
