1. Saugos informacija
Prieš montuodami ir naudodami atidžiai perskaitykite visas instrukcijas. Išsaugokite šį vadovą ateičiai.
- Elektros sauga: Installation must be performed by a qualified electrician in accordance with all local electrical codes. Ensure power is disconnected at the circuit breaker before installation or maintenance.
- Stiklo tvarkymas: Handle the mirror with care. Glass edges can be sharp. Wear appropriate protective gloves during installation.
- Montavimas: Ensure the mounting surface is structurally sound and capable of supporting the mirror's weight (approximately 30.5 lbs). Use appropriate hardware for your wall type.
- 65 pasiūlymas Įspėjimas: Šiame produkte gali būti chemikalų, kuriuos Kalifornijos valstija žino apie vėžį, apsigimimus ar kitokią žalą reprodukcijai.
2. Produktas baigtasview
The Altair Design Livorno 36-inch Frameless Modern LED Bathroom Vanity Mirror (Model 742036-LED-NF) is designed to provide both illumination and style to your bathroom space. It features integrated LED lighting with adjustable color temperature and dimming capabilities, controlled by a touch sensor.
2.1 vaizdas: priekis view of the Livorno 36-inch Frameless LED Bathroom Vanity Mirror.
Image 2.2: The Livorno mirror installed in a modern bathroom setting with a white vanity.
Pagrindinės funkcijos:
- Touch Sensor On/Off Button for easy control.
- 5mm copper-free clear mirror on low iron glass for superior clarity.
- Durable aluminum back frame.
- Efficient 2835 LED lighting strip with 120 beans/M.
- Stepless light color change (3000K/4000K/6000K) and dimmable functionality by holding the touch sensor.
- Versatile installation: can be hung landscape or portrait.
- Frameless modern design.
- 110V power, IP44 rated for bathroom environments.
- Laidinis maitinimo šaltinis.
- UL-approved LED driver with ETL certificate for safety and quality.
3. Sąranka ir diegimas
This mirror requires hardwired installation. It is recommended that installation be performed by a licensed electrician.
Pakuotės turinys:
- Livorno LED Bathroom Vanity Mirror
- Montavimo instrukcijos
- Montavimo įranga
- Mounting bracket
Diegimo žingsniai:
- Paruoškite plotą: Ensure the power supply to the installation area is turned off at the circuit breaker. Clear the wall space where the mirror will be mounted.
- Determine Orientation: Decide whether to hang the mirror in landscape (36" W x 30" H) or portrait (30" W x 36" H) orientation.
- Pažymėkite tvirtinimo taškus: Using the provided mounting bracket and a level, mark the desired position for the mirror on the wall. Ensure the marks align with the mirror's hanging points.
- Įdiekite montavimo laikiklį: Drill pilot holes at the marked points and secure the mounting bracket to the wall using the appropriate hardware for your wall type (e.g., wall anchors for drywall, screws for studs).
- Elektros jungtis: Connect the mirror's electrical wiring to your home's hardwired electrical supply. Ensure all connections are secure and properly insulated. Refer to local electrical codes. The mirror operates on 110V.
- Mount the Mirror: Carefully lift the mirror and align its hanging points with the installed mounting bracket. Secure the mirror to the bracket.
- Bandymo funkcionalumas: Restore power at the circuit breaker and test the mirror's LED light and touch sensor functionality.

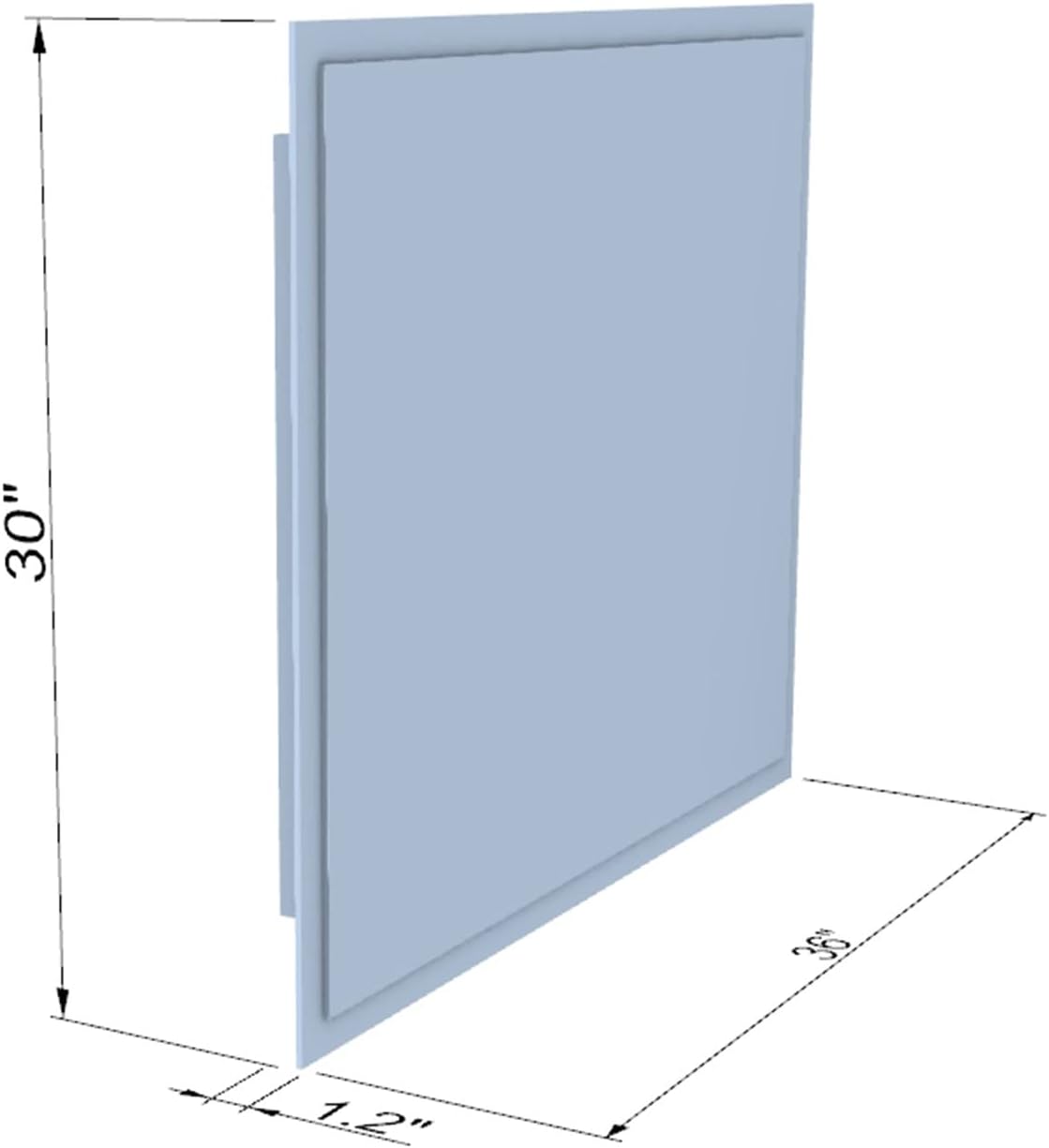

Image 3.1: Dimensional diagram of the Livorno mirror, showing 36 inches width, 30 inches height, and 1.2 inches depth.

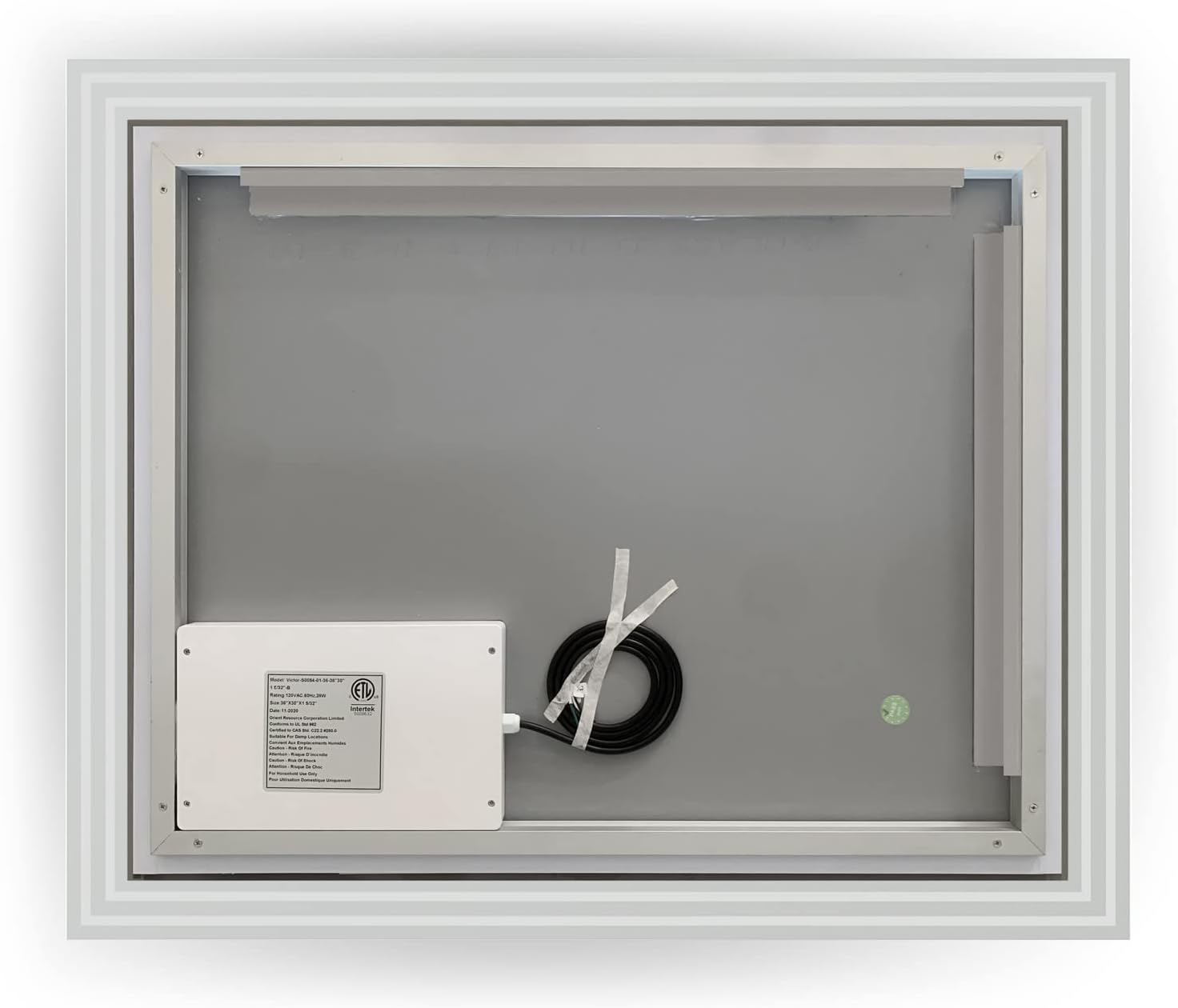

3.2 vaizdas: galinis view of the mirror, illustrating the hardwired connection and the UL/ETL certified LED driver.
4. Naudojimo instrukcijos
The Livorno LED mirror features an intuitive touch sensor for controlling its lighting functions.
Image 4.1: Close-up of the mirror showing the illuminated touch sensor button.
- Maitinimo įjungimas/išjungimas: Lightly touch the sensor button located on the mirror surface to turn the LED lights on or off.
- Spalvų temperatūros reguliavimas: With the lights on, briefly touch the sensor button repeatedly to cycle through the available color temperatures: 3000K (warm white), 4000K (neutral white), and 6000K (cool white).
- Pritemdymo funkcija: To adjust the brightness, press and hold the sensor button. The light will gradually dim or brighten. Release the button when the desired brightness level is achieved.
5. Priežiūra
Regular cleaning and proper care will ensure the longevity and optimal performance of your LED mirror.
- Veidrodinio paviršiaus valymas: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Spray the cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into the electrical components. Wipe gently to avoid streaks.
- Rėmo valymas: The aluminum back frame can be wiped with a soft, damp audinys. Venkite stiprių cheminių medžiagų.
- Elektriniai komponentai: Do not attempt to clean or service the internal electrical components. If issues arise, consult a qualified electrician.
- Venkite per didelės drėgmės: While the mirror is IP44 rated, avoid direct water spray or prolonged exposure to excessive moisture.
6. Problemų sprendimas
If you encounter any issues with your Livorno LED mirror, refer to the following common problems and solutions:
- LED lemputės neįsijungia:
- Check if the power supply to the mirror is active at the circuit breaker.
- Ensure all electrical connections are secure. If unsure, consult a qualified electrician.
- Patikrinkite, ar jutiklinis jutiklis švarus ir neuždengtas.
- Lights Flicker or Dim Unexpectedly:
- This could indicate an unstable power supply. Consult an electrician to check the wiring.
- Ensure the dimming function is not accidentally activated by a prolonged touch.
- Touch Sensor Unresponsive:
- Ensure the sensor area is clean and dry.
- Briefly disconnect and reconnect power to the mirror at the circuit breaker to reset the system.
Jei problema išlieka ir išbandžius šiuos sprendimus, susisiekite su klientų aptarnavimo tarnyba.
7. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelio numeris | 742036-LED-NF |
| Gaminio matmenys | 36 col. (W) x 30 col. (A) x 1.2 col. (D) |
| Produkto svoris | 30.5 svaro |
| Medžiaga | 5mm copper-free clear mirror on low iron glass, Aluminum back frame |
| Maitinimo šaltinis | Hardwired, 110V |
| LED tipas | 2835 LED lighting strip, 120 beans/M |
| Spalvos temperatūra | 3000K / 4000K / 6000K (Stepless change) |
| Pritemdymas | Yes, by holding touch sensor |
| IP reitingas | IP44 |
| Sertifikatai | UL-approved LED driver, ETL certificate |
| Orientacija | Vertical or Horizontal hanging |
8. Garantija ir palaikymas
Informacija apie garantiją:
This Altair Design Livorno LED Bathroom Vanity Mirror comes with a 2 metų ribota garantija from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
Klientų aptarnavimas:
For technical assistance, warranty claims, or any questions regarding your product, please contact Altair Design customer support. Refer to your purchase documentation or the Altair Design websvetainė, kurioje pateikiama naujausia kontaktinė informacija.
