GEWISS P-COMFORT GWD6916 Wired Load Management Relay User Manual

1. Įvadas

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the GEWISS P-COMFORT GWD6916 Wired Load Management Relay. Please read this manual thoroughly before attempting any installation or operation.

The GEWISS P-COMFORT GWD6916 is designed to manage electrical loads in an installation, optimizing energy consumption and preventing overloads. It is a wired version, ensuring reliable communication and control.

Saugos informacija

• Profesionalus montavimas: Installation and maintenance must be performed by qualified personnel in accordance with local electrical codes and regulations.
• Atjunkite maitinimą: Always disconnect the main power supply before performing any installation, wiring, or maintenance procedures.
• ttage: Užtikrinkite tiekimo tūrįtage matches the device's specifications (250 Volt).
• Aplinkos sąlygos: Nelaikykite įrenginio drėgmės, ekstremalių temperatūrų ar korozinės aplinkos veikiamo.

2. Pakuotės turinys

Atidarę pakuotę, patikrinkite, ar visos prekės yra pakuotėje ir nepažeistos:

• 1 x GEWISS P-COMFORT GWD6916 Wired Load Management Relay
• 1 x naudojimo instrukcija (šis dokumentas)

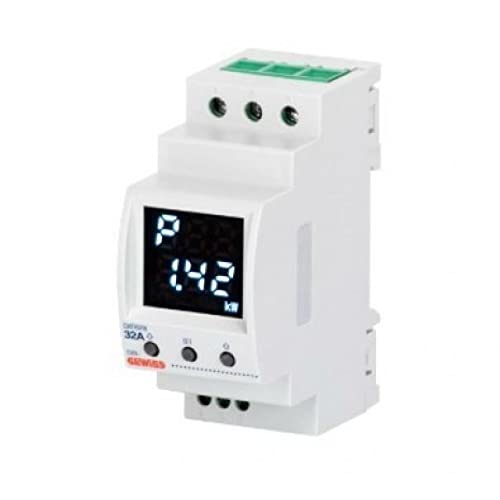

1 vaizdas: priekis view of the GEWISS P-COMFORT GWD6916 Wired Load Management Relay. The image shows the compact housing, terminal blocks for wiring, and indicator lights.

3. Montavimas

Follow these steps for proper installation of the GEWISS P-COMFORT GWD6916 relay.

3.1 Montavimas

1. Pasirinkite vietą: Choose a suitable location within an electrical enclosure, ensuring adequate ventilation and protection from environmental factors.
2. Montavimas: The relay is designed for DIN rail mounting. Securely attach the device to the DIN rail until it clicks into place.

3.2 Laidai

Įspėjimas: Prieš tęsdami laidų montavimą, įsitikinkite, kad maitinimas yra atjungtas.

1. Maitinimas: Connect the main power supply (250 Volt) to the designated input terminals as indicated on the device's wiring diagram.
2. Apkrovos jungtys: Connect the loads to be managed by the relay to the output terminals. Ensure correct polarity and current ratings are observed.
3. Valdymo įvestis: Connect the control signal (e.g., from a master load management unit or energy meter) to the dedicated control input terminals. This signal dictates when loads should be shed or reconnected.
4. Įžeminimas: Ensure proper grounding of the device and associated electrical components.

Refer to the detailed wiring diagram printed on the device or included in the packaging for specific terminal assignments.

4. Operacija

Once installed and wired correctly, the GEWISS P-COMFORT GWD6916 relay operates automatically based on the control input it receives.

4.1 Power-Up and Initial Check

1. Atkurti maitinimą: After completing all wiring and safety checks, restore power to the installation.
2. Indikacinės lemputės: Observe the indicator lights on the relay. A power indicator should illuminate, confirming the device is receiving power. Other indicators will show the status of the loads being managed.

4.2 Load Management Function

The relay functions by switching connected loads ON or OFF in response to a control signal. Typically, this signal originates from a central load management system that monitors total energy consumption. When the total consumption exceeds a predefined threshold, the control system signals the relay to disconnect non-essential loads (load shedding) to prevent an overload. When consumption drops, the loads are reconnected.

4.3 Būsenos indikatoriai

The relay features LED indicators to provide visual feedback on its operational status:

• Maitinimo šviesos diodas: Indicates that the device is powered ON.
• Būsenos šviesos diodas: May indicate operational status, errors, or communication status with the control unit. Refer to the device's specific documentation for LED behavior.
• Load Status LEDs: Individual LEDs may indicate the ON/OFF status of each controlled load.

5. Priežiūra

The GEWISS P-COMFORT GWD6916 relay is designed for reliable, long-term operation with minimal maintenance.

• Valymas: Periodically clean the exterior of the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Patikra: Annually, or as required by local regulations, have a qualified electrician inspect the wiring connections for tightness and signs of wear or damage.
• Nėra vartotojo aptarnaujamų dalių: The device contains no user-serviceable parts. Do not attempt to open or repair the unit.

6. Problemų sprendimas

If you encounter issues with your GEWISS P-COMFORT GWD6916 relay, refer to the following common problems and solutions:

For issues not listed above or if troubleshooting steps do not resolve the problem, contact a qualified electrician or Gewiss technical support.

7. Specifikacijos

8. Garantija ir palaikymas

The GEWISS P-COMFORT GWD6916 is covered by a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Gewiss websvetainėje, kurioje pateikiamos išsamios garantijos sąlygos.

For technical assistance, product inquiries, or warranty claims, please contact Gewiss customer support through their official channels. Ensure you have your product model number (GWD6916) and purchase details available when contacting support.

Gewiss Official Websvetainė: www.gewiss.com
