YAOHUIMI Replacement Remote Control Instruction Manual

Įvadas

This manual provides instructions for the YAOHUIMI replacement remote control, designed for use with various Fujitsu air conditioner models. This remote control offers essential functions for operating your air conditioning unit, including temperature adjustment, mode selection, and timer settings. Please verify your original remote control model or air conditioner model number for compatibility before use.

Sąranka

Akumuliatoriaus montavimas

To begin using your remote control, install two AAA batteries (not included) into the battery compartment located on the back of the unit.

1. Nuotolinio valdymo pulto gale raskite baterijų skyriaus dangtelį.
2. Norėdami atidaryti skyrių, stumkite dangtelį žemyn.
3. Įdėkite dvi AAA tipo baterijas, užtikrindami, kad teigiamas (+) ir neigiamas (-) poliai teisingai sutaptų su žymėjimais baterijų skyriuje.
4. Stumkite dangtelį atgal į vietą, kol jis patikimai užsifiksuos.

Image: Back of the remote control with the battery compartment indicated. Ensure correct battery polarity during installation.

Pradinis naudojimas

No programming is typically required for this replacement remote control. Once batteries are installed, it should be ready to operate compatible Fujitsu air conditioner models directly.

Naudojimo instrukcijos

Bendrosios funkcijos

• START/STOP: Powers the air conditioner ON or OFF.
• NUSTATYTI TEMP. (rodyklės aukštyn / žemyn): Reguliuoja norimą temperatūros nustatymą.
• VENTILIATORIŲ VALDYMAS: Perjungia ventiliatoriaus greičio nustatymus (pvz., automatinis, mažas, vidutinis, didelis).
• PAGRINDINIS VALDYMAS: Selects the operating mode (e.g., Auto, Cool, Dry, Heat, Fan).
• Sūpynės: Activates or deactivates the louver swing function.
• ORO VALYMAS: Engages the air purification function, if available on your AC unit.
• COIL DRY: Activates the coil dry function to prevent mold growth.
• MIEGAS: Activates the sleep mode for comfortable overnight operation.
• LAIKMAČIO REŽIMAS: Sets or cancels the ON/OFF timer. Use the +/- buttons to adjust time.
• LAIKRODŽIO REGULIAVIMAS: Sets the current time on the remote control display.
• TEST RUN: For service use only. Do not press during normal operation.
• NUSTATYTI: Resets the remote control to factory default settings.

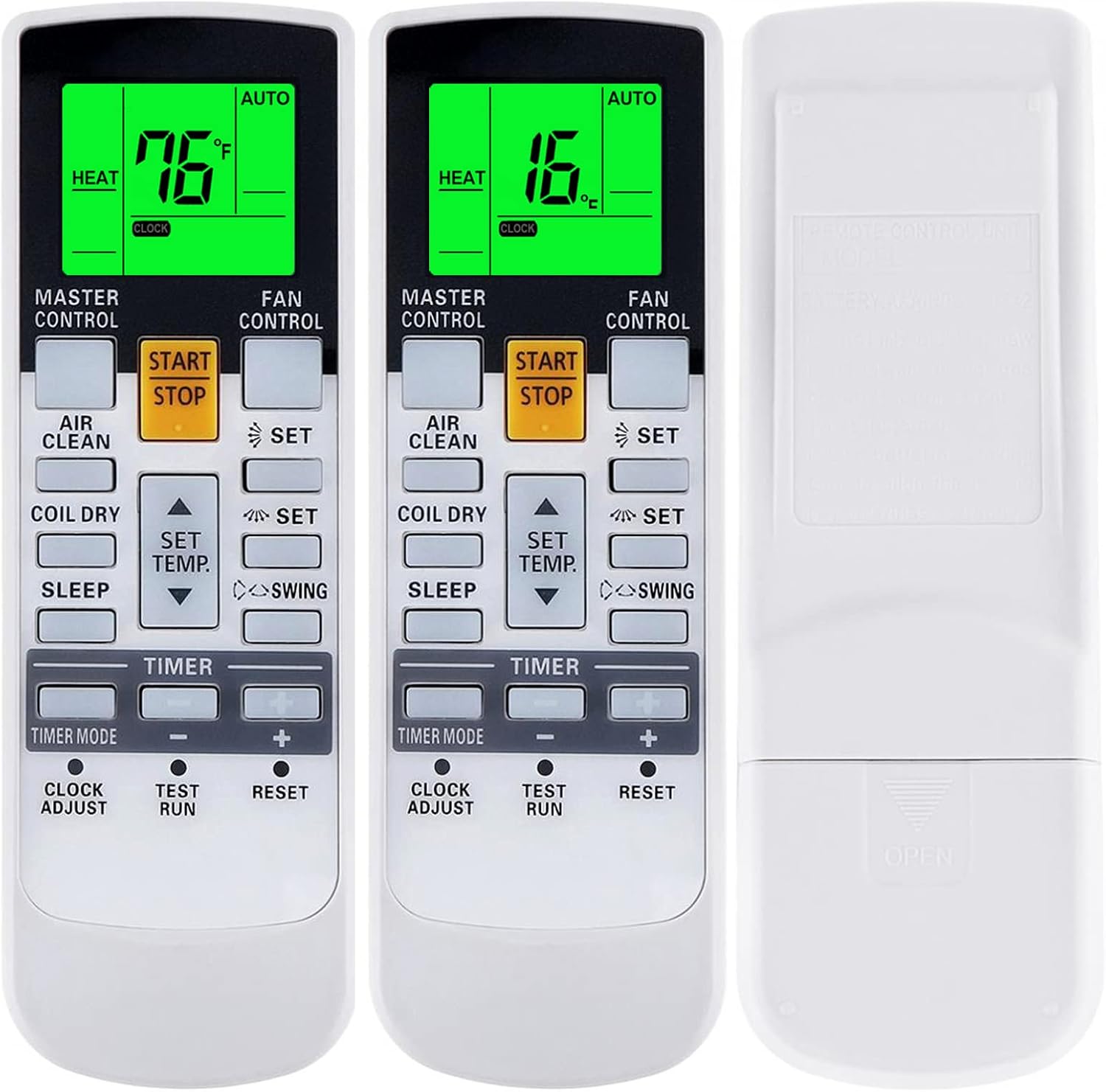

Vaizdas: priekis view of the remote control, illustrating the layout of buttons and the digital display.

Temperature Display (Fahrenheit/Celsius)

The remote control supports displaying temperature in both Fahrenheit (°F) and Celsius (°C).

• Norėdami perjungti tarp Farenheito ir Celsijaus, paspauskite ir palaikykite NUSTATYTI TEMP. up and down arrows simultaneously for approximately 3-5 seconds. The display will toggle between the two units.

Žalias apšvietimas

The remote control features a green backlight for improved visibility in low-light conditions. The backlight activates automatically when any button is pressed and remains on for a short period.

Image: The remote control display showing temperature in both Fahrenheit and Celsius, highlighting the green backlight feature.

Specialios funkcijos

Certain advanced functions, such as "10°C HEAT", "50°F HEAT", "MINI.HEAT", or "ECONOMY", are available only if your original remote control and air conditioner unit supported these specific features. To activate these, you may need to press and hold a specific button for approximately 4 seconds.

Image: Illustration showing the remote control and an arrow indicating to press and hold the SET TEMP. button for 4 seconds to access special functions like 10°C Heat, 50°F Heat, Mini Heat, or Economy, if supported by your AC unit.

Priežiūra

Baterijos keitimas

Replace batteries when the remote control's display becomes dim or its operational range decreases. Always replace both batteries simultaneously with new AAA batteries.

Valymas

Nuotolinio valdymo pultą valykite minkšta, sausa šluoste. Nenaudokite skystų valiklių ar abrazyvinių medžiagų, nes jos gali pažeisti paviršių ar vidinius komponentus.

Trikčių šalinimas

• Nuotolinis nereaguoja: Check battery orientation and ensure batteries are not depleted. Replace if necessary.
• Ribotas diapazonas: Ensure there are no obstructions between the remote control and the air conditioner's receiver. Replace batteries if the range is consistently poor.
• Incorrect functions: Verify that your air conditioner model is listed as compatible. If certain advanced functions do not work, your AC unit may not support them.
