Rhinowalk Waterproof Modular Motorcycle Seat Bag 20L Instruction Manual

1. Įvadas

Thank you for choosing the Rhinowalk Waterproof Modular Motorcycle Seat Bag 20L. This versatile bag is designed to provide secure and waterproof storage for your motorcycle touring needs. Its modular design allows for various configurations, adapting to different storage requirements and motorcycle types. Please read this manual carefully before installation and use to ensure proper function and longevity of your product.

2. Produkto ypatybės

• Modulinis dizainas: The bag features a modular design that allows for combination with other Rhinowalk bags (10L, 20L, 30L) to create 2-in-1, 3-in-1, or 4-in-1 configurations, offering high flexibility and expandability based on your needs.
• Vandeniui atspari konstrukcija: Constructed from durable polyester material with heat-pressed seams and a removable waterproof inner bag, ensuring excellent water resistance and protection against rain and high-speed splashes. The inner bag is easily detachable via a zipper for convenient cleaning and maintenance.
• Daugiafunkcinis naudojimas: Can be utilized as a motorcycle pannier bag, tank bag, side bag, backpack, or shoulder bag, catering to diverse requirements.
• Padidintas stabilumas: The back of the bag features anti-slip mesh material to prevent movement during travel.
• Saugus uždarymas: Equipped with a wide roll-top opening for easy access and secure closure.
• Perkeliamumas: Includes detachable shoulder straps for convenient off-bike carrying.

3. Pakuotės turinys

The 20L Rhinowalk Waterproof Modular Motorcycle Seat Bag package includes:

• Rhinowalk Waterproof Modular Motorcycle Seat Bag (20L)
• Buckles: 4 pieces
• Belts: 4 pieces
• Shoulder Straps: 2 pieces

4. Sąranka ir diegimas

The Rhinowalk Modular Motorcycle Seat Bag offers various mounting options. Refer to the following instructions and the provided video for detailed guidance.

4.1. Single Pack Mounting (Backseat)

1. First, fix the 4 subframe straps onto the metal rear subframe of your motorcycle.
2. Insert the reinforced elastic straps from the bag into the 2 holes on the top of the pack.
3. Cross the 4 subframe straps through the side mounting hanging holes on the bag.
4. Lastly, interconnect the 4 release buckles and pull on each strap to take up the tension, ensuring the bag is securely fastened.

4.2. Single Pack Mounting (Side Rack)

1. First, fix the 4 subframe straps onto the side rack of your motorcycle.
2. Then thread the subframe straps through the hanging holes on the bag and connect them with the elastic straps.
3. Ensure all straps are tightened for a secure fit.

4.3. Combination Mounting (2-in-1, 3-in-1, 4-in-1)

For combination mounting, the process involves fitting additional bags using the same methods as described above, utilizing the available D-rings and straps to securely connect multiple bags. Refer to the video for visual guidance on combining different bag sizes.

5. Naudojimas ir veikimas

The Rhinowalk seat bag is designed for ease of use and versatility.

• Pakavimas: Utilize the main compartment for larger items. The roll-top closure ensures a waterproof seal.
• Išplėtimas: The modular design allows you to attach additional Rhinowalk bags for increased capacity.
• Nešiojimo parinktys: Use the included shoulder straps to convert the bag into a backpack or shoulder bag for convenient off-bike transport.

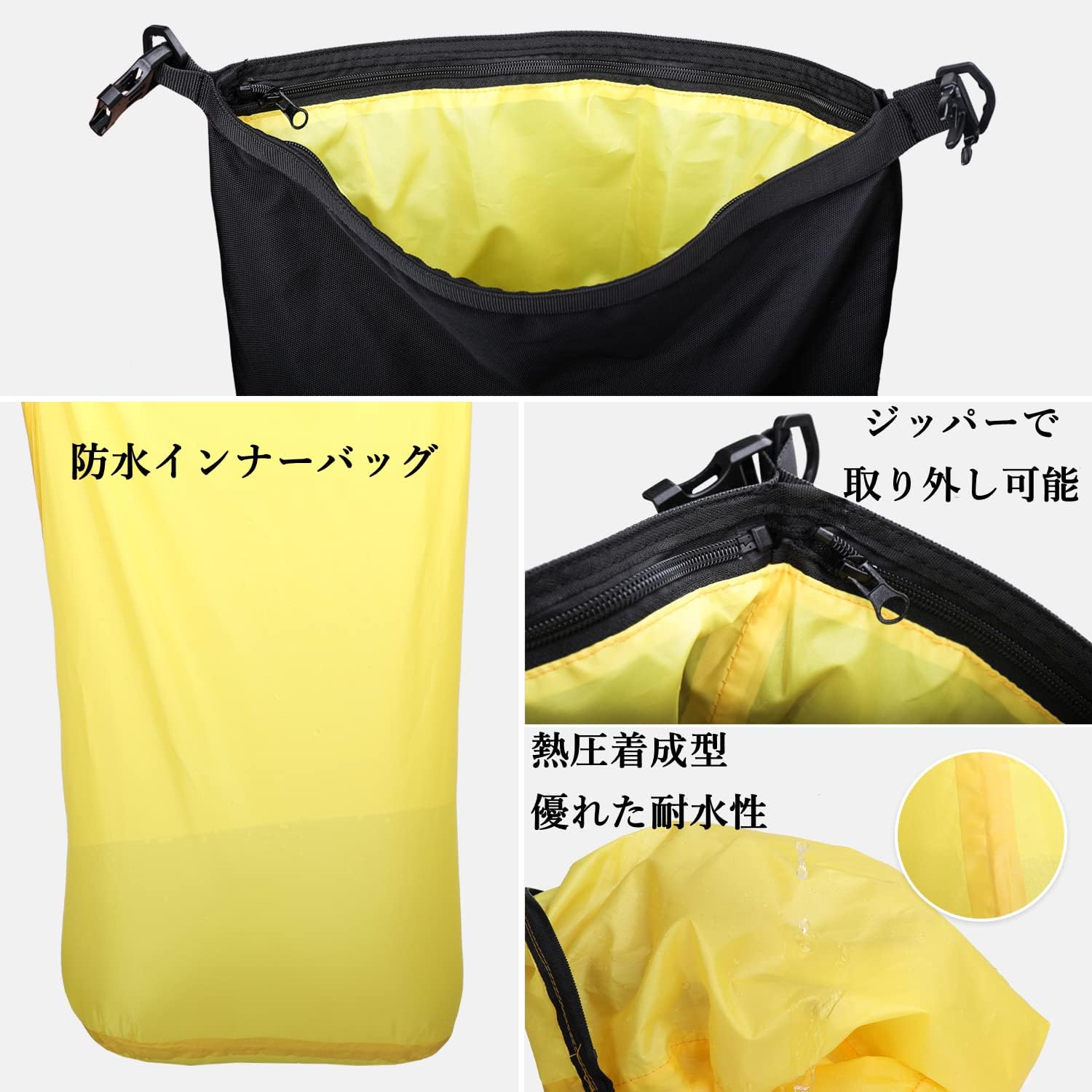

Vaizdas: vidinis view of the Rhinowalk 20L seat bag. This image highlights the spacious main compartment and the removable waterproof inner liner, which is secured by a zipper.

Image: The Rhinowalk 20L seat bag being worn as a backpack. This demonstrates the bag's versatility for off-bike carrying using the detachable shoulder straps.

Image: Multiple Rhinowalk bags combined on a motorcycle. This image illustrates the modular capability, with a 20L bag serving as the base and a 10L bag securely attached on top, labeled '20L+10L'.

6. Priežiūra

Proper maintenance will extend the life of your Rhinowalk seat bag.

• Valymas: Nuvalykite išorę skelbimuamp šluoste ir švelniu muilu. Nenaudokite stiprių cheminių medžiagų ar abrazyvinių valiklių.
• Džiovinimas: After cleaning or exposure to rain, ensure the bag is thoroughly dry before storage to prevent mold or mildew. Air dry in a well-ventilated area, away from direct sunlight or heat sources.
• Saugykla: Nenaudojamą maišelį laikykite vėsioje, sausoje vietoje.
• Juostos apžiūra: Regularly check all buckles and straps for wear and tear. Replace any damaged components to ensure secure attachment.

7. Problemų sprendimas

If you encounter any issues with your seat bag, consider the following:

• Bag feels loose: Re-check all attachment straps and buckles. Ensure they are threaded correctly and pulled taut. The anti-slip mesh on the back should be in contact with the motorcycle surface.
• Vandens patekimas: Ensure the roll-top closure is properly rolled down at least three times and secured with the buckles. Check for any punctures or damage to the outer material or the waterproof inner bag.
• Difficulty attaching: Refer to the installation section and video demonstrations to ensure all steps are followed correctly for your specific motorcycle setup.

8. Specifikacijos

Image: Rhinowalk 20L seat bag dimensions and capacity. This image visually represents the bag's size (26x15x32 cm) and 20L capacity, shown with various items for scale.

Image: Rhinowalk 20L seat bag mounted on the side of a motorcycle. This image shows the bag securely attached to the side rack of a motorcycle, demonstrating its use as a side pannier.

9. Garantija ir palaikymas

Rhinowalk is committed to providing high-quality products. If you receive a defective product or are missing any accessories, please contact our customer support for assistance. We conduct strict quality control, and your satisfaction is our priority.

For further support or warranty claims, please refer to the contact information provided with your purchase or visit the official Rhinowalk websvetainę.
