FORAS JA300 Self-Priming Centrifugal Electric Pump User Manual

1. Įvadas

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the FORAS JA300 self-priming centrifugal electric pump. Please read this manual thoroughly before installation and use to ensure proper functioning and to prevent damage or injury.

The FORAS JA300 is designed for pumping clean water, even when mixed with air, without solid particles or non-aggressive chemical liquids. It is suitable for domestic water supply, small-scale irrigation, and increasing water pressure in conjunction with pressure tanks.

Figure 1: FORAS JA300 Self-Priming Centrifugal Electric Pump.

2. Saugos informacija

ĮSPĖJIMAS: Nesilaikant šių saugos nurodymų, gali kilti elektros smūgis, gaisras, sunkūs sužalojimai ar mirtis.

• Įsitikinkite, kad visus elektros prijungimus atlieka kvalifikuotas elektrikas ir kad laikomasi vietinių taisyklių.
• Always disconnect the pump from the power supply before performing any installation, maintenance, or repair work.
• Install the pump in an enclosed space or a location protected from atmospheric influences (rain, direct sunlight, frost).
• Do not operate the pump with flammable or explosive liquids.
• Įsitikinkite, kad siurblys yra tinkamai įžemintas, kad išvengtumėte elektros smūgio.
• Veikiant siurbliui, vaikus ir neįgaliotus asmenis laikykite atokiau nuo jo.
• The pump is designed for clean water only. Pumping liquids with solid particles or aggressive chemicals can damage the pump and void the warranty.

3. Diegimas ir sąranka

3.1 Išpakavimas ir patikrinimas

Carefully remove the pump from its packaging. Inspect the pump for any signs of damage that may have occurred during transit. Report any damage to the supplier immediately.

3.2 Montavimo vieta

Select a stable, level surface for mounting the pump. The location must be protected from weather elements and have adequate ventilation. Ensure sufficient space around the pump for maintenance and access.

3.3 Santechnikos jungtys

• The suction connection (inlet) is 1.5 inches (32 mm).
• The discharge connection (outlet) is 1 inch (25 mm).
• Use appropriate fittings and sealants to ensure watertight connections. Avoid overtightening.
• Install a foot valve with a strainer on the end of the suction line if drawing water from a well or tank to prevent debris entry and maintain prime.
• For optimal performance, keep suction lift as short as possible.

3.4 Elektros prijungimas

• The pump requires a 230 V AC, 50 Hz power supply.
• Ensure the electrical circuit is protected by an appropriate circuit breaker or fuse.
• Prijunkite siurblį prie tinkamai įžeminto elektros lizdo.
• The motor includes integrated thermal protection.

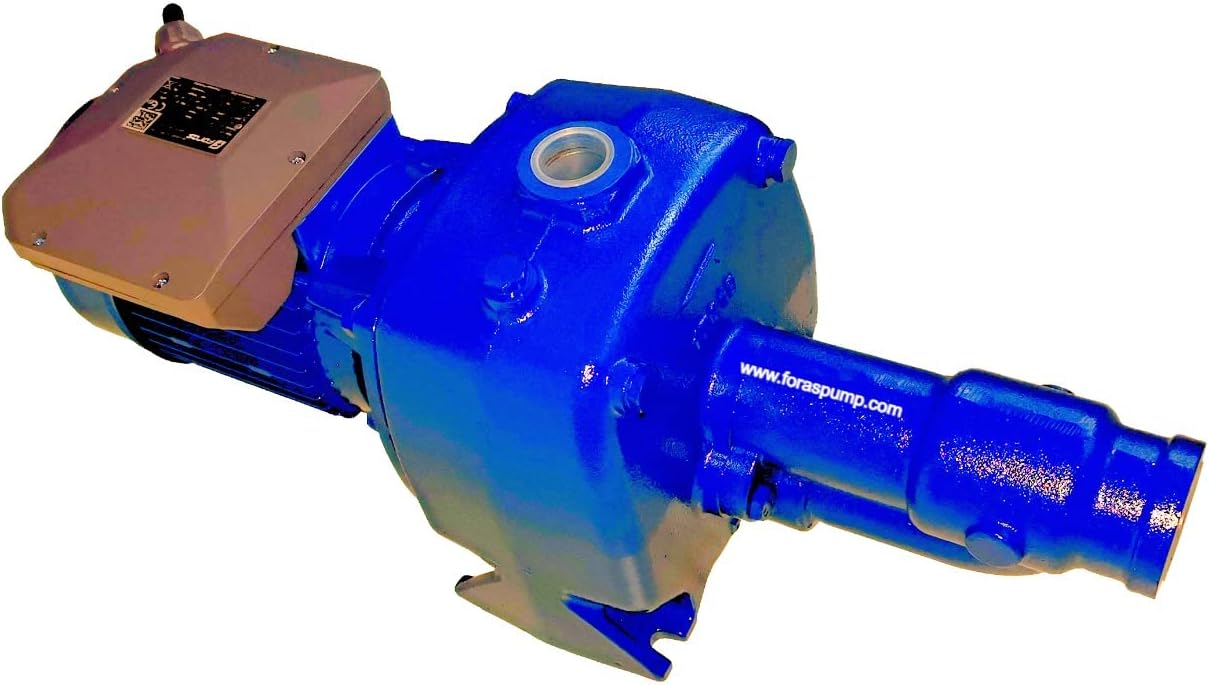

2 pav.: šonas view of the FORAS JA300 pump, showing connections.

4. Naudojimo instrukcijos

4.1 Siurblio užpildymas

As a self-priming pump, the JA300 can handle some air in the suction line. However, for initial startup or after the pump has been drained, it is recommended to fill the pump casing with water through the priming port (usually a plug on top of the pump casing) before starting. This ensures faster priming and protects the mechanical seal.

• Nuimkite užpildymo kamštį.
• Užpildykite siurblį casing completely with clean water.
• Tvirtai įsukite užpildymo kamštį.

4.2 Siurblio paleidimas

Once primed and all connections are secure, connect the pump to the power supply. The pump will start automatically if connected to a pressure switch system, or manually if controlled by a switch. Allow the pump to run for a few minutes to ensure stable operation and check for leaks.

4.3 Eksploatavimo sąlygos

• The pump is designed for continuous operation.
• The maximum water temperature for operation is 50 °C.
• Do not run the pump dry, as this can cause severe damage to the mechanical seal and other components.

5. Priežiūra

Regular maintenance ensures the longevity and efficient operation of your FORAS JA300 pump.

• Reguliarus patikrinimas: Periodically check all connections for leaks. Inspect the power cable for any damage.
• Valymas: Keep the pump exterior clean and free from debris. Ensure the motor's cooling fins are not obstructed.
• Žieminimas: In areas subject to freezing temperatures, drain the pump completely to prevent damage from ice expansion. Disconnect the power, open drain plugs, and remove priming plugs to allow all water to escape.
• Profesionalus aptarnavimas: For internal component inspection or repair, it is recommended to contact a qualified service technician.

6. Problemų sprendimas

Šiame skyriuje pateikiami dažniausiai pasitaikančių problemų sprendimai. Dėl čia nepaminėtų problemų kreipkitės į klientų aptarnavimo tarnybą.

7. Techninės specifikacijos

Figure 3: Rating plate of the FORAS JA300 pump, showing electrical and performance data.

Figure 4: Performance curve and dimensional drawing for JA series pumps, including JA300.

8. Garantija ir palaikymas

The FORAS JA300 pump is manufactured by PENTAX INDUSTRIES S.p.A. in Italy and comes with a factory guarantee, ensuring European quality and reliability.

For warranty claims, technical assistance, or spare parts inquiries, please contact your authorized dealer or the manufacturer directly. Information regarding spare parts availability is not provided in this manual.

Always provide the model number (JA300) and serial number (found on the rating plate) when contacting support.
