1. Įvadas
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the FORAS PLUS P5A-150/5 self-priming centrifugal pump. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. This pump is designed for water supply in small domestic systems, irrigation, and transferring clean liquids without solid particles or chemically aggressive substances.
2. Saugos informacija
Always observe the following safety precautions to prevent personal injury or damage to the pump:
- Elektros sauga: Ensure the power supply matches the pump's specifications (230 V AC, 50 Hz). All electrical connections must be performed by a qualified electrician and comply with local regulations. Disconnect power before any maintenance or installation.
- Diegimo vieta: Install the pump in an enclosed space or a location protected from atmospheric influences (rain, direct sunlight, frost).
- Suderinamumas su skysčiais: This pump is designed for clean water with a temperature range of -5°C to +35°C. Do not pump flammable, corrosive, or abrasive liquids.
- Šiluminė apsauga: The motor includes integrated thermal protection. If the pump stops unexpectedly, allow it to cool down before attempting to restart. Investigate the cause of overheating.
- Vaikai ir neįgalioti asmenys: Veikiant siurbliui, vaikus ir neįgaliotus asmenis laikykite atokiau nuo jo.
3. Produktas baigtasview
The FORAS PLUS P5A-150/5 is a robust and reliable self-priming centrifugal pump, manufactured in Italy by Pentax Industries S.p.A. It features a powerful 1100 W Italian electric motor and a multi-stage stainless steel design.

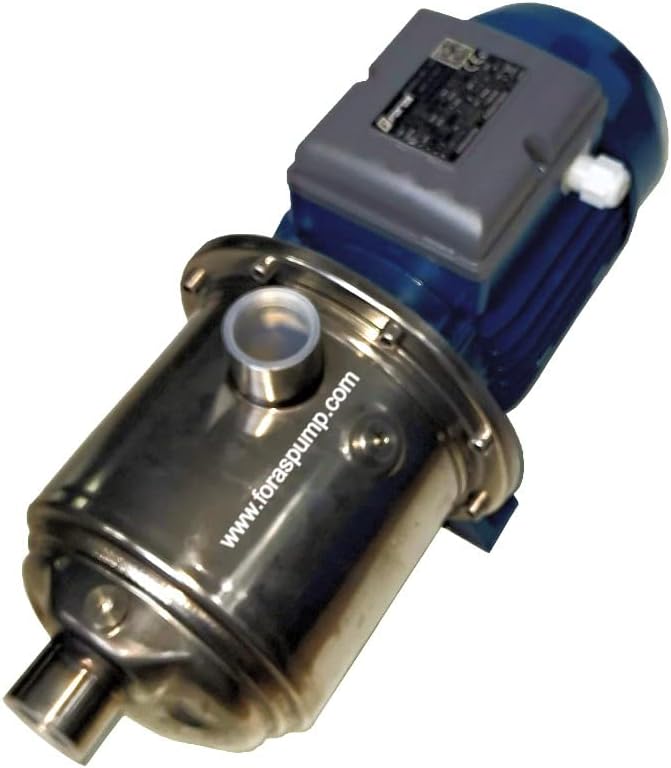

1 paveikslas: FORAS PLUS P5A-150/5 Self-Priming Centrifugal Pump. This image shows the pump's main body, constructed from stainless steel, connected to the blue electric motor housing.
Pagrindinės funkcijos:
- Savaiminio užpildymo galimybė: Facilitates easier startup by automatically evacuating air from the suction line.
- Didelis srautas: Up to 140 liters per minute (8.4 m³/h).
- High Head: Maximum delivery head up to 56.8 meters.
- Patvari konstrukcija: Pump body made of AISI 304 stainless steel, motor support in aluminum, Noryl impeller, and AISI 303 stainless steel transmission shaft.
- Integruota šiluminė apsauga: Protects the motor from damage due to overheating.
4. Sąranka ir diegimas
Tinkamas siurblio montavimas yra labai svarbus jo veikimui ir ilgaamžiškumui.
4.1. Vietos pasirinkimas
- Siurblį montuokite sausoje, gerai vėdinamoje vietoje, apsaugotoje nuo tiesioginių oro sąlygų.
- Ensure sufficient space around the pump for ventilation, maintenance, and access to connections.
- Mount the pump on a stable, level surface to minimize vibration.
4.2. Santechnikos jungtys
2 paveikslas: Į viršų view of the FORAS PLUS P5A-150/5 pump, highlighting the inlet and outlet connections. The image shows the stainless steel pump housing with threaded ports for water intake and discharge.
- Suction Line (Inlet): Connect a 1" G (25 mm) pipe to the suction port. Ensure the suction line is airtight to prevent air ingress, which can affect self-priming.
- Discharge Line (Outlet): Connect a 1" G (25 mm) pipe to the discharge port. Install a check valve if the pump is used to draw water from a lower level to prevent backflow.
- Visoms jungtims naudokite tinkamą sriegių sandariklį, kad išvengtumėte nuotėkių.
4.3. Elektrinis sujungimas
- The pump operates on 230 V AC, 50 Hz.
- Connect the pump to a dedicated circuit protected by a residual current device (RCD) and appropriate circuit breaker.
- Užtikrinkite tinkamą įžeminimą.
4.4. Siurblio užpildymas
Although self-priming, it is recommended to fill the pump casing with water before the first start-up or after extended periods of disuse to facilitate initial priming. Remove the priming plug (if present) or fill through the discharge port until the casing is full, then replace the plug.
5. Naudojimo instrukcijos
5.1. Pradinis paleidimas
- After ensuring all connections are secure and the pump casing is filled with water, switch on the power supply.
- The pump should start and begin to draw water. Allow a few minutes for the pump to fully prime and establish a steady flow.
- If the pump does not prime within a few minutes, switch it off, check for air leaks in the suction line, and re-prime the casing.
5.2. Normalus veikimas
- Monitor the pump for unusual noises or vibrations.
- Ensure the pump is not running dry, as this can cause severe damage.
- The pump is designed for continuous operation within its specified limits.
5.3. Išjungimas
- To stop the pump, simply switch off the power supply.
- For extended periods of non-use, especially in freezing conditions, drain the pump and associated pipework to prevent frost damage.
6. Priežiūra
Reguliarus siurblio aptarnavimas užtikrina optimalų veikimą ir prailgina jo tarnavimo laiką.
- Reguliarus patikrinimas: Periodically check all connections for leaks and ensure electrical cables are in good condition.
- Valymas: Keep the pump exterior clean and free from debris to ensure proper motor cooling.
- Žieminimas: In areas subject to freezing temperatures, drain the pump completely by removing the drain plug (if present) or disconnecting the pipes. Store the pump in a frost-free environment.
- Impeller and Seal Check: If performance degrades, inspect the impeller for blockages or wear, and check the mechanical seal for leaks. This typically requires professional service.
7. Problemų sprendimas
Prieš kreipdamiesi į aptarnavimo tarnybą,view šios dažniausios problemos ir sprendimai:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Siurblys neįsijungia | No power; Thermal overload tripped; Motor fault | Check power supply and circuit breaker; Allow motor to cool; Consult a qualified technician. |
| Siurblys veikia, bet vanduo neteka | Pump not primed; Air leak in suction line; Suction lift too high; Clogged suction filter/impeller | Re-prime the pump; Check all suction connections for leaks; Reduce suction lift; Clean filter/impeller. |
| Mažas srautas arba slėgis | Partial blockage; Worn impeller; Air in system; Incorrect pipe sizing | Check for blockages; Inspect impeller for wear; Bleed air from system; Verify pipe diameters. |
| Per didelis triukšmas ar vibracija | Cavitation (air in water); Loose mounting; Bearing wear; Foreign object in pump | Check suction line for air leaks; Secure pump mounting; Consult a technician for bearing/object removal. |
8. Specifikacijos
Technical data for the FORAS PLUS P5A-150/5 pump:
| Parametras | Vertė |
|---|---|
| Modelis | P5A-150/5 |
| Gamintojas | PENTAX INDUSTRIES S.p.A. |
| Galia (P2) | 1.1 kW (1100 W) |
| Galia (P1) | 1470 W |
| ttage | 230 V kintamoji srovė |
| Dažnis | 50 Hz |
| Nominali srovė | 6.8 A |
| Maksimalus srauto greitis | 140 l/min (8.4 m³/h) |
| Maksimalus tiekimo slėgis | 56.8 m |
| Maksimalus darbinis slėgis | 8.5 barų |
| Skysčio temperatūros diapazonas | -5°C iki +35°C |
| Siurblio korpuso medžiaga | AISI 304 nerūdijantis plienas |
| Sparnuotės medžiaga | Noryl |
| Veleno medžiaga | AISI 303 nerūdijantis plienas |
| Mechaninis sandariklis | Ceramic - Graphite (NBR) |
| Siurbimo jungtis | 1" G (25 mm) |
| Išleidimo jungtys | 1" G (25 mm) |
| Apsaugos klasė | IP44 |
| Izoliacijos klasė | F |
| Matmenys (I x P x A) | 43.6 x 16.4 x 19.8 cm |
| Svoris | 13.5 kg |
9. Garantija ir palaikymas
The FORAS PLUS P5A-150/5 pump is manufactured in Italy by Pentax Industries S.p.A., ensuring original European quality and a factory guarantee. For specific warranty terms, conditions, or technical support, please refer to the documentation provided with your purchase or contact your authorized dealer. Information regarding spare parts availability is not provided in this manual.
