AVMATRIX PVS0403U Multi-Format Video Mixer Switcher

1. Įvadas

This manual provides detailed instructions for the setup, operation, and maintenance of your AVMATRIX PVS0403U Multi-Format Video Mixer Switcher. The PVS0403U is an integrated solution for live video production, featuring a 10.1-inch IPS FHD display, multiple video inputs, and advanced switching capabilities. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your experience.

Figure 1: AVMATRIX PVS0403U Multi-Format Video Mixer Switcher.

2. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• PVS0403U Video Switcher Unit
• Maitinimo šaltinis (12 V 2 A)
• USB Cable (Type A-C)
• Tally Connector (DB-15)

2 pav.: priekis view of the PVS0403U packaging.

3. Įrenginys baigtasview

The PVS0403U integrates a control panel, a 10.1-inch display, and various input/output ports for comprehensive video switching and live production.

3.1 Priekinis skydelis ir ekranas

The front panel features dedicated buttons for input selection, transition effects, keying, and audio control. The integrated 10.1-inch IPS FHD display provides real-time monitoring of all input channels, program (PGM) output, and preview (PVW) output.

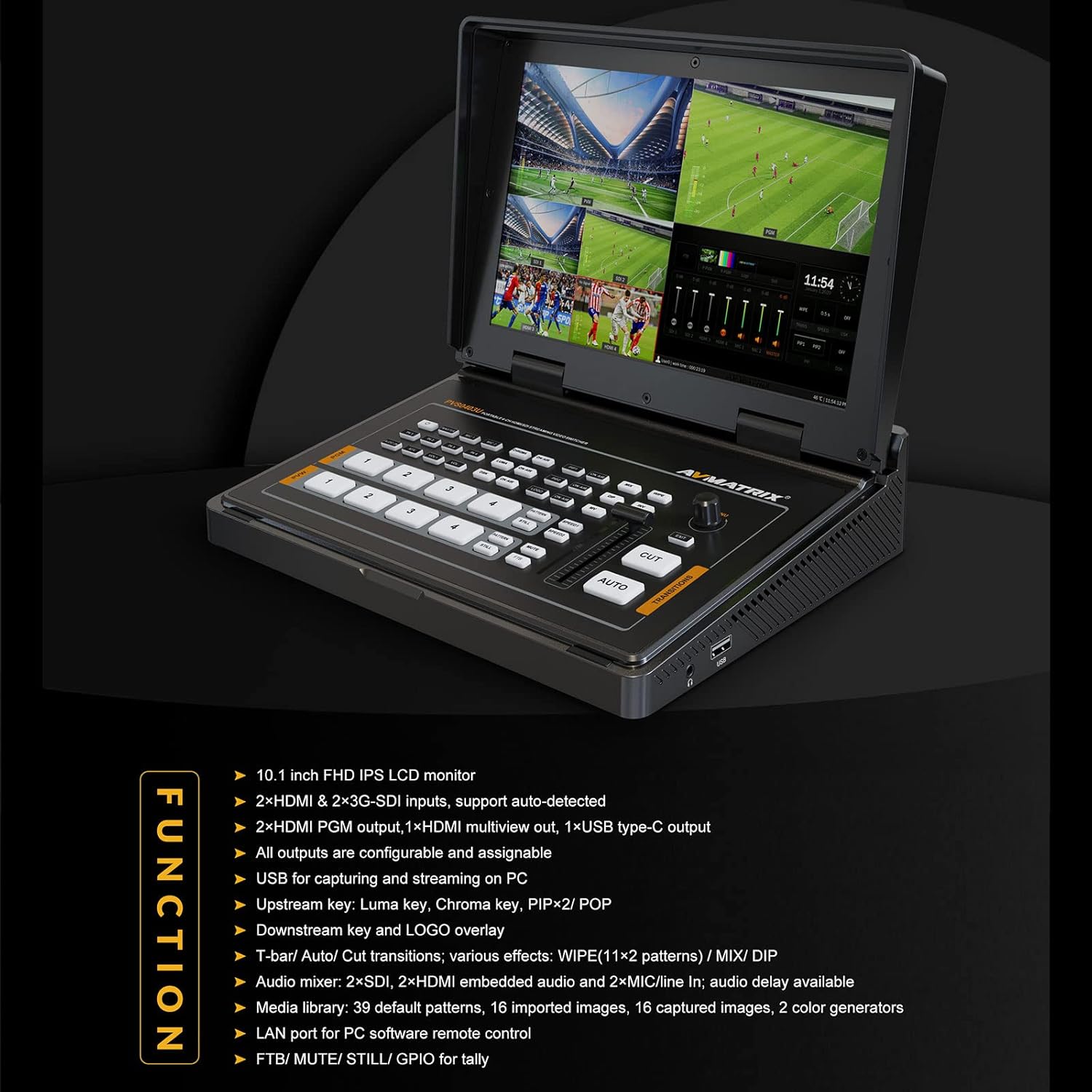

Figure 3: The 10.1-inch IPS FHD display for real-time monitoring.

3.2 Galinio skydelio jungtys

The rear panel houses all necessary input and output ports for connecting cameras, computers, and external monitors.

Figure 4: Rear panel connections of the PVS0403U.

Figure 5: Detailed diagram of the PVS0403U interface ports.

The available ports include:

• 2x SDI Inputs
• 2x HDMI įėjimai
• 2x MIC IN (Audio Inputs)
• 2x HDMI PGM Output
• 1x HDMI Multiview Išvestis
• 1x USB Type-C Output (for PC capture/streaming)
• LAN Port (for PC remote control)
• Tally Port (DB-15)
• DC-12V Power Input

4. Sąranka

4.1 Maitinimo jungtis

1. Connect the provided 12V 2A power adapter to the DC-12V input port on the rear panel.
2. Įkiškite maitinimo adapterį į tinkamą elektros lizdą.
3. Press the power button to turn on the device. The integrated screen will display the boot sequence.

4.2 Vaizdo įvesties jungtys

Connect your video sources (cameras, computers, gaming consoles) to the appropriate input ports:

• For SDI sources, use the 2x SDI IN prievadai.
• For HDMI sources, use the 2x HDMI IN prievadai.

4.3 Vaizdo išvesties jungtys

Connect external monitors or recording devices to the output ports:

• For program output, use the 2x HDMI PGM Output prievadai.
• Dėl keliųview monitoring on an external display, use the 1x HDMI Multiview Išvestis uostas.
• For streaming or capturing to a PC, connect the C tipo USB išvestis prie kompiuterio naudodami pridedamą USB kabelį.

4.4 Garso jungtys

Connect external microphones or audio mixers to the 2x MIC IN ports for additional audio sources.

4.5 PC Remote Control Connection

To control the switcher remotely from a PC, connect an Ethernet cable from the LAN port on the PVS0403U to your computer or network.

5. Naudojimo instrukcijos

5.1 Pagrindinis perjungimas

The PVS0403U allows seamless switching between four input sources. The integrated 10.1-inch display shows all four inputs, the preview (PVW) feed, and the program (PGM) feed simultaneously.

1. Įvesties pasirinkimas: Press the corresponding input buttons (1, 2, 3, 4) on the program (PGM) row to send that input directly to the program output. Press buttons on the preview (PVW) row to select the next source for preview.
2. Perėjimai: Use the T-bar fader or the AUTO button for smooth transitions between PVW and PGM. The Pjaustyti button provides an instant switch.

5.2 Perėjimo efektai

The switcher offers various transition effects to enhance your live production:

• WIPE: A transition where one image replaces another by wiping across the screen.
• MIX: A dissolve transition where one image fades out as another fades in.
• DIP: A transition that dips to a solid color before transitioning to the next source.

Select the desired transition effect using the dedicated buttons and adjust speed if applicable.

6 pav. Baigtaview of transition effects and other advanced features.

5.3 Keying (Chroma Key & Luma Key)

The PVS0403U supports both Chroma Key and Luma Key for creating virtual sets or overlaying graphics.

• Chroma raktas: Used to remove a specific color (e.g., green screen) from a video source, allowing another video or image to show through.
• Luma raktas: Used to key out areas based on brightness levels.

Activate these features using the CHROMAS ir LUMA buttons and adjust parameters as needed for optimal results.

Figure 7: Visual representation of keying and other overlay functions.

5.4 Picture-in-Picture (PIP) / Picture-by-Picture (POP)

The switcher supports PIP and POP functions, allowing you to display multiple video sources simultaneously on the program output. You can adjust the size and position of the sub-screens.

• PIP: Displays one video source as a smaller inset window over another main video source.
• Pop: Displays two or more video sources side-by-side.

5.5 Logotipo perdanga

You can add a custom logo to your program output. Logos can be imported from a USB flash drive in PNG, JPG, or GIF format. The size and position of the logo are adjustable.

5.6 Garso maišymas

The PVS0403U includes an audio mixer for managing embedded audio from HDMI and SDI inputs, as well as external microphone inputs. Adjust audio levels for each source independently.

5.7 Media Management

The device has a built-in media library with 39 default patterns and supports importing up to 16 images from a USB flash drive. These can be used as backgrounds or overlays.

5.8 PC Remote Control

All settings and functions of the PVS0403U can be controlled remotely using PC-based control software. Connect your PC via the LAN port and install the appropriate software (available from the AVMATRIX website) for comprehensive control.

5.9 USB-C Output for Streaming/Capture

Connect the USB Type-C output to a PC to use the PVS0403U as a webcam source for live streaming platforms (e.g., OBS, PotPlayer, Zoom, Twitch, YouTube) or for video capture. The USB output carries both video and audio.

6. Priežiūra

6.1 Valymas

Regularly clean the device with a soft, dry cloth. Avoid using liquid cleaners or solvents, as these may damage the surface or internal components. Ensure the device is powered off and unplugged before cleaning.

6.2 Firmware atnaujinimai

Periodically check the official AVMATRIX website for firmware updates. Firmware updates can improve performance, add new features, or resolve known issues. Follow the instructions provided with the firmware update package carefully. Typically, firmware updates are performed via the USB port or LAN connection.

7. Problemų sprendimas

This section addresses common issues you might encounter with the PVS0403U.

• Nėra vaizdo įvesties signalo:
  • Ensure video sources are powered on and connected securely to the correct SDI or HDMI input ports.
  • Verify that the input resolution and frame rate are supported by the PVS0403U (refer to Specifications).
  • Check the input selection on the switcher.
• Nėra vaizdo išvesties išoriniame monitoriuje:
  • Confirm the external monitor is powered on and connected to an HDMI PGM or Multiview išvestis.
  • Check the monitor's input selection.
  • Ensure the output resolution is compatible with your monitor.
• Nėra garso:
  • Check audio levels in the audio mixer section of the switcher.
  • Verify that audio is embedded in your HDMI/SDI sources or that external microphones are properly connected and powered.
  • Ensure the output device (monitor, speaker) has its volume turned up.
• PC Not Recognizing USB-C Output:
  • Ensure the USB Type-C cable is securely connected to both the switcher and the PC.
  • Išbandykite kitą kompiuterio USB prievadą.
  • Restart the PC and the PVS0403U.
  • Check device manager on your PC for driver issues.
• PC Remote Control Not Working:
  • Verify the LAN cable connection.
  • Ensure the PC control software is correctly installed and configured.
  • Check network settings on both the PC and the switcher.

If you encounter issues not covered here, please refer to the official AVMATRIX support resources.

8. Specifikacijos

Below are the technical specifications for the AVMATRIX PVS0403U:

Figure 8: Comprehensive technical specifications table.

9. Garantija ir palaikymas

AVMATRIX products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your product or visit the official AVMATRIX website. For technical support, troubleshooting assistance, or service inquiries, please contact AVMATRIX customer support through their official channels.

Internetiniai ištekliai: For the latest drivers, software, and additional documentation, please visit the AVMATRIX official websvetainę.
