Maclean MC-891 Electric TV Wall Mount User Manual

1. Įvadas

Thank you for choosing the Maclean MC-891 Electric TV Wall Mount. This manual provides essential information for the safe and correct installation, operation, and maintenance of your new TV mount. Please read these instructions thoroughly before installation and keep them for future reference.

This motorized wall mount is designed to securely hold flat-panel televisions ranging from 37 to 70 inches, with a maximum weight capacity of 35 kg. It features remote-controlled height adjustment, manual swivel and tilt capabilities, and an integrated cable management system for a clean setup.

Figure 1: Maclean MC-891 Electric TV Wall Mount and Remote Control.

2. Saugos informacija

ĮSPĖJIMAS: Failure to read and follow all instructions may result in personal injury, property damage, or voiding of warranty. The manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• Įsitikinkite, kad tvirtinimo paviršius gali saugiai atlaikyti laikiklio ir televizoriaus bendrą svorį.
• Neviršykite maksimalios 35 kg (77 svarų) keliamosios galios.
• Šis gaminys skirtas naudoti tik patalpose.
• Use only the provided mounting hardware. If any parts are missing or damaged, contact customer support.
• Always use a qualified professional for installation if you are unsure about the process.
• Laikykite vaikus ir naminius gyvūnus atokiau nuo įrengimo vietos.
• Avoid placing fingers or other objects near moving parts during operation.
• Ensure all cables are properly routed and secured to prevent pinching or damage.

3. Pakuotės turinys

Please verify that all components are present and undamaged before proceeding with installation. If any parts are missing or defective, contact your retailer for assistance.

• Electric TV Wall Mount Assembly
• Nuotolinio valdymo pultas
• Mounting Hardware Kit (screws, anchors, washers)
• Maitinimo adapteris
• Vartotojo vadovas

4. Specifikacijos

Figure 2: Compatible TV sizes (37"-70") and VESA mounting patterns.

Figure 3: Detailed dimensions and movement ranges of the MC-891 mount.

5. Diegimas ir sąranka

Svarbu: Before installation, ensure you have the necessary tools (drill, level, stud finder, etc.) and understand your wall type. Always consult a professional if you are unsure.

5.1 Sienų paruošimas

1. Locate wall studs or ensure the concrete/brick wall is suitable for mounting.
2. Determine the desired mounting height. Consider the TV's center at eye level when seated, and account for the mount's height adjustment range.
3. Gręžimo taškams tiksliai pažymėti naudokite gulsčiuką.

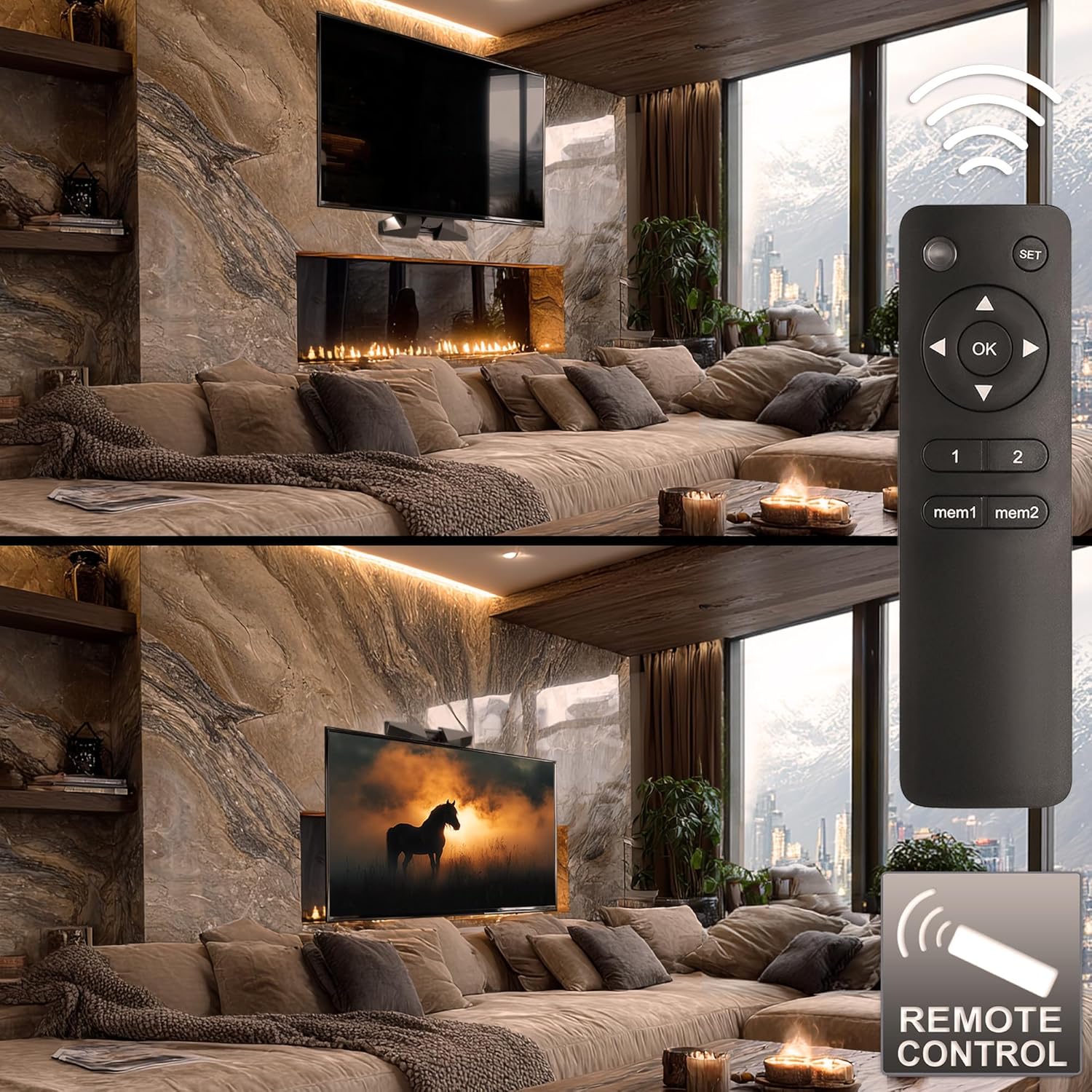

4 pav. Pvzample installation above a fireplace, showing the mount's position.

5.2 Sieninės plokštės montavimas

1. Išgręžkite bandomąsias skyles pažymėtose vietose.
2. Attach the wall plate securely using the appropriate screws and anchors for your wall type. Ensure it is level.

5.3 Televizoriaus laikiklių tvirtinimas

1. Nustatykite VESA tvirtinimo angas televizoriaus gale.
2. Attach the TV brackets to the back of your TV using the provided screws and spacers. Ensure the brackets are centered and securely fastened.

Figure 5: VESA mounting points on the back of a television.

5.4 Hanging the TV and Cable Management

1. Carefully lift the TV and hook the attached brackets onto the wall mount. Ensure it is securely seated.
2. Connect the power adapter to the mount and plug it into a power outlet.
3. Route all TV and power cables through the integrated cable management system on the mount to maintain a tidy appearance.

Figure 6: Integrated cable management system for organized wiring.

6. Operacija

6.1 Nuotolinio valdymo pulto funkcijos

The included remote control allows for electric height adjustment and saving preferred positions.

• Rodyklės aukštyn/žemyn: Adjust the TV height electrically. The mount can move up to 540 mm vertically.
• SET mygtukas: Used to save memory positions.
• 1 / mem1 Button: Recall or save the first memory position.
• 2 / mem2 Button: Recall or save the second memory position.
• Gerai mygtukas: Returns the TV to its fully retracted (highest) position.

Figure 7: Remote control in use, adjusting TV height for optimal viewing.

6.2 Saving Memory Positions

1. Adjust the TV to your desired height using the Up/Down arrows.
2. Paspauskite NUSTATYTI mygtuką vieną kartą.
3. Within 3 seconds, press either the 1 or 2 button to save the current position to that memory slot.

6.3 Manual Swivel and Tilt

The mount allows for manual swivel of ±25° and tilt of ±3°. Gently adjust the TV to the desired angle. Do not force the movement beyond its limits.

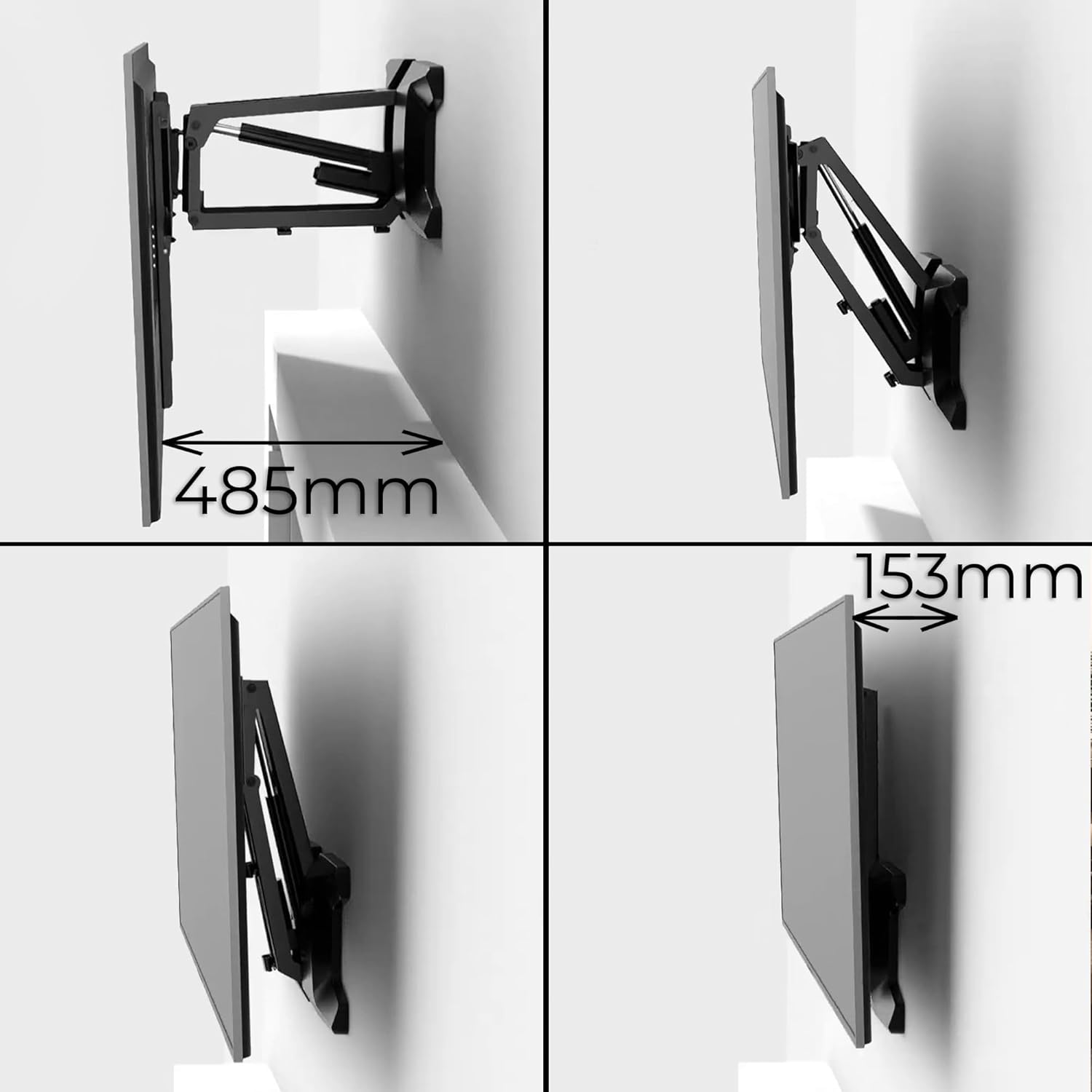

Figure 8: The mount's extended and retracted positions, illustrating wall distance.

7. Priežiūra

• Reguliariai tikrinkite visus varžtus ir jungtis, kad jie būtų tvirtai priveržti ir užtikrinti jų saugumą.
• Laikiklį valykite minkštu, sausu skudurėliu. Venkite abrazyvinių valiklių ar tirpiklių.
• Inspect cables for any signs of wear or damage. Replace damaged cables immediately.
• Do not lubricate any parts of the mount unless specifically instructed by the manufacturer.

8. Problemų sprendimas

9. Garantija ir klientų aptarnavimas

Maclean products are designed and manufactured to the highest quality standards. For warranty information, please refer to the documentation provided with your purchase or visit the official Maclean websvetainę.

If you encounter any issues or have questions regarding your MC-891 Electric TV Wall Mount, please contact Maclean customer support. You can find contact details on the official Maclean websvetainėje arba per savo mažmenininką.
