Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable Instruction Manual

1. Įvadas

Thank you for choosing the Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable. This manual provides essential information for the proper use, care, and maintenance of your new cable. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

Image 1.1: The Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable. This image shows the cable coiled, highlighting its braided design and the USB-C connectors.

2. Produkto ypatybės

The Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable is designed for efficient and reliable power delivery and data transfer. Key features include:

• Didelės galios tiekimas: Supports up to 100W (20V/5A) fast charging, compatible with various USB-C devices including laptops, tablets, and smartphones.
• Patvari konstrukcija: Features a high-density braided cable jacket for enhanced resistance against wear, tear, and tangling.
• Smart E-Marker Chip: An integrated E-Marker chip intelligently regulates the output current and voltage to protect your devices during charging.
• Magnetic Coiled Design: The cable maintains a coiled helix shape, allowing for easy and organized storage.
• Premium Connectors: Equipped with robust USB-C connectors for a secure and consistent connection.

Image 2.1: The USB-C connector of the Baseus cable, illustrating its premium design and 100W power capability. The image emphasizes the 'Crisp Plug & Unplug' feature with robust housing.

Image 2.2: Demonstration of the magnetic coiled cable storage. The top panel shows the cable neatly coiled for storage, while the bottom panel shows a messy, unorganized cable, highlighting the benefit of the magnetic feature.

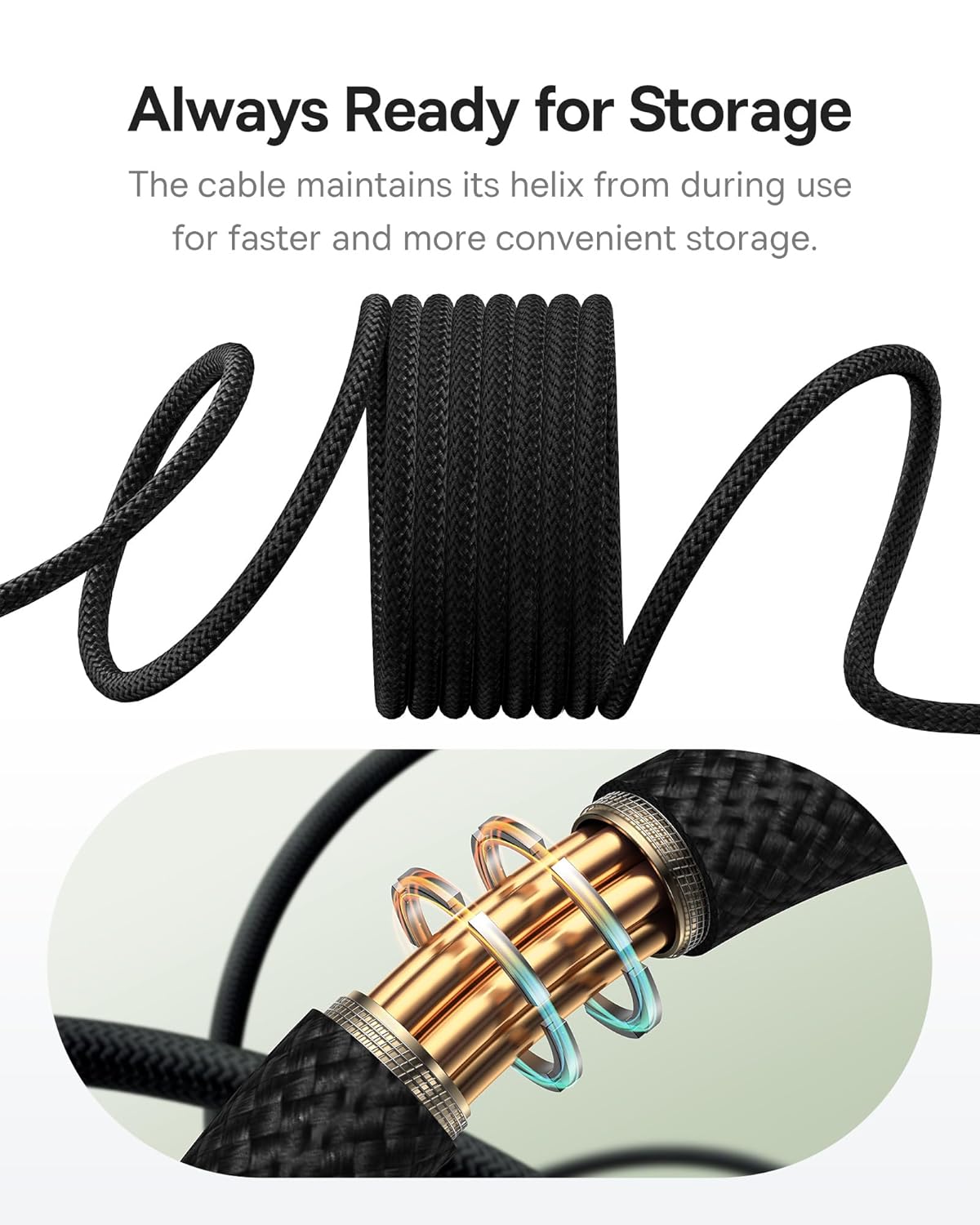

Image 2.3: Close-up of the cable's braided texture, showing how it naturally maintains its coiled helix shape for easy storage and retrieval, labeled 'Always Ready for Storage'.

2.4 paveikslėlis: Išsamus view of the high-density braided cable jacket, emphasizing its durability and resistance to wear and tear, described as 'Outlasting Your Old Cables'.

Image 2.5: An illustrative diagram of the E-Marker chip embedded within the cable, highlighting its role in regulating power output for 'Faster Charging, Healthier Battery'.

3. Sąranka

Setting up your Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable is straightforward:

1. Nustatyti uostus: Ensure both your charging source (e.g., wall adapter, power bank) and your device (e.g., laptop, smartphone, tablet) have compatible USB-C ports.
2. Prijunkite prie maitinimo šaltinio: Insert one end of the USB-C cable firmly into the USB-C output port of your power adapter or power bank.
3. Prisijunkite prie įrenginio: Insert the other end of the USB-C cable firmly into the USB-C input port of your device.
4. Patikrinkite ryšį: Confirm that your device indicates it is charging or connected for data transfer.

4. Naudojimo instrukcijos

This cable supports both power delivery (charging) and data transfer. Follow these guidelines for optimal operation:

4.1 Įrenginio įkrovimas

• For fast charging, ensure your power adapter supports USB Power Delivery (PD) and provides sufficient wattage (iki 100W).
• Connect the cable as described in the Setup section. The E-Marker chip will automatically negotiate the appropriate power level with your device.
• Avoid using the cable with damaged ports or adapters.

4.2 Duomenų perdavimas

• Connect your device to a computer or another compatible device using the cable.
• Ensure both devices are powered on and configured for data transfer (e.g., selecting 'File Transfer' mode on your smartphone).
• The cable supports data transfer speeds up to 0.48 Gigabits Per Second (USB 2.0 speed).

5. Priežiūra

Proper care and maintenance will extend the life of your cable:

• Valymas: Švelniai nuvalykite laidą ir jungtis sausa, minkšta šluoste. Venkite naudoti stiprias chemines medžiagas ar abrazyvines medžiagas.
• Saugykla: Utilize the magnetic coiled design for neat storage. Avoid tightly bending or kinking the cable, especially near the connectors. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Tvarkymas: Always grasp the connector head when plugging or unplugging the cable. Do not pull on the cable itself, as this can damage the internal wires.
• Patikra: Periodically inspect the cable and connectors for any signs of damage, such as fraying, cuts, or bent pins. Discontinue use if damage is observed.

6. Problemų sprendimas

If you encounter issues with your Baseus charging cable, refer to the following common problems and solutions:

7. Specifikacijos

Detailed technical specifications for the Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable:

• Prekinis ženklas: Baseus
• Modelio numeris: P10319805111-00
• Jungties tipas: USB C tipo (kištukas-kištukas)
• Kabelio tipas: USB
• Maitinimo tiekimas: Iki 100 W (20 V / 5 A)
• Duomenų perdavimo sparta: 0.48 gigabitai per sekundę (USB 2.0)
• Smeigtukų skaičius: 24
• Suderinami įrenginiai: Smartphones, Tablets, Laptops with USB-C ports
• Naudojimas viduje / lauke: Vidinis
• Prekės svoris: Maždaug 0.08 kilogramo (2.82 uncijos)
• Ilgis: 1 meter (Black)

8. Garantija ir palaikymas

„Baseus“ teikia 2 metų garantija for this product, covering manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims.

For technical support, warranty claims, or further inquiries, please contact Baseus customer service through their official website or the retailer where the product was purchased. Provide your model number (P10319805111-00) and a detailed description of the issue for efficient assistance.

Image 8.1: The retail packaging for the Baseus Tungsten Gold USB-C to USB-C 100W Charging Cable, showing key features like 100W PD and E-Marker chip.
