Cxy Portable Car Jump Starter User Manual

1. Įvadas

Thank you for choosing the Cxy Portable Car Jump Starter. This powerful and versatile device is designed to safely jump-start your vehicle, charge your electronic devices, and provide emergency lighting. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your device.

2. Produktas baigtasview

2.1 Pakuotės turinys

• Cxy Portable Jump Starter T13 x 1
• Smart Battery Clamp x 1
• USB to USB-C Cable x 1
• USB-C-USB-C kabelis x 1
• 12V Cigarette Lighter Socket Adapter x 1
• Vartotojo vadovas x 1

2.2 Įrenginio komponentai

Familiarize yourself with the main components of your Cxy Jump Starter:

Image: The Cxy Portable Car Jump Starter shown with its smart battery clamps, USB cables, 12V cigarette lighter adapter, and carrying case.

Image: A detailed diagram highlighting the Jump Start Output, Jump Button, LCD Display, Power Button, Type-C In&Out (PD60W), LED Lights (Torch, Strobe, SOS), DC Output (12V/6A), and USB-A (QC18W) port on the Cxy Jump Starter.

2.3 Skaitmeninis ekranas

The 3-inch LCD digital display provides real-time information about the device's status:

• Baterijos būsena: Rodo likusį akumuliatoriaus įkrovos procentątage.
• Quick Charge Indicator: Indicates charging or discharging status.
• Jump Start Ready: Displays "READY" when the device is prepared for jump-starting.
• RC (Clamps Reversely): Indicates reverse polarity connection.
• LC (Low Voltage): Rodo mažą tūrįtage.
• HT (Over Heat): Indicates overheating.

Vaizdas: Stambus planas view of the Cxy Jump Starter's digital display, showing indicators for battery status, charging/discharging, jump start readiness, and error codes like 'RC' (Clamps Reversely), 'LC' (Low Voltage), and 'HT' (Over Heat).

3. Sąranka

3.1 Pradinis įkrovimas

Before first use, fully charge the jump starter. It can be charged to 100% in approximately 1.5 hours using a PD 60W Type-C charger (not included). A 10-minute charge can bring it from 0% to 20%.

Image: An illustration showing the Cxy Jump Starter being charged from a wall outlet, with a graphic indicating it can reach 20% charge in 10 minutes and 100% in 1.5 hours with a PD 60W charger.

It is recommended to use the jump starter when its battery level is above 20% for optimal performance and longevity.

4. Naudojimo instrukcijos

4.1 Transporto priemonės užvedimas šuoliu

The Cxy T13 can safely jump-start 12V vehicles with up to 7.0L gasoline or 4.5L diesel engines.

1. Įsitikinkite, kad užvedimo jungiklis yra pakankamai įkrautas (virš 20 %).
2. Prijunkite išmanųjį akumuliatorių klamp to the jump starter's jump start output port.
3. Prijunkite raudona (+) klamp prie teigiamo (+) automobilio akumuliatoriaus gnybto.
4. Prijunkite juoda (-) klamp prie neigiamo (-) automobilio akumuliatoriaus gnybto.
5. Once connected, the jump starter's LCD screen should display "READY". If an error code appears (RC, LC, HT), refer to the Troubleshooting section.
6. Užveskite savo transporto priemonės variklį.
7. Kai variklis užsives, nedelsdami nuimkite užvedimo svirtįampnuo automobilio akumuliatoriaus, tada atjunkiteamp nuo šuolio starterio.

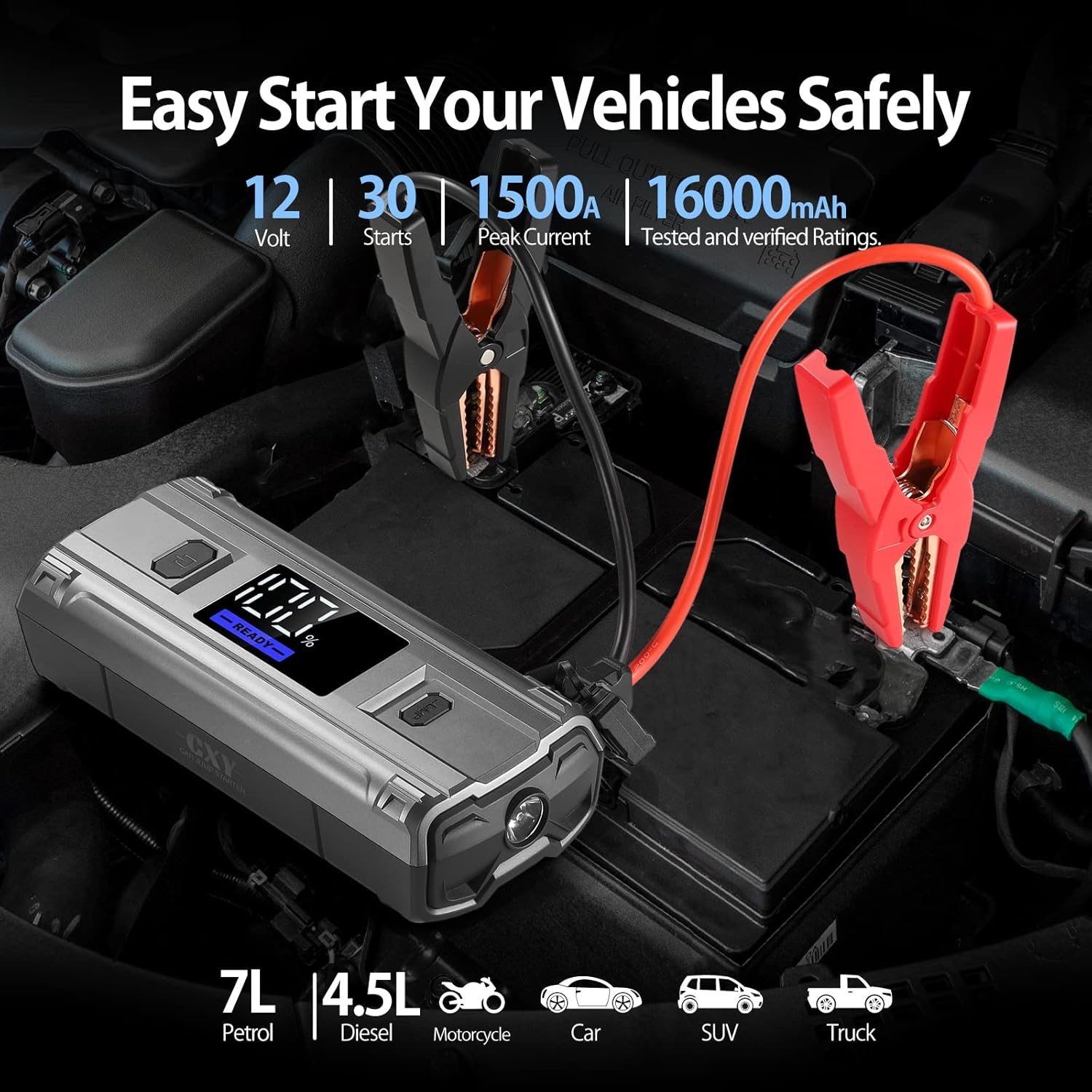

Image: The Cxy Jump Starter connected to a car battery with its red and black clamps, demonstrating the process of jump-starting a vehicle. The image also highlights its capability for 12V, 1500A peak current, and 16000mAh capacity, suitable for various vehicle types.

4.2 Naudojimas kaip išorinės baterijos

The Cxy T13 can charge various electronic devices:

• USB-C PD 60W prievadas: For fast charging laptops (e.g., MacBook Pro/Air, Dell XPS, Lenovo ThinkPad) and other compatible devices.
• USB-A QC18W Port: For quick charging smartphones and tablets.
• DC 12V/10A Output Port: Powers 12V DC devices such as tire inflators, car vacuum cleaners, car refrigerators, etc., using the included cigarette lighter adapter.

Image: The Cxy Jump Starter connected via its USB-C port to a laptop, illustrating its PD 60W super fast charging capability for various laptop models.

Image: The Cxy Jump Starter connected to a 12V DC cigarette lighter adapter, demonstrating its ability to power various 12V devices such as car shavers, cleaners, air fans, vacuum cups, MP3/4 players, air purifiers, tire inflators, and car refrigerators.

4.3 LED lempučių funkcijos

Įmontuotas LED apšvietimas turi tris režimus:

• Dėmesio centre: Bendram apšvietimui.
• Strobe: Signalizavimui arba dėmesio pritraukimui.
• SOS: Avariniam signalizavimui.

Press the LED light button to cycle through the modes.

5. Saugos funkcijos

The Cxy T13 is equipped with an enhanced safety system, including:

• Anti-spark technology
• Apsauga nuo atvirkštinio poliškumo
• Apsauga nuo viršsrovių
• Per tomastage apsauga
• Apsauga nuo perkrovimo
• Apsauga nuo per didelio iškrovimo
• Apsauga nuo trumpojo jungimo
• Apsauga nuo perkaitimo
• And more than 10 types of protection for safe and reliable operation.

6. Priežiūra

• Laikykite užvedimo įrenginį vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
• For optimal battery health, recharge the device every 3-6 months, even if not in use.
• Prietaisą valykite minkštu, sausu skudurėliu. Nenaudokite stiprių cheminių medžiagų ar abrazyvinių medžiagų.
• Laikykite prievadus švarius nuo dulkių ir šiukšlių.

7. Problemų sprendimas

8. Specifikacijos

9. Garantija ir palaikymas

Cxy provides a 24 mėnesių garantija for this product. We also offer a 30 dienų grąžinimo politika and dedicated customer support. For any questions, technical assistance, or warranty claims, please contact our friendly customer service team, available 24/7. Expert technical support is available for the lifetime of the product.
