Įvadas
This manual provides essential instructions for the safe and efficient use of your Linkind Solar Spotlights (Model LL18007-DW-US-4). These outdoor landscape lights are designed to provide 6500K daylight white illumination with a unique 20*40° beam angle. Featuring an adjustable solar panel and three brightness modes, they are ideal for enhancing your yard, garden, or house exterior.
Sąranka ir diegimas
Before first use, ensure the solar spotlights are charged under direct sunlight for 24 to 48 hours with the light turned off. This initial charge optimizes battery performance.
- Išpakuokite komponentus: Carefully remove all components from the packaging. Each spotlight unit includes a light head, solar panel, connecting rod(s), and a ground spike.
- Surinkite įrenginį: Attach the connecting rod(s) to the light head and then to the ground spike. The product includes two rods and one spike, allowing for three height options to suit your specific lighting needs. No additional tools are required for assembly.
- Positioning for Solar Absorption: Select an installation location that receives ample direct sunlight throughout the day. The solar panel and light head are independently adjustable with a 135° wide rotatable angle. Adjust the solar panel to face the sun directly to maximize solar absorption.
- Įrengimas ant žemės: Insert the assembled unit firmly into the ground. Ensure the spike is fully embedded for stability.
Image: The adjustable light head and solar panel allow for precise positioning to capture sunlight and direct light.
Image: Various installation height options are available using the provided rods and spike.
Naudojimo instrukcijos
The Linkind Solar Spotlights are designed for automatic operation, but also offer adjustable brightness settings.
- Automatinis veikimas: The spotlights feature an ambient brightness sensor. They will automatically switch from energy-saving mode to lighting mode when the ambient brightness is low enough (at dusk) and turn off at sunrise.
- Ryškumo režimai: Each spotlight offers three brightness modes:
- LOW: Provides up to 24 hours of lighting.
- VIDUTINIS: Provides up to 12 hours of lighting.
- AUKŠTAS: Provides up to 6 hours of lighting.
- Changing Brightness Mode: Locate the red button on the back of the solar panel. Press this button to cycle through the LOW, MEDIUM, and HIGH brightness settings. Select the desired mode based on your lighting duration requirements.

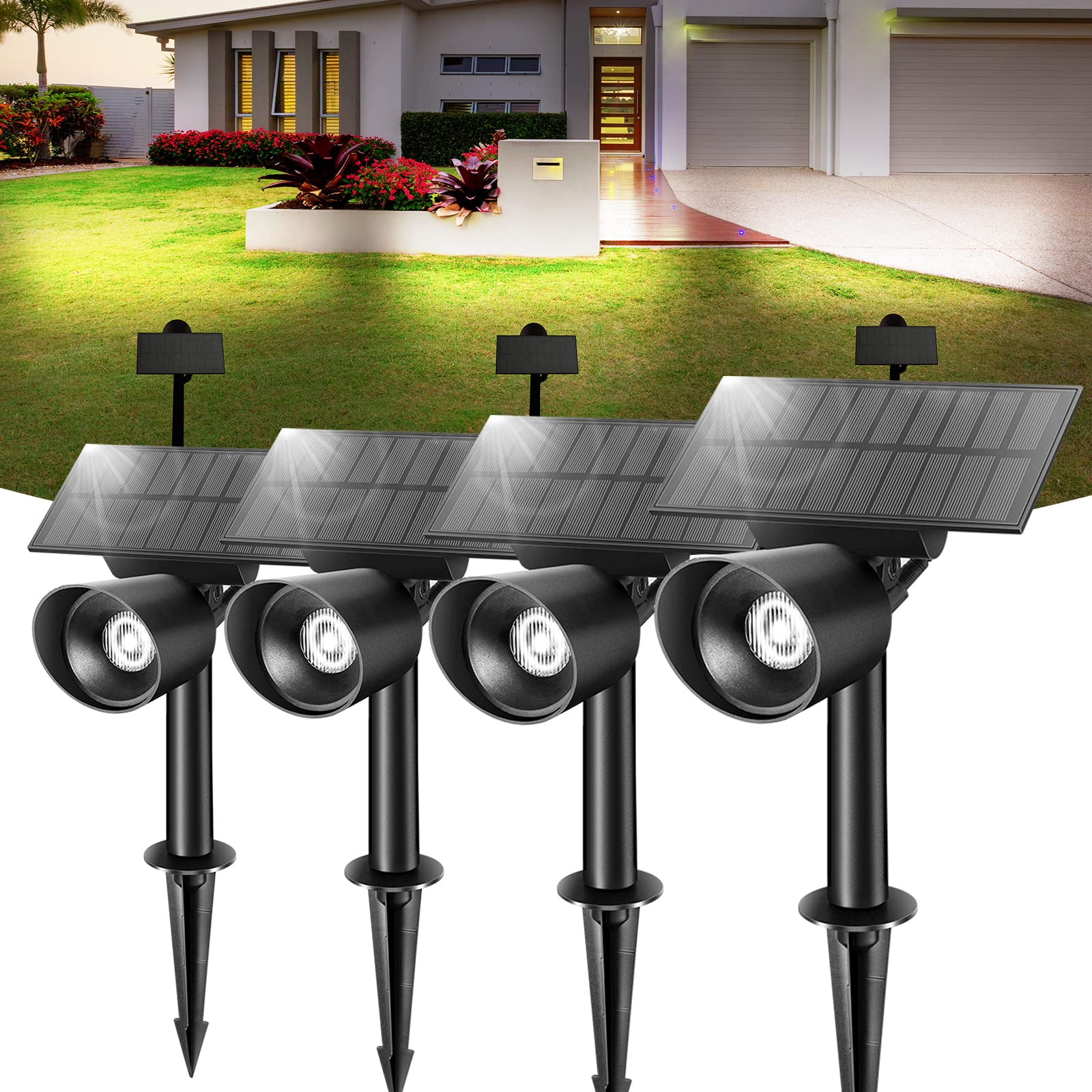

Image: The red button on the solar panel allows you to select between three brightness levels.
Image: The spotlights automatically charge during the day and illuminate at night.
Priežiūra
Regular maintenance ensures optimal performance and longevity of your solar spotlights.
- Švarus saulės skydelis: Periodiškai nuvalykite saulės bateriją minkšta šluosteamp šluoste dulkėms, nešvarumams, lapams ar sniegui pašalinti. Švarus skydelis užtikrina maksimalų saulės šviesos sugėrimą ir efektyvų įkrovimą.
- Patikrinkite vietą: Ensure that no new obstructions (e.g., growing plants, new structures) are blocking direct sunlight from reaching the solar panel.
- Patikrinkite, ar nėra pažeidimų: Regularly check the light units, wiring, and spikes for any signs of damage. The product is IP65 waterproof, but physical damage can compromise this protection.
Image: The IP65 waterproof design ensures durability against various weather conditions, including heat and frost.
Trikčių šalinimas
If your Linkind Solar Spotlights are not functioning as expected, consider the following:
- Šviesa neįsijungia naktį:
- Nepakankamas įkrovimas: Ensure the solar panel receives 6-8 hours of direct sunlight daily. Relocate the unit if necessary.
- Pradinis mokestis: Confirm the unit was charged for 24-48 hours with the light off before first use.
- Aplinkos šviesa: The light sensor may be detecting ambient light (e.g., streetlights, porch lights). Move the spotlight to a darker location.
- Atkūrimo mygtukas: Some units may have a small reset button. Pressing it can resolve minor operational issues.
- Dim or Short-Lived Light:
- Inadequate Sunlight: The solar panel is not receiving enough direct sunlight to fully charge the battery.
- Dirty Solar Panel: Clean the solar panel surface to ensure maximum light absorption.
- Battery Degradation: Over time, rechargeable batteries may lose capacity. If the unit is old, the battery might need replacement (if user-replaceable).
- Selected Brightness Mode: Ensure the desired brightness mode is selected. Higher brightness modes (MEDIUM, HIGH) have shorter lighting durations.
- Water Inside Light Head:
- While the product is IP65 waterproof, inspect for any visible cracks or loose seals that might compromise its water resistance. Ensure all components are securely assembled.
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | Linkind |
| Modelio numeris | LL18007-DW-US-4 |
| Šviesios spalvos | 6500K Daylight White |
| Spindulio kampas | 20 * 40 ° |
| Ryškumo režimai | Low (24hrs), Medium (12hrs), High (6hrs) |
| Maitinimo šaltinis | Varomas saulės energija |
| Naudojimas viduje / lauke | Lauke |
| Atsparumo vandeniui lygis | IP65 Atsparus vandeniui |
| Medžiaga | LED, Solar Spotlights |
| Gaminio matmenys | 7.9 colio ilgio x 6.4 colių pločio x 11.3 colio aukščio |
| Prekės svoris | 3.08 svaro (4 vnt. pakuotė) |
| Baterijos | Reikalinga 1 ličio polimero baterija (pridedama) |
| Reikalingas surinkimas | Taip |
Image: Key features and specifications of the Linkind Solar Spotlight.
Informacija apie garantiją
Specific warranty details for the Linkind Solar Spotlight (Model LL18007-DW-US-4) are not provided in this document. For information regarding warranty coverage, duration, and claims, please refer to the product packaging, the manufacturer's official website, or contact your retailer directly.
Pagalba klientams
For further assistance, technical support, or inquiries not covered in this manual, please contact Linkind customer service through their official website or the retailer from whom you purchased the product. Please have your model number (LL18007-DW-US-4) and purchase details ready when contacting support.
