Įvadas
Thank you for choosing the Mesqool MEU-1020DAB-B Emergency Radio. This versatile device combines a DAB/FM radio, a powerful LED flashlight, a reading lamp, and a 3000mAh power bank, all designed for reliability in various situations, from daily use to outdoor adventures and emergencies. This manual provides detailed instructions for safe and effective operation.
Saugos instrukcijos
- Nelaikykite prietaiso ekstremaliose temperatūrose, tiesioginiuose saulės spinduliuose ar didelėje drėgmėje.
- Keep the device away from water and liquids, except for its IPX4 water-resistant capability which protects against splashing water. Do not submerge.
- Stenkitės, kad prietaisas nenumestų ar nepatirtų stipraus smūgio.
- Nebandykite ardyti ar modifikuoti įrenginio. Tai panaikins garantiją ir gali sukelti gedimų.
- Use only specified charging cables and adapters.
- When using the hand crank, ensure smooth rotation to prevent damage.
- The flashlight is powerful; avoid shining it directly into eyes.

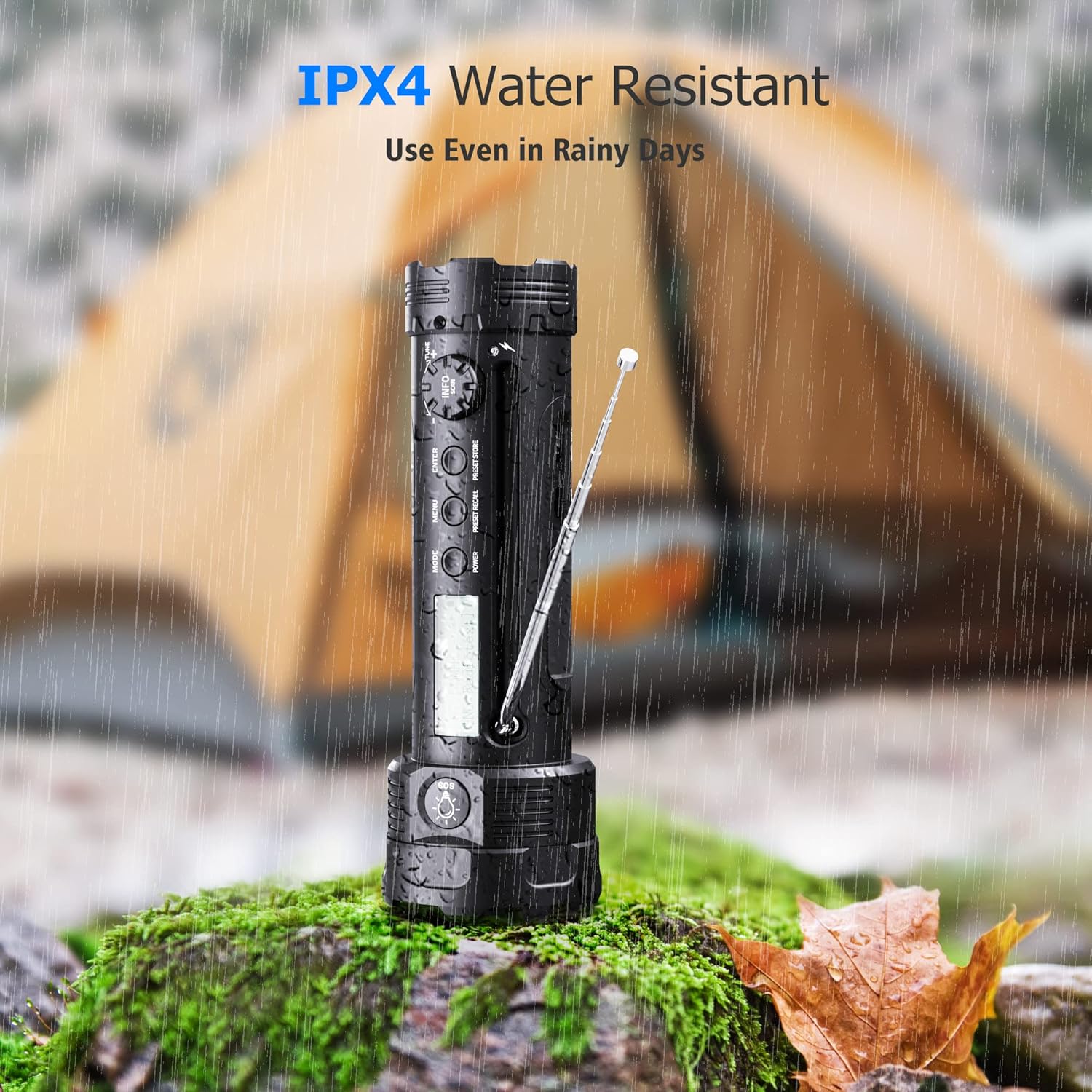

The Mesqool MEU-1020DAB-B radio is IPX4 water resistant, suitable for use in light rain or splashing water. It should not be submerged.
Produktas baigtasview
The Mesqool MEU-1020DAB-B is an all-in-one emergency device. Familiarize yourself with its components:
- LED žibintuvėlis: Located at the front, with multiple lighting modes.
- Skaitant Lamp: Integrated on the side, providing diffused light.
- DAB/FM radijas: With telescopic antenna and digital display.
- Valdymo mygtukai: Power, Mode, Menu, Enter, Volume, Tuning.
- Rankinis švaistiklis: Rankiniam energijos generavimui.
- Saulės skydas: Įkrovimui saulės energija.
- USB įkrovimo prievadai: Input for charging the device, output for charging external devices.
- SOS signalas: Emergency siren and flashing light.
- 3000 mAh įkraunama baterija: Vidinis maitinimo šaltinis.
ir baigtaview of the Mesqool MEU-1020DAB-B emergency radio, highlighting its multi-functional design.
Sąranka
- Pradinis mokestis: Before first use, fully charge the device using the USB cable. Connect the USB cable to a power adapter (not included) and the device's USB input port. The charging indicator will show progress.
- Antena: Optimaliam radijo signalo priėmimui visiškai ištieskite teleskopinę anteną.
Naudojimo instrukcijos
Maitinimo įjungimas/išjungimas
Paspauskite ir palaikykite GALIA mygtuką, norėdami įjungti arba išjungti įrenginį.
Radio Operation (DAB/FM)
- Pasirinkite režimą: Paspauskite REŽIMAS button to switch between DAB and FM radio modes.
- Išplėskite anteną: Geriausiam priėmimui visiškai ištieskite teleskopinę anteną.
- Automatinis nuskaitymas (DAB): In DAB mode, the radio will automatically scan for available stations. The display will show station information.
- Rankinis derinimas (FM): In FM mode, use the tuning knob or buttons to manually adjust the frequency.
- Garsumo valdymas: Naudokite VOL +/- mygtukai garsumui reguliuoti.
- ATMINTINĖS JUNGTYS: The radio supports 30 DAB and 30 FM memory slots for saving your favorite stations. Refer to the on-screen menu for saving and recalling stations.
- DRC Function: The Dynamic Range Control (DRC) function allows you to adjust the compression rate for DAB radio, improving listening experience in noisy environments. Access this through the menu.
The radio display shows DAB/FM frequencies and station information. An SOS alert icon is also visible.
Žibintuvėlio veikimas
The flashlight offers 5 lighting modes:
- Aukštas: Maximum brightness for powerful illumination (up to 300 lumens, 150-200m beam).
- Vidutinė: Subalansuotas ryškumas bendram naudojimui.
- Žemas: Energy-saving mode for extended use.
- Strobe: Mirksintis šviesa signalizavimui arba dezorientacijai.
- SOS: Morse code SOS signal (three short, three long, three short flashes) for emergencies.
To cycle through modes, press the dedicated flashlight button (often located near the flashlight head). Press and hold to turn off.
Visual representation of the five flashlight modes: High, Medium, Low, SOS, and Strobe.
Skaitant Lamp Operacija
To activate the reading lamp, locate the lamp panel on the side of the device and open it. The lamp will illuminate, providing soft, diffused light suitable for reading in low-light conditions. Close the panel to turn off the lamp.
Skaitymas lamp provides convenient illumination for activities like reading in a tent.
Charging the Device (3 Modes)
The Mesqool MEU-1020DAB-B offers three ways to recharge its internal 3000mAh battery:
- USB įkrovimas: Connect the provided USB cable to the device's input port and a standard USB power source (e.g., wall adapter, computer, power bank). This is the fastest charging method.
- Rankinio švaistiklio galia: Extend the hand crank handle and rotate it clockwise or counter-clockwise at a steady pace (approximately 130-150 RPM). A few minutes of cranking can provide power for a short period of radio or flashlight use.
- Saulės energija: Place the device with its solar panel facing direct sunlight. The solar panel will slowly charge the internal battery. This method is ideal for maintaining charge or for emergency trickle charging when other power sources are unavailable.
The three versatile charging methods: USB, hand crank, and solar power, ensuring power availability in various situations.
Maitinimo banko funkcija
The built-in 3000mAh battery can also serve as a power bank to charge small electronic devices in an emergency. Connect your smartphone or other USB-powered device to the USB output port of the Mesqool radio using your device's charging cable. This function is intended for emergency use to provide a critical charge.
The emergency radio can charge small electronic devices like smartphones via its USB output port.
SOS signalizacija
In an emergency, activate the SOS alarm by pressing the dedicated SOS button. This will trigger a loud siren and the flashlight will flash in an SOS pattern, attracting attention for assistance.
Priežiūra
- Valymas: Nuvalykite prietaisą minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Saugykla: Nenaudojamą prietaisą laikykite vėsioje, sausoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių.
- Akumuliatoriaus priežiūra: To prolong battery life, fully charge the device at least once every three months, even if not in regular use.
Trikčių šalinimas
| Problema | Galimas sprendimas |
|---|---|
| Įrenginys neįsijungia. | Ensure the battery is charged. Try charging via USB, hand crank, or solar power. |
| Prastas radijo priėmimas. | Fully extend the telescopic antenna. Move to an open area away from obstructions or interference. Try rescanning for DAB stations or manually tuning FM. |
| Flashlight is dim or not working. | Check battery level. Recharge the device. |
| Negalima įkrauti išorinių įrenginių. | Ensure the Mesqool radio has sufficient charge. Use a compatible USB cable for your external device. |
| Rankinis švaistiklis yra standus arba negeneruoja galios. | Ensure the crank is fully extended and rotating smoothly. Do not force it. If it remains stiff, contact support. |
Specifikacijos
- Modelis: MEU-1020DAB-B
- Prekinis ženklas: Mesqool
- Spalva: Juoda
- Baterija: 3000mAh įkraunama
- Radijo grupės: DAB, FM
- DAB dažnių diapazonas: 174.928 - 239.200 MHz (Band III)
- FM dažnio diapazonas: 87.5–108 MHz
- Flashlight Brightness: Iki 300 liumenų
- Spindulio atstumas: 150-200 metrai
- Įkrovimo būdai: USB, Hand Crank, Solar Panel
- Išvestis: USB (išoriniams įrenginiams įkrauti)
- Atsparumas vandeniui: IPX4 (atsparus purslams)
- Matmenys: 7.6 L x 7.6 W x 22 A cm
- Įtraukti komponentai: Vartotojo vadovas
Garantija ir palaikymas
Mesqool offers a 24-month warranty for this product, covering manufacturing defects from the date of purchase. Please retain your proof of purchase for warranty claims. For technical support, troubleshooting assistance, or warranty inquiries, please contact Mesqool customer service through the retailer where you purchased the product or visit the official Mesqool websvetainė kontaktinei informacijai.
We are committed to providing excellent customer service and will assist you with any questions or concerns you may have.
