ProMounts POMA6401 Premium Indoor/Outdoor Full Motion TV Wall Mount

1. Saugos informacija

Please read this manual thoroughly before installation and use. Keep this manual for future reference.

• Svorio talpa: This mount is designed for TVs weighing up to 132 lbs (60 kg). Do not exceed this weight limit.
• TV dydžio suderinamumas: Suitable for 32-75 inch flat and curved LED, LCD, and Plasma screens.
• Montavimo paviršius: For stud mounting, use lag bolts only. For concrete, stone, or masonry installations, use plastic anchors. NENAUDOKITE vien tik ant gipso kartono.
• Profesionalus montavimas: Jei nesate tikri dėl diegimo proceso, kreipkitės į kvalifikuotą specialistą.
• Reguliarūs patikrinimai: Periodically check that the mount and TV are securely fastened.

2. Pakuotės turinys

Verify all components are present and undamaged before proceeding with installation.

• Full Motion TV Wall Mount Assembly
• TV laikikliai (2)
• Instrukcijų vadovas
• Montavimo šablonas
• Hardware Kit (various screws, washers, spacers, lag bolts, plastic anchors)
• Burbulo lygis
• Cable Management Straps

3. Sąranka ir diegimas

The ProMounts POMA6401 features an effortless setup with clear, demonstrative images in the included manual. It is suitable for both indoor and outdoor installation.

Diegimo žingsniai:

1. Attach Mount to Wall: Use the provided mounting template to mark drill points. Ensure you are mounting into wood studs, solid concrete, stone, or masonry. Do not install into drywall alone. Secure the wall plate using appropriate lag bolts or anchors.
2. Pritvirtinkite laikiklius prie televizoriaus: Select the correct machine screws and spacers from the hardware kit based on your TV's VESA pattern (200x100 to 600x400). Secure the TV brackets to the back of your television.
3. Attach TV to Mount: Carefully lift the TV and hook the brackets onto the wall plate. Engage the audible locking system and use the quick-release pull-tabs to secure the TV.

Diegimo vaizdo įrašas:

4. Naudojimo instrukcijos

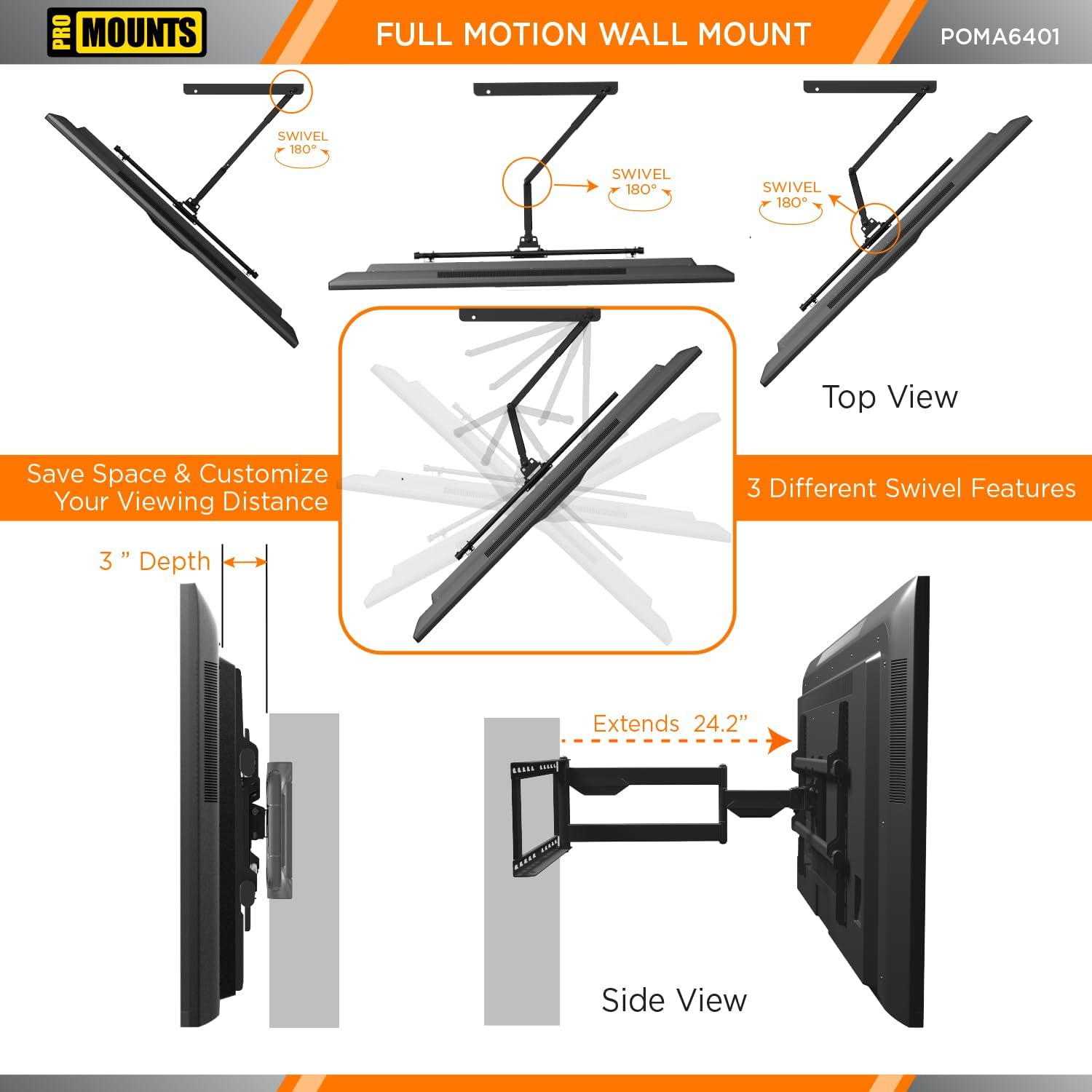

The ProMounts POMA6401 offers total adjustability for optimal viewkampų.

• Pratęsimas: Extend your TV up to 24.2 inches (61.5 cm) from the wall or retract it to a low profile of just 3 inches (7.6 cm).
• Pakreipimo reguliavimas: Adjust the tilt from -15° to 5° to reduce glare and achieve the perfect viewing angle. This mount features TouchTilt technology for tool-less adjustments.
• Sukimosi diapazonas: Swivel your TV up to +/-180° to direct the screen towards any part of your room or outdoor area.
• Apverčiamas montavimas: The mount can be configured for left or right mounting to suit your space.
• Kabelių valdymas: Utilize the integrated cable management system to keep cables organized and out of sight, enhancing both aesthetics and cable longevity.

5. Priežiūra

The ProMounts POMA6401 is constructed from high-quality matte-finish steel and stainless steel, designed for durability in both indoor and outdoor environments.

• Valymas: Nuvalykite laikiklį minkšta,amp cloth to remove dust and dirt. Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
• Patikra: Periodically inspect all screws and connections to ensure they remain tight and secure.
• Atsparumas oro sąlygoms: The weatherproof design ensures resistance to outdoor elements. However, regular inspection for any signs of wear or corrosion is recommended, especially in harsh weather conditions.

6. Problemų sprendimas

If you encounter any issues with your ProMounts POMA6401 TV mount, please refer to the following common solutions:

• Televizorius nelygus: Use the built-in bubble level during installation to ensure the wall plate is perfectly horizontal. Minor adjustments can often be made by slightly loosening and re-tightening the mounting screws on the TV brackets.
• Judesių reguliavimo sunkumai: Ensure all locking mechanisms and adjustment knobs are sufficiently loosened before attempting to move the TV. If movement is still stiff, apply a small amount of silicone-based lubricant to the pivot points.
• Cables Tangled: Re-route cables using the integrated cable management clips or additional cable ties to prevent tangling during movement.
• Mount jaučiasi laisvas: Immediately remove the TV and re-check all wall and TV connections. Ensure all screws are tightened to the recommended torque and that the mounting surface is structurally sound.

7. Specifikacijos

8. Garantija ir palaikymas

For warranty information or any questions regarding your ProMounts POMA6401 TV mount, please contact Promounts AV Products USA directly. Their contact information can typically be found on their official websvetainėje arba per pardavėją, iš kurio įsigijote produktą.

If you have any questions along the way, just message us.
