Okin 2-Pin Y Splitter Cable Power Cord Replacement (4.6ft & 0.66ft)

1. Produktas baigtasview

The Okin 2-Pin Y Splitter Cable is designed to provide a multi-functional power solution for electric furniture. This cable allows a single power supply transformer to power two motors simultaneously, commonly found in electric recliners and lift chairs. It features a 2-pin hybrid plug (one round, one flat) for connection to the transformer and two 2-pin sockets with clips for motor attachment. This product is ideal for replacing damaged cords or expanding existing power systems.

Image 1: The Okin 2-Pin Y Splitter Cable, showing the main cable and two branch cables.

2. Saugos informacija

Always disconnect power from the main power supply before installing or removing the splitter cable.
Ensure all connections are secure and free from damage before restoring power.
Do not expose the cable to water or excessive moisture.
Avoid placing heavy objects on the cable or bending it sharply, as this can cause damage.
If the cable appears damaged, discontinue use immediately and replace it.

3. Pakuotės turinys

1 x Okin 2-Pin Y Splitter Cable Power Cord (Main cable: 4.6 ft, Branch cables: 55 inches and 8 inches)

Note: Motor and transformer are not included.

4. Sąranka ir diegimas

Follow these steps to correctly install your Okin Y Splitter Cable:

Atjunkite maitinimą: Ensure the electric recliner or lift chair is unplugged from the wall outlet to prevent electrical hazards.
Nustatykite ryšius: Locate the power supply transformer and the motor connection ports on your electric furniture.
Prijunkite prie transformatoriaus: Take the 2-pin hybrid plug (one round, one flat) of the Okin Y splitter cable and securely connect it to the output port of your power supply transformer.
Connect to Motors: Attach each of the two 2-pin sockets with clips from the Y splitter cable to the corresponding input ports on your recliner motors. Ensure the clips are fully engaged for a secure connection.
Tvarkyti kabelius: Route the cables neatly to avoid pinching or tripping hazards.
Atkurti maitinimą: Once all connections are secure, plug the electric recliner or lift chair back into the wall outlet.

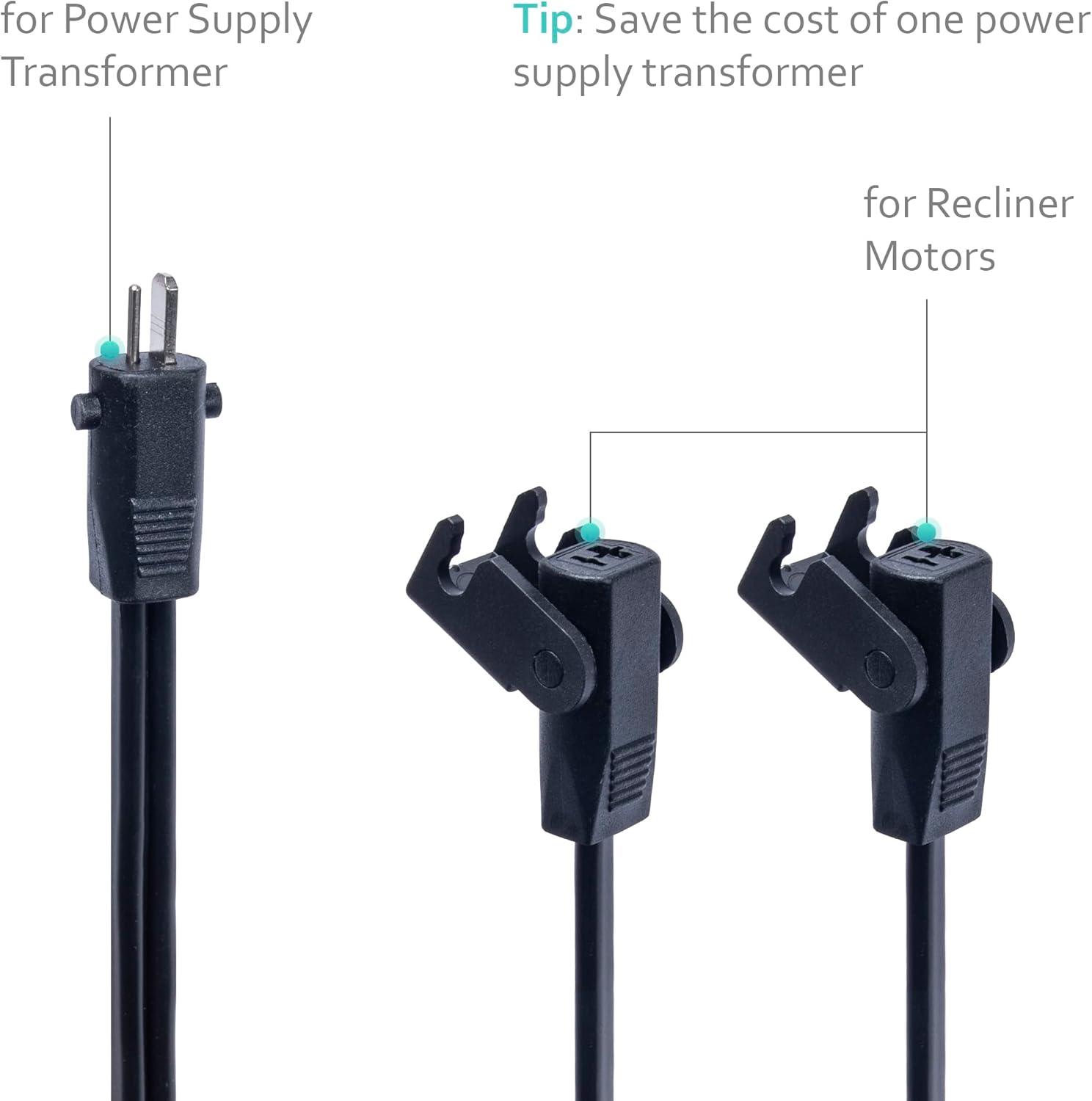

Diagram showing Okin Y Splitter Cable connections to transformer and motors

Image 2: Connection diagram illustrating how to connect the Y splitter cable to a power supply transformer and two recliner motors.

5. Naudojimo instrukcijos

Once the Okin Y Splitter Cable is correctly installed, the operation of your electric recliner or lift chair remains unchanged. Use the existing controls (hand remote or integrated buttons) of your furniture to operate the motors as usual. The splitter cable simply facilitates power distribution from a single source to two motors.

6. Priežiūra

Valymas: Wipe the cable with a dry, soft cloth. Do not use liquid cleaners.
Patikra: Periodically inspect the cable for any signs of wear, cuts, or damage to the insulation or connectors.
Saugykla: If storing the cable, coil it loosely. Avoid tight coiling or kinking, which can damage the internal wires.
Aplinka: Keep the cable away from extreme temperatures, direct sunlight, and areas where it might be chewed by pets or damaged by furniture movement.

7. Problemų sprendimas

Problema	Galima priežastis	Sprendimas
No power to either motor.	Main power supply unplugged. Faulty power supply transformer. Y splitter cable not securely connected to transformer. Damaged Y splitter cable.	Check wall outlet and main power cord. Test transformer with a single motor if possible, or replace. Ensure the 2-pin hybrid plug is fully inserted into the transformer. Patikrinkite kabelį, ar nėra matomų pažeidimų; jei reikia, pakeiskite.
Only one motor receives power.	Loose connection to the non-working motor. Sugedęs variklis. Damage to one branch of the Y splitter cable.	Check the 2-pin socket connection to the non-working motor. Test the motor directly if possible, or swap connections to isolate the issue. Inspect the specific branch cable for damage; replace the Y splitter if damaged.

8. Specifikacijos

Modelio numeris: R5.216.01.024D
Main Cable Length: 1.4 metrų (4.6 pėdos)
Branch Cable Lengths: 140 cm (55 coliai) ir 20 cm (8 coliai)
Connector Type (Input): 2-pin hybrid plug (one round, one flat)
Connector Type (Output): Two 2-pin sockets with clips
Medžiaga: High-quality pure copper core
Prekės svoris: Maždaug 2.89 uncijos
Pakuotės matmenys: 8.7 x 6.34 x 1.14 colio

9. Suderinamumas

This Okin 2-Pin Y Splitter Cable is compatible with a wide range of electric recliners and lift chairs that utilize a 2-pin hybrid connection for their power supply and motors. Known compatible brands include:

Okin
Dewert
Lazyboy
Pasididžiavimas
Catnapper
Limuzinas

Always verify the plug design of your existing components to ensure compatibility before purchase.

10. Garantija ir palaikymas

For any questions, concerns, or support regarding your Okin 2-Pin Y Splitter Cable, please contact Okin customer service. Refer to your product packaging or the Okin official websvetainėje rasite naujausią kontaktinę informaciją ir garantijos sąlygas.
