Maclean MCE358 PIR Motion Sensor User Manual

1. Įvadas

This manual provides detailed instructions for the installation, operation, and maintenance of your Maclean MCE358 PIR Motion Sensor. This infrared motion sensor features a built-in twilight sensor, a 180-degree detection angle, and a maximum range of 12 meters. It is designed for outdoor use with an IP44 rating and can handle a maximum resistive load of 1200W, making it suitable for various lighting applications, including LED.

2. Saugos informacija

• Elektros sauga: Installation should only be performed by a qualified electrician or competent person in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
• ttage: This device operates on standard AC mains voltage. Verify your local voltage atitinka gaminio specifikacijas.
• IP44 reitingas: The sensor is rated IP44, meaning it is protected against solid objects over 1mm and splashes of water from any direction. It is suitable for outdoor use but should not be submerged in water.
• Apkrova: Do not exceed the maximum load capacity of 1200W (resistive load) or 300W (LED/inductive load) to prevent damage to the sensor and connected devices.
• Šiluma: Avoid installing the sensor near heat sources such as vents, heating units, or direct sunlight, as this may affect its performance.

3. Pakuotės turinys

Patikrinkite pakuotę, ar joje yra šie daiktai:

• Maclean MCE358 PIR Motion Sensor (Black)
• Tvirtinimo varžtai ir sieniniai kaiščiai
• Vartotojo vadovas

4. Produktas baigtasview

The Maclean MCE358 PIR Motion Sensor is designed for reliable motion detection. Familiarize yourself with its components:

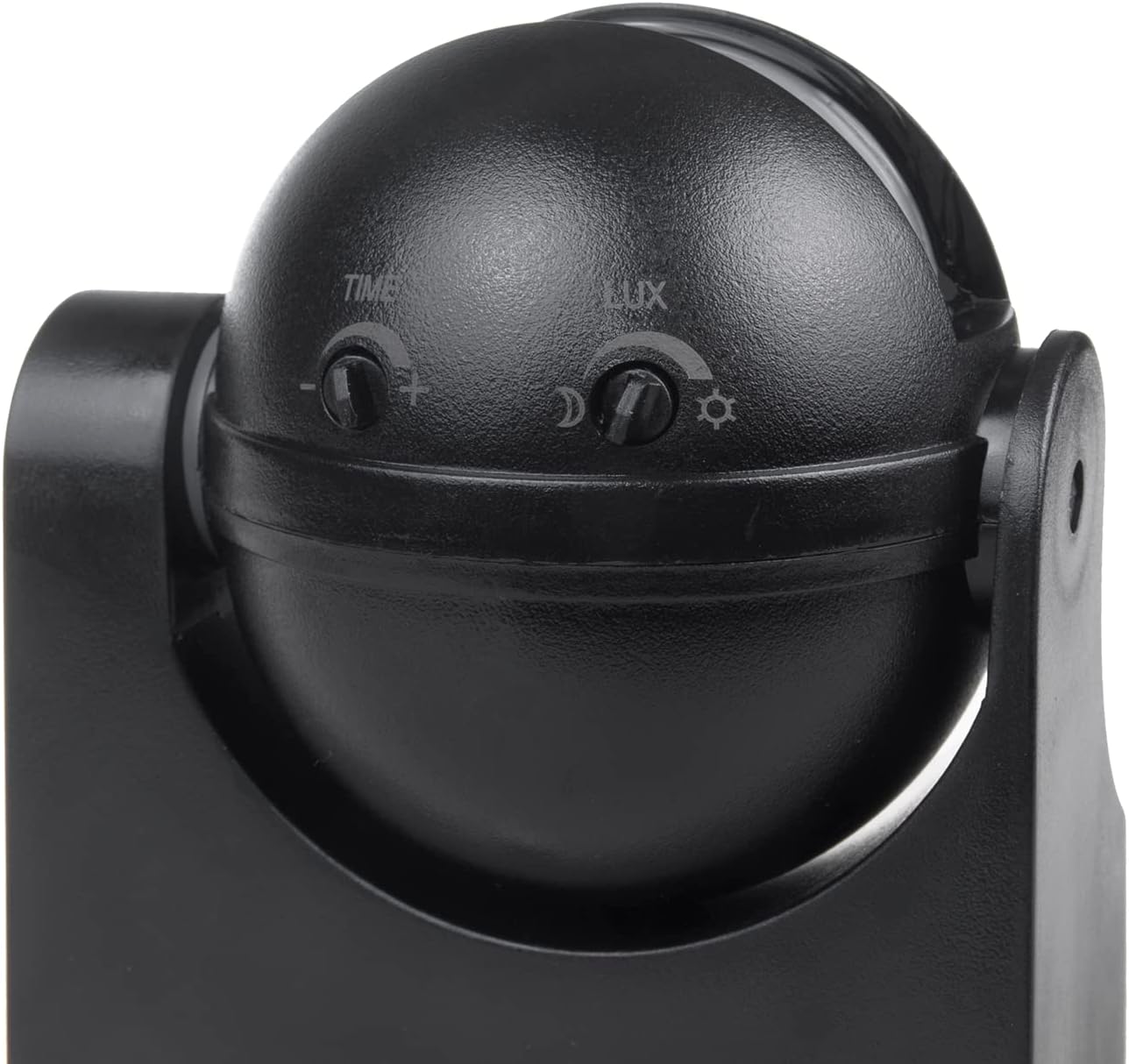

The sensor features two main adjustment knobs:

• LUX rankenėlė: Controls the ambient light sensitivity. This determines at what light level the sensor will activate the connected load.
• LAIKO rankenėlė: Adjusts the duration for which the connected load remains ON after motion is detected.

5. Specifikacijos

6. Sąranka ir diegimas

Norėdami saugiai ir teisingai įdiegti, atlikite šiuos veiksmus:

1. Pasirinkite vietą: Select a suitable wall-mount location, ideally between 1.8m and 2.5m from the ground, where the sensor can cover the desired detection area without obstruction. Avoid aiming it directly at heat sources or reflective surfaces.
2. Atjunkite maitinimą: Before starting any electrical work, ensure the main power supply to the circuit is switched off at the fuse box or circuit breaker.
3. Montavimas:
   • Use the provided mounting screws and wall plugs to securely attach the sensor's base to the wall.
   • Ensure the sensor is firmly fixed and stable.



4. Laidai:
   • Connect the live (L), neutral (N), and load (L') wires according to the wiring diagram provided inside the sensor or on its casing.
   • Typically, 'L' connects to the incoming live wire, 'N' to the incoming neutral wire, and 'L'' to the live wire of the light fixture or device you wish to control.
   • Įsitikinkite, kad visos jungtys yra sandarios ir izoliuotos.
5. Atkurti maitinimą: Kai įrengimas bus baigtas ir visos jungtys bus tvirtai pritvirtintos, atkurkite elektros tiekimą į grandinę.

7. Naudojimo instrukcijos

After installation, you can adjust the sensor's settings to suit your needs:

1. Adjusting LUX (Light Sensitivity):
   • Pasukite LUX knob (marked with sun and moon symbols) to set the ambient light level at which the sensor will become active.
   • Turning towards the saulės simbolis (max) means the sensor will operate in both daylight and darkness.
   • Turning towards the moon symbol (min) means the sensor will only activate in low light conditions or darkness.
2. Adjusting TIME (Duration):
   • Pasukite LAIKAS knob (marked with '+' and '-' symbols) to set how long the connected light or device remains on after motion is detected and before it turns off.
   • Turning towards „+“ increases the duration.
   • Turning towards '-' decreases the duration.
   • The typical range is from a few seconds to several minutes.
3. Jutiklio testavimas:
   • Set the LUX knob to the maximum (sun symbol) and the TIME knob to the minimum.
   • Walk into the detection area. The light should turn on.
   • Wait for the light to turn off (after the minimum set time).
   • Walk into the detection area again to confirm activation.
   • Once confirmed, adjust the LUX and TIME settings to your desired operational parameters.

8. Priežiūra

To ensure optimal performance and longevity of your Maclean MCE358 PIR Motion Sensor:

• Valymas: Periodiškai nuvalykite jutiklio lęšį ir korpusą minkšta,amp cloth. Do not use abrasive cleaners or solvents, as these can damage the plastic and affect sensor performance.
• Patikra: Regularly check for any signs of damage to the housing or wiring. If any damage is found, disconnect power and have it inspected by a qualified technician.
• Kliūtys: Ensure that there are no new obstructions (e.g., growing plants, new structures) blocking the sensor's field of view.

9. Problemų sprendimas

If you encounter issues with your motion sensor, refer to the following common problems and solutions:

10. Garantija ir palaikymas

Maclean products are designed for reliability and performance. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Maclean websvetainėje, kurioje pateikiamos išsamios garantijos sąlygos.

For technical support, troubleshooting assistance, or warranty claims, please contact Maclean customer service through their official channels. Keep your purchase receipt as proof of purchase.
